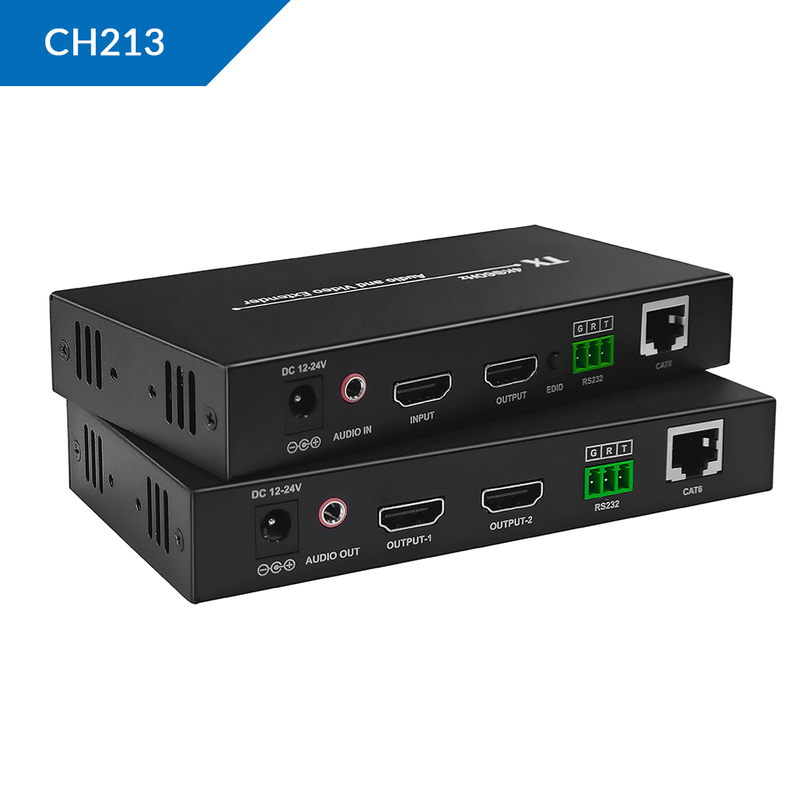

ZY-CH213

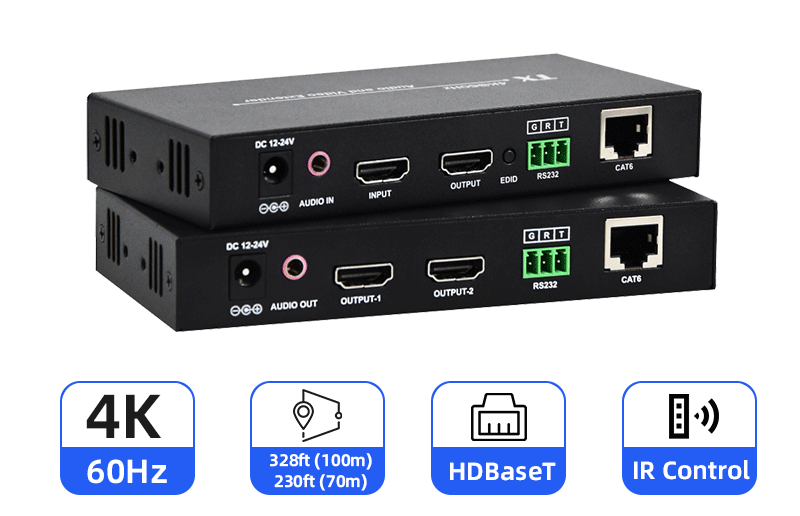

ORIVISION HDMI2.0 HDBaseT Extender extends uncompressed HDMI audio and video signals up to 100m at 1080P@60Hz or 70m at 4K@60Hz over a single CAT6 cable, making it suitable for UHD conference systems, teaching systems, video shooting, digital advertising, conference room integration, and home theater setups. It supports HDMI 2.0 and HDCP 2.2, with 18Gbps total bandwidth and 600MHz pixel clock, delivering stable 4K transmission for computers, media players, cameras, and video conferencing terminals connected to displays, projectors, or monitors.
The extender features bi-directional IR return (20-60KHz), RS232 pass-through up to 115200bps, independent 3.5mm audio transmission, and POC single-side power supply — power can be connected to either the transmitter or receiver. Additional functions include EDID learning, HDMI loop output, CEC support, and built-in ESD protection. The compact metal casing is wall-mountable and supports plug-and-play installation with no software required.
Review the comprehensive technical specifications for the ZY-CH213 HDMI 2.0 HDBaseT Extender below. This data sheet provides essential parameters for system integrators and AV professionals to evaluate compatibility, transmission capabilities, and installation requirements. The specifications cover video resolution limits, audio formats, control interface details, and physical environmental tolerances to ensure accurate project planning.
Model | ZY-CH213 |
Video | |
Interface Standard | HDMI 2.0; HDCP 2.2 |
Pixel Bandwidth | 600MHz, full digital |
Interface Bandwidth | 18Gbps |
Resolutions | 3840x2160@60Hz and downward compatible |
Video Interface | HDMI-A |
Impedance | 100Ω |
Recommended Maximum DP Cable Input/Output Distance | Less than 5m at 1920x1080@60Hz |
Audio | |
Audio Format | 44.1K, 48K, 96K, 176K, 192K |
Interface | 3.5 mm stereo audio jack |
Signal Type | Stereo |
IR | |
IR Interface | Standard 3.5mm audio interface |
IR Frequency | 20-60KHz |
IR Signal Type | Digital signal |
IR Transmission Direction | Bi-directional |
RS232 | |
Interface | Industrial terminal block |
Signal Direction | Bi-directional pass-through |
Baud Rate | Adaptive, up to 115200bps |
Data Bits | 8 bits |
Network | |
Interface | Standard RJ45 (568B) |
Distance | Cat6: 1080P@60Hz up to 100m; 4K@60Hz up to 70m |
Other | |
Operating Temperature | -5℃ ~ +70℃ |
Operating Humidity | 5% ~ 90% |
Power | DC 12V/2A |
Dimension (W×L×H) | 142*67*23mm |
Weight | 0.25kg/unit |
Power Consumption | MAX 12W |

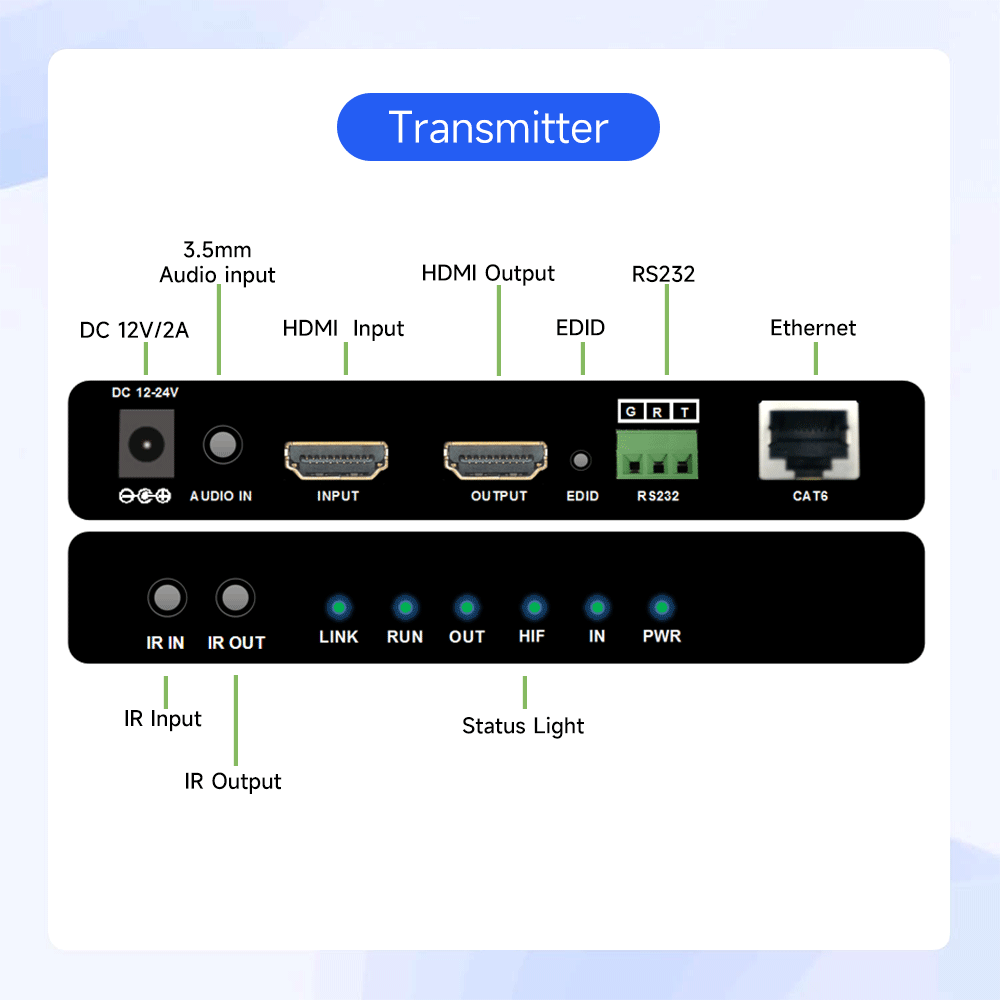

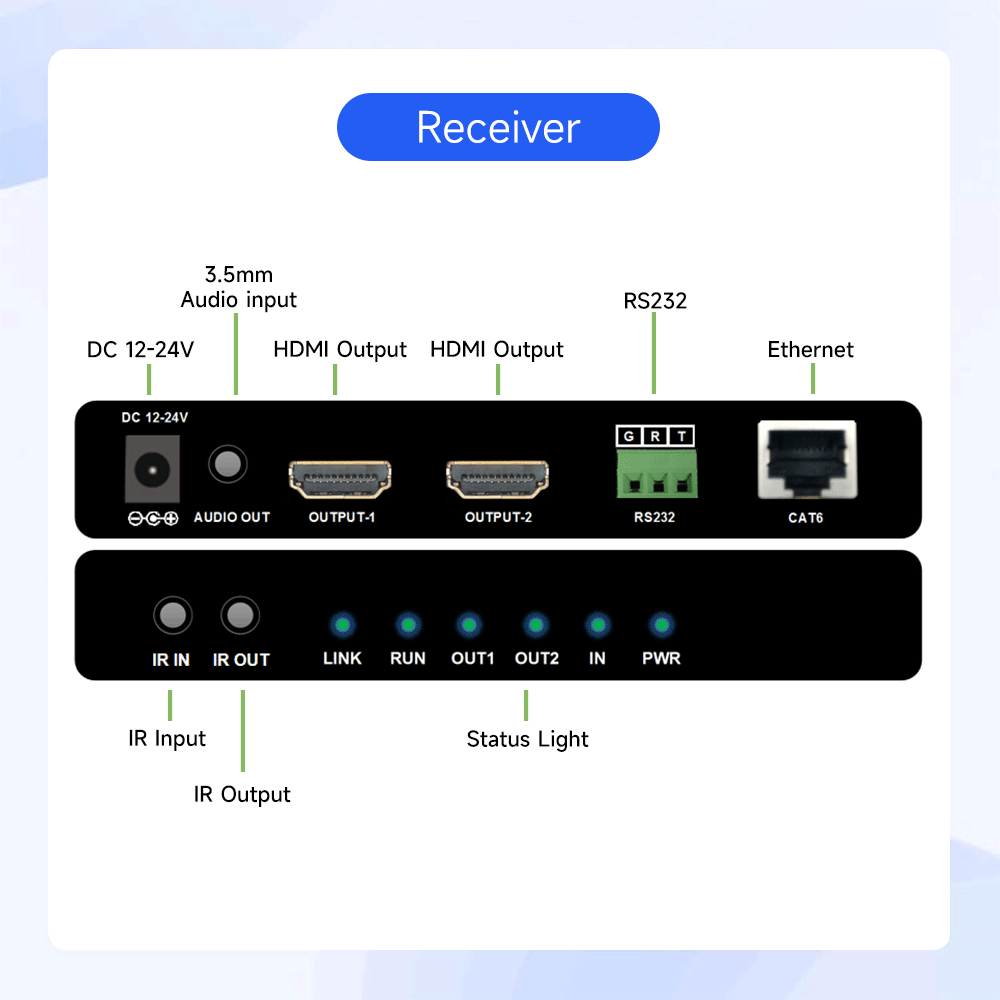

Equipped with standard RJ45 networking interfaces and industrial terminal blocks for RS232, this HDBaseT extender is engineered for stable integration into complex AV control systems. The bi-directional IR and RS232 pass-through functions offer flexible management options for remote displays and sources. Additionally, the broad operating temperature range (-5℃ to +70℃) ensures consistent signal distribution across diverse commercial and residential project environments.

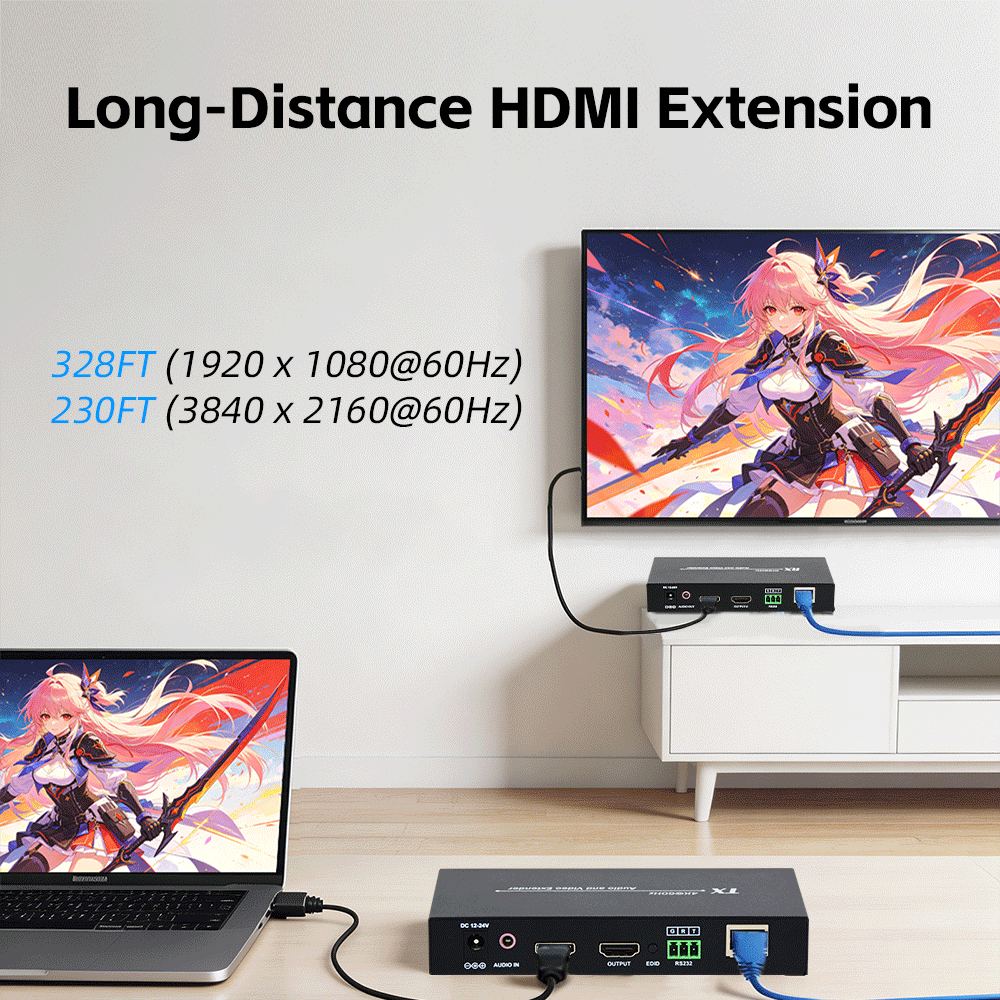

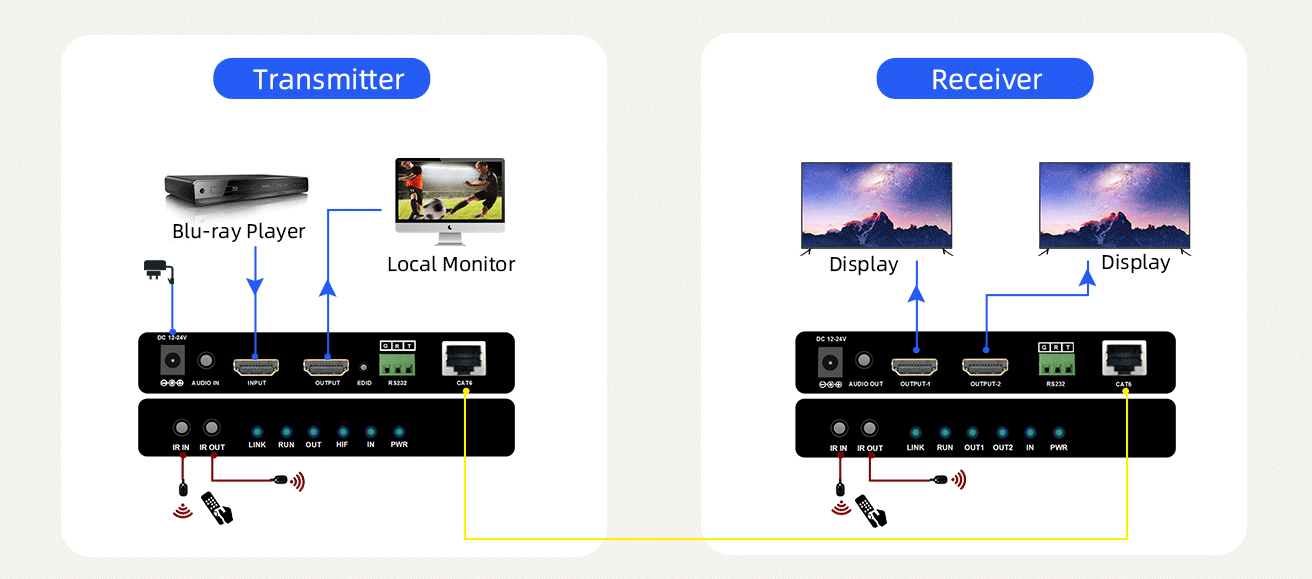

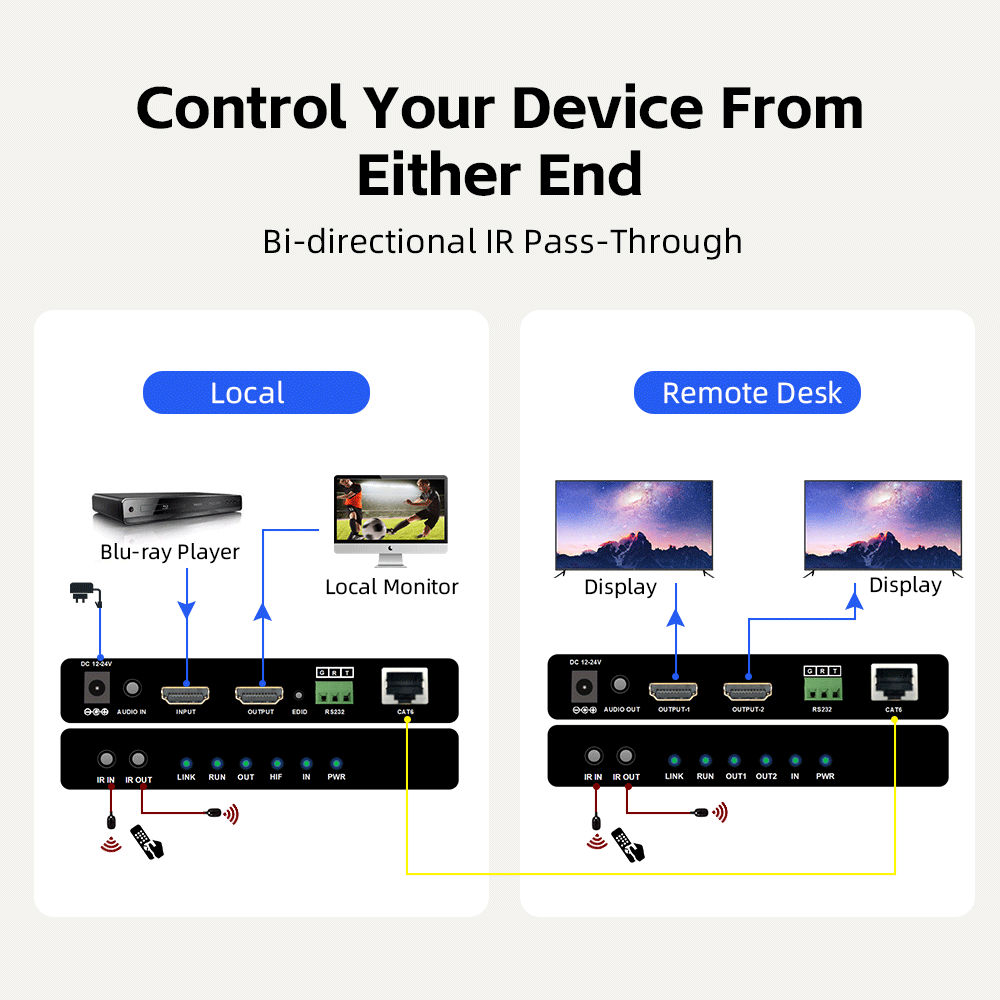

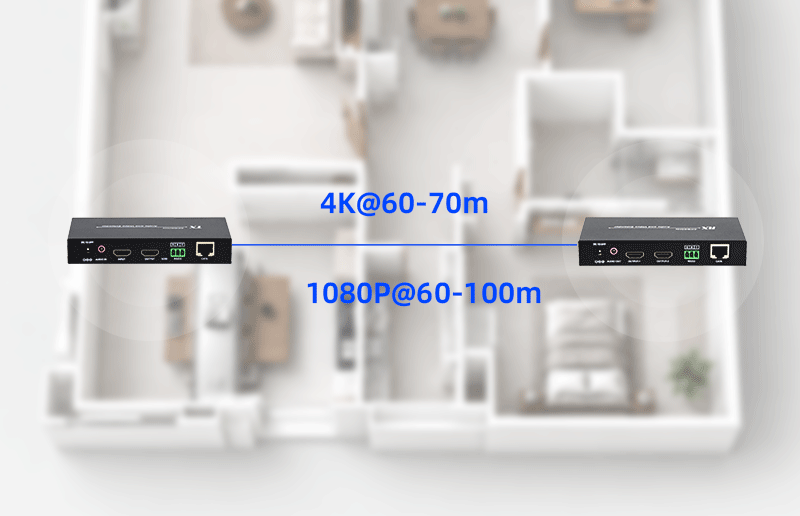

The diagram above illustrates the typical connection topology for the 100M/328FT HDMI 2.0 HDBaseT Extender. It visually demonstrates how to link the transmitter and receiver units using a standard network cable. This straightforward setup ensures the reliable extension of high-definition video, audio, and IR control signals between source devices and remote displays, providing a clear reference for efficient installation in professional audiovisual projects.
What is the maximum transmission distance?
Up to 100m at 1080P@60Hz or 70m at 4K@60Hz over a single CAT6 cable. Using pure copper CAT6 or higher specification cable is recommended for stable performance.
Does it support 4K@60Hz?
Yes. It supports up to 3840x2160@60Hz with 18Gbps bandwidth and 600MHz pixel clock, and is downward compatible with 1080P and lower resolutions.
What cable should I use?
A single CAT6 or higher specification network cable (RJ45, 568B wiring). Pure copper cable is recommended for maximum distance and signal stability.
Does it support HDCP?
Yes. It complies with HDCP 2.2 and HDMI 2.0, compatible with protected content from sources such as Blu-ray players, streaming devices, and computers.
How does POC single-side power work?
The entire system can be powered by connecting one power adapter to either the transmitter or the receiver. Connecting the power adapter to the receiver is recommended for more convenient installation.
