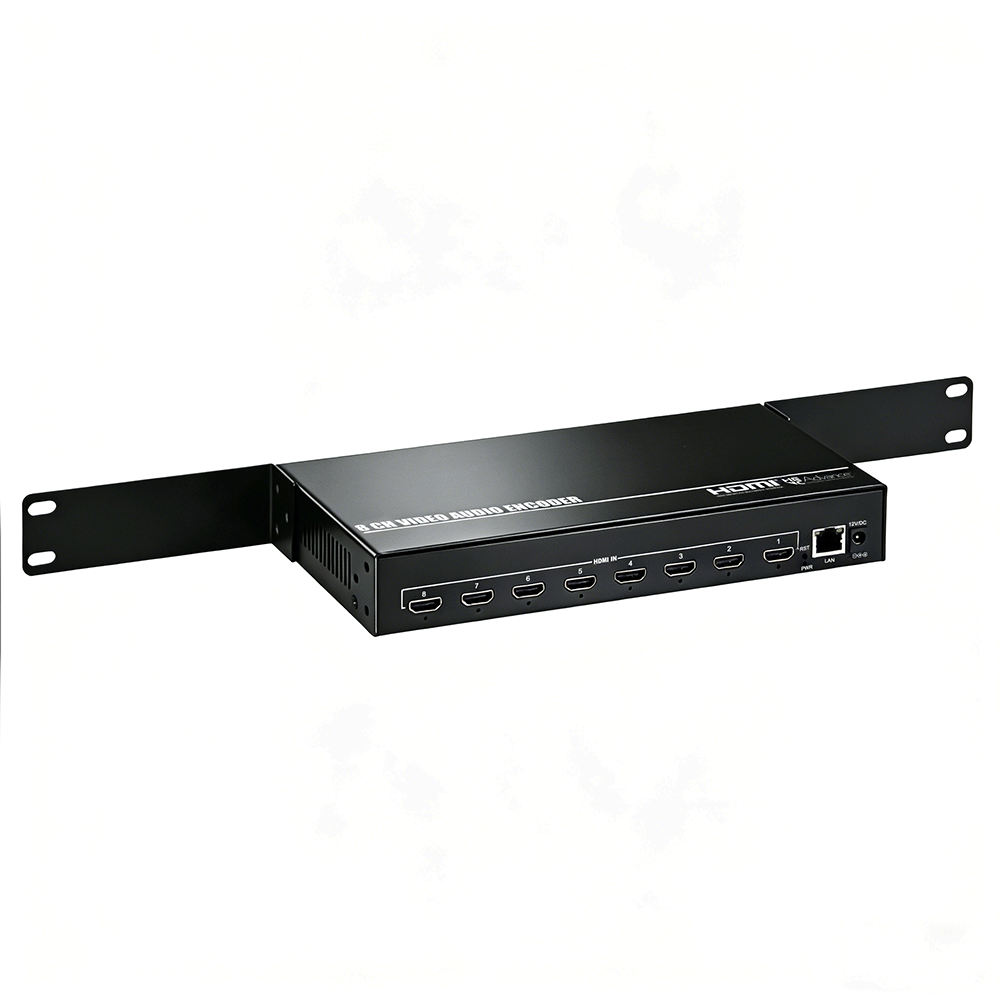

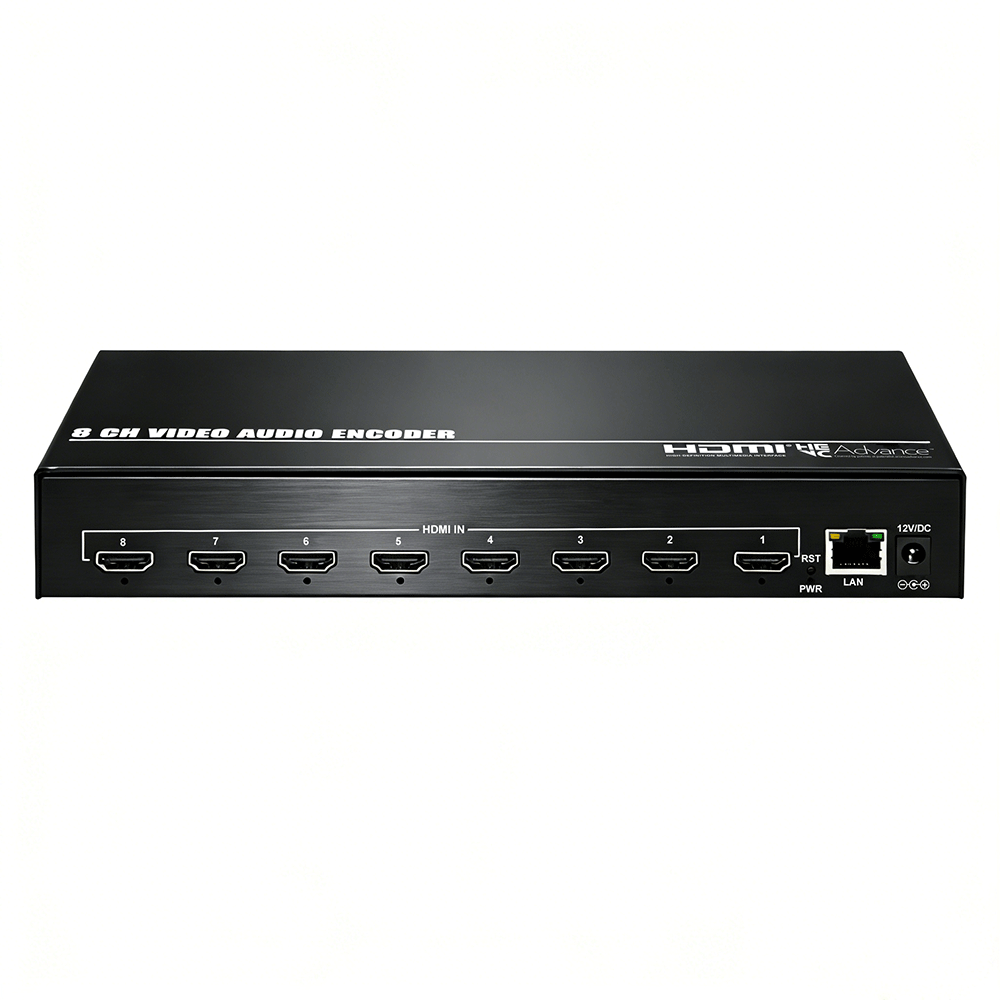

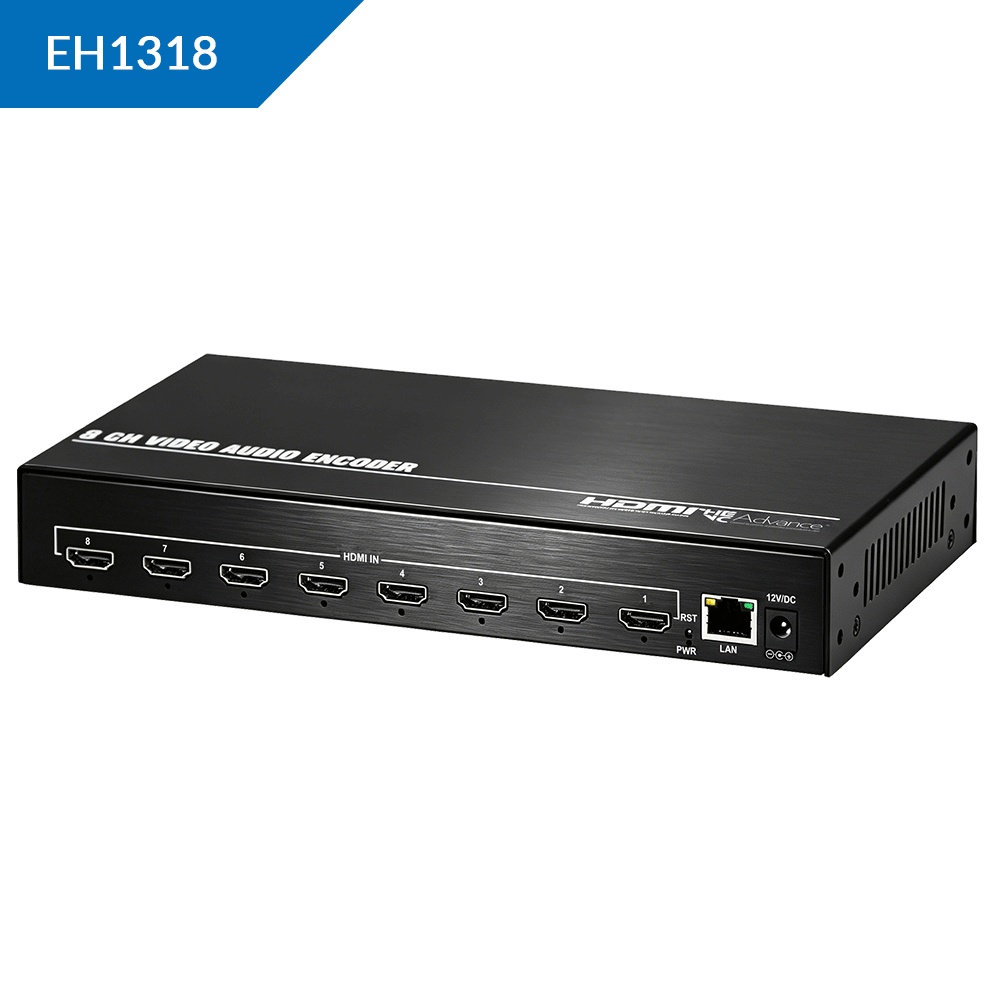

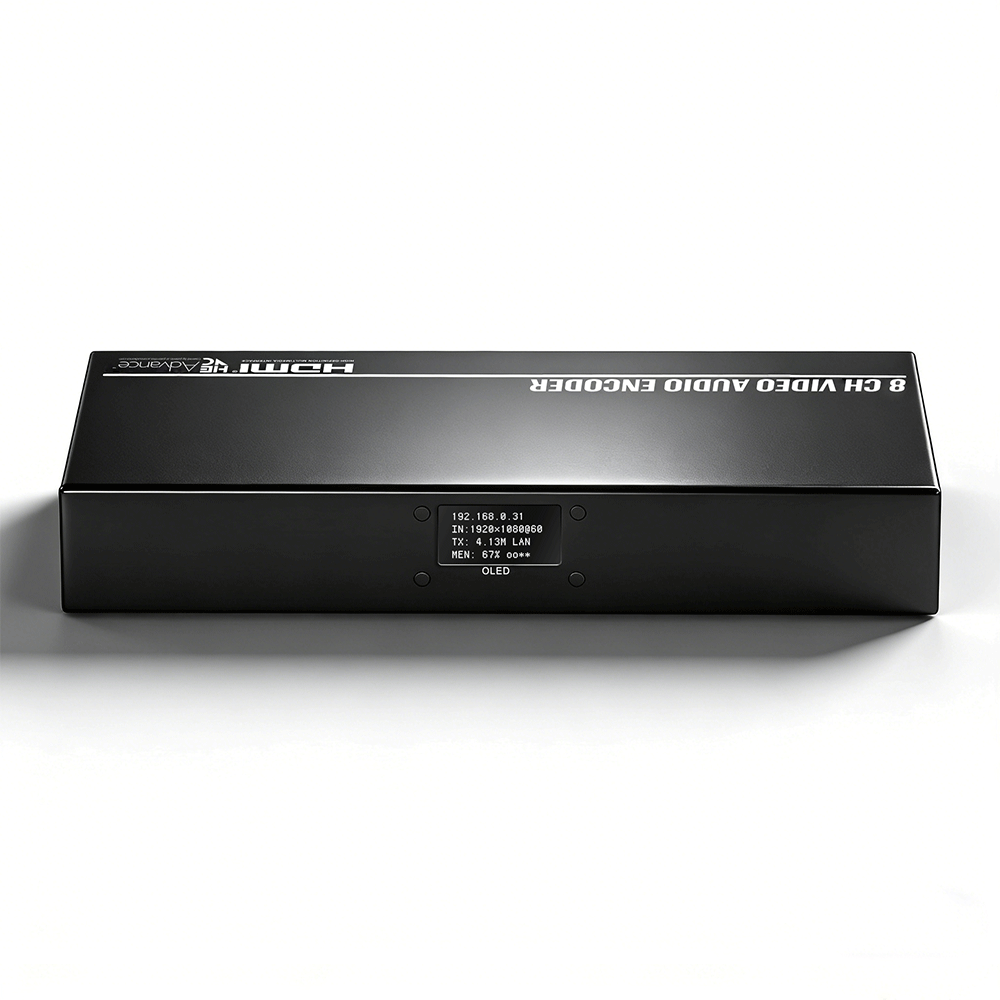

H.265&H.264 8 Channels 1080P30 HDMI Video Encoder 1U

Brand: ORIVISION
Model: ZY-EH1318
Input Interface: HDMI*8
Output Interface: RJ45*1
Video Encoding: H.264/H.265/MJPEG
Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP protocol
Power: 12V/DC (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs


Availability:



Inquire

Model:
EH1318

Description

Introduction

Parameters

Diagram

EH1318-1

Introduction

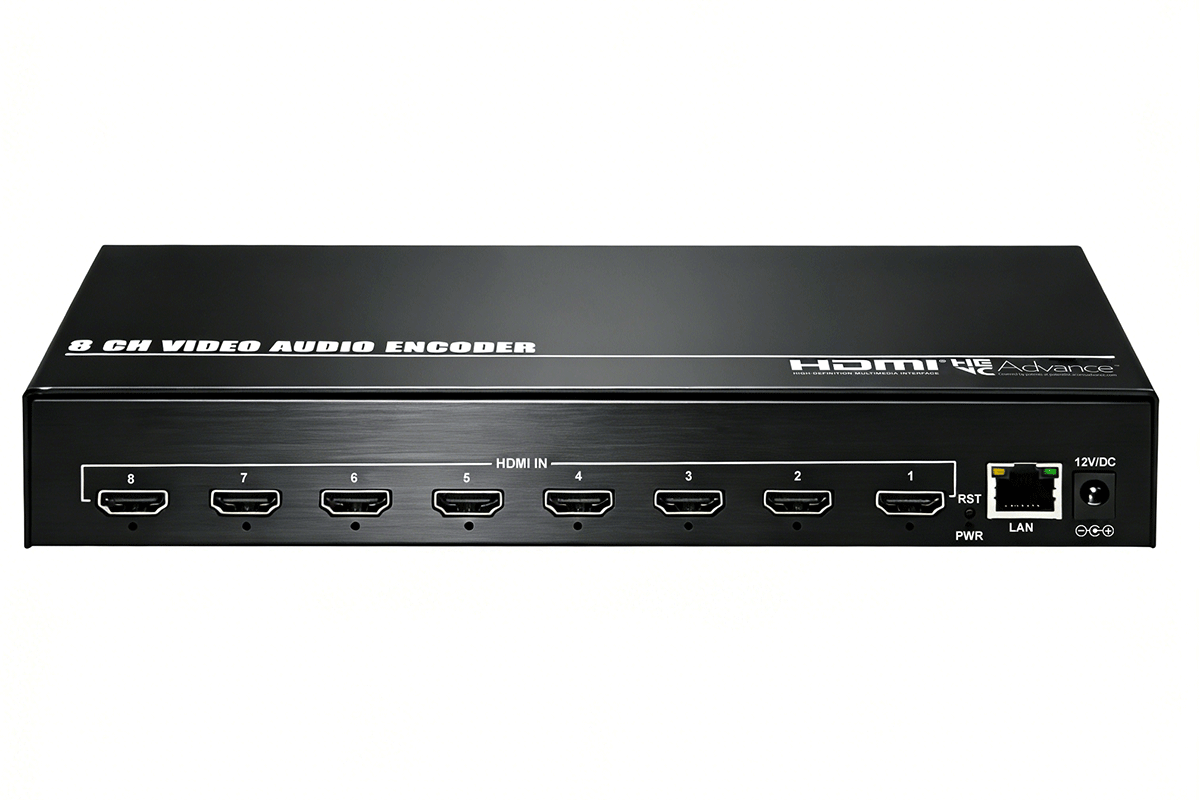

8 Channels H.265&H.264 HDMI Video Encoder

EH1318 is a professional hardware video and audio encoder designed to meet up to the 8CH 1080P30 HDMI video transmission applications simultaneously. It supports H.265/H.264/MJPEG high performance encoding. Also, it supports most protocols including SRT/HTTP/HTTPS/ RTSP/RTMP/RTMPS/UDP/RTP/FLS/FLV/Onvif, etc.
Adopt H.265 to save over 50% bandwidth

With H.265 HEVC encoding, EH1308 realizes lower encoding bitrate and save more than 50% bandwidth with same image quality comparing with H.264.
Real HD 1080P30 Video Supported

It supports real HD video output with resolution up to 1920*1080P@30FPS to ensure that the image quality is perfect.
Live streaming to 32 platforms Simultaneously

Support 8 channels HDMI output, each channel can be used to up to 4 platforms with the same or different protocols, altogether it can simultaneously live stream to up to 32 platforms.
More Protocols Supported

Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/HLS/TS-UDP, that means live stream with RTMP/RTMPS, while remote production with SRT.
Audio Synchronization Encoding

Support ACC, MP2, G711 audio format,support audio encoding without the video input.

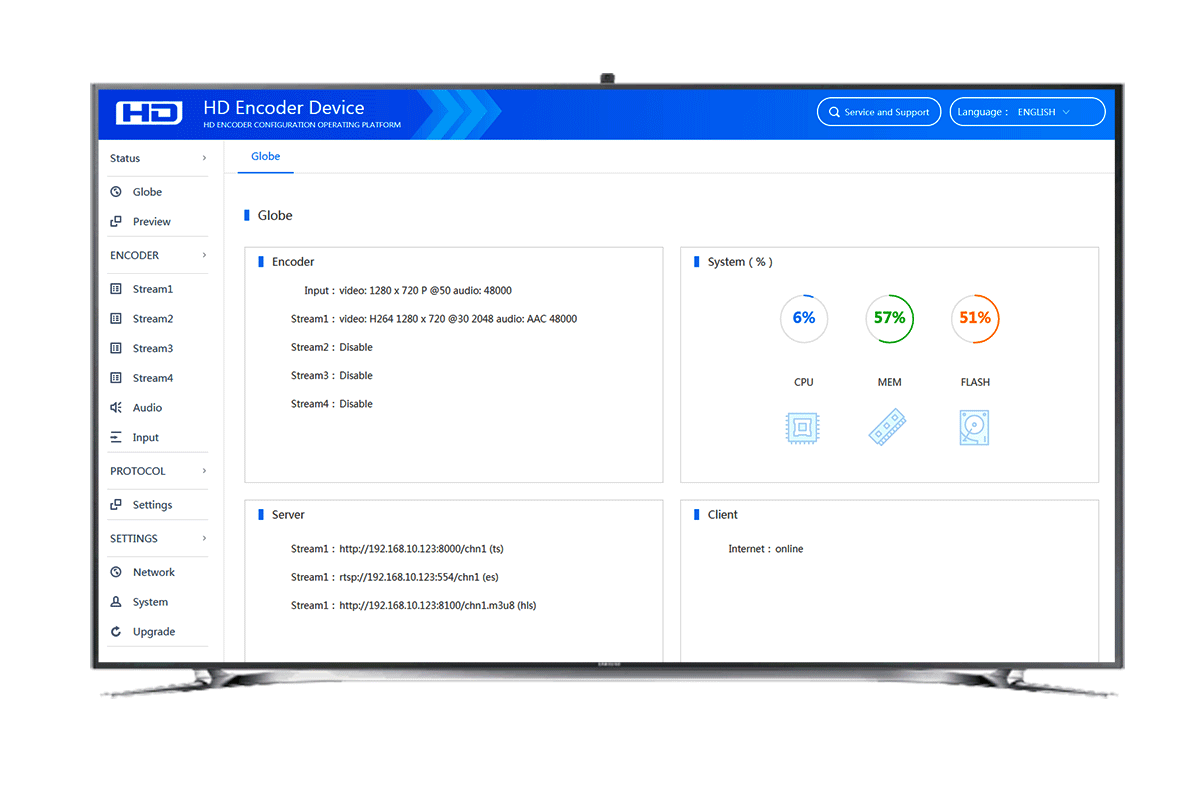

Web Control

Friendly web UI, users can configure background subjects including LOGO, frame, and graphic overlay with the encoder.
LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights.
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit.
ODM: Pls send your requirements to us. (info@orivision.cn).

Parameters of 8 Channels HDMI Video Encoder

Model	ZY-EH1318
Video
Input Interface	8 x HDMI 1.4
Support Resolution	19201080\1280720\ 1024576\960540\850480\720576\720540\720480\ 720404\704576\640480\640360\Auto
Frame rate	≤30Hz
HDCP	HDCP 1.4
Output interface	1 x Ethernet port(RJ45)
Video Encoding	H.265/H.264/Baseline Profile/Main profile/High Profile/MJPEG
Max bitrate	16kbps- 20Mbps
Rate control	CBR/VBR
Audio
Audio Encoding	MP2/AAC/G711/AC3
Audio Data-rate	64Kb/s~384Kb/s
Bit-rate Option	32000, 44100, 48000, etc
Network
RJ45	1000M Ethernet port
Program Streaming	SRT, HTTP, RTSP, RTMP/RTMPS, HLS, FLV, ONVIF, Multicast: UDP/RTP
Control Panel	Web panel (Language is English), remote upgrade
Firmware Update	Enable by uploading files to the dashboard
General
Dimension(WLH)	48.5cm×21.5cm×4.5cm
Gross Weight	1.75kg
Temperature	0 ~ 45℃（for working）,-20~60℃（for storing)
Humidity	<90%, non-condensing
Input Voltage	12V/DC
Power Consumption	<15W

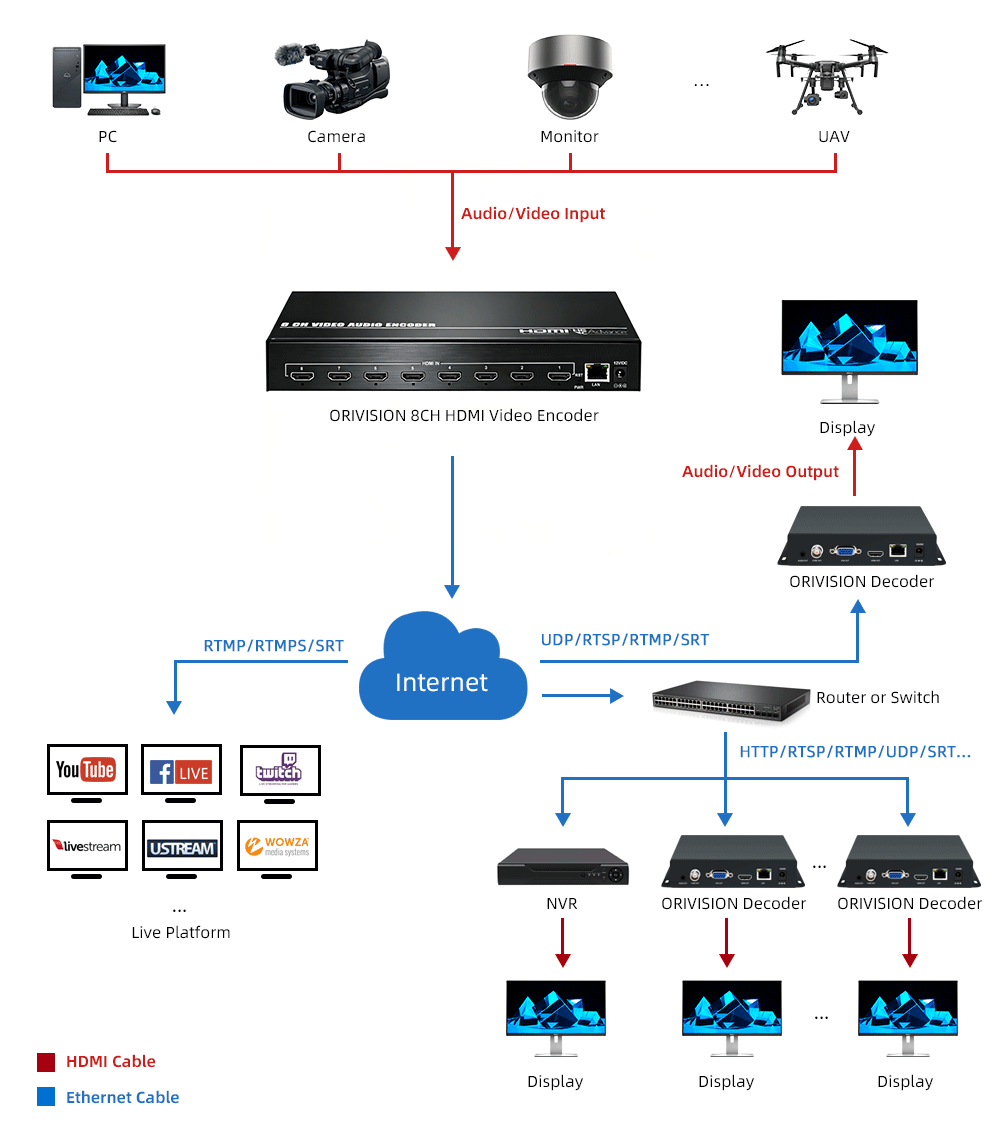

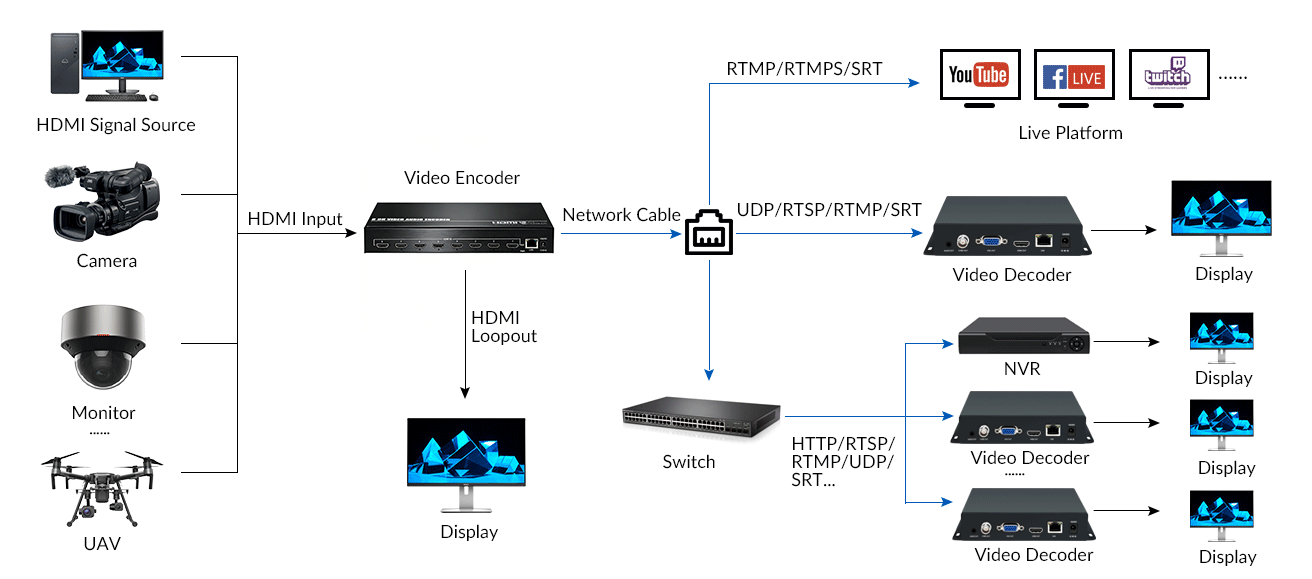

Diagram of 8 Channels HDMI Video Encoder

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.
