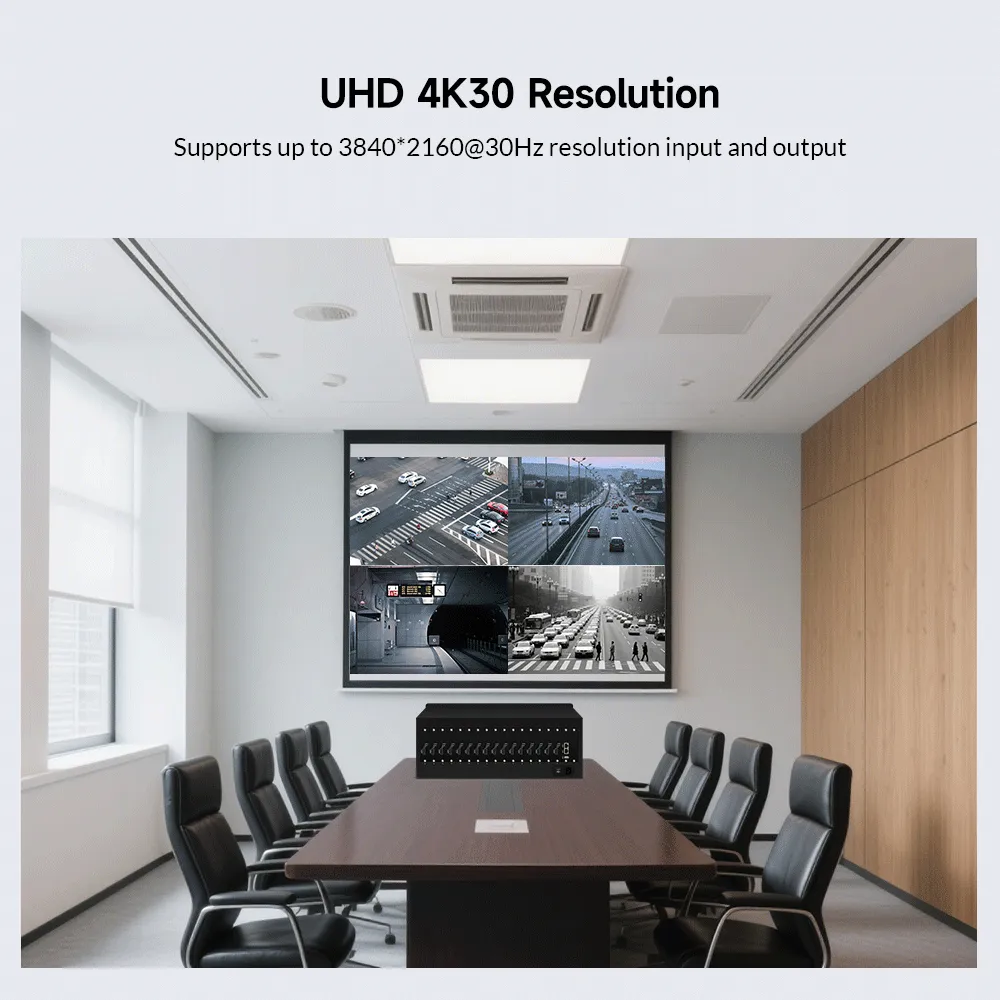

Supports up to 3840*2160@30Hz resolution input and output；
Adopt Linux operating system and plug-in card structure;
Supports simultaneous decoding of network cameras from different IP subnet segments;
Supports on-screen scrolling text display (e.g., welcome messages) with customizable font size and color;

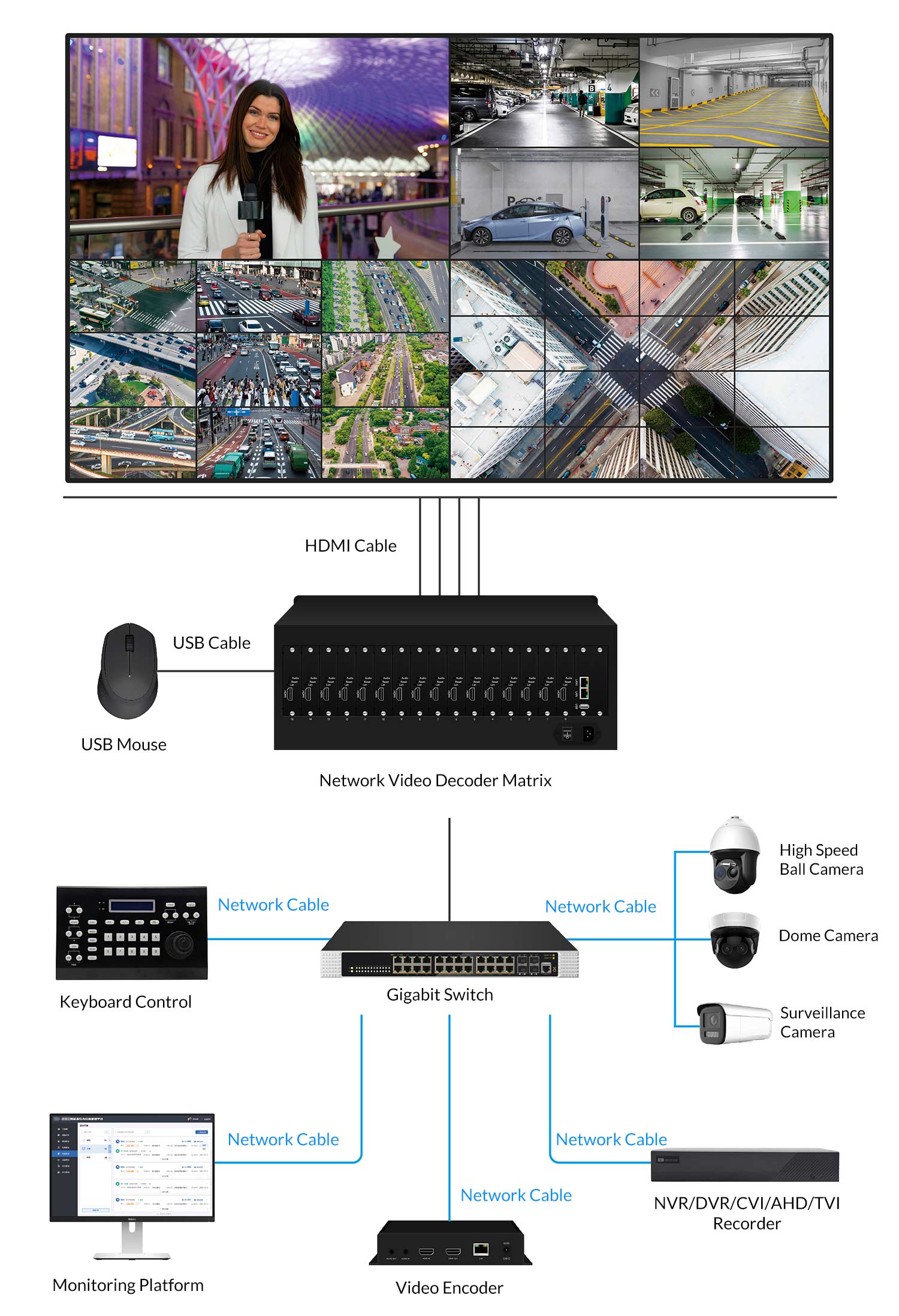

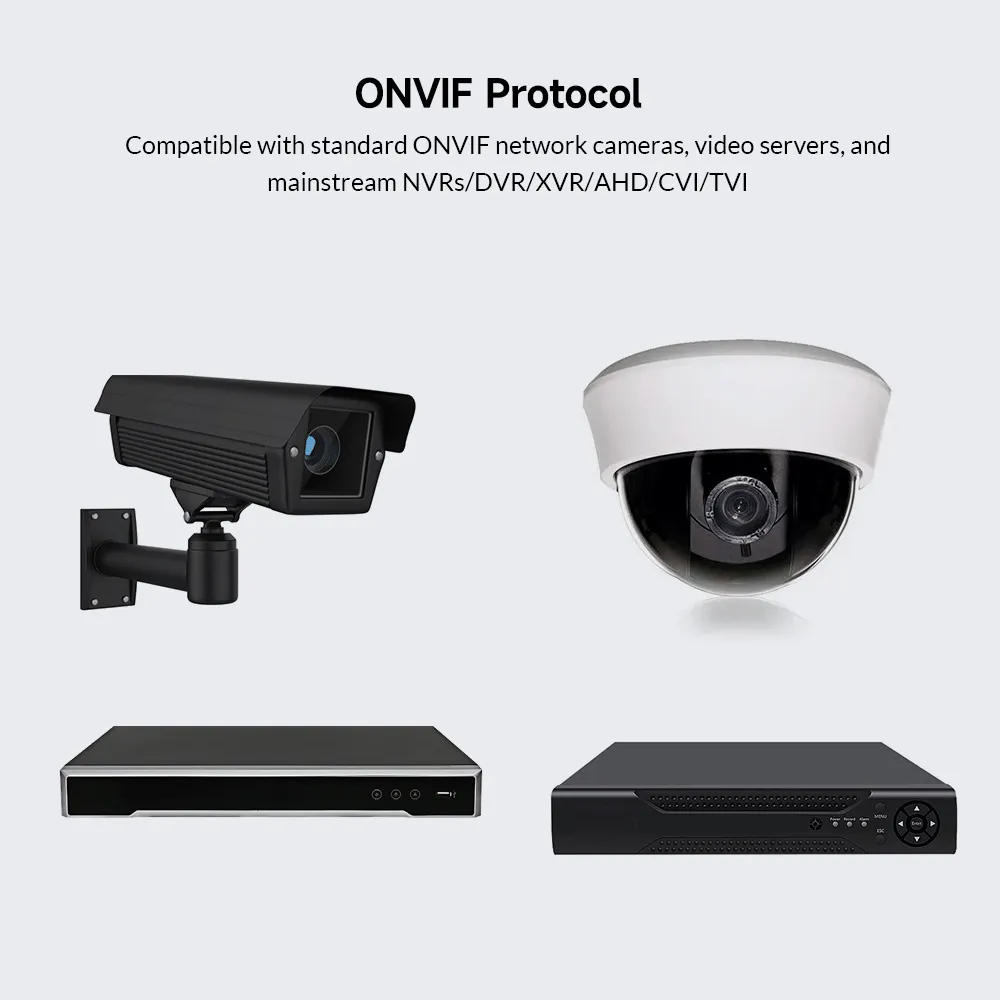

Compatible with standard ONVIF network cameras, video servers, and mainstream NVRs / DVR / XVR / AHD / CVI / TVI;

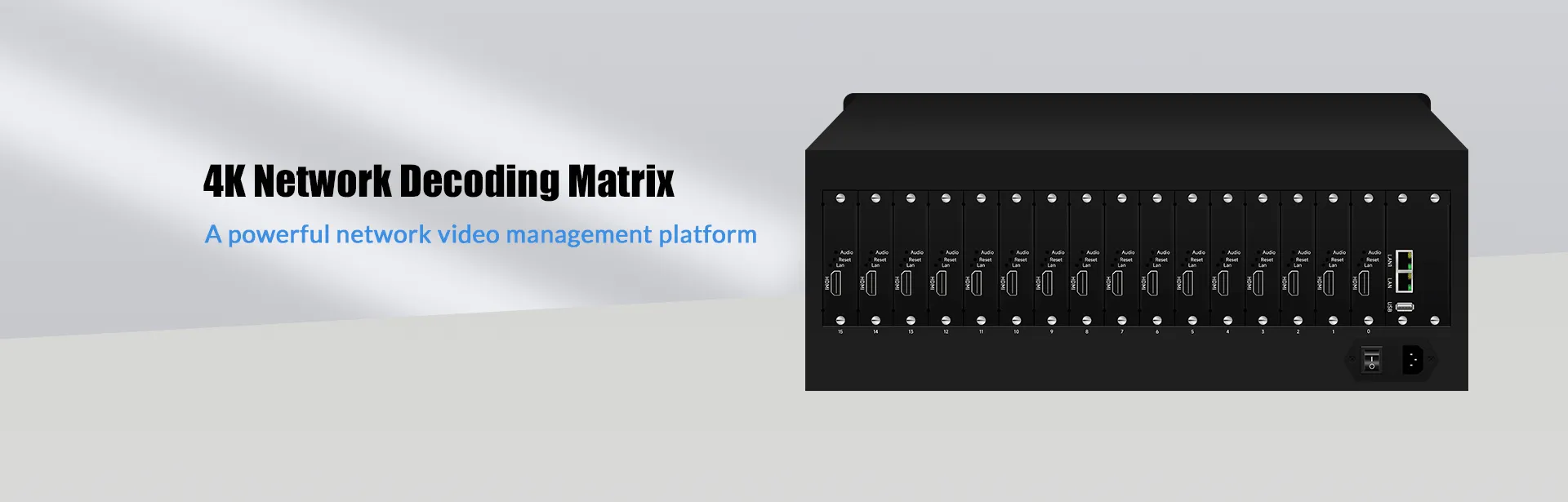

This device is a high-end embedded decoding matrix product specifically designed for the deployment and management of small, medium, and large-scale video wall systems. It integrates decoding and video wall display capabilities, running on the Linux operating system, and supports H.265/H.264 fully compatible decoding formats, ensuring stable and reliable performance. It is capable of decoding and outputting ultra-highdefinition network videos at resolutions including 800W/300W/200W/D1.

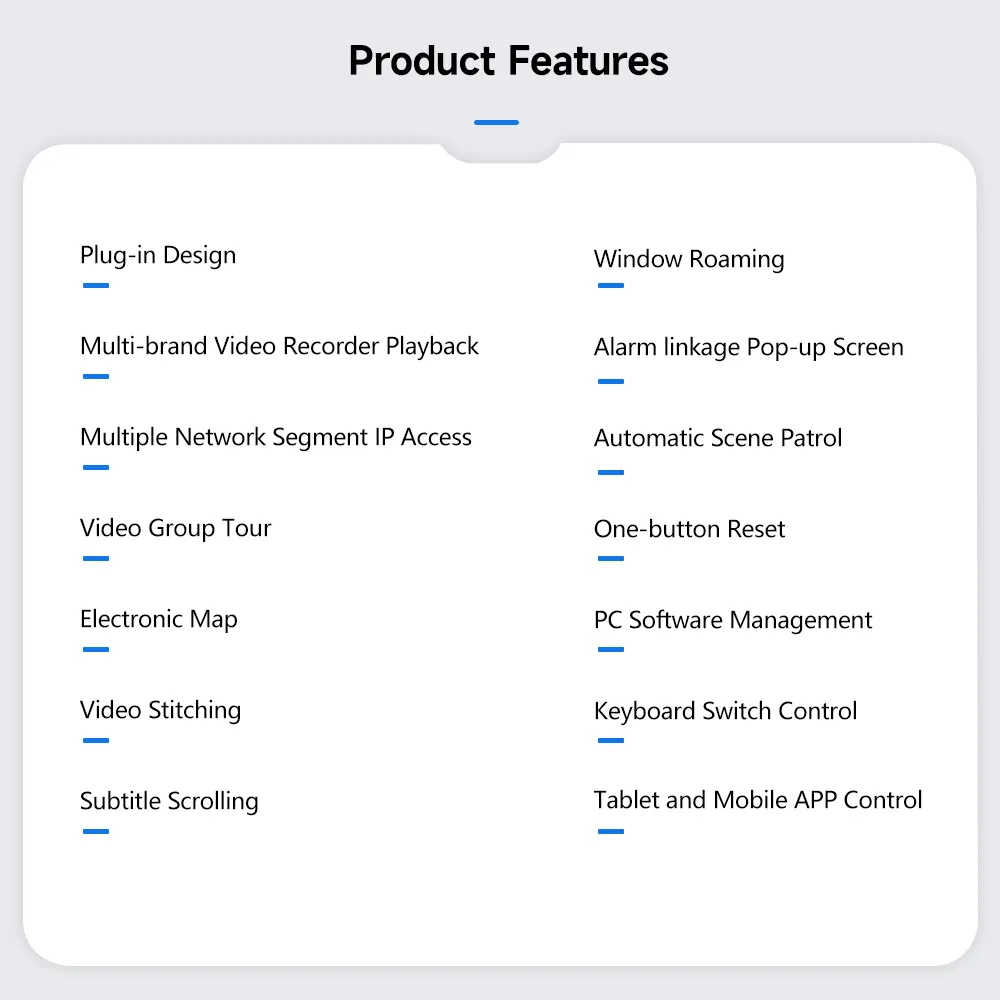

It supports multiple functions such as multi-subnet IP simultaneous access, multi-screen splicing, alarm-triggered pop-up display, playback from multi-brand NVRs, scrolling subtitles, and one-click reset. Compatible with ONVIF and various network transmission protocols, it also supports multi-stream decoding, providing robust support for decoding and switching services in small, medium, and large-scale video walls.

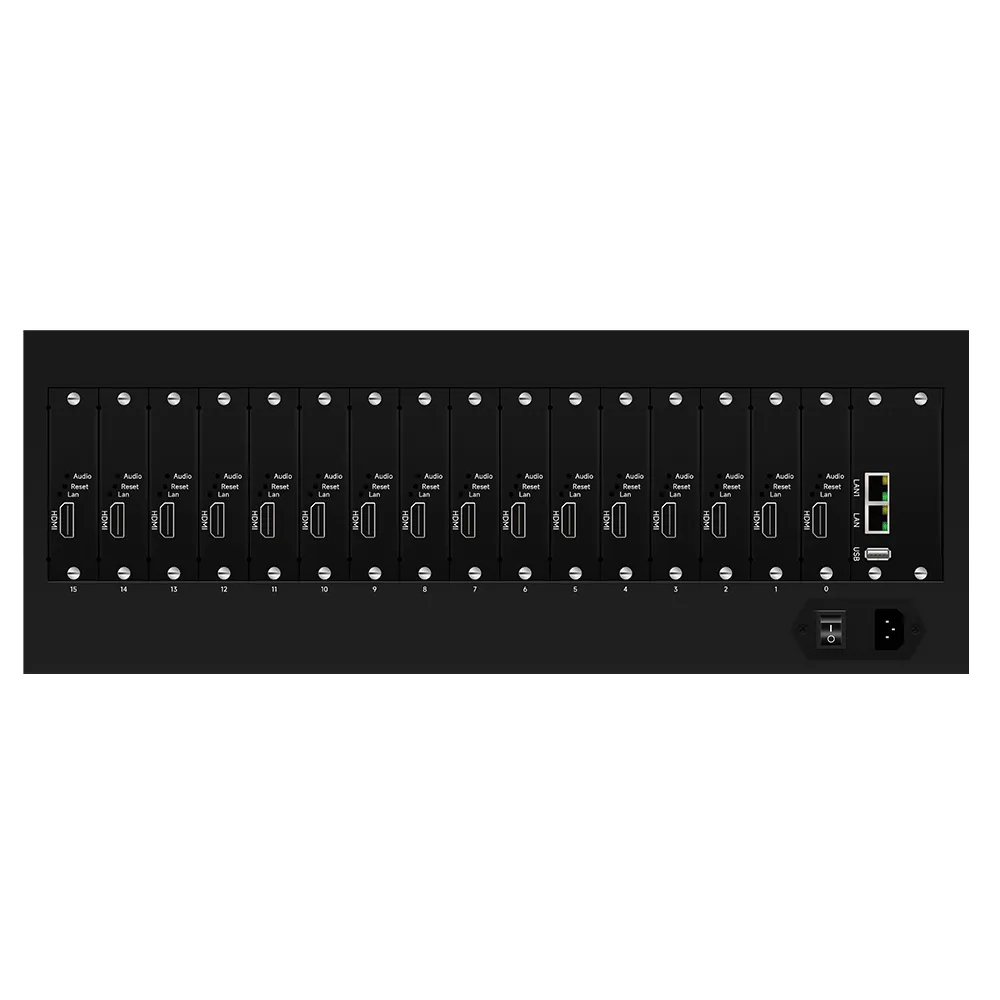

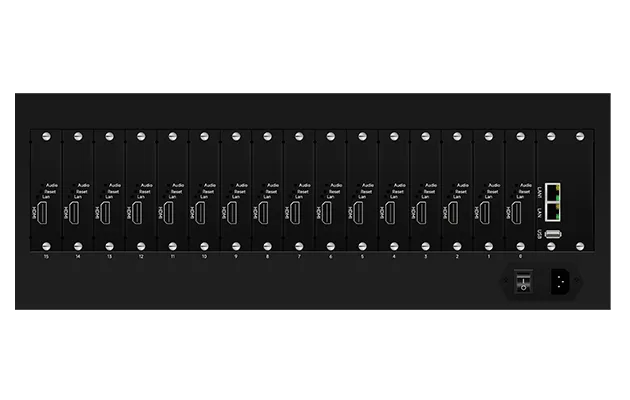

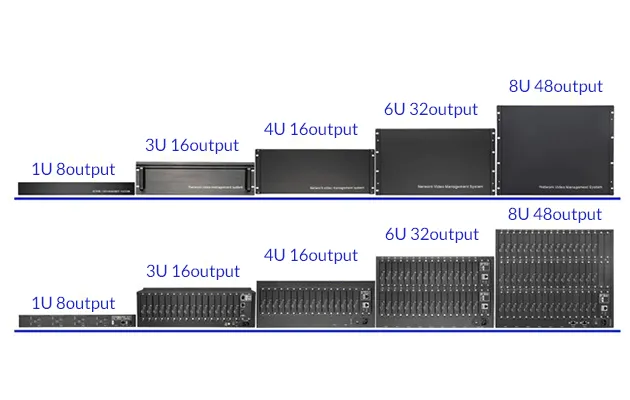

The standard rack-mounted design includes 1U, 4U, 6U, 8U chassis sizes to meet various surveillance, splicing, and control needs
Single-IP address, significantly reduces IP conflict risks while enhancing operational stability
Supports comprehensive video processing operations including decoding the images on the wall, segmentation, switching, splicing,

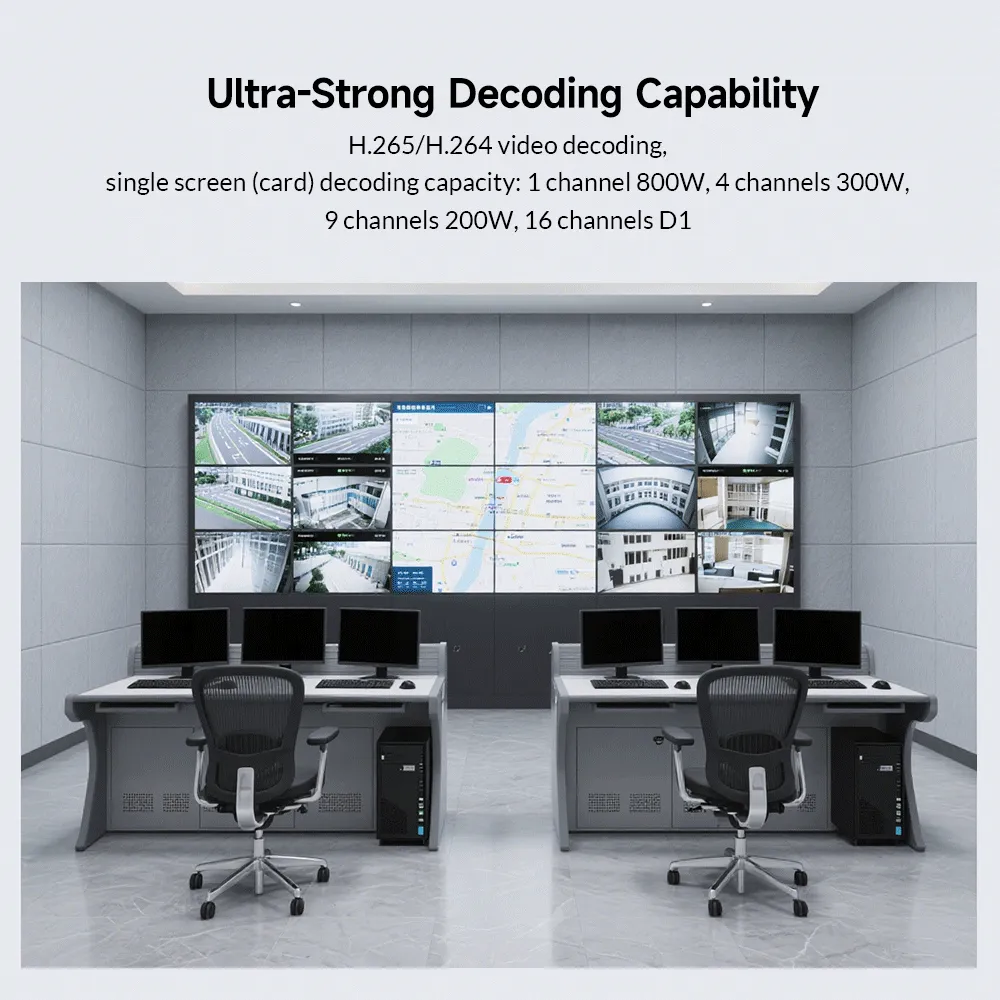

Single screen (card) decoding capacity: 1 channel 800W, 4 channels 300W, 9 channels 200W, 16 channels D1;
Compatible with standard ONVIF network cameras, video servers, and mainstream NVRs/DVR/XVR/AHD/CVI/TVI;
Supports simultaneous decoding of network cameras from different IP subnet segments;
Supports hybrid decoding of network cameras from different brands with varying resolutions simultaneously.
Supports on-screen scrolling text display (e.g., welcome messages) with customizable font size and color
Input: Supports up to 3840x2160@30fps; Output: Supports up to 4096x2160@30fps.
Supports independent control methods: USB mouse/PC software/Network control keyboard platform; Supports tablet/APP control(optional).

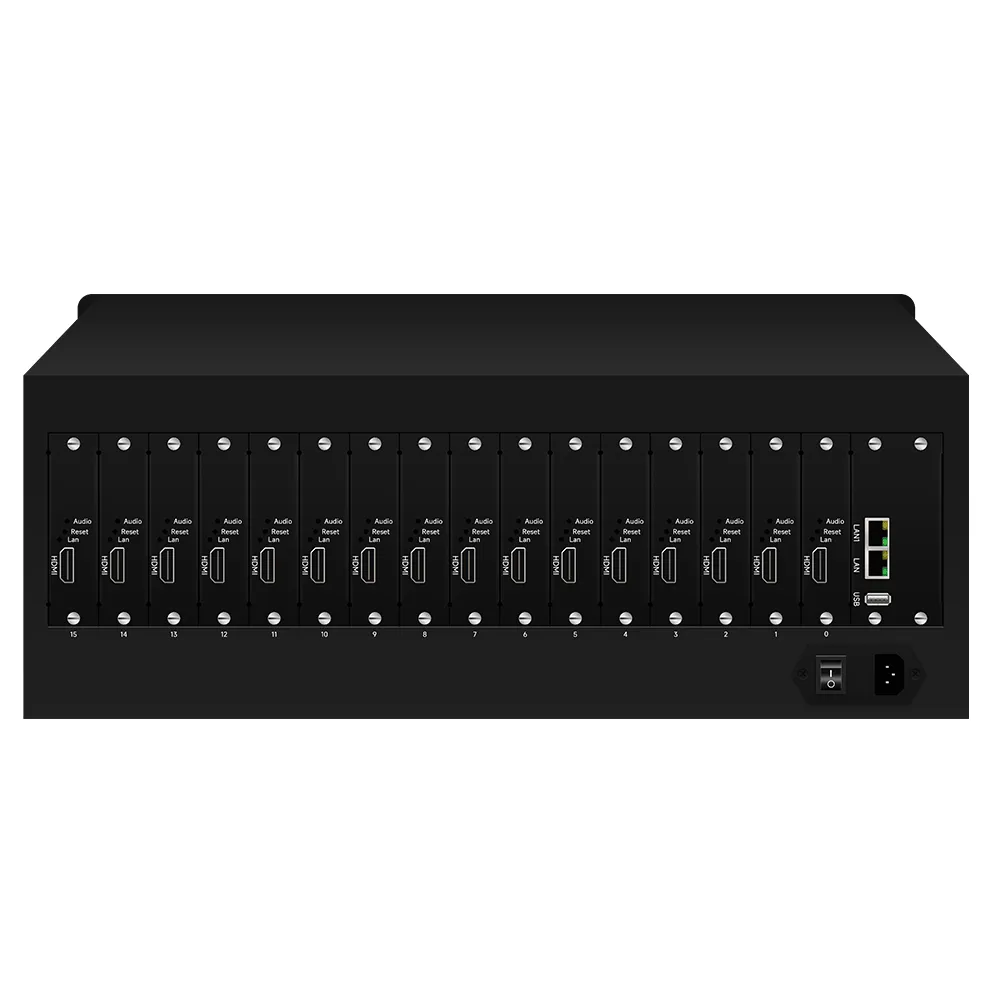

| Model | DH1604 | DH1606 | DH1608 | DH1609 |
| HDMI Output | 4 | 6 | 8 | 9 |
| Model | DH1610 | DH1612 | DH1615 | DH1616 |
| HDMI Output | 10 | 12 | 15 | 16 |
| Please consult us for other specifications | ||||
| Decoding parameters | ||||
| Output resolution | 3840*2160@30HZ,1920*1080@60HZ/50HZ， 1280*1024@60HZ，1366*768@60HZ | |||
| Number of IP cameras | 1024 network cameras(Maximum resolution ≤ 800W) | |||
| Decoding capability (single channel) | 1-Screen: 800W and below 4-Screen: 300W and below 9-Screen: 200W and below 16-Screen: D1 and below | |||
| Interface | ||||
| RJ45 | 100M/1000M RJ45*1 | |||
| USB | USB*1 | |||
| Other | ||||
| Remote upgrade | Management Platform Software/Dedicated Upgrade Tool | |||
| Display response speed | <1 second(from A camera switching to B camera) | |||
| Ball control response speed | <1 second | |||
| Power | 220W | |||
| Power consumption | ≤ 160W | |||

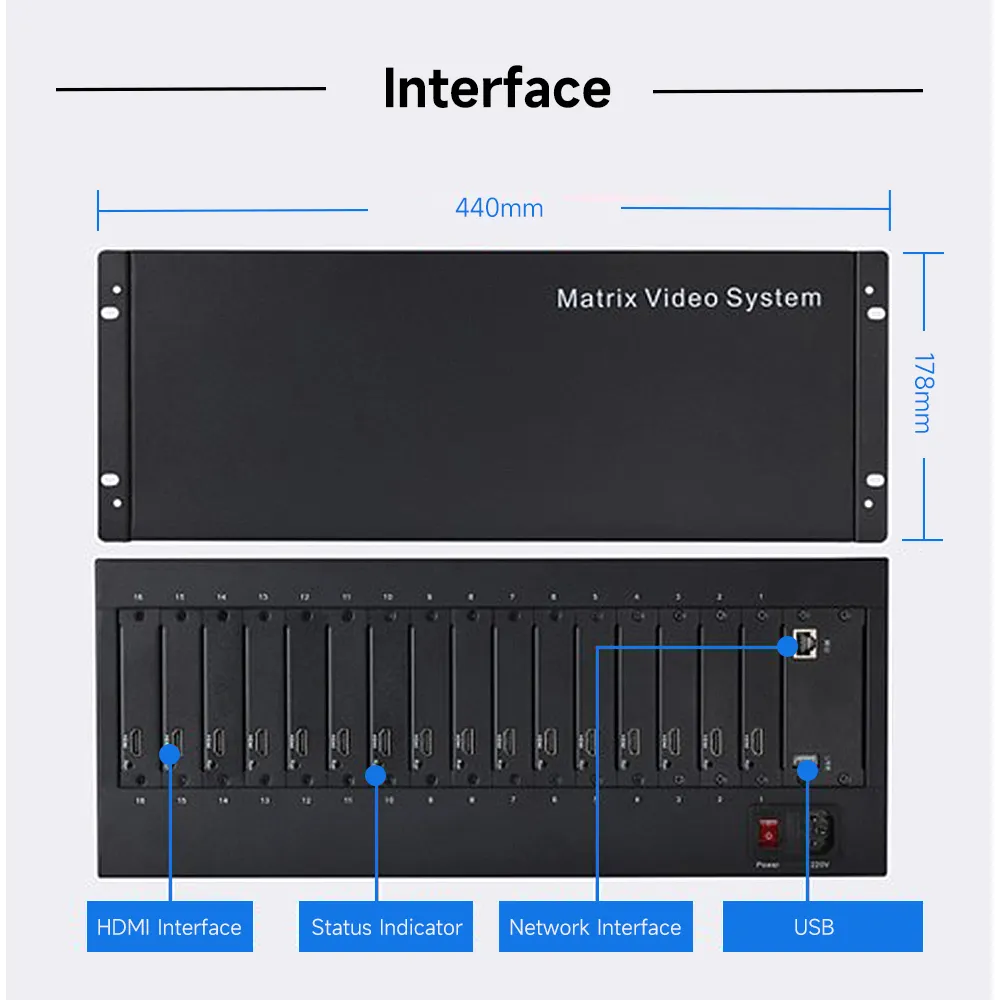

| Chassis volume | Standard 4U chassis: 430*300*178mm(L*W*H) | |||
| Operating temperature | -10℃ ~ ＋ 55℃ | |||
Apply to network program production, SRT remote transmission, program production monitoring, audio/video engineering
