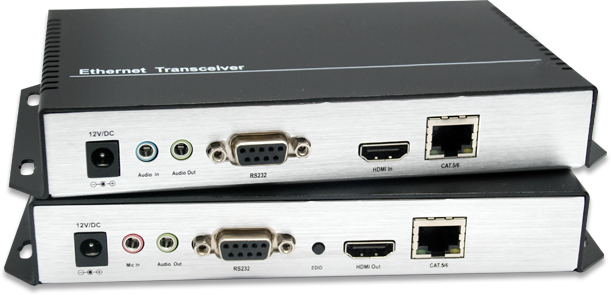

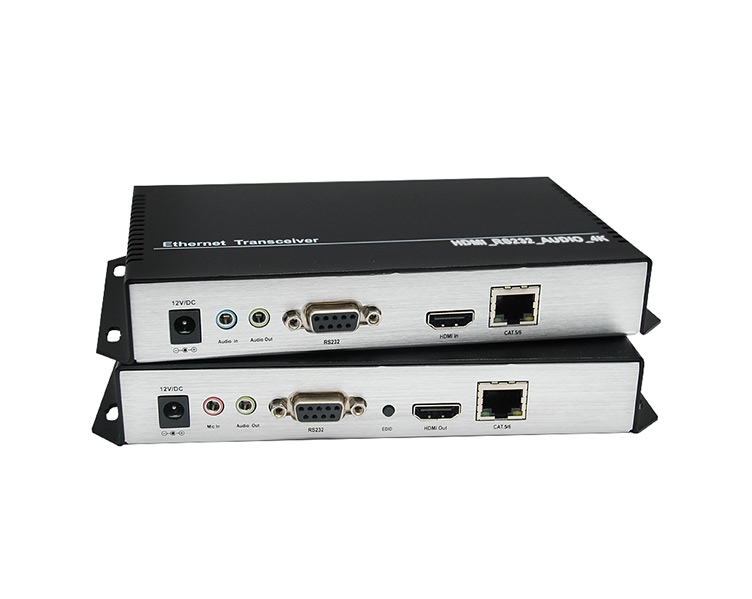

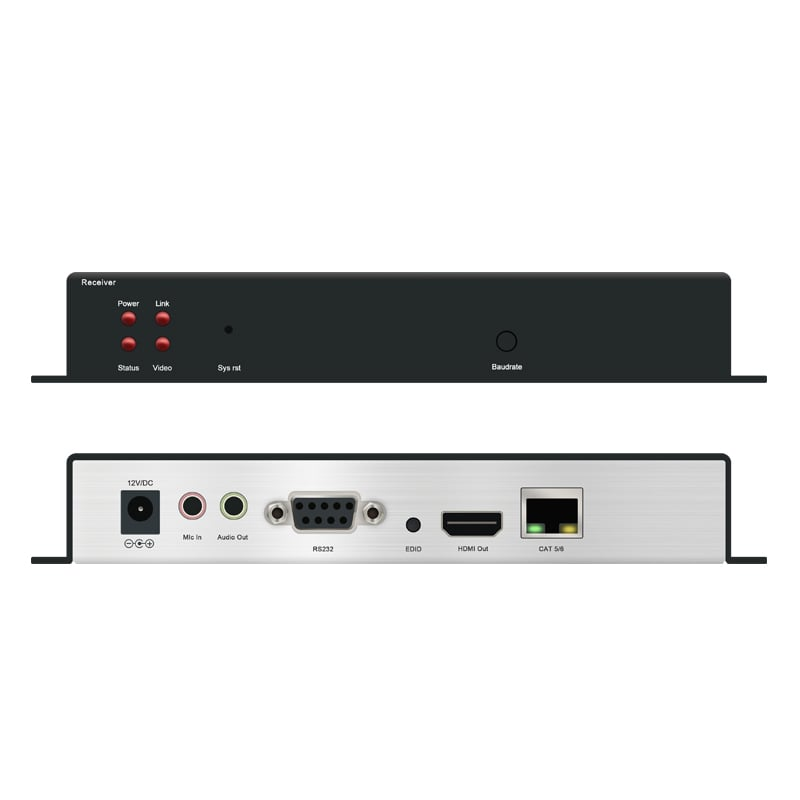

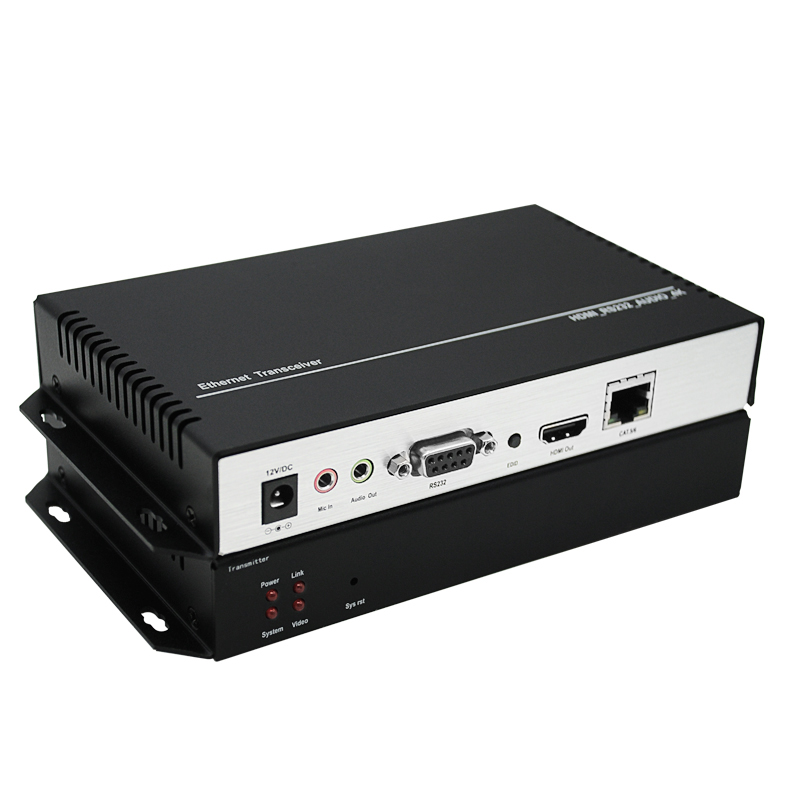

ORIVISION 120m HDMI Fiber Extender Over Cat6 With RS232

Brand: ORIVISION

Model: ZY-CH511

Transmitter Input: HDMI 1.4*1  Audio In*1  HDMI Loop-out *1

Transmitter Output: RS232 *1  RJ45*1 Audio out*1

Recevier Input: RS232 *1  RJ45*1 Mic In*1

Recevier Output: HDMI*1 Audio out*1

Resolutuion: Max 3840*2160@30Hz

Transmission Distance: Point to point up to 120m, support point to multi-point

Power: 12V/DC 1A

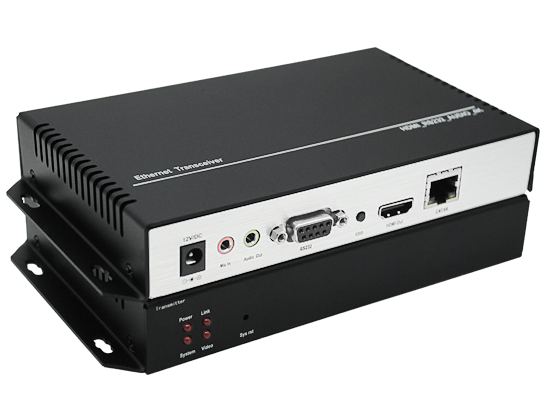

4K@30 HDMI Extender Over Cat5/6
4K@30 HDMI Extender Over Cat5/6
  • Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

  • Support point to point, point to multi-point, up to 120m

  • Supports bi-directional audio signal transmission

  • Support EDID mode and RS-232 control

  • Plug-and-play operation

4K@30 HDMI Extender Over Cat5/6

This 4K/30HZ 120m HDMI Fiber Extender Over Cat6 uses one single cat5 or cat6(recommended) cable instead of HDMI cable, you can extend the 4K/30HZ signal to 120 meters.The purpose of the extender is to achieve long-distance signal transmission with low-cost wires. With the advantage of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch.

4K@30 HDMI Extender Over Cat5/6

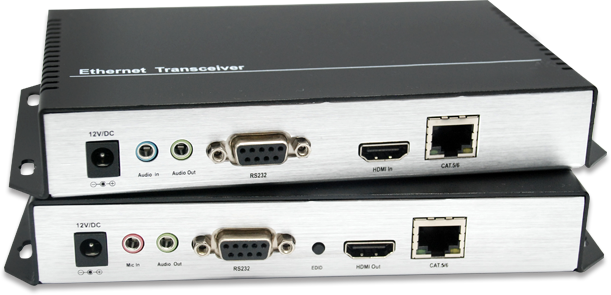

High Availability and Friendly Design

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design
HD Quality Transmission

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

HD Quality Transmission

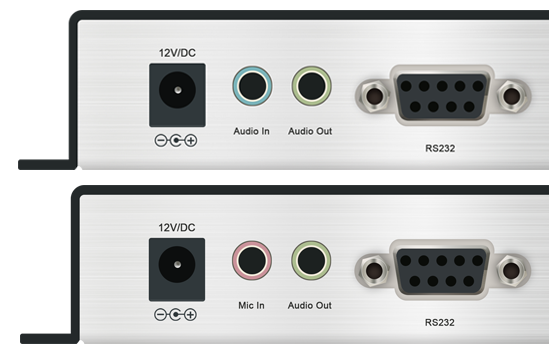

Bi-Directional Audio Signal Transmission

Format: 44.1K,48K,96K,176K,192K

Duplex audio Transmit

Bi-Directional Audio Signal Transmission
Powerful Compatibility Features

120m HDMI Fiber Extender Over Cat6 support copy EDID, can match many kinds of display device

Powerful Compatibility Features
120m Long Distance Transmission

Transmits HD video and audio signals up to 120m over a single CAT5/6 cable.

120m Long Distance Transmission
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)

Support OEM ODM

Parameters Of 120m 4K@30 HDMI Network Extender With RS232

Name4K@30 HDMI Extender over Cat5/6
ModelZY-CH511
Transmitter InputHDMI 1.4 *1 Audio in*1 (DVI optional )
Transmitter OutputAudio out*1, RJ45*1  RS232*1
Recevier InputRJ45*1  Mic In*1
Recevier OutputHDMI 1.4 *1 RS232*1 Audio out*1  (DVI optional)
Resolutuion3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/
1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/
1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/
1280x1024P60/1280x800P60/1024x768P60/800x600P60
AudioFormat:44.1K,48K,96K,176K,192K
Duplex audio Transmit
Point to Poin Transmission Distanceup to 120m
Point to multi-point1000M Switch
RS232bidirectional transmission
Interface:DB9
Baudrate:11520
Data-Bits:8bit
Support EDID
Support HDCPHDCP1.4
Support IRx
Support KVMx
CableCat5/Cat6
Temperature‘-5℃ to +60℃
Humidity≤90%
Power Consumption<5W
Power12V/DC 1A;
POE√(Optional)
Size18.7*10.5*2.8CM
WeightTX:0.3KG   RX:0.3KG


Diagram Of 120m 4K@30 HDMI Network Extender With RS232

120m HDMI Fiber Extender Over Cat6 is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.

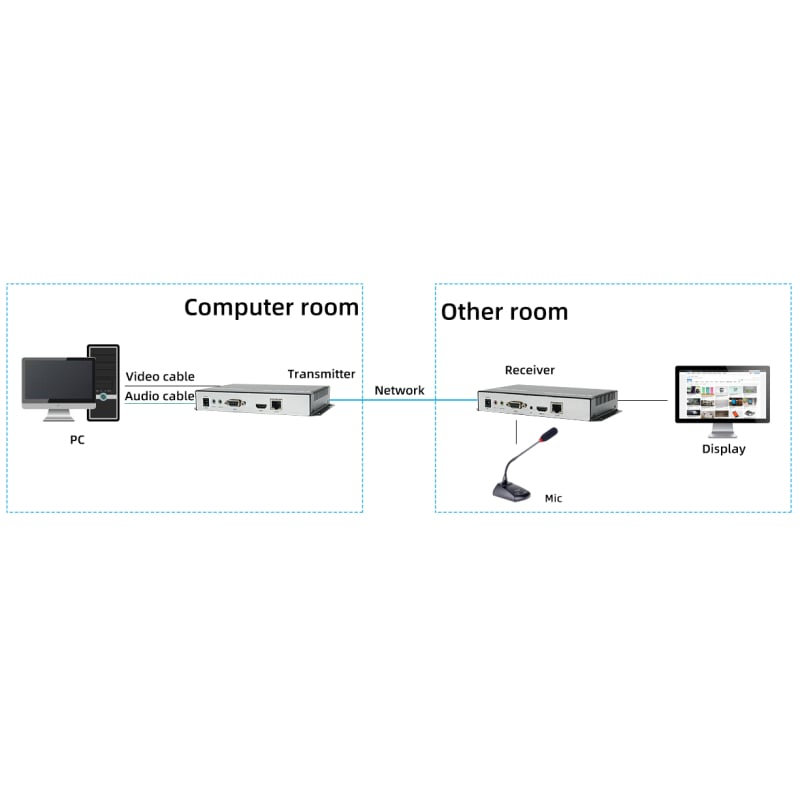

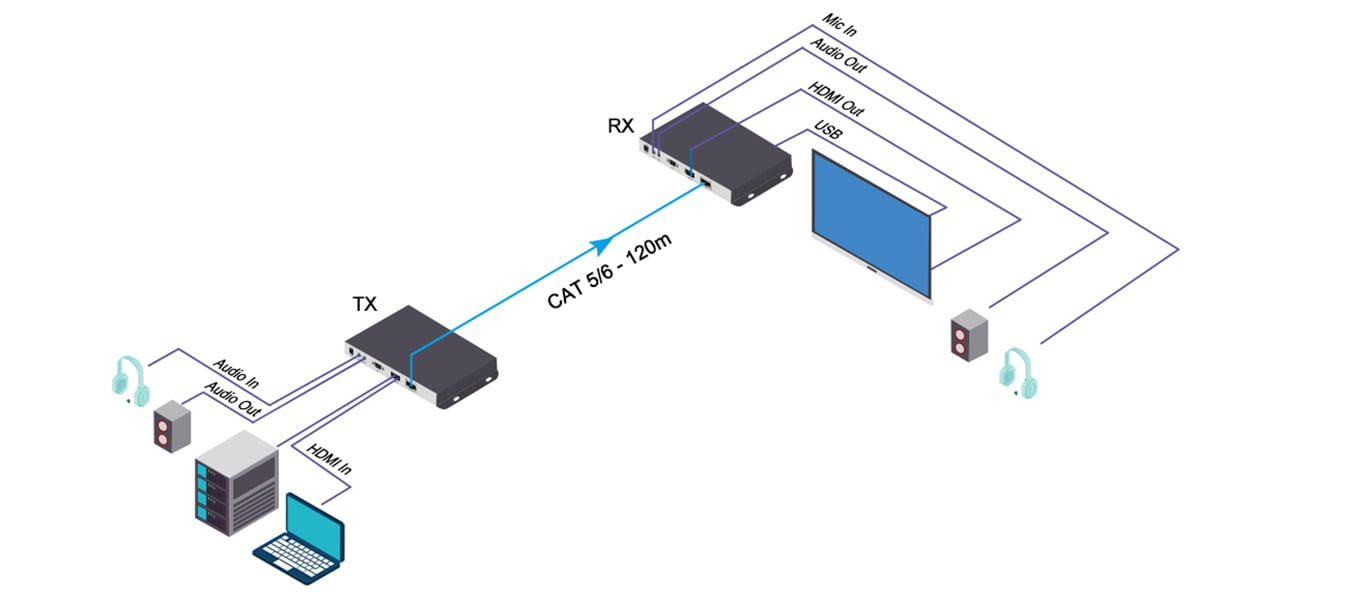

Point to Point Transmission


----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

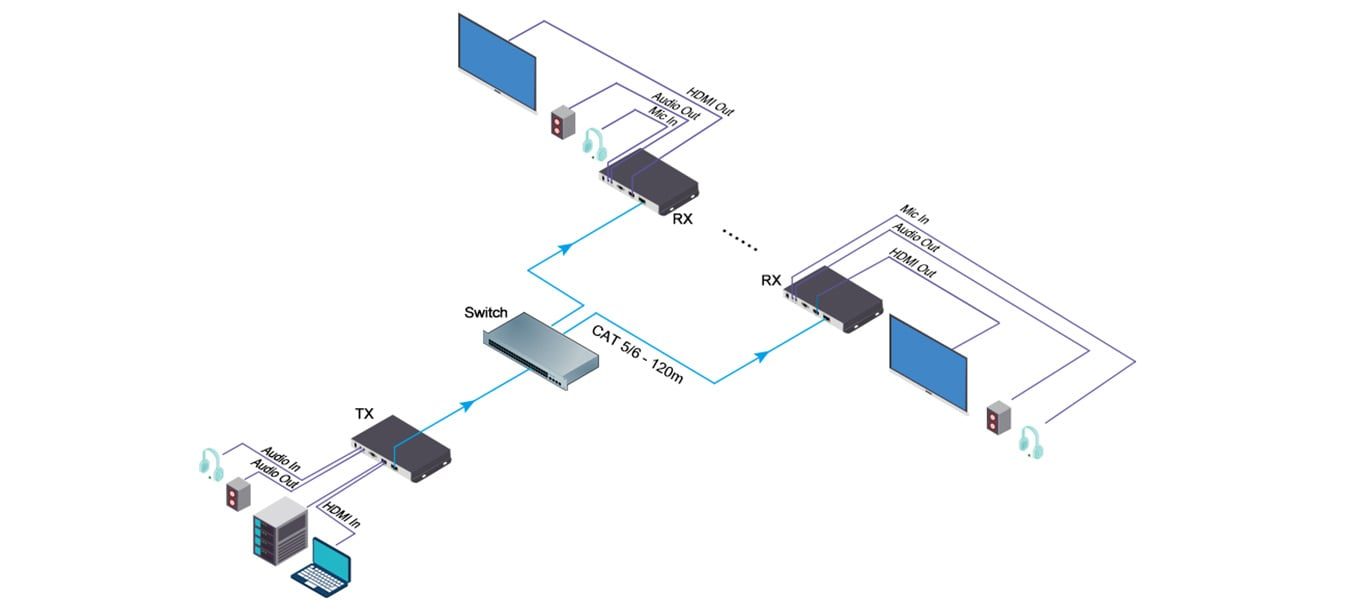

Point to Multi-point Transmission
