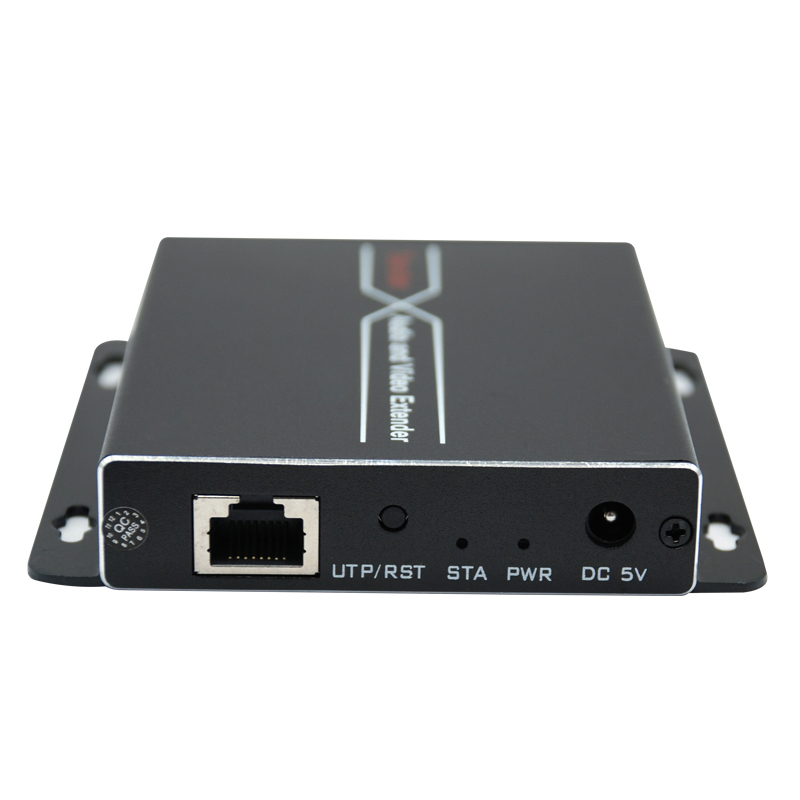

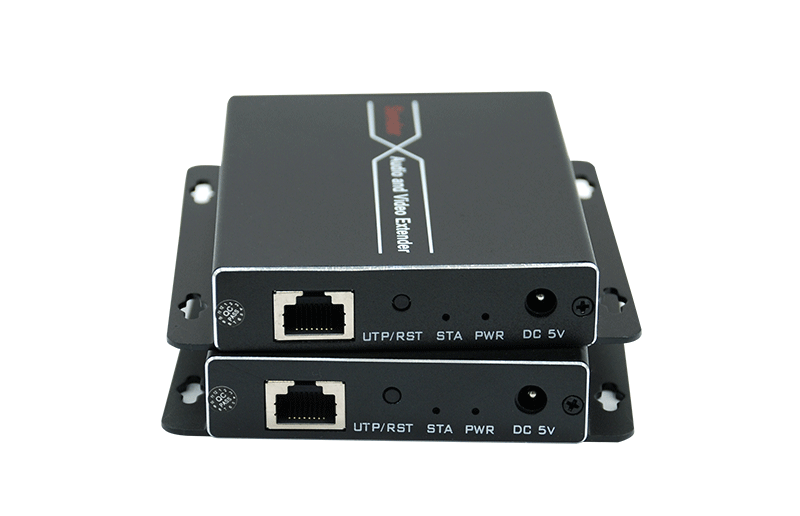

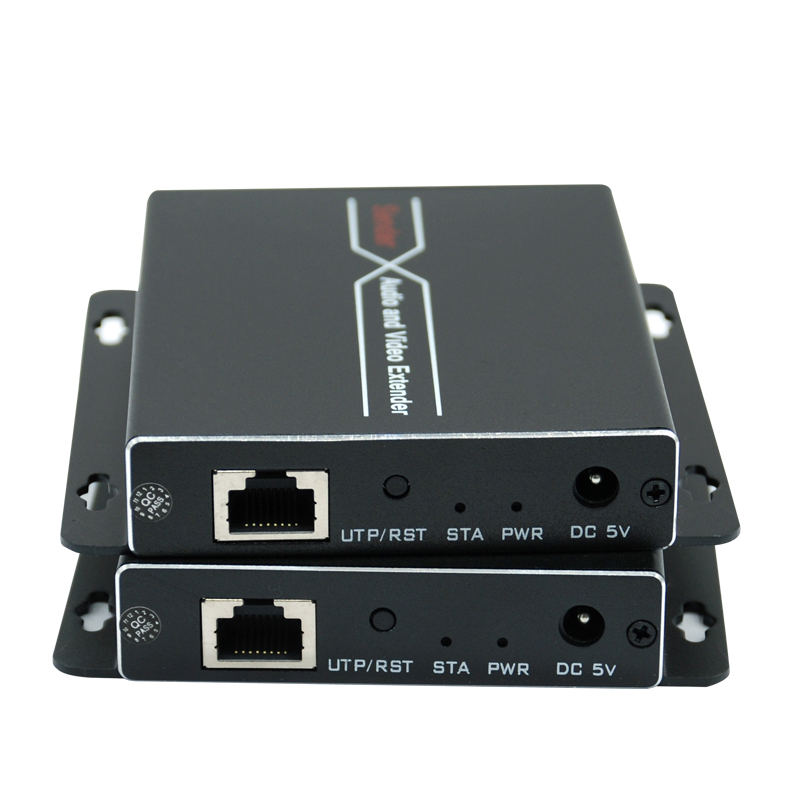

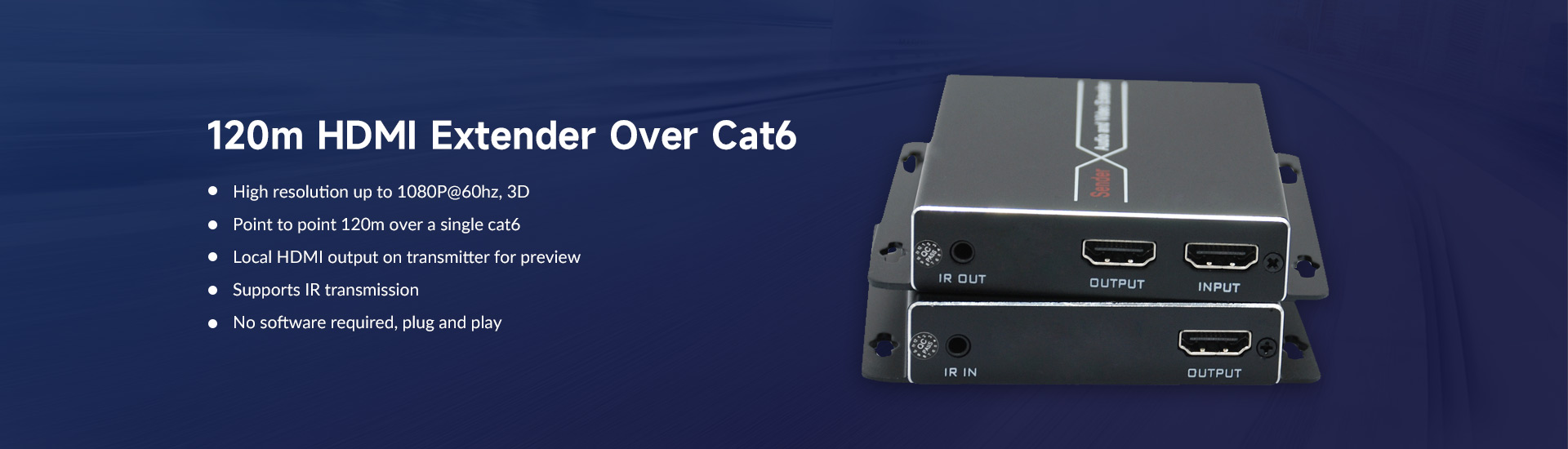

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support Keyboard and mouse control and IR pass back transmission , have a local HDMI output.
HD Quality Transmission
Delivers HD picture quality at resolutions up to 1920*1080 @60Hz Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
120M Long Distance Transmission
Transmits HD video and audio signals up to 196ft/60m over a single CAT6/6a/7 cable.

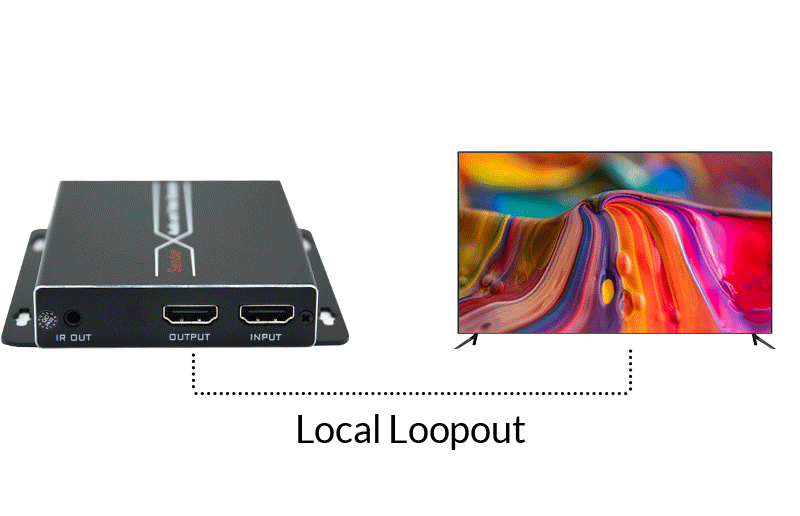

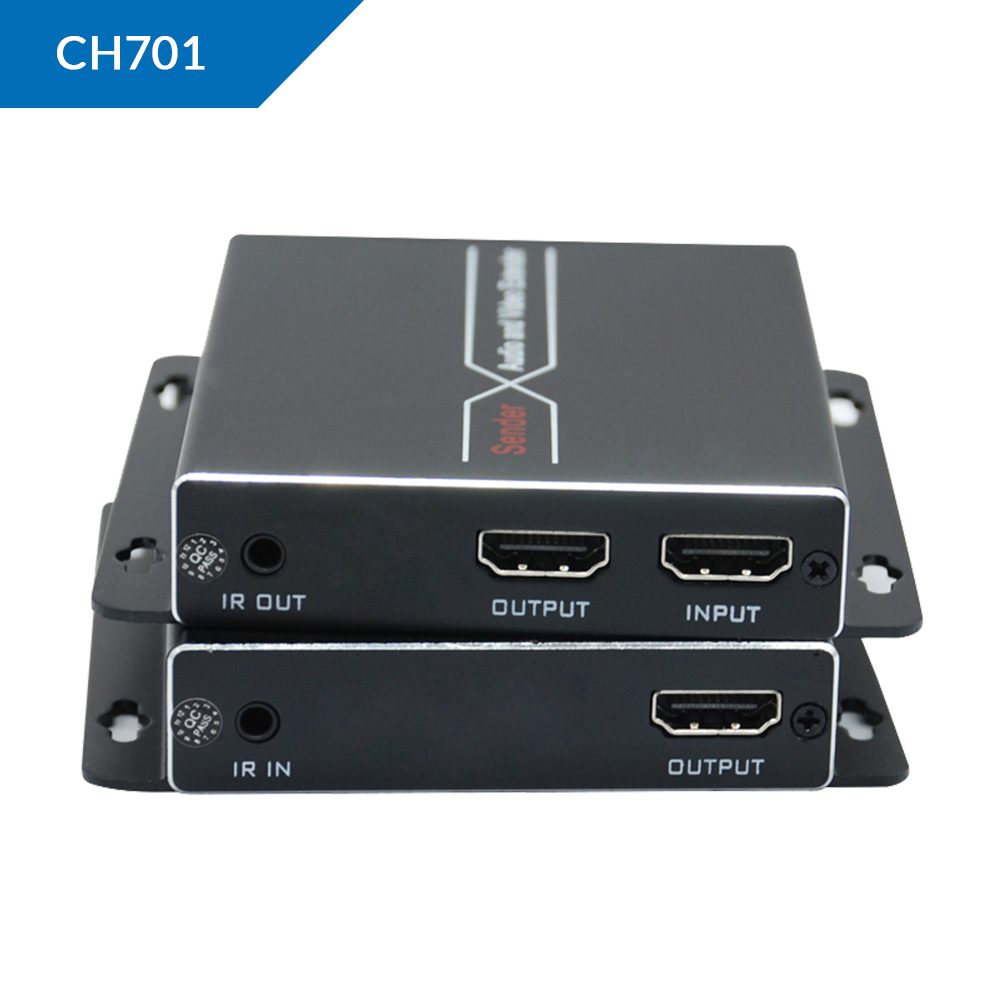

Support Local Loopout in Sender
Local HDMI output on transmitter for preview
Supports IR transmission
Support IR (20-60Khz) signal return control
Parameters Of Orivision HDMI Network Extender Over Ethernet 120m
Name
Orivision HDMI Network Extender Over Ethernet 120m
Model
ZY-CH701
Standards
HDMI 1.3; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
1920*1080@60Hz （backward-compatible）
HDMI Impedance
100Ω
HDMI Connector
HDMI-A
HDMI cable
Less than 5m at 1080p@60hz
IR Interface
3.5mm earphone seat
IR Signal direction
Unidirectional
IR Signal type
Digital
IR frequency
20-60kHz
RJ45 Interface
RJ45 (IEEE - 568b connection)
Transmission distance
CAT6 --- 120m
Power supply
The power adapter: DC 5V/1A
Power dissipation
MAX 4W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
100*97.5*17mm
The warranty
1 year free warranty

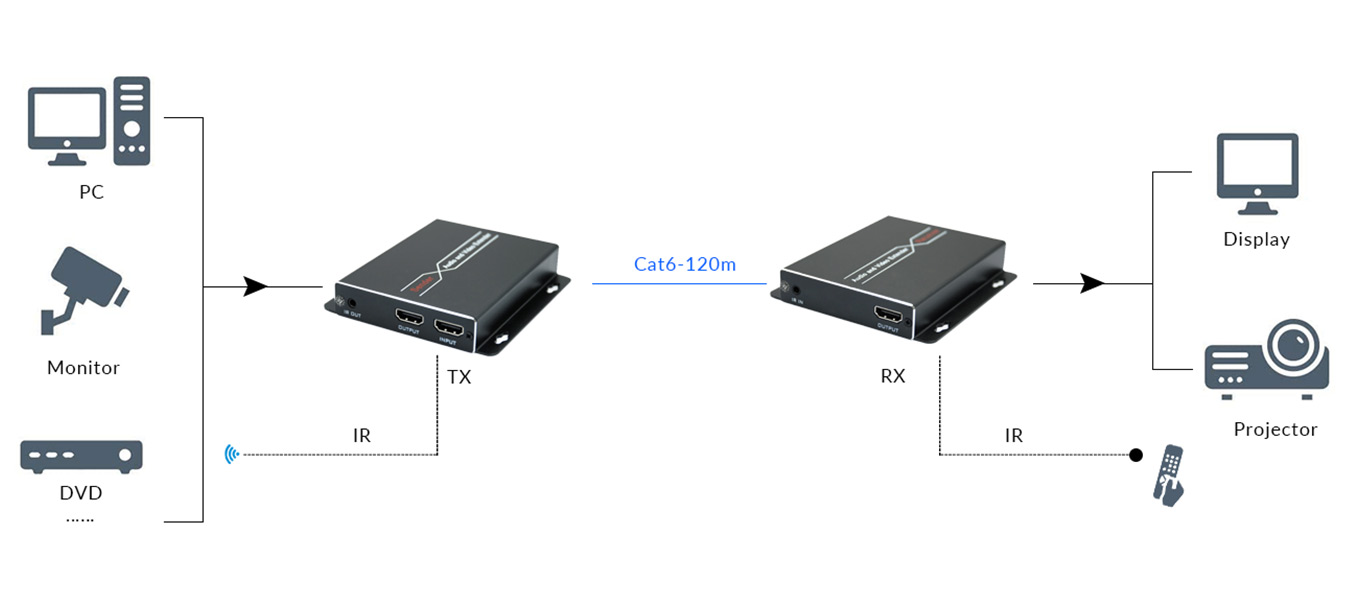

Diagram Of Orivision HDMI Network Extender Over Ethernet 120m
Apply to AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
