H.265/H.264 Decoding
Freely mix 1-16 decoder modules in 3RU Rackmount
Support 1ch, 4ch, 9ch decoding simultaneously
Support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols
3U Standard Rack
1RU/3RU Rackmount Codec

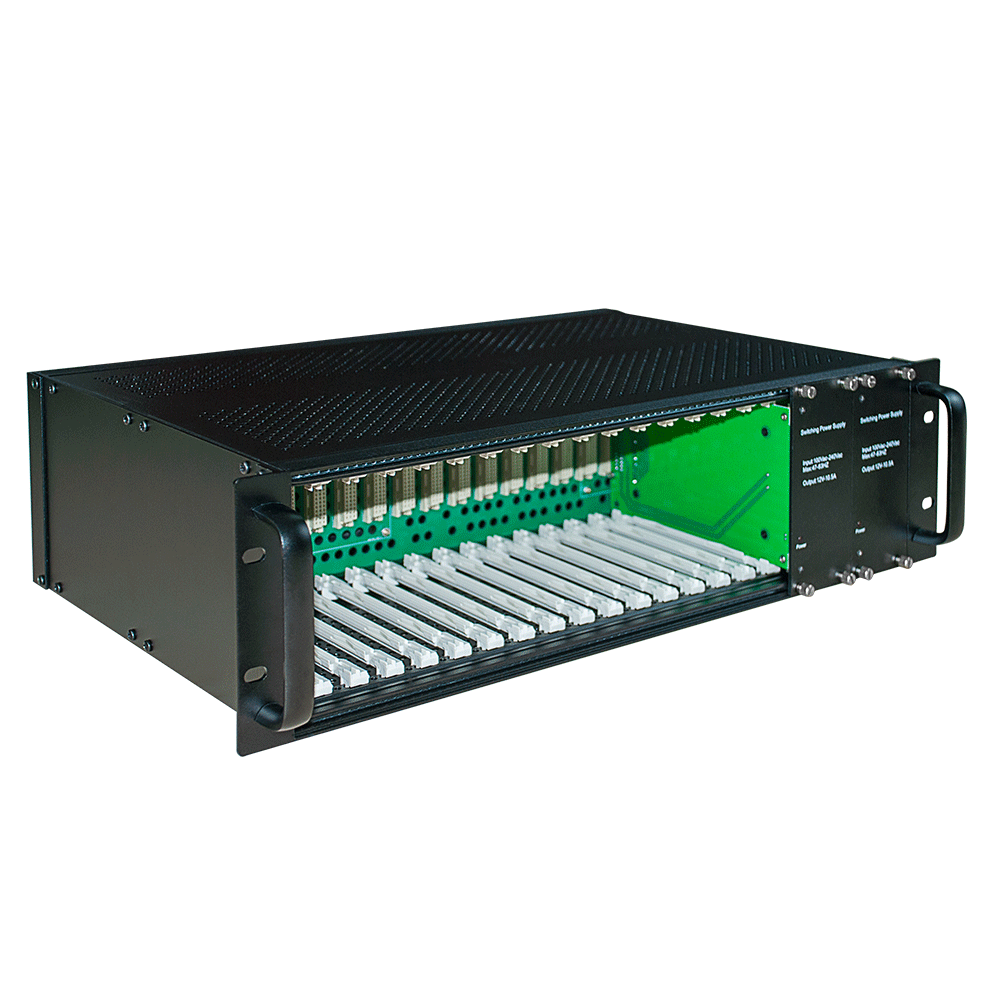

3RU rackmount video decoder freely mixed with 1-16 channels (3RU) decoder modules. It comes with redundant power modules, centralized heat dissipation, ensuring longtime stable operation, and benefits your IP video deployments of any size and complexity.
Support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols. Remote video transmission/live broadcast/interaction through wired network. The equipment is equipped with standard power modules for unified power supply, centralized heat dissipation, and stable operation for a long time.

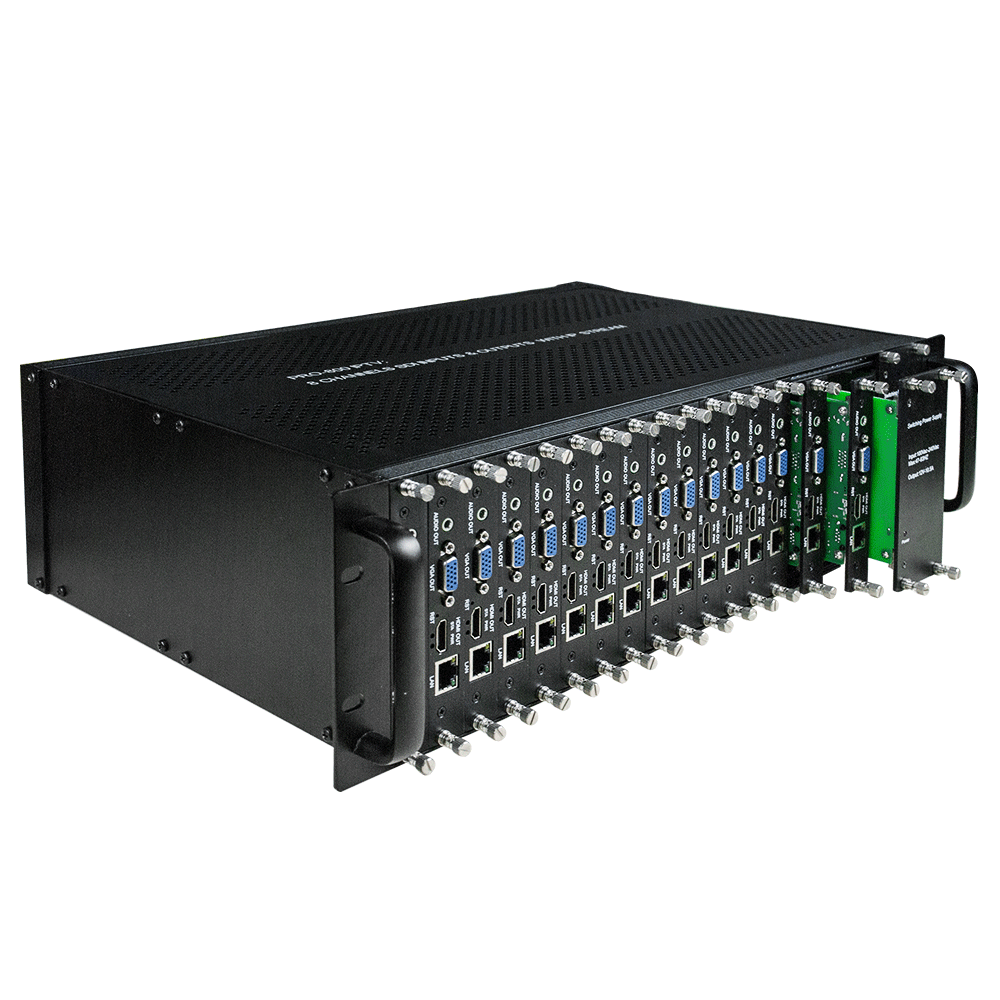

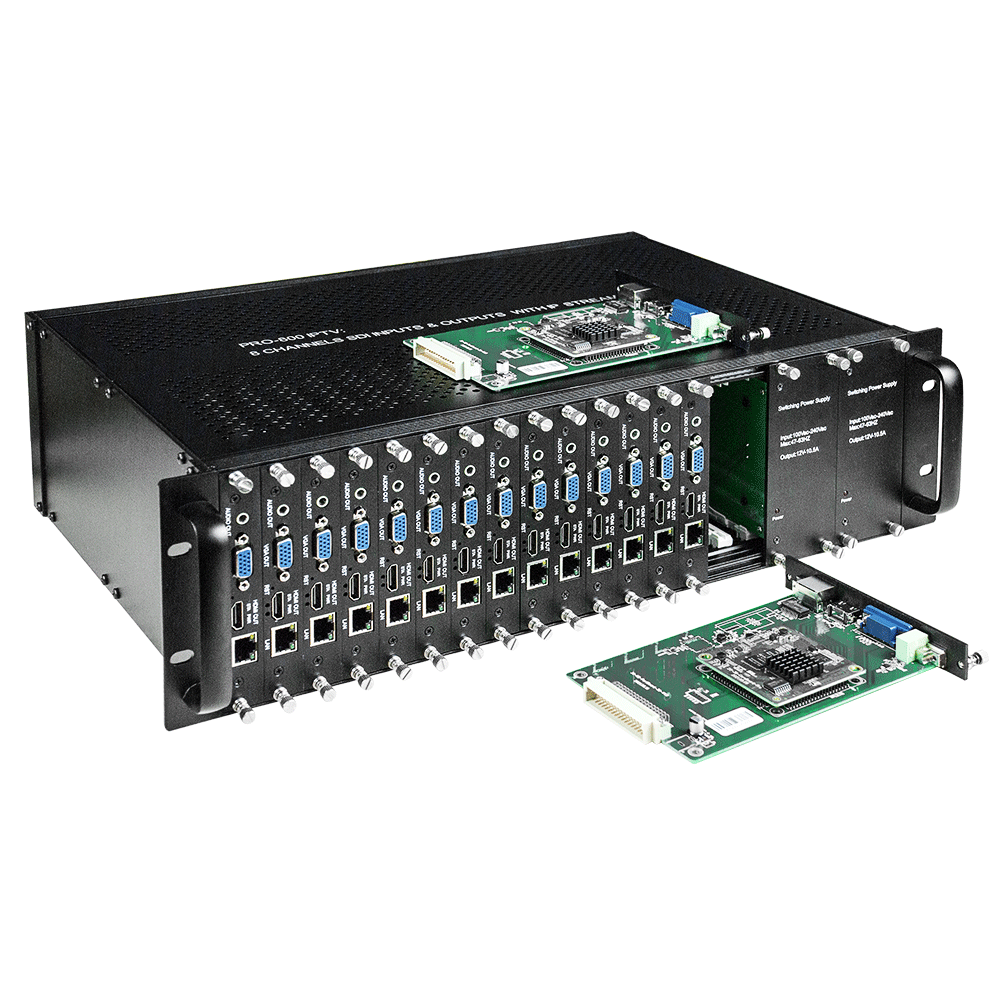

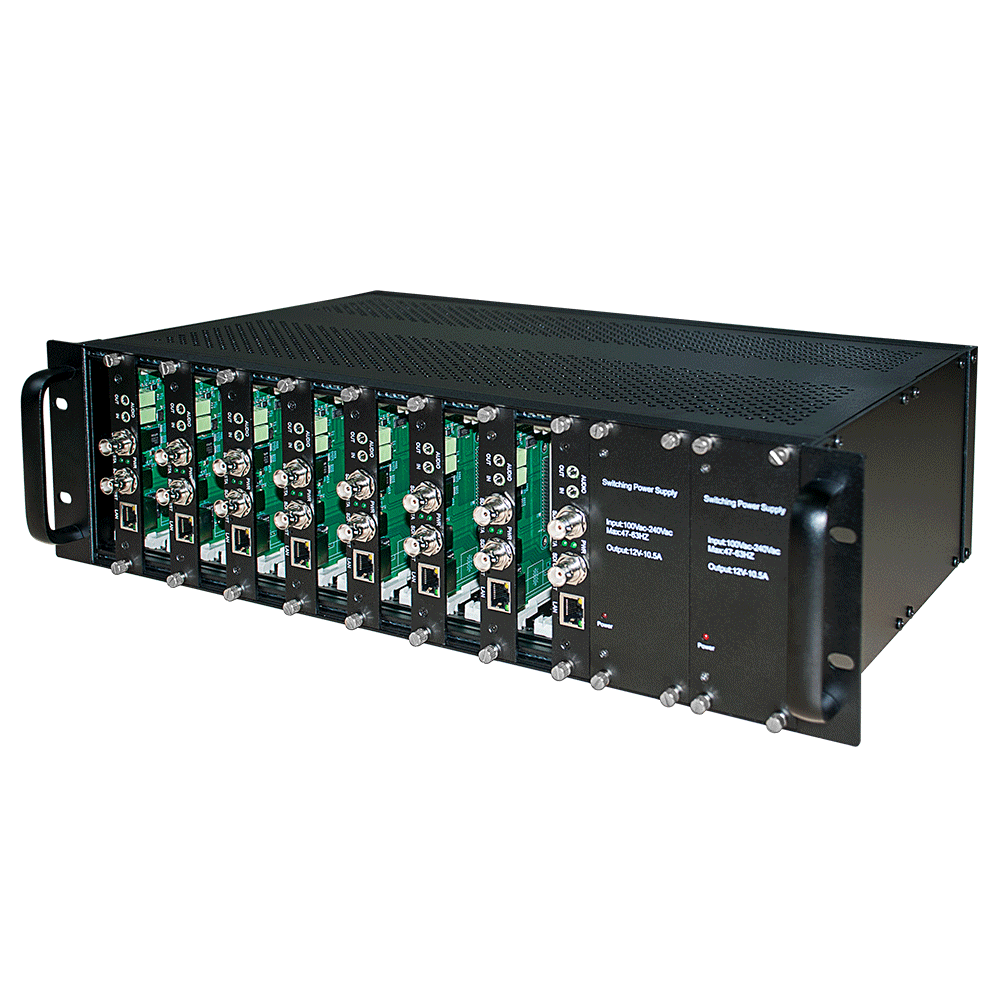

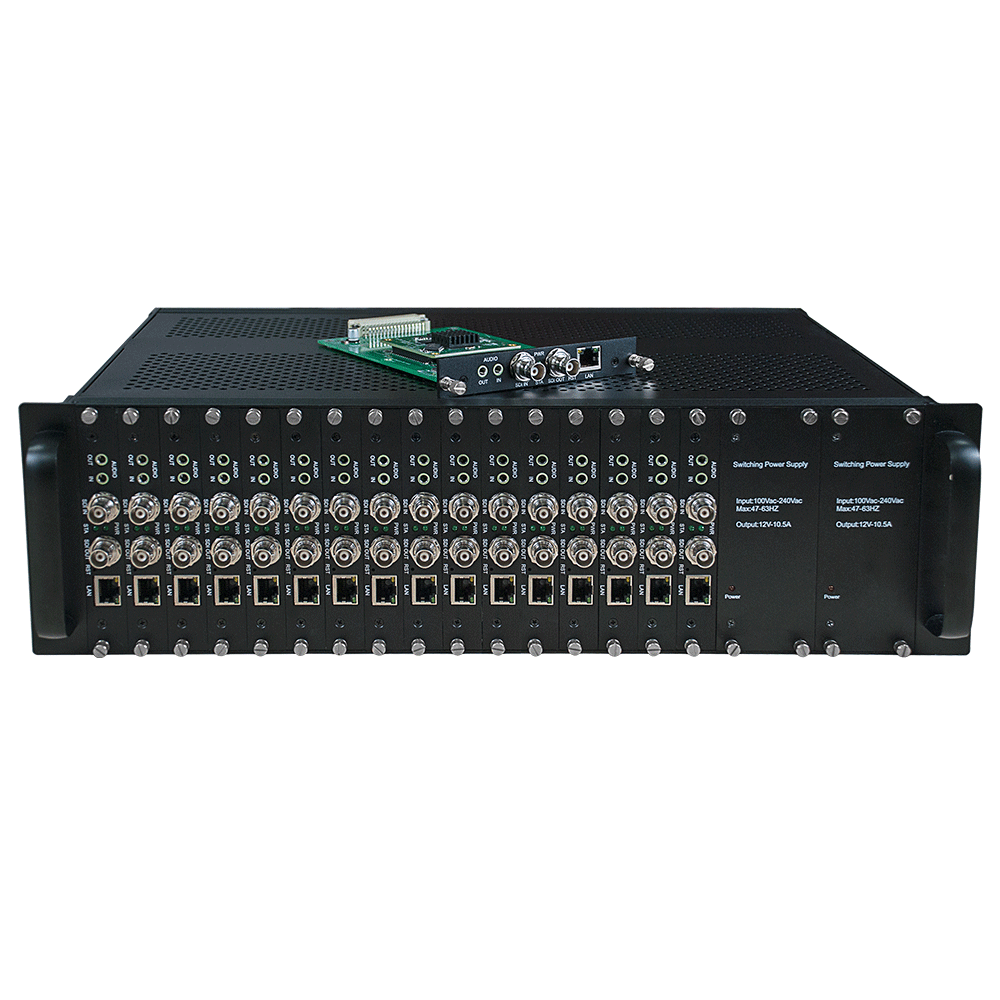

With rackmount, you can design 1-16 channels HDMI/SDI/VGA decoder modules in a 3RU chassis.
All inserted decoding and decoding module support HDMI/SDI/VGA+3.5mm audio.
Equipped with redundant power as standard, effectively preventing power failure.
At the same time, dual cooling fans for automatic heat dissipation, ensuring stable and 24h continuous operating.
It's compatible with SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.
Decoding with the same or different protocol is available
It supports decoding up to 9 channels videos simultaneous of per channel
With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
Support 9 channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Support AAC/G711 audio format; Audio can be coded separately
Support LAN, WAN
Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| H.265&H.264 HDMI Video Decoder | H.265&H.264 HDMI Video Decoder | H.265&H.264 SDI Video Decoder | |
| Model | ZY-DH921 | ZY-DH931 | ZY-DS931 |
| Input Interface | LAN Port*1 | LAN Port*1 | LAN Port*1 |
| Output Interface | HDMI*1,VGA*1,audio*1 | HDMI*1,VGA*1,CVBS*1,audio*1 | SDI*2,audio*1 |
| Video Decoding | H.265/H.264 | H.265/H.264 | H.265/H.264 |
| Max Input Resolution | 4K@30HZ | 4K@30HZ | 1080P@60hz |
| OLDE Real-time Display | √ | √ | √ |
| HDCP | √ | √ | √ |
| DHCP | √ | √ | √ |
| Two-way audio transmission | √ | × | × |
| Simultaneous Streams (HDMI&VGA ouput) | Support to decode 1 channel 4K@30hz streaming Support to decode 4 channel(2*2) 1080P60hz streaming Support to decode 9 channel(3*3 )720P streaming | Support to decode 1 channel 4K@30hz streaming Support to decode 4 channel(2*2) 1080P60hz streaming Support to decode 9 channel(3*3 )720P streaming | Support to decode 1 channel & 4 channel(2*2) 1080P60hz streaming Support to decode 9 channel(3*3 )720P streaming |
| CVBS Mode | PAL/NTSC | PAL/NTSC | —— |
| Protocol Support | HTTP, HTTPS, RTSP,SRT,UDP/RTP | HTTP, HTTPS, RTSP,SRT,UDP/RTP,RTMP | HTTP, HTTPS, RTSP,SRT,UDP/RTP,RTMP |
| OSD Setting | Txt/Picture | Txt/Picture | Txt/Picture |
| Output Resolution | 3840*2160@30hz, 1080P60,50,30,25; 720P60,50; 576P50,480P60, 1280*1024P60,1280*800P60,1027*768P60, 800*600P60,1080I60,1080I30 | 4K@30hz, 1080P60,50,30,25; 720P60,50; 576P50,480P60, 1280*1024P60,1280*800P60,1027*768P60, 800*600P60,1080I60,1080I30 | 1080P@60hz,1080P50,1080P30,1080P25, 720P60,720P50, 1080I60,1080I50 |
| Management | Web Opreation, remote upgrade | Web Opreation, remote upgrade | Web Opreation, remote upgrade |
| Language | English/Chinese | English/Chinese | English/Chinese |
| Power | 12V/DC 1A | 12V/DC 1A | 12V/DC 1A |
| POE | Optional | Optional | Optional |
| Size | W:168mm*D:112mm*H:32mm | W:168mm*D:112mm*H:32mm | W:168mm*D:112mm*H:32mm |
| Net Weight | 0.35kg | 0.35kg | 0.35kg |
Apply to network program production, SRT remote transmission, program production monitoring, audio/video engineering.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
A: The default login IP address is 192.168.0.35
A: The default login account and password are both admin
It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
