H.265 1-4 Channels HDMI/SDI/VGA/CVBS Video Decoder 1RU

  • H.265/H.264 Decoding

  • Freely mix 1-4 decoder modules in 1RU Rackmount

  • Support 1ch, 4ch, 9ch decoding simultaneously

  • Support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols

  • 1U Standard Rack

ORIVISION Rackmount Series
ORIVISION Rackmount Series

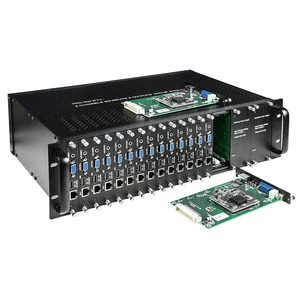

  • 1RU/3RU Rackmount Codec

1RU/3RU Rackmount Codec

1RU rackmount video decoder freely mixed with 1-4 channels (1RU) decoder modules. It comes with redundant power modules, centralized heat dissipation, ensuring longtime stable operation, and benefits your IP video deployments of any size and complexity.

Support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols. Remote video transmission/live broadcast/interaction through wired network. The equipment is equipped with standard power modules for unified power supply, centralized heat dissipation, and stable operation for a long time.

1RU/3RU Rackmount Codec
High Density

With rackmount, you can design 1-4 channels HDMI/SDI/VGA decoder modules in a 1RU chassis.

All inserted decoding and decoding module support HDMI/SDI/VGA+3.5mm audio.


High Density
High Reliability

Equipped with 220V power as standard, effectively preventing power failure.

At the same time, dual cooling fans for automatic heat dissipation, ensuring stable and 24h continuous operating.


High Reliability
Multiple Network Protocols

It's compatible with SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.

Decoding with the same or different protocol is available


Multiple Network Protocols
Powerful IP Decoding Performance

It supports decoding up to 9 channels videos simultaneous of per channel

Powerful IP Decoding Performance
RTMP Server Supported

With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.

RTMP Server Supported
Protocol Conversion is Available

Support 9 channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP

Protocol Conversion is Available
Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

Web Control
Audio Synchronization Decoding

Support AAC/G711 audio format; Audio can be coded separately

Audio Synchronization Decoding
Local and Remote Transmission

Support LAN, WAN

Local and Remote Transmission
Multiple Signal Input Formats

Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM/ODM

Parameters of H.265 1-4 Channels HDMI/SDI/VGA/CVBS Video Decoder 1RU


H.265&H.264 HDMI Video DecoderH.265&H.264 SDI Video Decoder
ModelZY-DH931-1UZY-DS931-1U
Input InterfaceLAN PortLAN Port
Output InterfaceHDMI, VGA, audioSDI, audio
Video DecodingH.265/H.264H.265/H.264
Max Input Resolution4K@30HZ1080P@60hz
OLDE Real-time Display
HDCP
DHCP
Two-way audio transmission××
Simultaneous Streams
(HDMI&VGA ouput)
Per channel:
Support to decode 1 channel 4K@30hz streaming
Support to decode 4 channel(2*2) 1080P60hz streaming
Support to decode 9 channel(3*3 )720P streaming
Per channel:
Support to decode 1 channel & 4 channel(2*2) 1080P60hz streaming
Support to decode 9 channel(3*3 )720P streaming
CVBS ModePAL/NTSC——
Protocol SupportHTTP, HTTPS, RTSP,SRT,UDP/RTP,RTMPHTTP, HTTPS, RTSP,SRT,UDP/RTP,RTMP
OSD SettingTxt/PictureTxt/Picture
Output Resolution4K@30hz,
1080P60,50,30,25;
720P60,50;
576P50,480P60,
1280*1024P60,1280*800P60,1027*768P60,
800*600P60,1080I60,1080I30
1080P@60hz,1080P50,1080P30,1080P25,
720P60,720P50,
1080I60,1080I50
ManagementWeb Opreation, remote upgradeWeb Opreation, remote upgrade
LanguageEnglish/ChineseEnglish/Chinese
Power220V/AC220V/AC
SizeW:485mm*D:200mm*H:45mmW:485mm*D:200mm*H:45mm
Net Weight1.5kg1.5kg


Diagram of H.265 1-4 Channels HDMI/SDI/VGA/CVBS Video Decoder 1RU

Apply to network program production, SRT remote transmission, program production monitoring, audio/video engineering.


Diagram of 1ru Video Decoder

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Embedded Rtmp Server

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Protocol Conversion

FAQ about H.265 1-4 Channels HDMI/SDI/VGA/CVBS Video Decoder 1RU

What is the default login IP of the decoder?

A: The default login IP address is 192.168.0.35.


What is the login account and password of the encoder?

A: The default login account and password are both admin

After entering the account password, the page cannot be displayed or the display is incomplete

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX


How to reset the encoder if you forgot the login IP or login account password?

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully


The device cannot be turned on when connected to the power supply and the power light does not turn on

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.


How to get the newest firmware and update it?

A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
