Brand: ORIVISION
Model: ZY-EH401
Input Interface: HDMI*1, Audio*1
Output Interface: RJ45*1
Video Encoding: H.264
Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs
HDMI to H.264 encoding;
Multi protocols: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF
3840*2160@30hz, 1080P@60hz and so on
1channel ~16 channels video encoder 1U/3U Rack Support
OEM/ODM

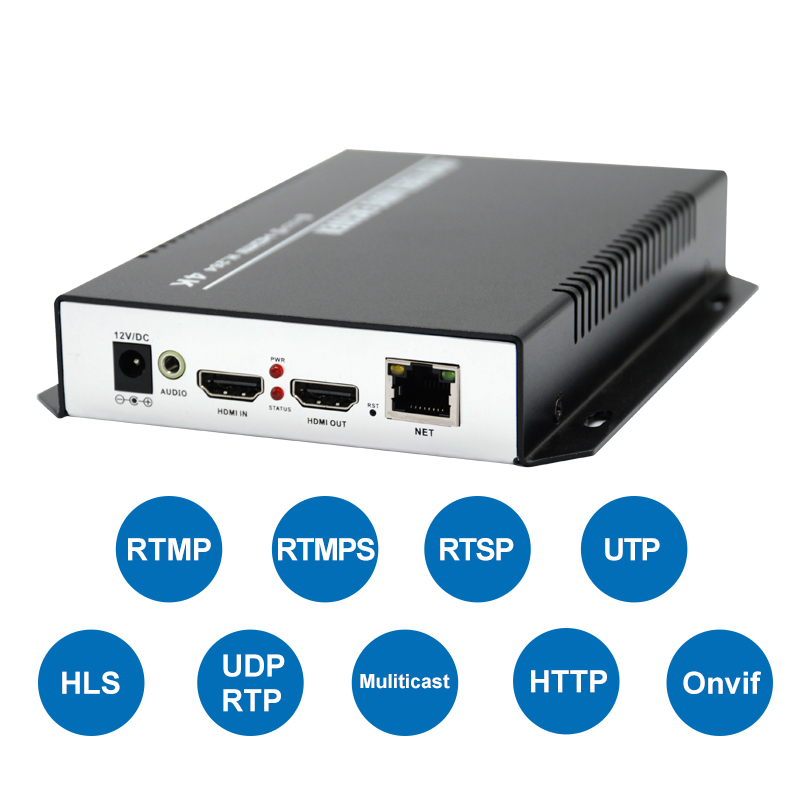

ORIVISION's UHD 4K HDMI encoder which is designed to meet the needs of all 4K video transmission applications. The input/output resolutions is up to 4Kp30. It supports H.264 high-performance encoding. Also, it supports the most protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif, etc.
You can set dual stream(main stream and sub stream) in the hdmi encoder's web console.
Main stream resolution up to 4KP30, sub stream resolution up to 1080P60.
Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.

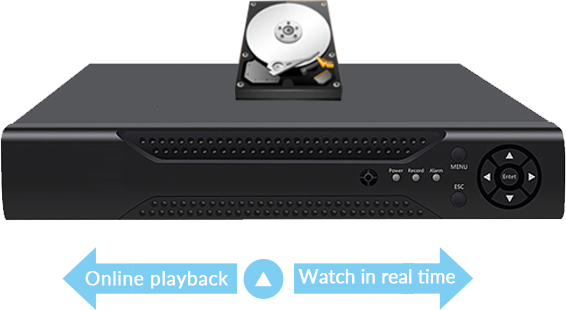

Support Onvif Protocol, and NVR recording, such as Hikvision NVR…
Maximum input resolution: 4K@30hz,
Maximum output resolution: 4K@30hz
Resolution can be set separately
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Support DHCP and obtain IP automatically
Support AAC/G711 audio format, support embedded and 3.5mm anolog audio.
Add any self-defined text, time and image overlay at any position to announce your copyrights.

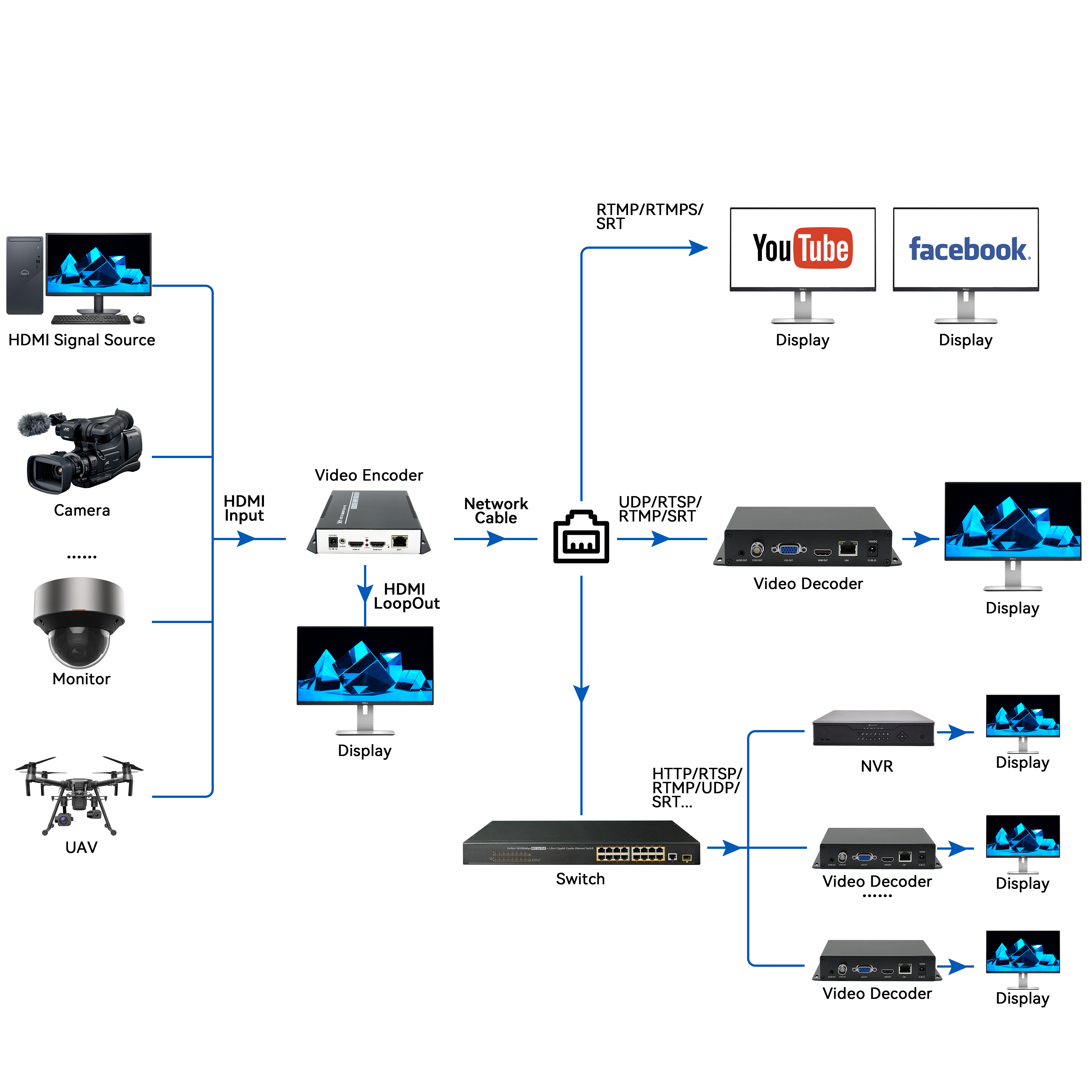

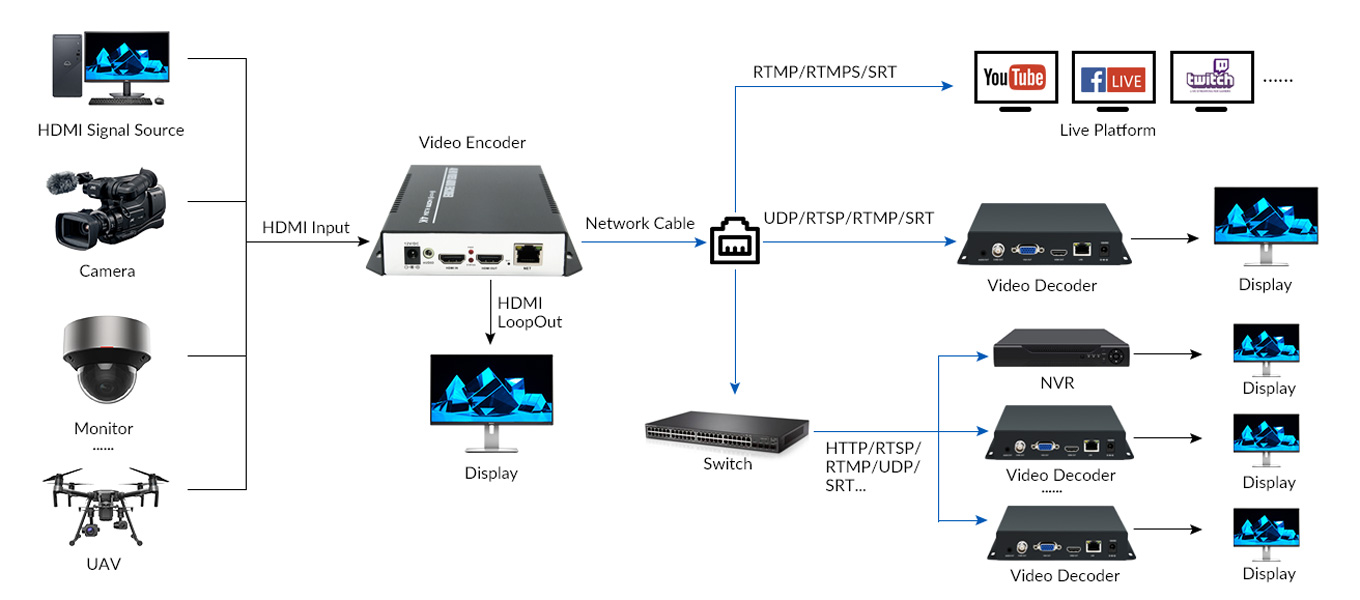

HDMI hardware video encoder converts HDMI base-band video to H.265/H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.
Rich interface options，compatible with various video sources.
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | H.264 4K@30 HDMI Video Encoder |
| Model | ZY-EH401 |
| Input Interface | HDMI*1, Audio*1 |
| Output Interface | LAN port *1, HDMI loop-out*1 |
| Video Encoding | H.264 |
| Max Input Resolution | 3840*2160@30hz |
| HDCP | √ |
| DHCP | √ |
| Audio Input Terminal | HDMI-IN/Stereo Line-in |
| Audio Encoding | AAC-LC/EAAC/EAACPLUS/G711 |
| Video Bit Rate | CVR/VBR: 16kbps~12Mbps |
| Audio Bit Rate | 48kbps~256kbps |
| Simultaneous Streams | Max. 2CH Streams at the same time |
| Protocol Support | HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif |
| OSD Setting | Txt/Picture |
| Output Interface | RJ45*1; Ethernet(10base-t/100base-tx) |
| Output Resolution | 3840*2160,2560*1600,2560*1440,2048*1536,2048*1080,1680*1200,1600*900,1440*1050,1440*900, 1360*768,1280*720,1280*800,1280*768,1024*768,1024*576,960*540,850*480,800*600, 720*576,720*540,720*480,720*404,720*576,640*480,640*360,480*270,Auto |

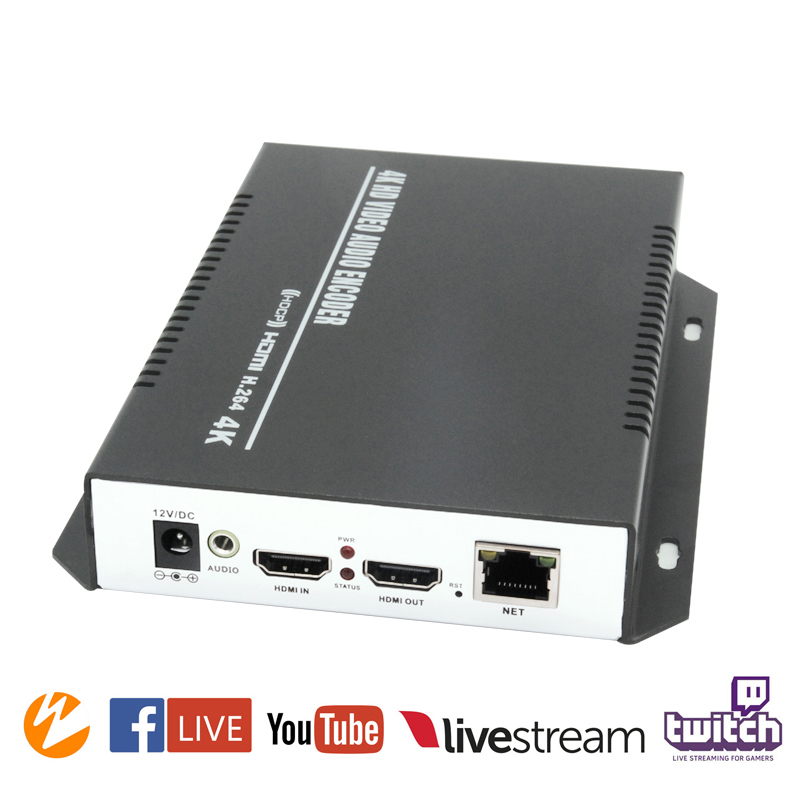

| Live Streaming Platform | YouTube, Facebook, Wowoza… |
| Management | Web Opreation, remote upgrade |
| Language | English/Chinese |
| Power | 12V/DC 1A |
| POE | × |
| Size | W:167mm*D:130mm*H:28mm |
| Net Weight | 0.3kg |
Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.
A: The default login IP address is 192.168.0.31
A: The default login account and password are both admin
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
