Orivision H.265 4K@30 HDMI Video Encoder

Brand: ORIVISION

Model: ZY-EH501

Input Interface: HDMI*1, Audio*1

Output Interface: RJ45*1

Video Encoding: H.265/H.264

Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF protocol

Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )

Warranty: 1 Year

Certificate: CE & FCC & Rohs


H.265 4K Video Encoder
H.265 4K Video Encoder
  • 4K HDMI Input

  • Lower Bandwidth

  • Better Image Quality


4K HDMI Video Encoder

EH501 is an UHD 4K HDMI encoder which is designed to meet the needs of all 4K video transmission applications. The input/output resolutions is up to 4Kp30. It supports H.265 (HEVC)/H.264 high-performance encoding. Also, it supports the most protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif, etc.

4K HDMI Video Encoder
Adopt H.265 to save over 50% bandwidth

With H.265 HEVC encoding, EH501 realizes lower encoding bitrate and save more than 50% bandwidth with same image quality comparing with H.264.

Adopt H.265 to save over 50% bandwidth
4K transmission to ensure better image quality

EH501 supports real 4Kp30 HDMI input and encodes up to 4Kp30, meet your needs for a high-quality image.

4K transmission to ensure better image quality
More Protocols Supported

Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/

HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.


More Protocols Supported

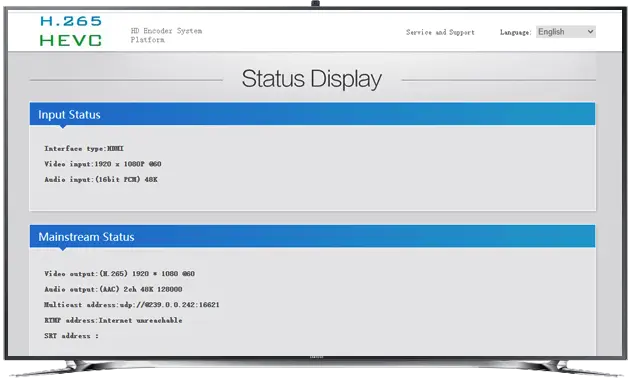

Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

Web Control
Live streaming to multi-platforms simultaneously

Dual stream output (main stream and sub stream), each stream can be sent to multi-platforms with the same or different protocols. Main stream resolution up to 4KP30Hz, sub stream resolution up to 1080P60.

Live streaming to multi-platforms simultaneously
Audio Synchronization Encoding

Support AAC/G711 audio format

Audio Synchronization Encoding
LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights.

LOGO/ Image/ Text Overlay
Local and Remote Transmission

Support LAN, WAN

Local and Remote Transmission
Multiple Signal Input Formats

Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)

Support OEM/ODM

Parameters of H.265 4K@30 HDMI Video Encoder


H.265 4K@30 HDMI Video Encoder
ModelZY-EH501

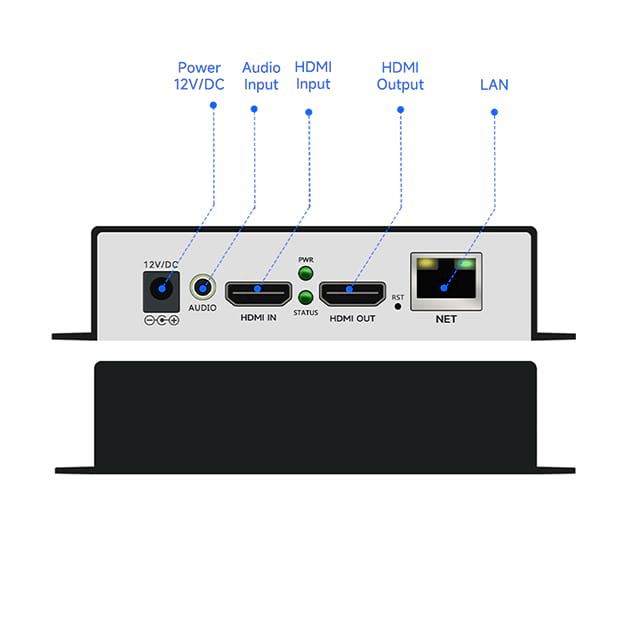

Input InterfaceHDMI*1, Audio*1
Output InterfaceLAN port *1, HDMI loop-out*1
Video EncodingH.265/H.264
Max Input Resolution3840*2160@30hz
HDCP
DHCP
Audio Input TerminalHDMI-IN/Stereo Line-in
Audio EncodingAAC-LC/EAAC/EAACPLUS/G711
Video Bit RateCVR/VBR: 16kbps~12Mbps
Audio Bit Rate48kbps~256kbps
Simultaneous StreamsMax. 2CH Streams at the same time
Protocol SupportHTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif
OSD SettingTxt/Picture
Output InterfaceRJ45*1; Ethernet(10base-t/100base-tx)
Output Resolution3840*2160,2560*1600,2560*1440,2048*1536,2048*1080,1680*1200,1600*900,1440*1050,1440*900,
1360*768,1280*720,1280*800,1280*768,1024*768,1024*576,960*540,850*480,800*600,
720*576,720*540,720*480,720*404,720*576,640*480,640*360,480*270,Auto
Live Streaming PlatformYouTube, Facebook, Wowoza…
ManagementWeb Opreation, remote upgrade
LanguageEnglish/Chinese
Power12V/DC 1A
POE×
SizeW:167mm*D:130mm*H:28mm
Net Weight0.3kg

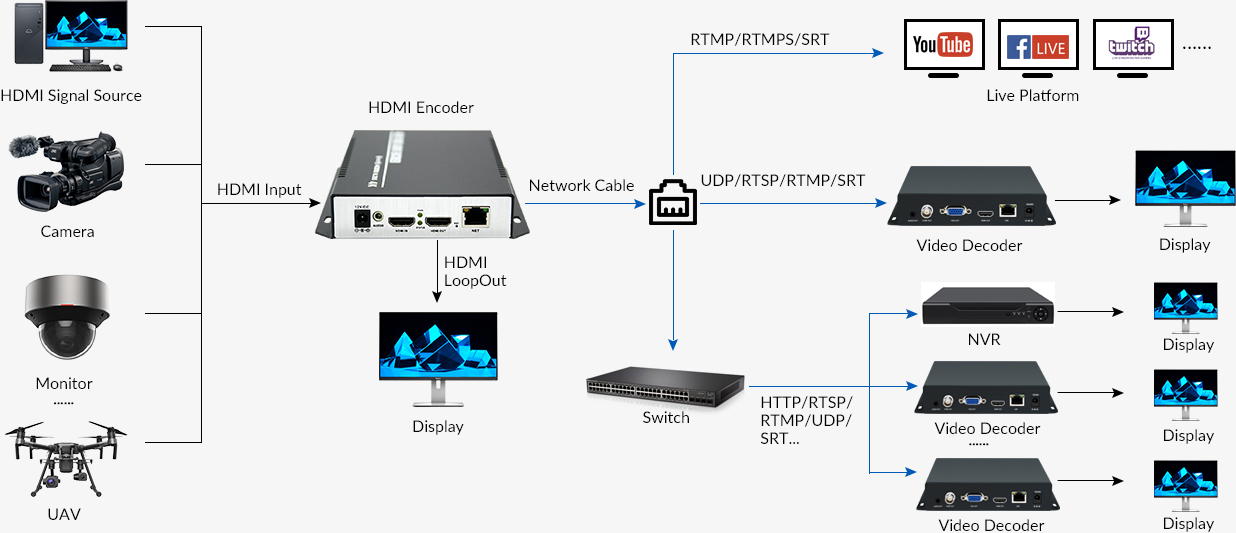

Diagram of H.265 4K@30 HDMI Video Encoder

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.


FAQ about H.265 4K@30 HDMI Video Encoder

What is the default login IP of the encoder?

The default login IP address is 192.168.0.31

What is the login account and password of the encoder?

The default login account and password are both admin

After entering the account password, the page cannot be displayed or the display is incomplete

It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX

How to reset the encoder if you forgot the login IP or login account password?

The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully

The device cannot be turned on when connected to the power supply and the power light does not turn on

Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.

How to get the newest firmware and update it?

Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
