ORIVISION H.265 1-16 Channels HDMI/SDI/VGA/CVBS Video Encoder 3RU

  • Freely Mixed of 1~16channels(3U) HDMI/SDI/VGA video encoder modules

  • Meet industrial application requirements, support 7*24h working

  • Supports the most protocols: SRT/RTMP/RTMPS/RTSP/UDP/HTTP/HLS

  • Easy to use, plug in card structure, easy to mix and replace the encoder modules

  • 3U Rack with Redundant power supply


ORIVISION Rackmount Series
ORIVISION Rackmount Series
  • 1RU/3RU Rackmount Codec

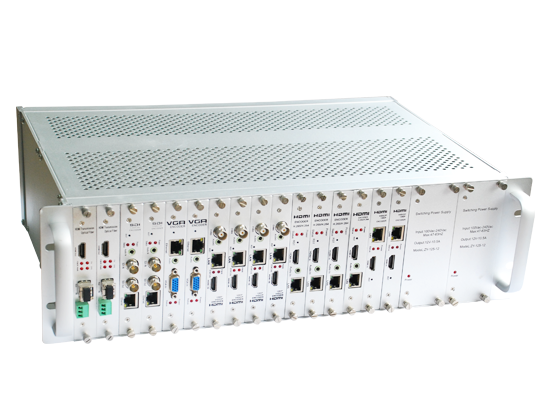

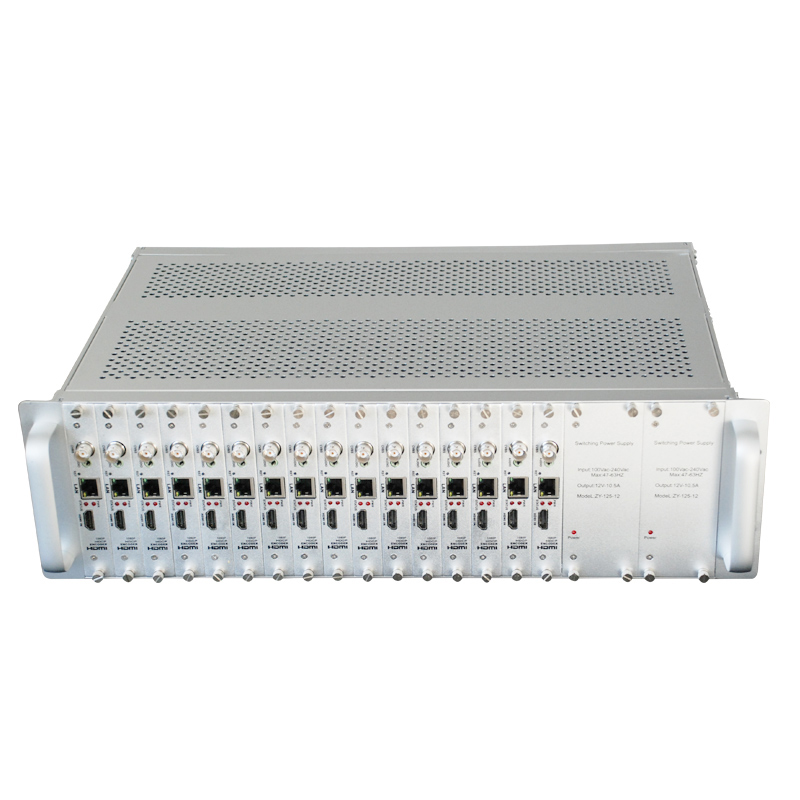

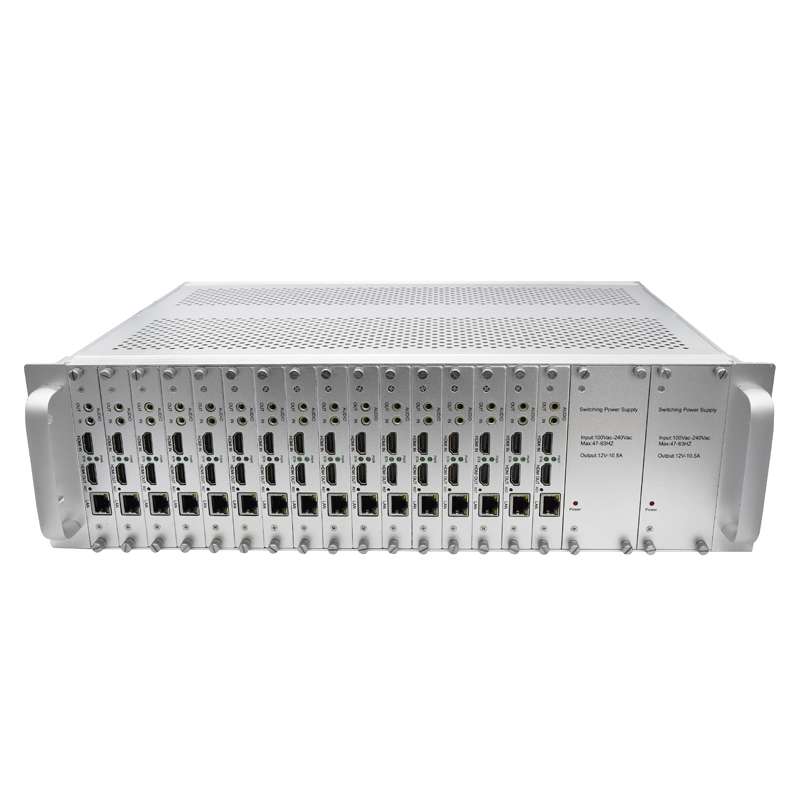

ORIVISION 3RU Rackmount Encoder

3U standard plug-in chassis. Silver aluminum shell, large-area heat dissipation holes, equipped with 2pcs redundant power as standard, effectively preventing power failure. At the same time, dual cooling fans give the chassis Intelligent temperature control for automatic heat dissipation, ensuring stable and 24h continuous operating.

The chassis can be used for all of our company's encoder and decoder cards, It's compatible with 1~16channels SDI, HDMI and VGA encoding or decoding cards.

ORIVISION 3RU Rackmount Encoder

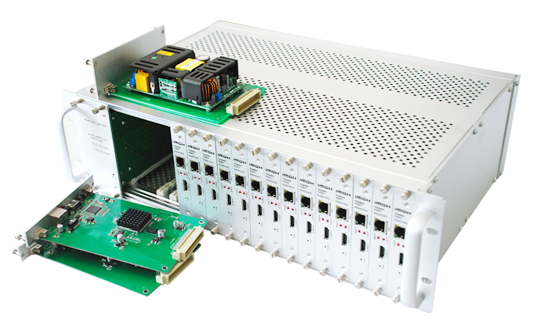

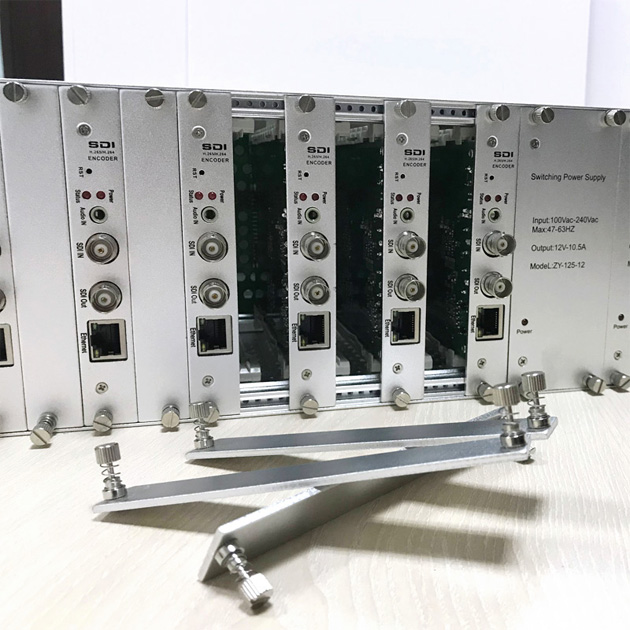

High Flexibility

Adopts a plug-in card structure to make sure card installation and replacement as easy as possible.

1/2/4/6/8/12/14/16 channels optional,

HDMI/SDI/VGA Video encoder and decoder cards optional.


High Flexibility

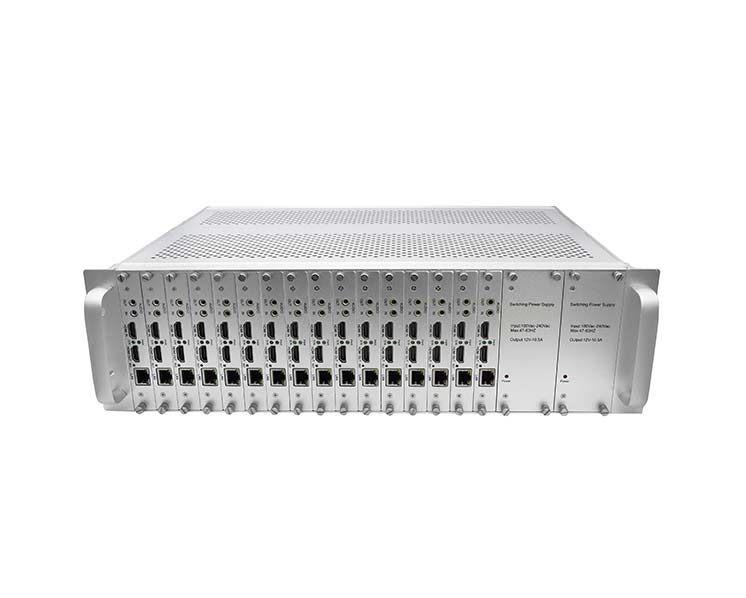

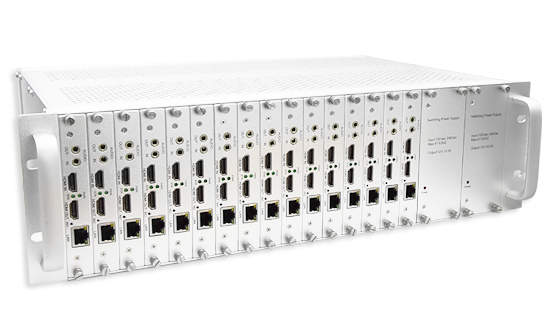

3U Standard Rack

Standard 3U size, and benefits your IP video deployments of any size and complexity.


3U Standard Rack

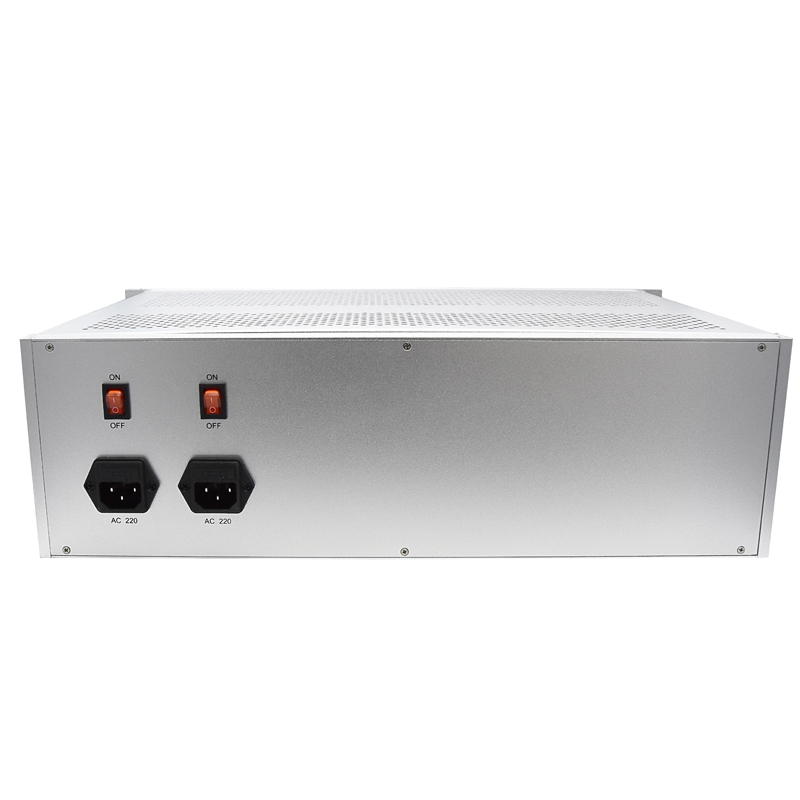

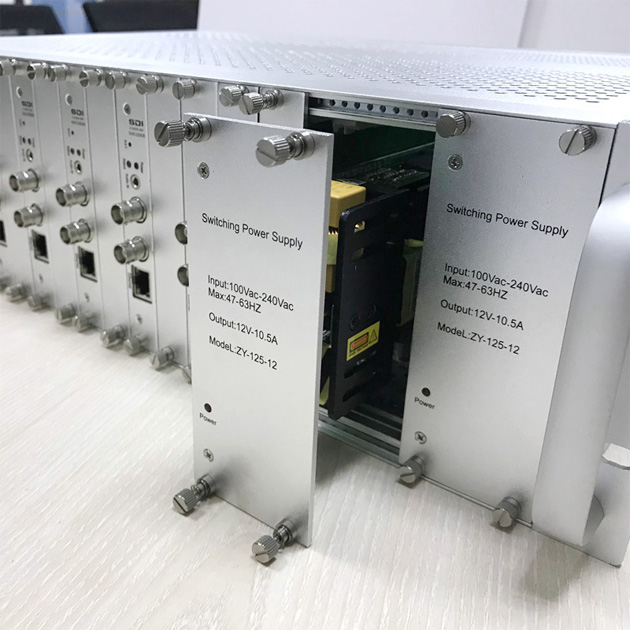

Support 7*24h working

Equipped with 2pcs redundant power as standard, effectively preventing power failure.

Large-area cooling mesh design and dual fans to cooling.


Support 7*24h working
Multiple Network Protocols

Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.


Multiple Network Protocols
Resolution Setting

Maximum input resolution: 1080P@60hz,

Maximum output resolution: 1080P@60hz

Resolution can be set separately


Resolution Setting
Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

Web Control
Audio Synchronization Encoding

Support AAC/G711 audio format; Support Digital /Analog audio loop out; Audio can be coded separately

Audio Synchronization Encoding
Image Rotation and Mirror Flip

It can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

Image Rotation and Mirror Flip

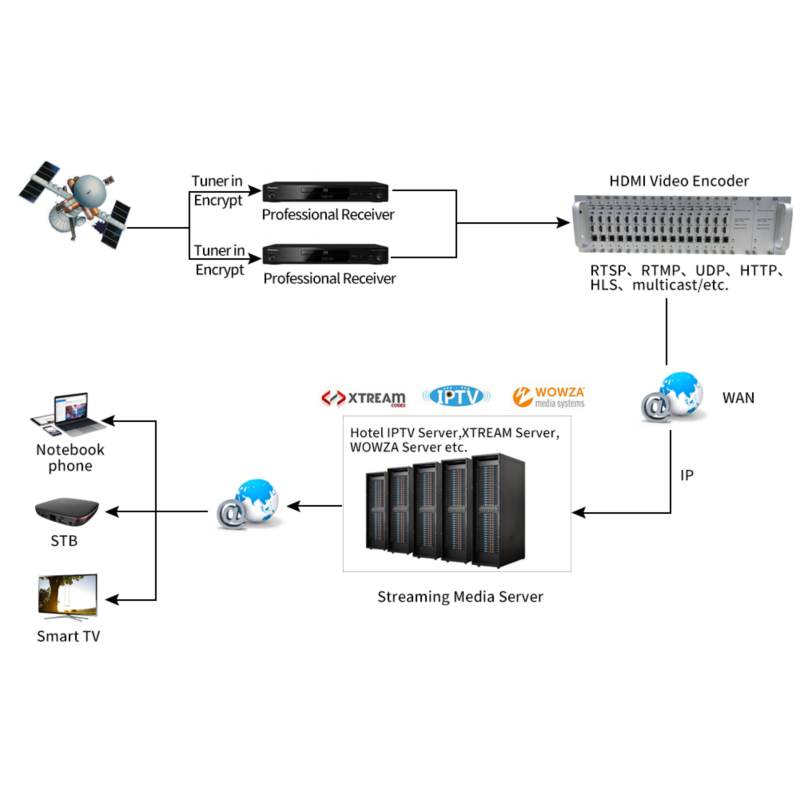

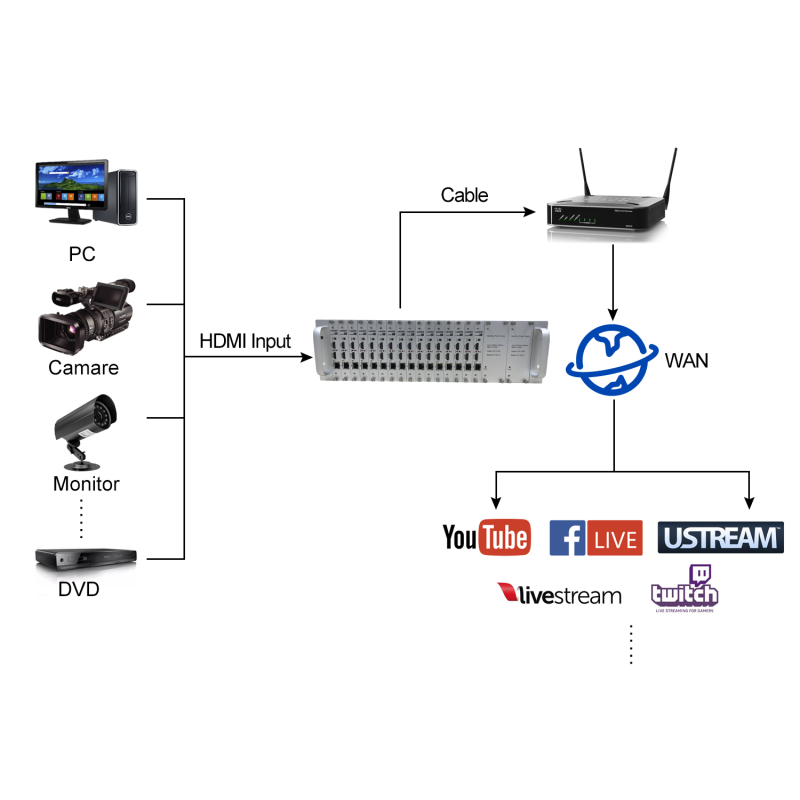

Local and Remote Transmission

Hardware video encoder converts HDMI/SDI/VGA base-band video to H.265/H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.

Local and Remote Transmission

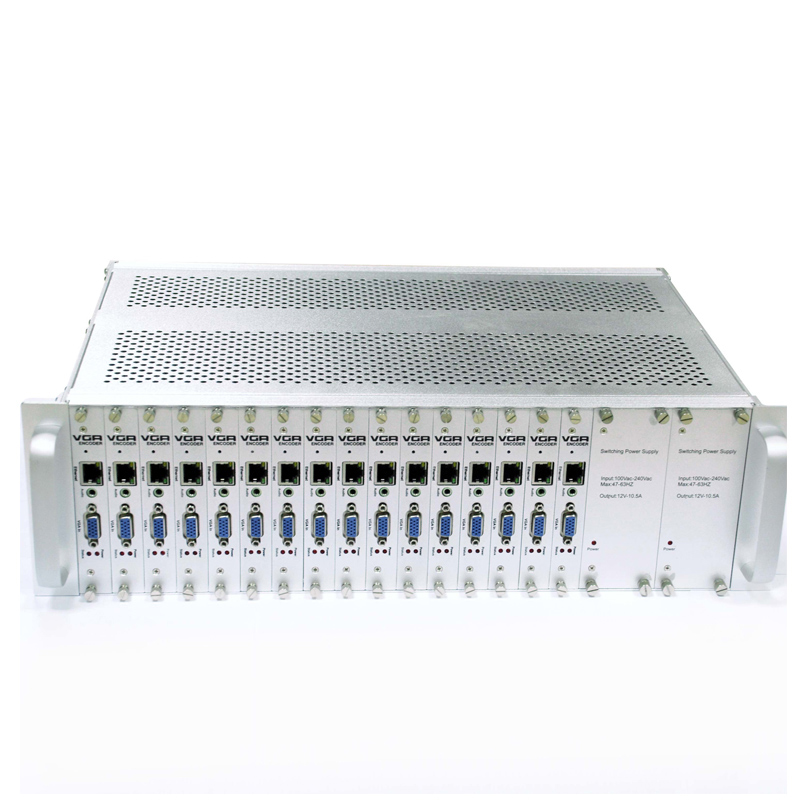

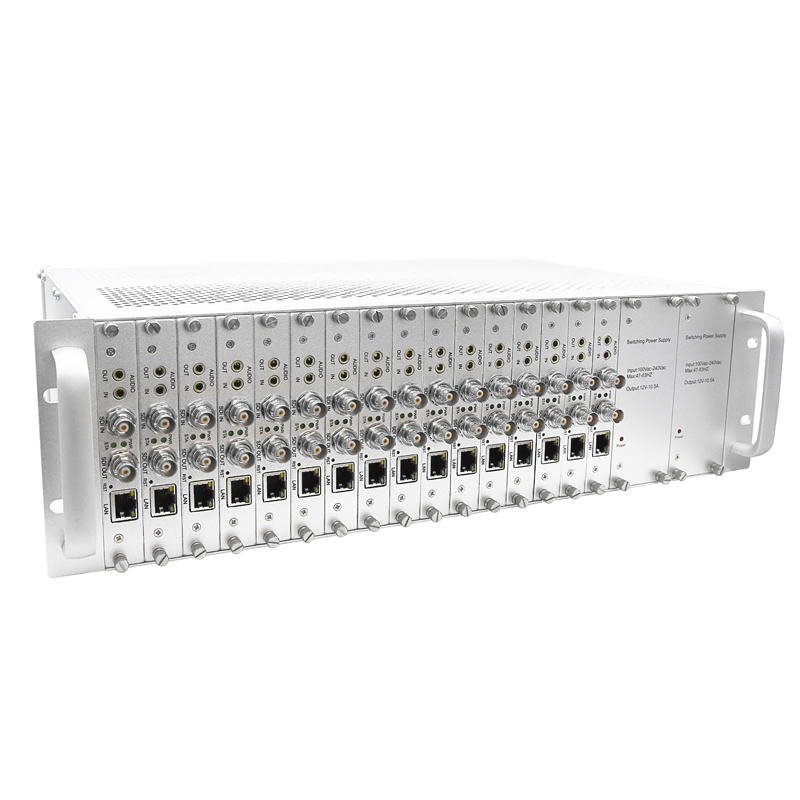

Multiple Signal Input Formats

Rich interface options,compatible with various video sources.

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM/ODM

Parameters of H.265 1-16 Channels HDMI/SDI/VGA/CVBS Video Encoder 3RU

ModelHDMI EncoderSDI EncoderVGA EncoderHDMI+CVBS Encoder
Input1~16* HDMI & Audio1~16* SDI & Audio1~16* VGA & Audio1~16*HDMI, VGA & Audio
Loop1~16* HDMI1~16* SDI

Output1~16 * LAN Ports
Analog audio port3.5mm
Video encodingH.265/H264/AVC, MJPEGH.265/H264/AVC, MJPEGH.265/H264/AVC, MJPEGH.264
ProtocolsHTTP/SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif
ResolutionUp to 1080P60Hz
Audio encodingAAC/G.711
Network1000M RJ45 Ethernet
Image and text
overlay
User-defined text and image overlay
Management PortalWeb remote management

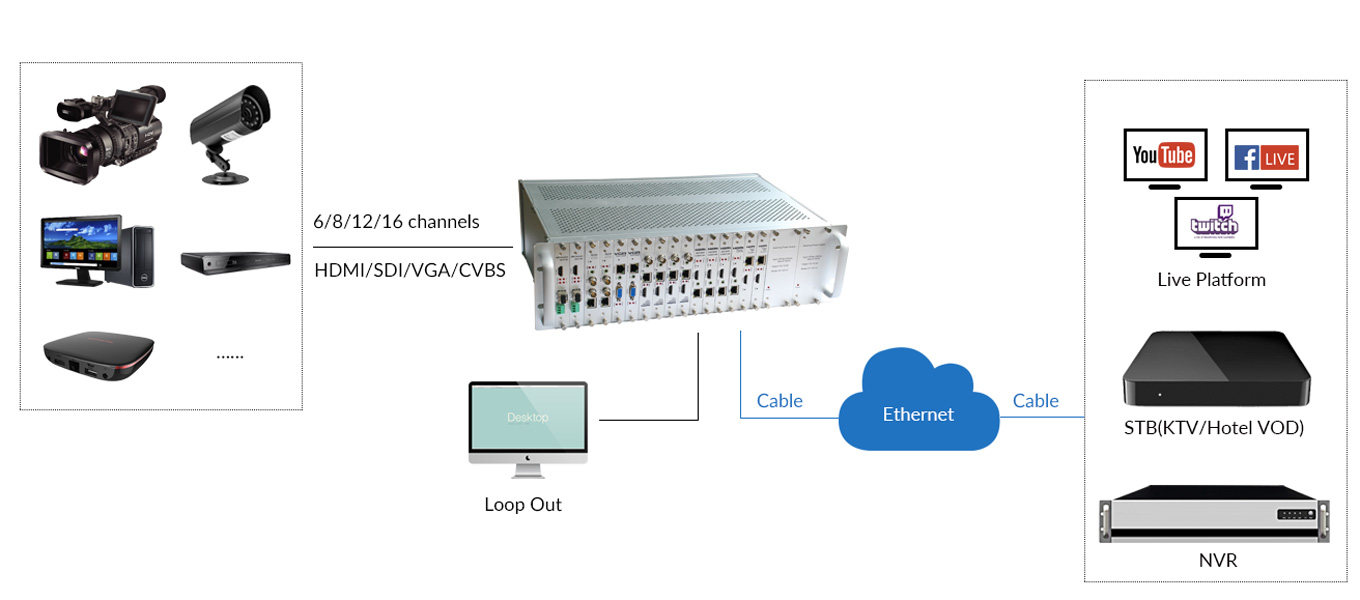

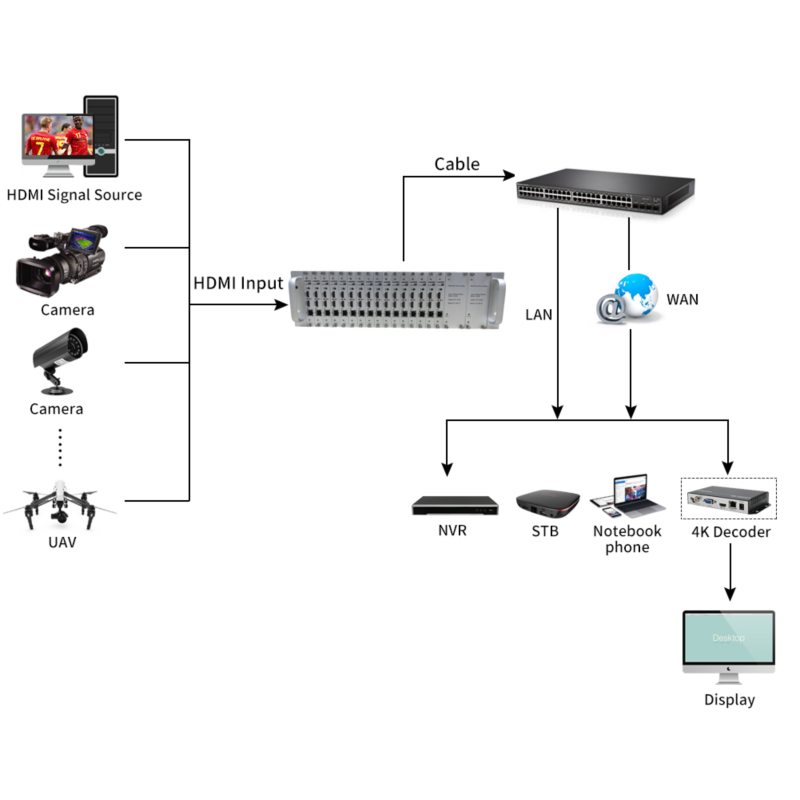

Diagram of H.265 1-16 Channels HDMI/SDI/VGA/CVBS Video Encoder 3RU

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.



FAQ about H.265 1-16 Channels HDMI/SDI/VGA/CVBS Video Encoder 3RU

What is the default login IP of the encoder?

A: The default login IP address is 192.168.0.31

What is the login account and password of the encoder?

A: The default login account and password are both admin

After entering the account password, the page cannot be displayed or the display is incomplete

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX


How to reset the encoder if you forgot the login IP or login account password?

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully


The device cannot be turned on when connected to the power supply and the power light does not turn on.

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.


How to get the newest firmware and update it?

A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
