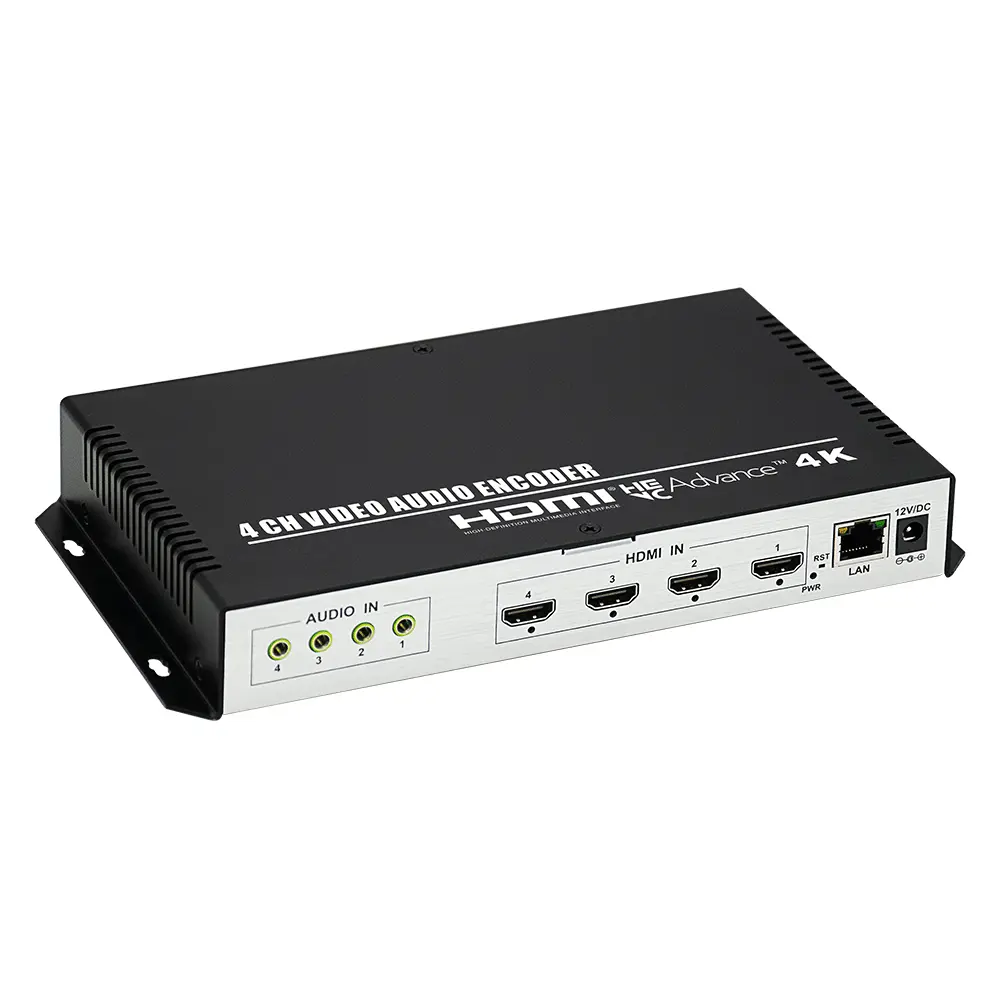

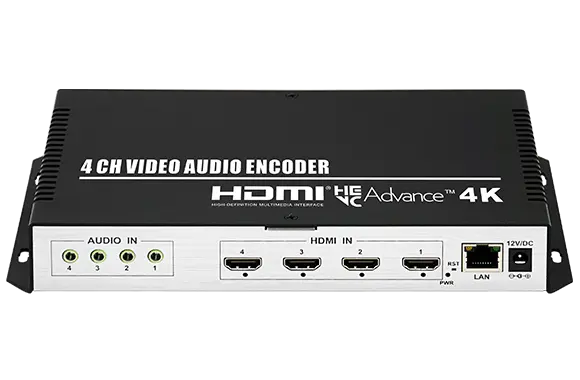

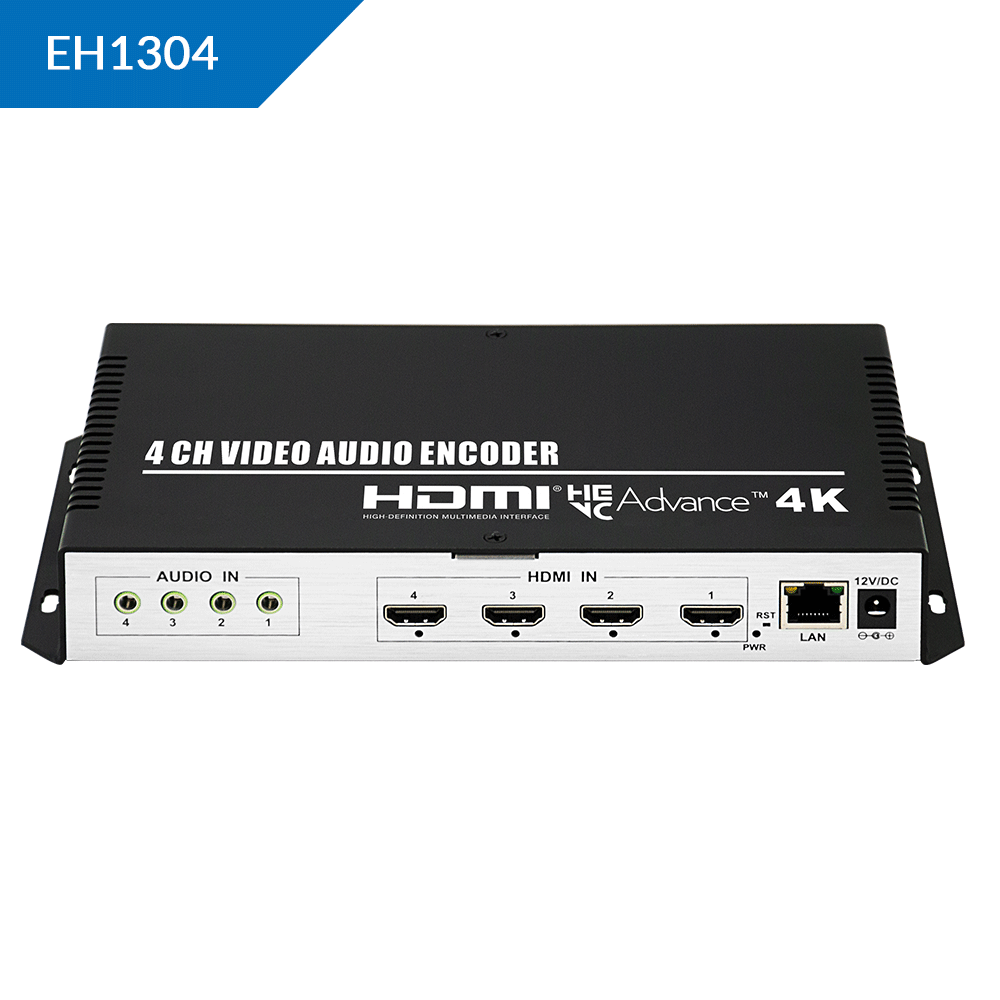

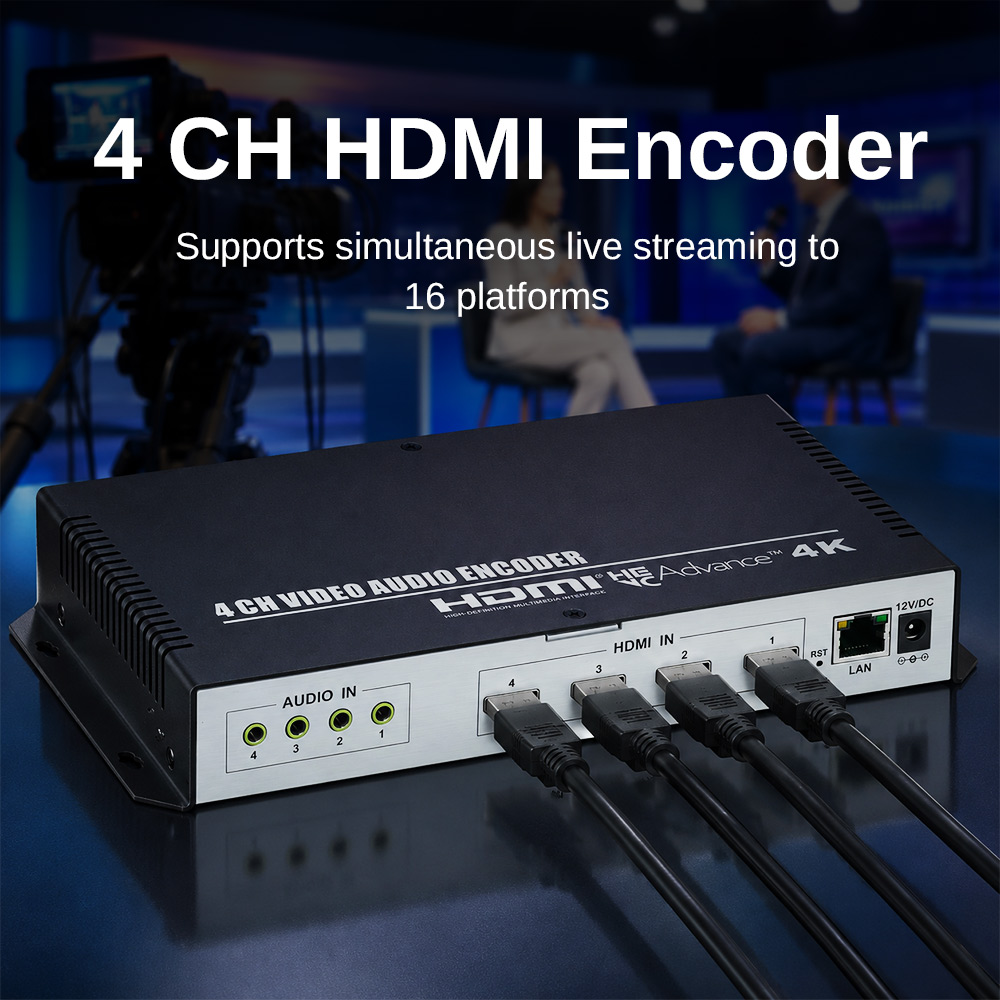

ORIVISION H.265&H.264 4CH HDMI Video Encoder


Brand: ORIVISION

Model: ZY-EH1304

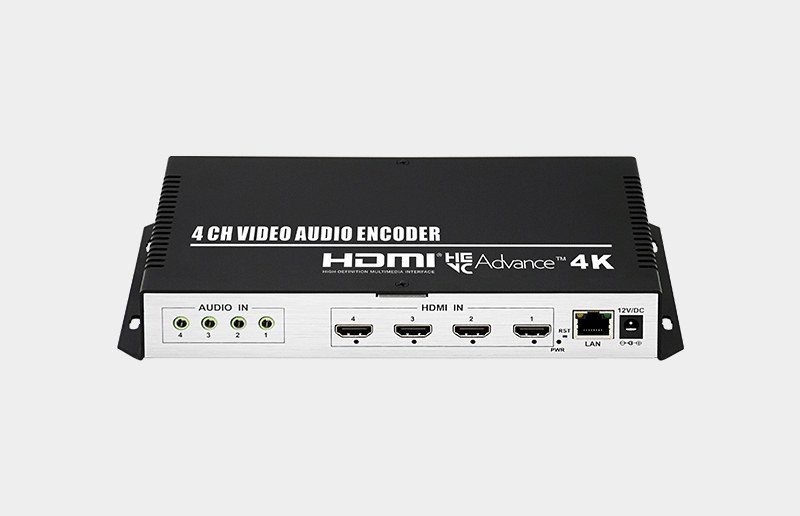

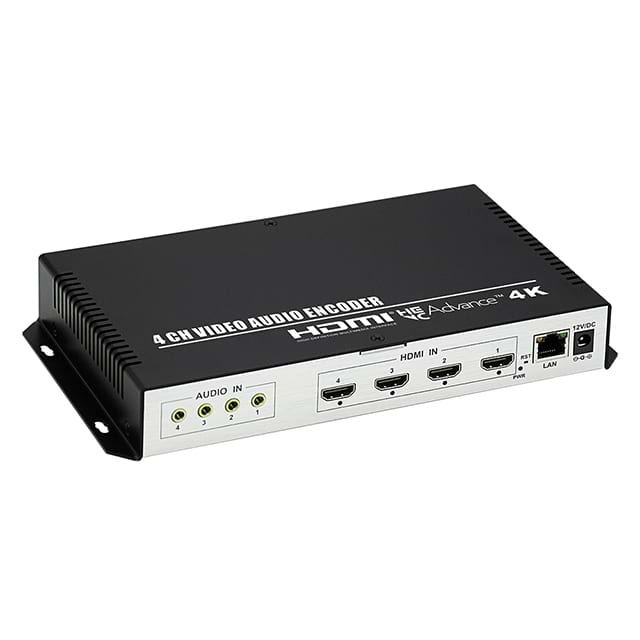

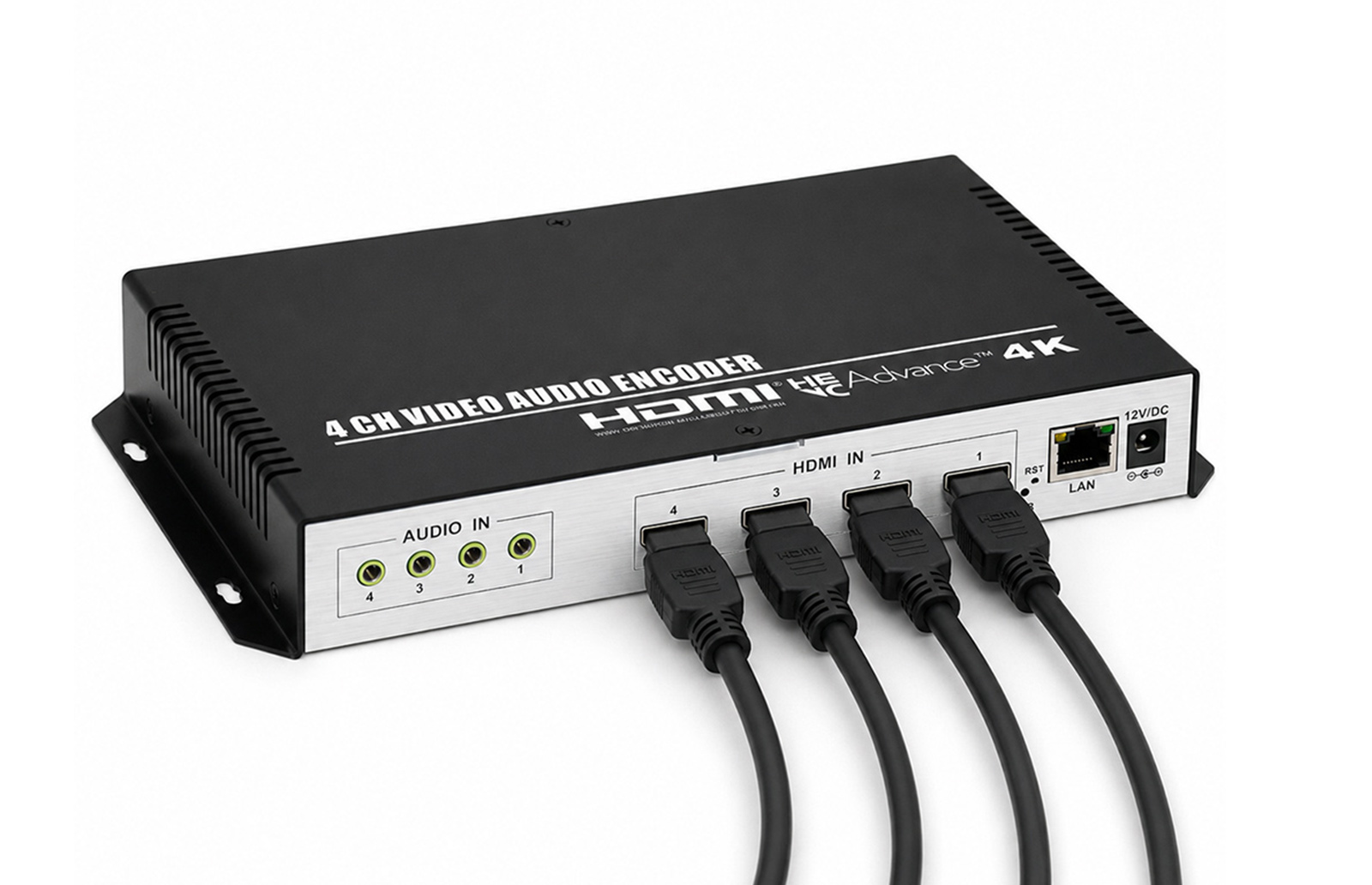

Input Interface: HDMI*4, Audio*4

Output Interface: RJ45*1

Video Encoding: H.265/H.264/MJPEG

Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, ONVIF protocol

Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )

Warranty: 1 Year

Certificate: CE & FCC & Rohs


HEVC 4 Channels HDMI Video Encoder

EH1304 is a professional hardware video and audio encoder designed to meet up to the 2CH 4K@30HZ and 2CH 1080P60 HDMI Video transmission applications simultaneously. It supports H.265&H.264 high-performance encoding. Also, it supports most protocols including HTTPRTMP/RTMPS/HLS/UDP/RTSP/Onvif, etc.

It's high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.


HEVC 4 Channels HDMI Video Encoder
Adopt H.265 to save over 50% bandwidth

With H.265 HEVC encoding, EH1301 realizes lower encoding bitrate and save more than 50% bandwidth with same image quality comparing with H.264.

Adopt H.265 to save over 50% bandwidth

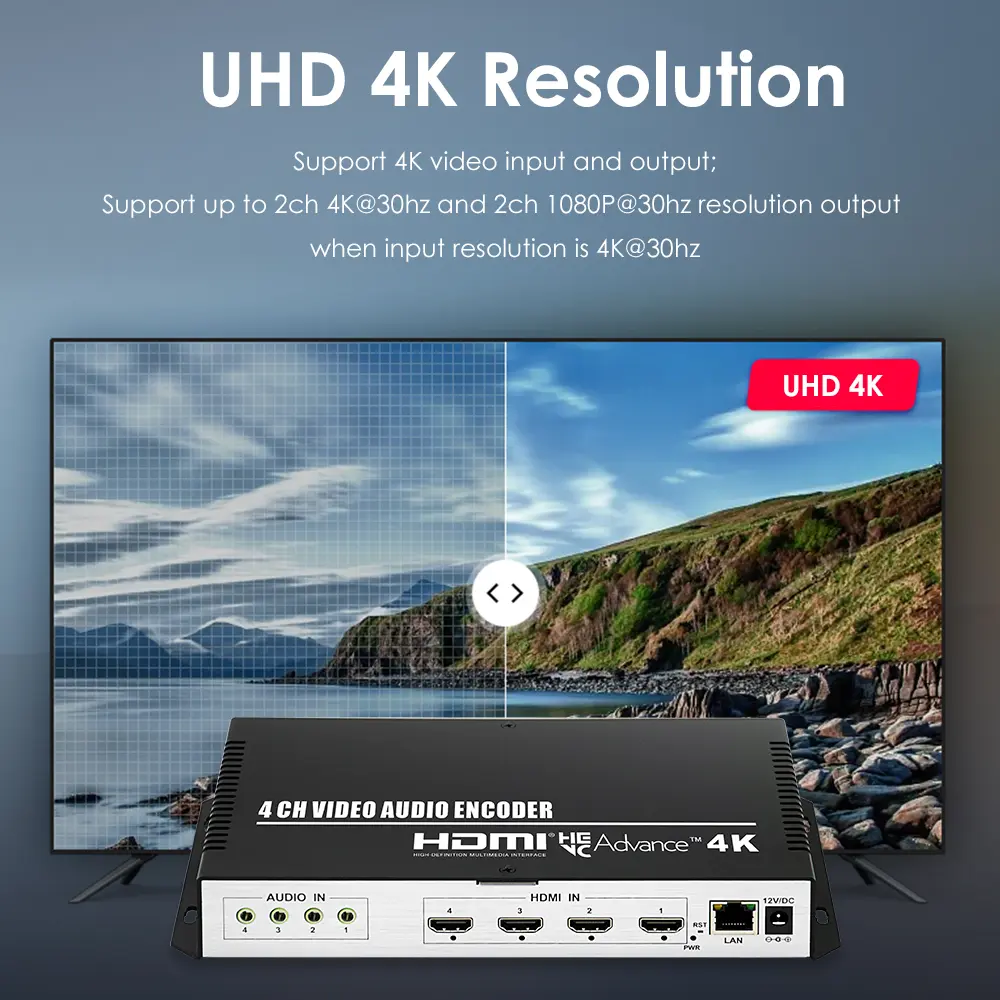

4K transmission to ensure better image quality

Supports real 4Kp30 HDMI input and encodes up to 4Kp30, meet your needs for a high-quality image, support up to 2CH 4K@30hz and 2CH 1080P60 resolution input and output.

4K transmission to ensure better image quality

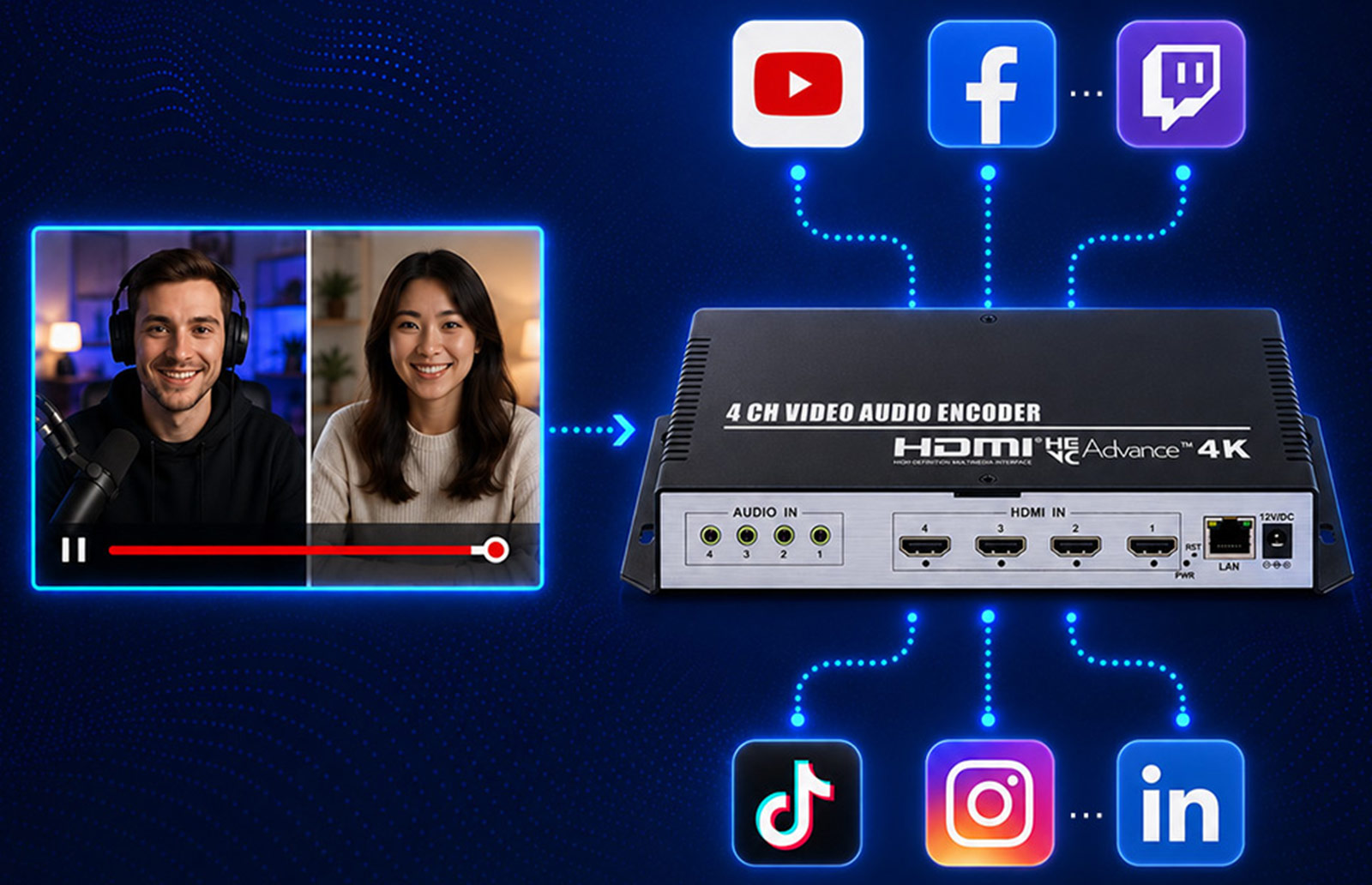

Live streaming to multi-platforms Simultaneously

Support 4 channels HDMI output, each channel can be used to up to 4 platforms with the same or different protocols, altogether it can simultaneously live stream to up to 16 platforms.

Live streaming to multi-platforms Simultaneously

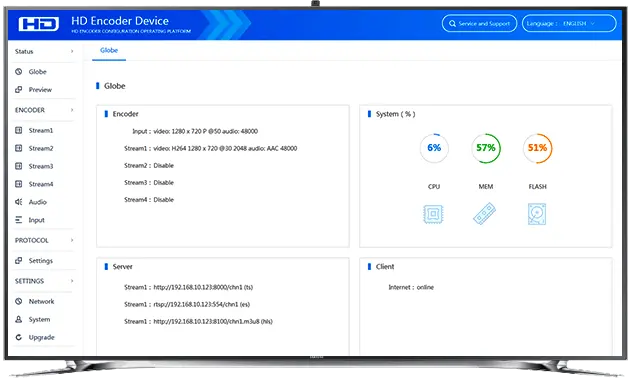

Web Control

Friendly web UI, users can configure background subjects including LOGO, frame, and graphic overlay with the encoder.

Web Control

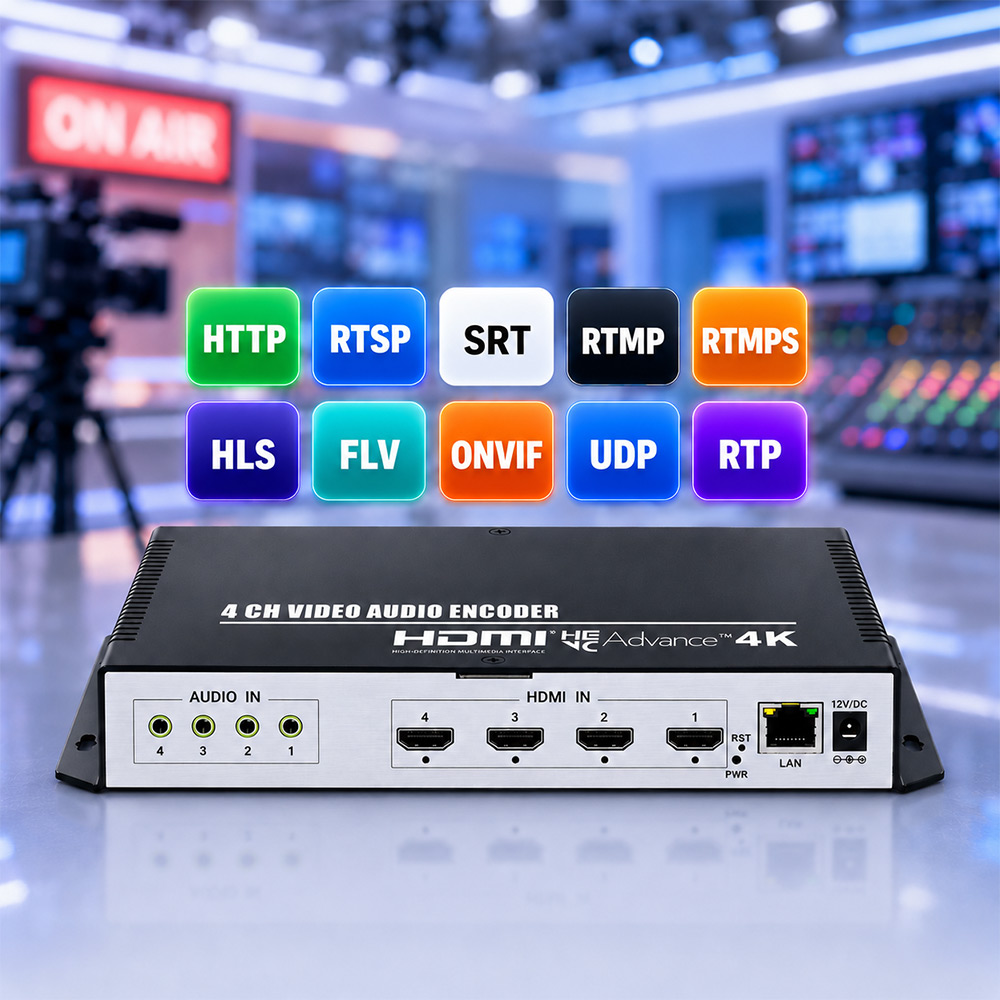

More Protocols Supported

Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/

HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.

More Protocols Supported
Audio Synchronization Encoding

Support ACC, MP3, G711 audio format,support audio encoding without the video input.

Audio Synchronization Encoding
LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights.

LOGO/ Image/ Text Overlay
Local and Remote Transmission

Support LAN, WAN

Local and Remote Transmission
Multiple Signal Input Formats

Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)

Support OEM/ODM

Parameters of EH1304 | H.265&H.264 4CH HDMI Video Encoder


NameH.265&H.264 4CH HDMI Video Encoder
ModelEH1304
Video

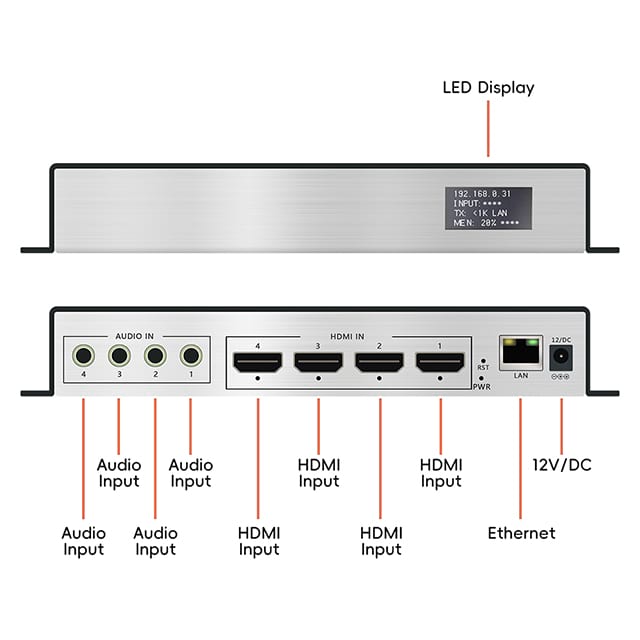

Input interface4×HDMI 1.4
Support resolution3840*2160,2560*1600,2560*1440,2048*1536,2048*1080,1680*1200, 1600*900,1440*1050,1440*900,1360*768,1280*720,1280*800, 1280*768,1024*768,1024*576,960*540,850*480,800*600,720*576, 720*540,720*480,720*404,720*576,640*480,640*360,480*270, Auto
Frame rate5-60hz
HDCPHDCP 1.4
Output interface1×Ethernet port (RJ45)
Video encodingH.265/H.264/Baseline Profile/Main profile/High Profile
Max bitrate16kbps- 20Mbps
Rate controlCBR/VBR
Audio
Input interface4×External audio, HDMI built-in Audio
Audio encodingACC, G711
Audio Encoder typeLCAAC,EAAC,EAACPLUS
Bit-rate Option48K,64K,96K,128K,160K,192K,256K
Sampling Accuracy24 Bit
Output Interface64Kb/s to 384Kb/s
Network
RJ451000M Ethernet port
Program streamingSRT, HTTP, RTSP, RTMP/RTMPS, HLS, FLV, ONVIF, Multicast: UDP/RTP
Control PanelWeb panel (Language is English), remote upgrade
Firmware UpdateEnable by uploading files to the dashboard
General
Dimension(W*L*H)238*122*28mm
Gross Weight0.4kg
Temperature0 ~ 45℃(for working),-20~60℃(for storing)
Humidity<90%, non-condensing
Input VoltageDC 12V/1A
Power Consumption5W

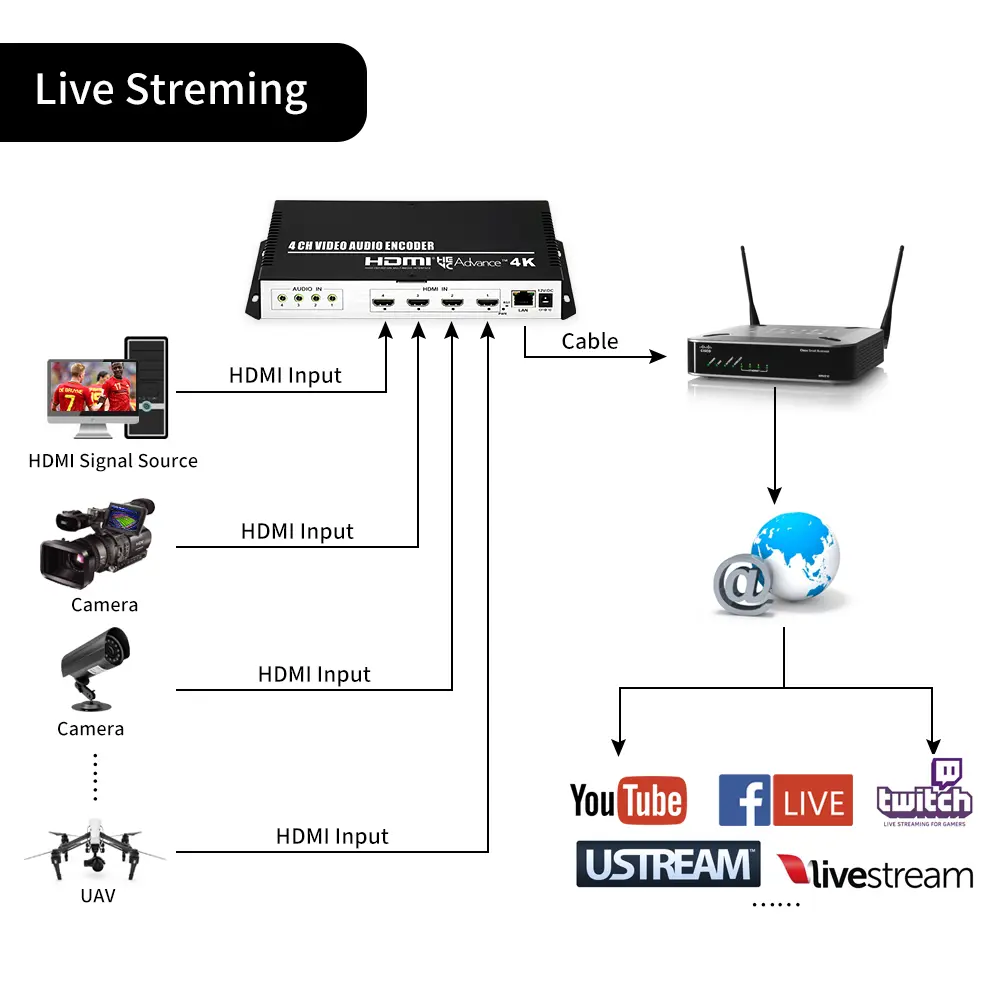

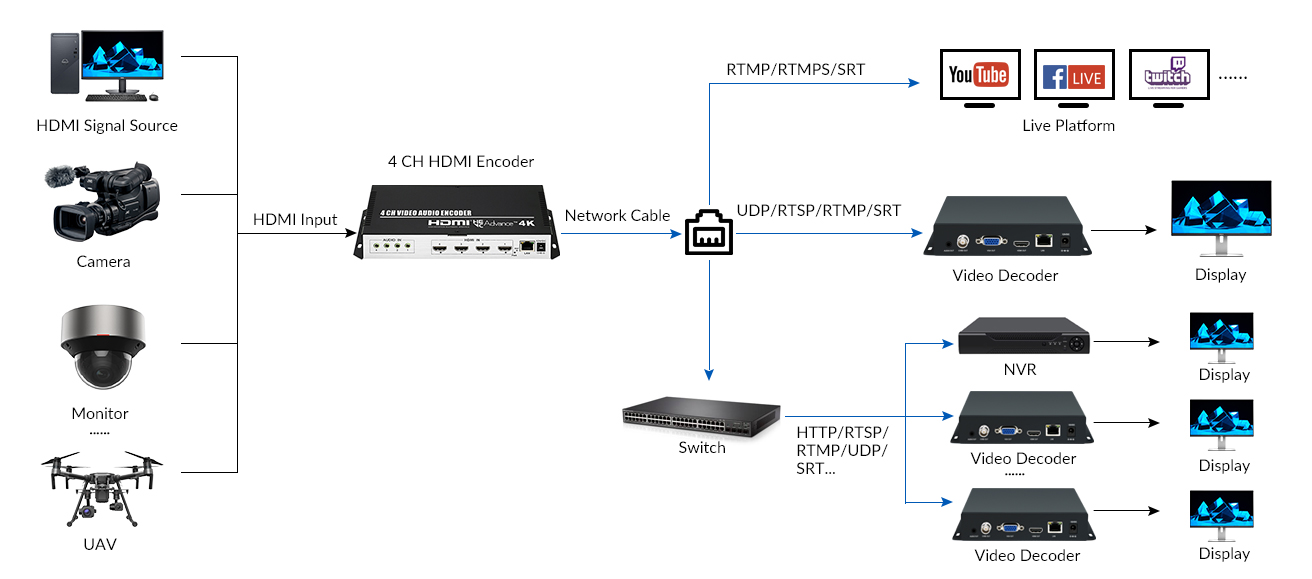

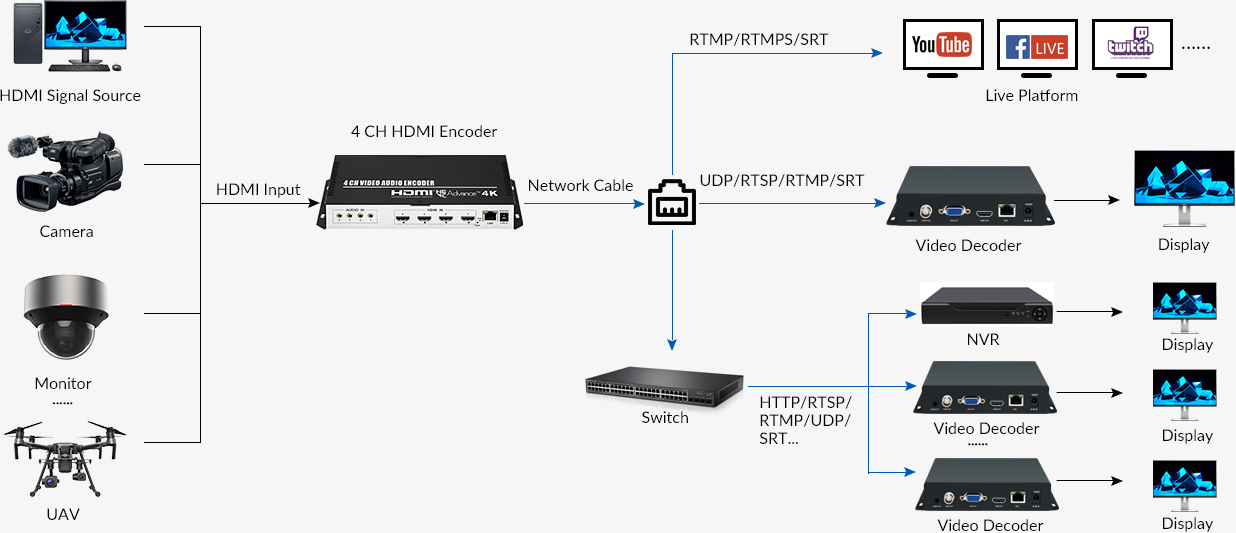

Diagram of EH1304 | H.265&H.264 4CH HDMI Video Encoder

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.


FAQ about EH1304 | H.265&H.264 4CH HDMI Video Encoder

What is the default login IP of the encoder?

The default login IP address is 192.168.0.31

What is the login account and password of the encoder?

The default login account and password are both admin

After entering the account password, the page cannot be displayed or the display is incomplete

It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX

How to reset the encoder if you forgot the login IP or login account password?

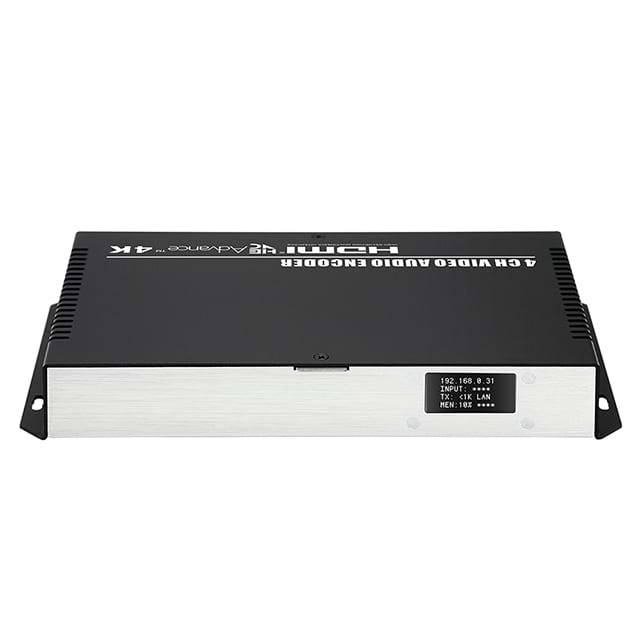

The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.

The device cannot be turned on when connected to the power supply and the power light does not turn on

Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.

How to get the newest firmware and update it?

Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
