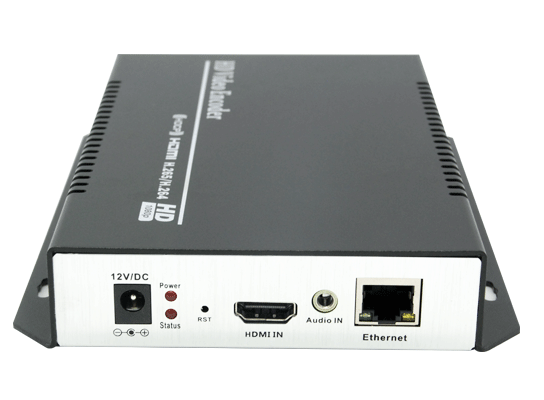

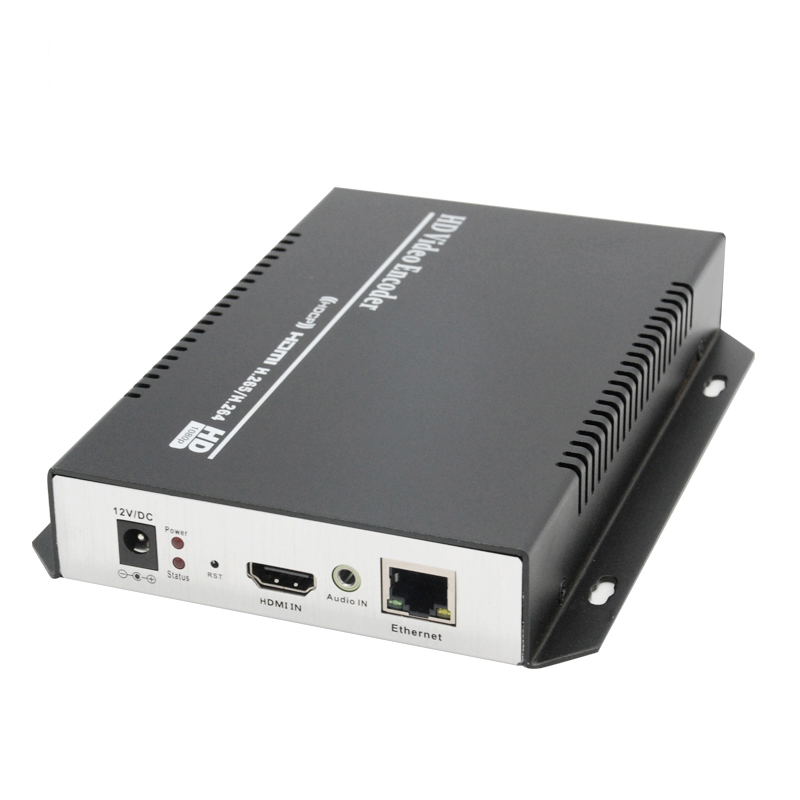

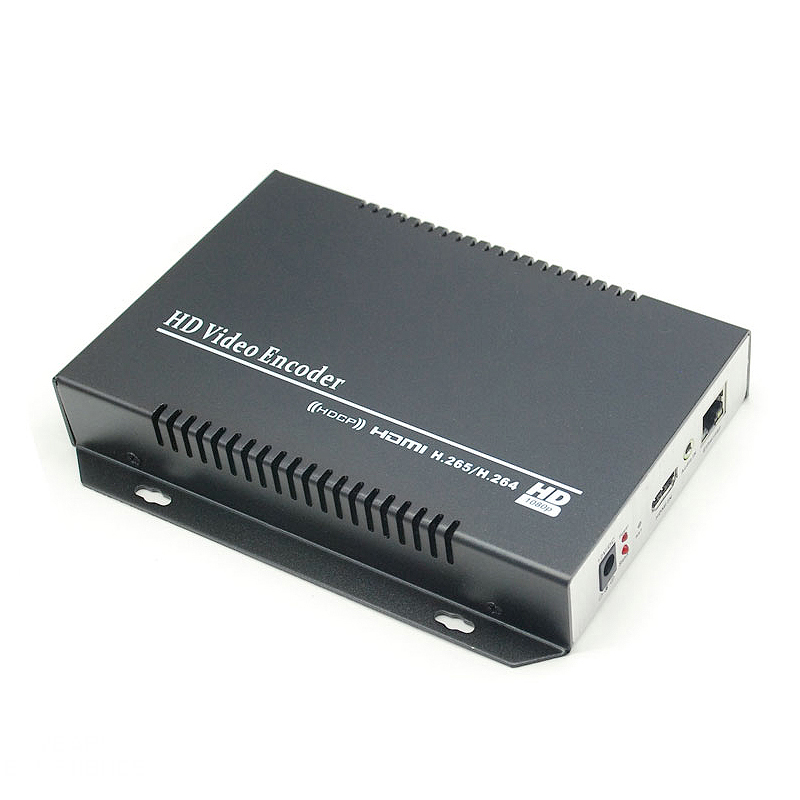

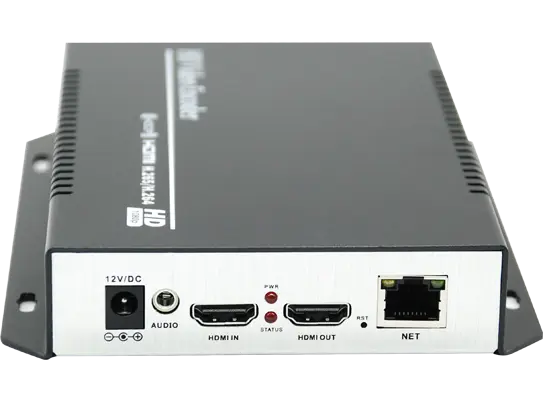

Orivision H.265 1080P@30 HDMI Video Encoder With Loop Out

Not Available

Update in ZY-EH901


Model: ZY-EH311

Input Interface: HDMI*1, Audio*1

Output Interface: RJ45*1, HDMI*1

Video Encoding: H.265/H.264

Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF protocol

Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )

Warranty: 1 Year

Certificate: CE & FCC & Rohs

H.265&H.264 HDMI Video Encoder For  IPTV, Live Stream, Broadcast
H.265&H.264 HDMI Video Encoder For IPTV, Live Stream, Broadcast
  • HDMI to H.265/H.264 encoding;


  • 1080P@30hz and so on

  • 1channel ~16 channels video encoder 1U/3U Rack Support


Stable Video Encoder For Live Streaming

ORIVISION's hardware video encoder converts HDMI base-band video to H.265/h.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN. They support the most common protocols including SRT, RTMP, RTMPS, RTP, HLS, UDP, RTSP, Onvif, and are widely applied to professional Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting.

Stable Video Encoder For Live Streaming

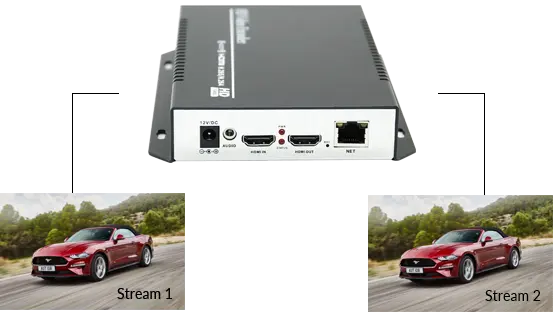

Encoding & Streaming to Multiple Platforms

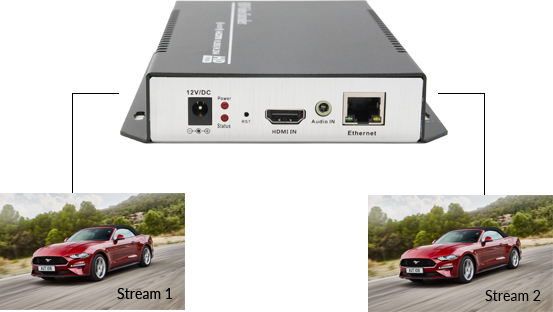

You can set dual stream(main stream and sub stream) in the hdmi encoder's web console.

Main stream resolution up to 1080p 30Hz, sub stream resolution up to 720p 60Hz.

Different protocols can be set for each stream.

Encoding & Streaming to Multiple Platforms
Multiple Network Protocols

Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/

HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.

Multiple Network Protocols
Good Compatibility

Support Onvif Protocol, and NVR recording, such as Hikvision NVR…

Good Compatibility
Resolution Setting

Maximum input resolution: 1080P@60hz,

Maximum output resolution: 1080P@30hz

Resolution can be set separately

Resolution Setting
Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

Web Control
Obtain IP Automatically

Support DHCP and obtain IP automatically

Obtain IP Automatically
Audio Synchronization Encoding

Support AAC/G711 audio format, support embedded and 3.5mm anolog audio.

Audio Synchronization Encoding
LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights.

LOGO/ Image/ Text Overlay
Local and Remote Transmission

HDMI hardware video encoder converts HDMI base-band video to H.265/H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.

Local and Remote Transmission
Multiple Signal Input Formats

Rich interface options,compatible with various video sources.

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (

Support OEM/ODM

Parameters of H.265 1080P@30 HDMI Video Encoder

NameH265 1080P@30 HDMI Video Encoder with loop-out
Input InterfaceHDMI*1, Audio*1
Output InterfaceLAN port *1;
HDMI loop-out*1
Video EncodingH.265&H.264
Max Input Resolution1080P@30hz
Audio Input TerminalHDMI-IN/Stereo Line-in
Video Bit RateCVR/VBR: 16kbps~12Mbps
Audio Bit Rate48kbps~256kbps
Simultaneous StreamsMax. 2CH Streams at the same time
Protocol SupportHTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif
OSD SettingTxt/Picture
Output InterfaceRJ45*1; Ethernet(10base-t/100base-tx)
Output Resolution1920*1080,1280*720,1280*800,1280*768,1024*768,1024*576,960*540,850*480,800*600,720*576,720*540,720*480,
Live Streaming PlatformYouTube, Facebook, Wowoza…
ManagementWeb Opreation, remote upgrade
Power12V/DC 1A
Net Weight0.3kg

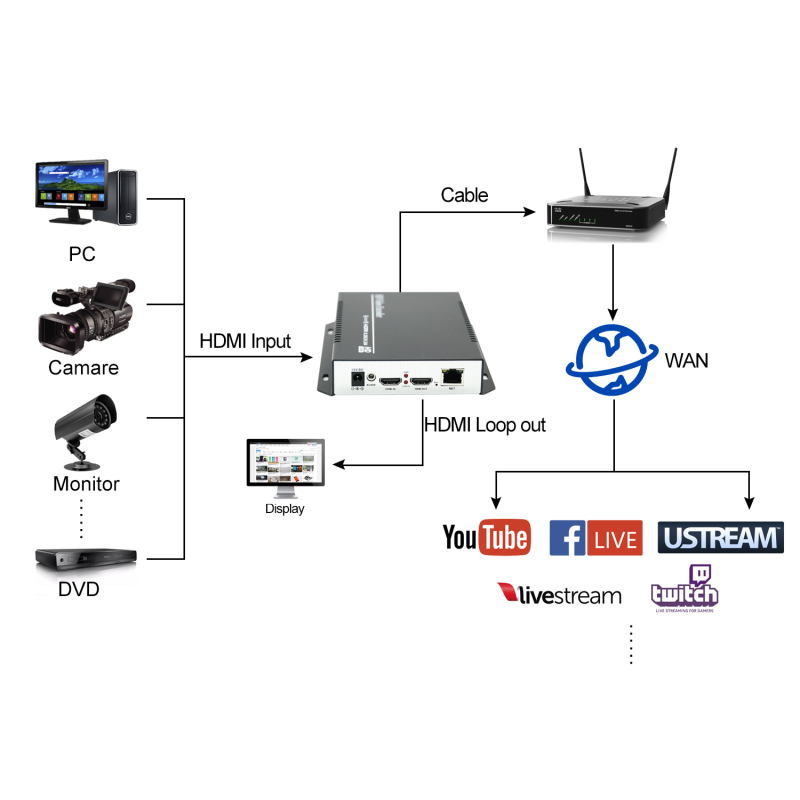

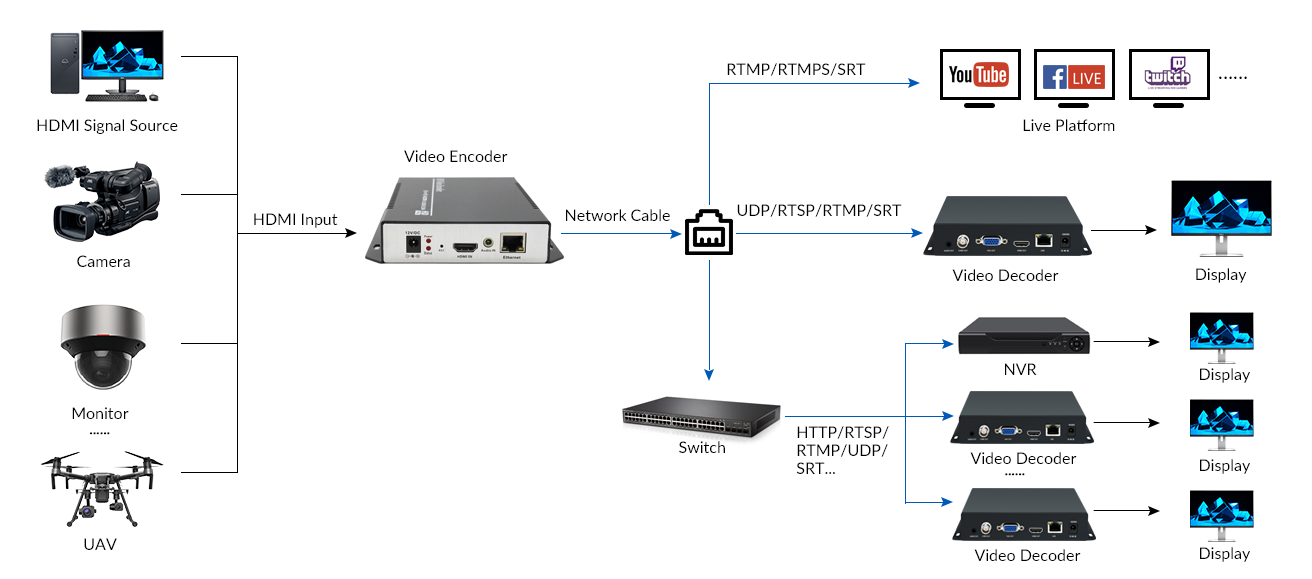

Diagram of H.265 1080P@30 HDMI Video Encoder

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.

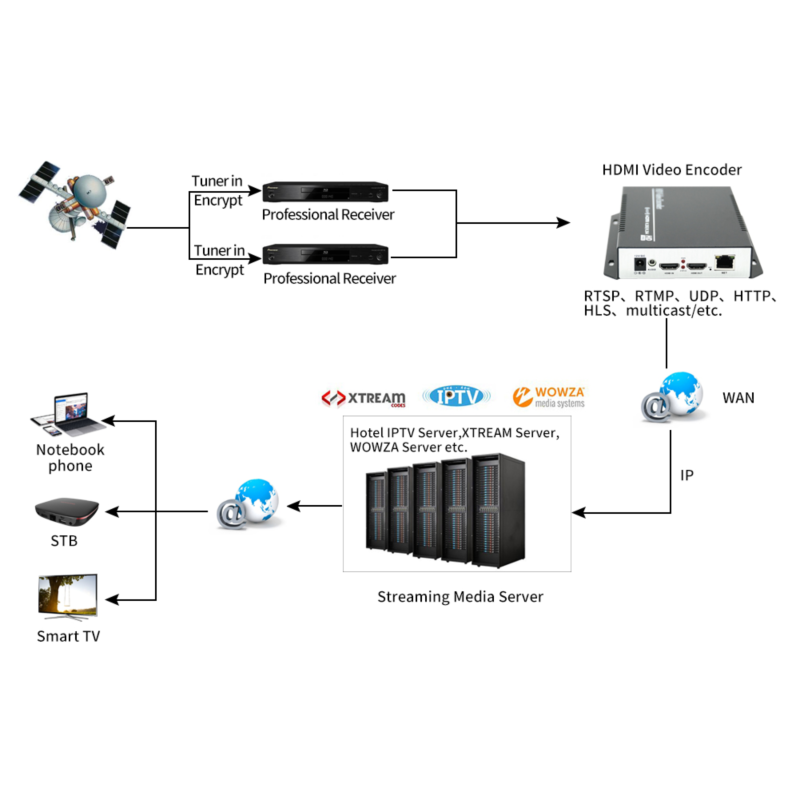

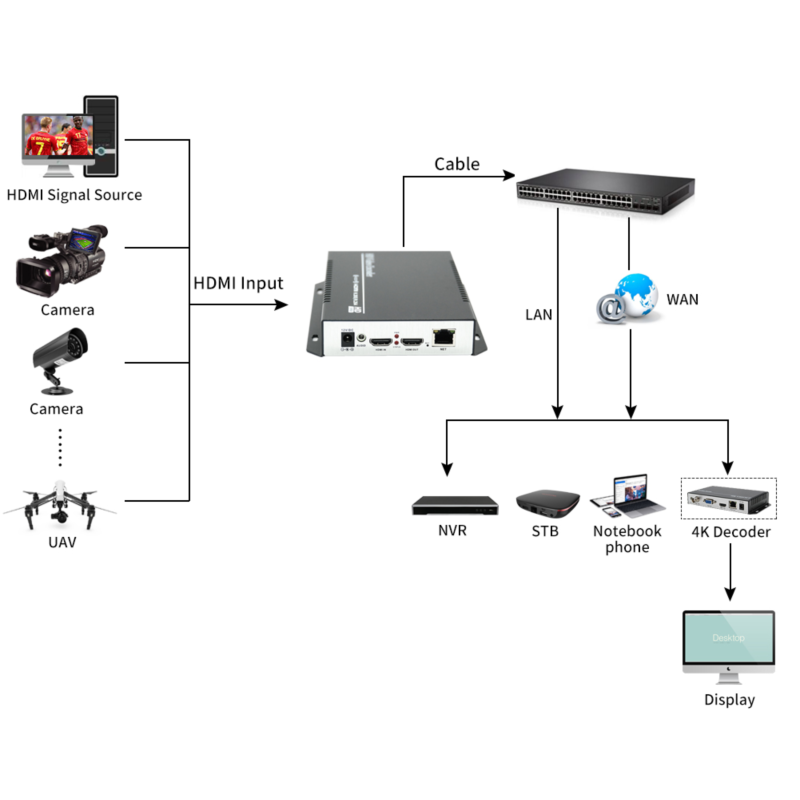

Diagram of H.265 1080P@60 HDMI Video Encoder

FAQ about H.265 1080P@30 HDMI Video Encoder

What is the default login IP of the encoder?

A: The default login IP address is

What is the login account and password of the encoder?

A: The default login account and password are both admin.

After entering the account password, the page cannot be displayed or the display is incomplete

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX

How to reset the encoder if you forgot the login IP or login account password?

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully

The device cannot be turned on when connected to the power supply and the power light does not turn on

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us ( for repair or replacement.

How to get the newest firmware and update it?

A: Pls contact for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
