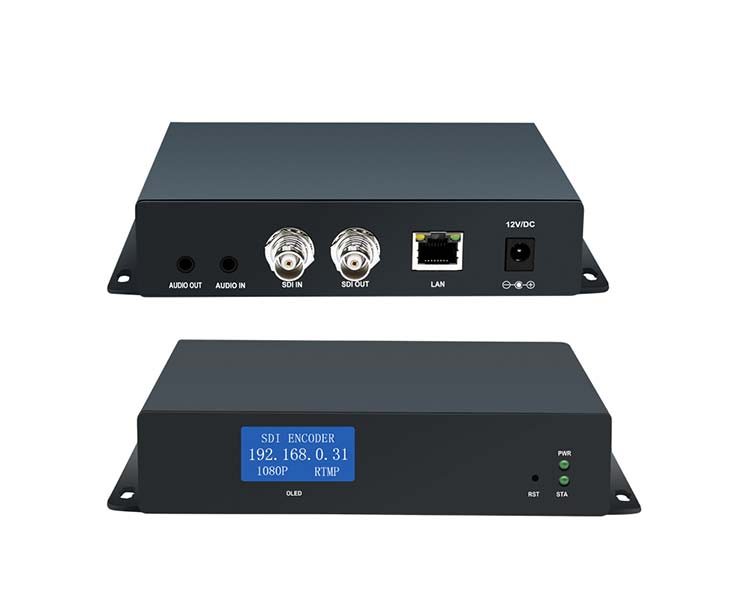

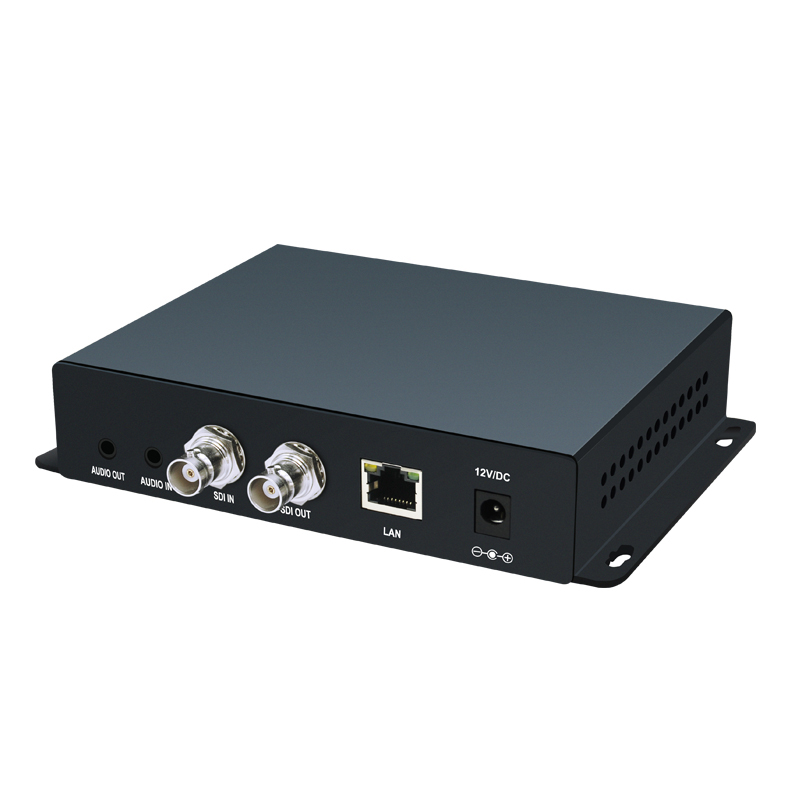

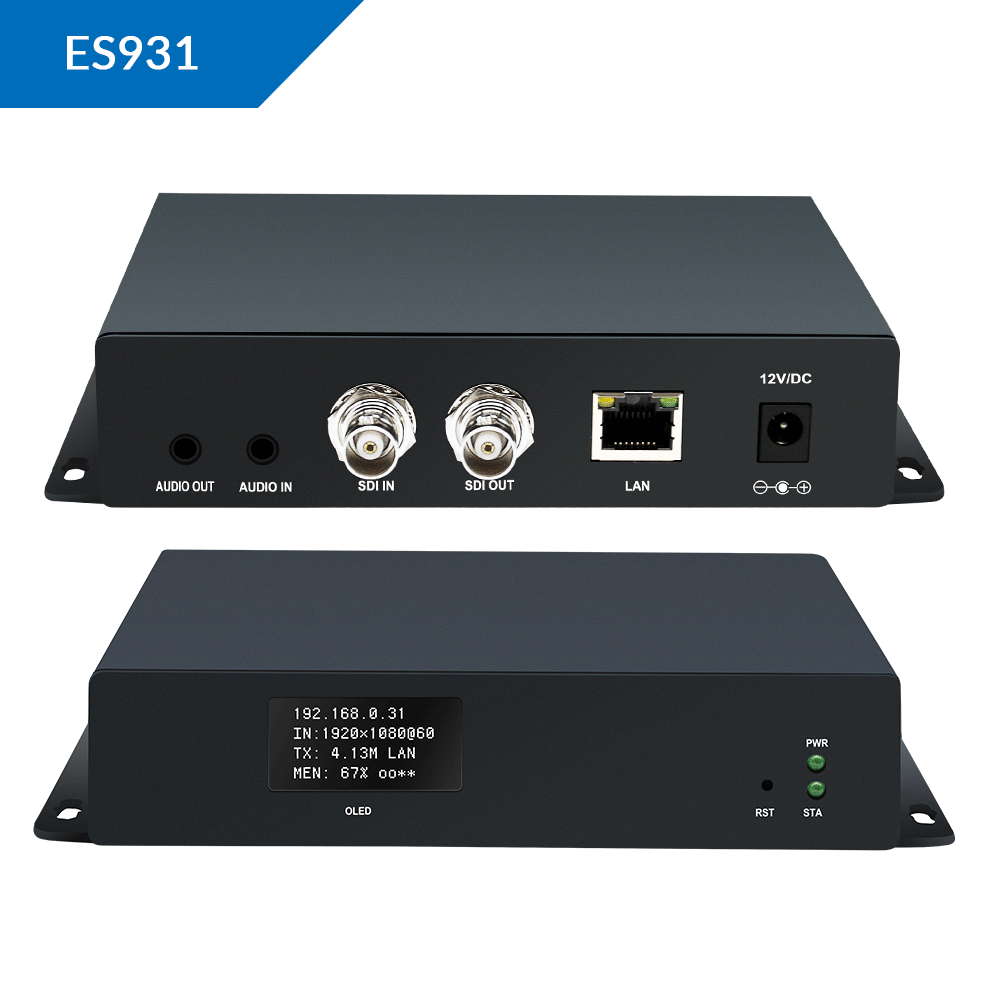

H265 1080P60 SDI Video Encoder With OLED

Brand: ORIVISION

Model: ZY-ES931
Input Interface: SDI*1, Audio*1
Output Interface: RJ45*1, SDI*1, Audio*1
Video Encoding: H.265/H.264/MJPEG
Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs


Availability:



Inquire

Model:
ES931

Product Description

Introduction

Parameters

Diagram

FAQ

ES901-01

Designed for professional broadcast and live production environments, the H.265 SDI Video Encoder combines industry-standard SDI connectivity with intuitive on-device control via an integrated LCD. Optimized for 1080p 60fps video, it utilizes H.265 encoding to deliver broadcast-grade quality while minimizing bandwidth usage—critical for live events, sports streaming. The high-brightness LCD provides instant access to encoding status, bitrate, and network metrics, eliminating the need for a dedicated monitoring PC. As a core component of our video transmission solutions, it integrates seamlessly with SDI cameras, switchers, and decoders for end-to-end professional workflows.

Outstanding Advantages for H265 1080P60 SDI Video Encoder With OLED

Advantage Category	Key Benefit	Technical Support
SDI Professionalism	Broadcast-grade signal integrity for long-distance transmission	3G-SDI input/output, supports SMPTE 292M/424M standards
On-Device Monitoring	Instant status checks without external equipment	2.4-inch TFT LCD with 320x240 resolution, backlight adjustment
Low-Latency Streaming	Near-real-time transmission for live production	<50ms end-to-end latency in low-latency mode
Durability	Built for demanding field and studio environments	Metal chassis, ESD protection (±8kV contact), surge protection (2kV)

Introduction

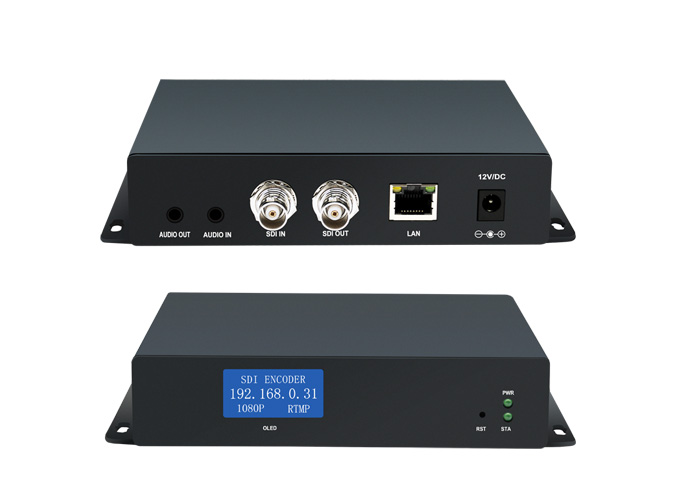

Stable Video Encoder for Live Streaming

ORIVISION's hardware video encoder converts SDI/HDMI base-band video to H.265/h.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN. They support the most common protocols including SRT, RTMP, RTMPS, RTP, HLS, UDP, RTSP and are widely applied to professional Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting.

⦁ EH901: HDMI input/loopout
⦁ ES931: SDI input/loopout

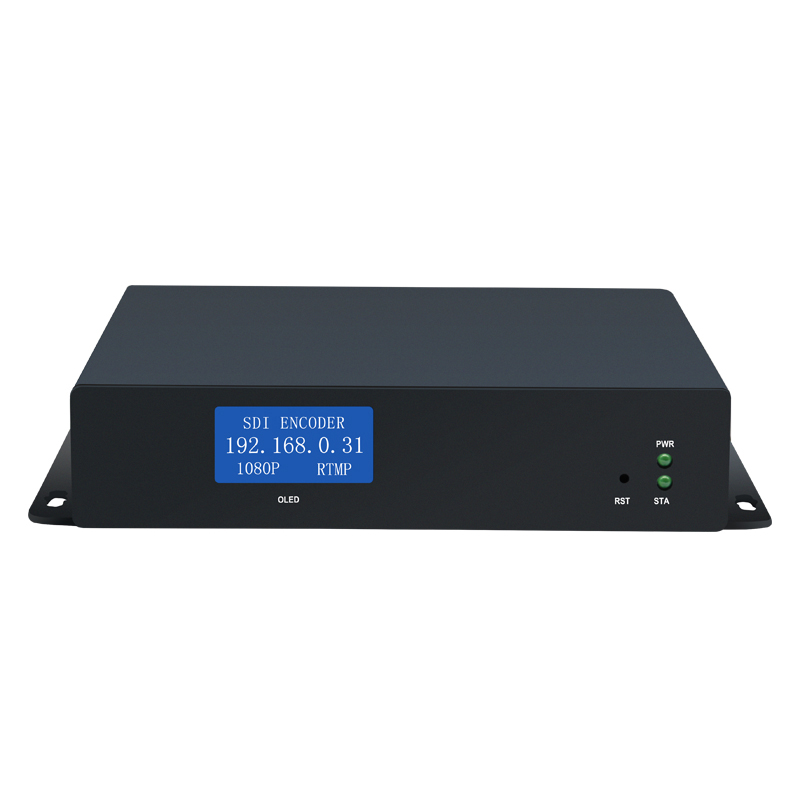

OLED real-time display

With a built-in OLED screen, users can monitor the IP status and encoding parameters in real-time. Whether it's the current IP status, which could indicate network connectivity and location - related information, or the encoding parameters that are essential for data processing and transmission in various applications, the built - in OLED screen makes it possible for users to stay informed about these details instantaneously.

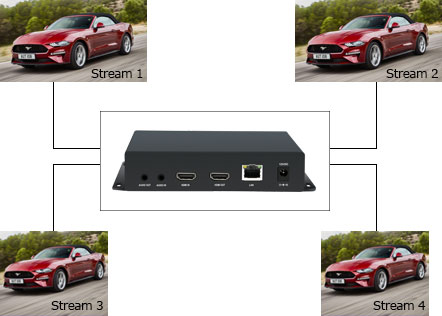

Streams Output At The Same Time

Maximum Output Resolution:
⦁ Stream 1 & Stream 2: up to 1080P@60hz.
For Stream 1 and Stream 2, the maximum output resolution reaches up to 1080P at a refresh rate of 60hz. This allows for a high - definition visual experience, suitable for applications where clear and sharp visuals are required, such as high - quality video streaming or gaming on compatible devices.
⦁ Stream 3 & Stream 4: up to 576P@60hz.
Different protocols can be set for each stream.

This flexibility enables users to optimize the data transfer and streaming performance according to the specific requirements of the connected devices or the intended use - case. For example, if one device is more sensitive to latency, a protocol with lower latency can be chosen for that particular stream, while another device might benefit from a protocol that emphasizes data integrity.
Multiple Network Protocols

Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/
HLS/TS-UDP, that means live stream with RTMP/RTMPS, while remote production with SRT.
Good Compatibility

Support NVR recording, such as Hikvision NVR…
Hikvision NVRs are widely recognized in the surveillance industry for their reliable performance and advanced features.

Their reputation is built on a foundation of consistently reliable performance, ensuring seamless operation even in demanding scenarios. Additionally, they come equipped with a plethora of advanced features. These features range from high - definition video recording capabilities that capture every minute detail to intelligent analytics functions like motion detection, facial recognition, and object tracking. This combination of reliability and advanced functionality makes Hikvision NVRs a go - to option for various surveillance set - ups, whether it's for small - scale home security or large - scale commercial and industrial monitoring systems.
Resolution Setting

Maximum input resolution:1080P@60hz,
Maximum output resolution :1080P@60hz
Resolution can be set separately.
Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Obtain IP automatically

Support DHCP and obtain IP automatically. This feature allows the device to automatically obtain an IP address. By leveraging DHCP, the device can streamline the network configuration process.
Audio Synchronization Encoding

Support MP3/AAC/G.711 Advanced Audio Coding format quality;
Support Digital /Analog audio loop out;
Support audio encoding without the video input.
LOGO/ Image/ Text / Mosaic Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights. Support adjusts font size, scrolling subtitles and add mosaic watermark.
The software also supports adjusting the font size of the text. This is crucial as it enables you to make the copyright notice more prominent or more discreet depending on your needs. For example, if you want the text to be highly visible, you can increase the font size, and if you prefer a more subtle approach, a smaller font can be selected.
Scrolling subtitles are available as well. This is great for longer messages or when you want to ensure that the viewers don't miss your important announcements. The subtitles can slowly scroll across the screen, capturing the attention of the audience.
Finally, adding a mosaic watermark is an effective way to protect your content from unauthorized use. The watermark, in the form of a mosaic pattern, can be placed over the content, making it difficult for others to use the media without your permission. All these features work in harmony to give you full control over announcing your copyrights and safeguarding your creations.
Image Rotation and Mirror Flip

It can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.
Their reputation is built on a foundation of consistently reliable performance, ensuring seamless operation even in demanding scenarios. Additionally, they come equipped with a plethora of advanced features. These features range from high - definition video recording capabilities that capture every minute detail to intelligent analytics functions like motion detection, facial recognition, and object tracking. This combination of reliability and advanced functionality makes Hikvision NVRs a go - to option for various surveillance set - ups, whether it's for small - scale home security or large - scale commercial and industrial monitoring systems.
Local and Remote Transmission

It converts SDI base-band video to H.265/H.264/MJPEG IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.
Multiple Signal Input Formats

Rich interface options, compatible with various video sources. It is highly compatible with various video sources, enabling seamless integration with a multitude of devices such as computers, gaming consoles, smart TVs, and streaming media players, ensuring smooth video playback and an enhanced user experience.
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit.
ODM: Pls send your requirements to us. (info@orivision.cn).

Parameters

Model	ZY-ES931
Input Interface	SDI1, Audio1
Output Interface	SDI loop-out 1; LAN port 1； Audio ouput*1
Video Encoding	H.265&H.264/MJPEG
Max Input Resolution	1080P@60hz &30hz
OLDE Real-time Display	√
HDCP	√
DHCP	√
Audio Input Terminal	Stereo Line-in
Audio Encoding	AAC-LC/EAAC/EAACPLUS/G711
Video Bit Rate	CVR/VBR: 16kbps~12Mbps
Audio Bit Rate	48kbps~256kbps
Simultaneous Streams	Max. 4CH Streams at the same time 1~2 CH:max resolutiosn 1080P@60hz, backward compatible； 3~4 CH:max resolutiosn 576P@60hz, backward compatible
Protocol Support	HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT
OSD Setting	Txt/Picture
Output Interface	RJ45*1; Ethernet(10base-t/100base-tx)
Output Resolution	19201080,1280720,1280800,1280768,1024768,1024576,960540,850480,800600,720576,720540,720480, 720404,704576,640480,640360,480*270,Auto
Live Streaming Platform	YouTube, Facebook, Wowoza…
Management	Web Opreation, remote upgrade
Language	English/Chinese
Power	12V/DC 1A
POE	√
Size	W:168mmD:112mmH:32mm
Net Weight	0.35kg

Diagram

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.

ES901-Diagram01

FAQs

Q: What is the default login IP of the encoder?

A: The default login IP address is 192.168.0.31.
Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
Q: What is the login account and password of the encoder?

A: The default login account and password are both admin.
Q: After entering the account password, the page cannot be displayed or the display is incomplete.

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
Q: How to reset the encoder if you forgot the login IP or login account password?

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.
Q: How to get the newest firmware and update it?

A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
