2023 New Showcasing at InfoComm China


CHN: ORIVISION, a professional provider of IP audio&video transmission solutions, has revealed the new products it will be showcasing at this year’s InfoComm China 2023, which takes place 21-23 July at the beijing CNCC. The company is expanding its growing ecosystem of powerful IP-based video transmission solutions with a portfolio of new technologies designed to meet the requirement for IP-capable products throughout the industry.

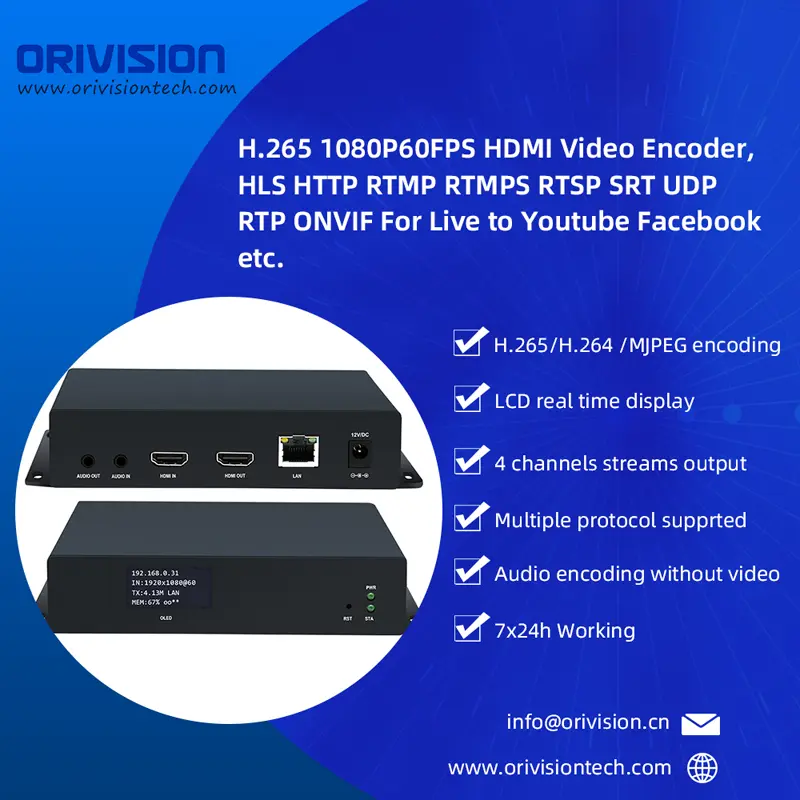

H.265 HDMI Video Encoder with LCD Display


EH901 is a professional hardware video and audio encoder. EH901 HDMI to IP encoder is designed to meet the HD/1080P@60 Video transmission applications. HDMI live streaming encoder supports H.265 (HEVC)/H.264 high-performance encoding. Also, it supports the most protocols including HTTP/SRT/RTMP/RTMPS/HLS/UDP/RTSP/Onvif, etc.


Highlights include:

• Support H.265/H.264 /MJPEG encoding

• Support 1XHDMI Input and loop-out

• Support Digital audio/Analog audio loop out


• Support output video stream format: TS/VES/AES stream, etc.

• LCD display device name, IP address, resolution and working status

• Support up to 1080P@60 resolution input and output

• Support 4 channels streams output at the same time

• Support audio encoding without the video input

• Support MP3/AAC/G.711 Advanced Audio Coding format quality

• Support HDCP 1.4

• 1000M network interface uses full duplex mode, LAN and WAN transmission

• Support POE power supply(optional)

• Support SDK, secondary developmentl

• Support network remote management and upgrade

• Support to be packed with 1U and 3U Rack(1~16channels video input)

• Applied in Live broadcast, IPTV system, elevator advertising player, online courses,

broadcast meeting

• 7*24h Working

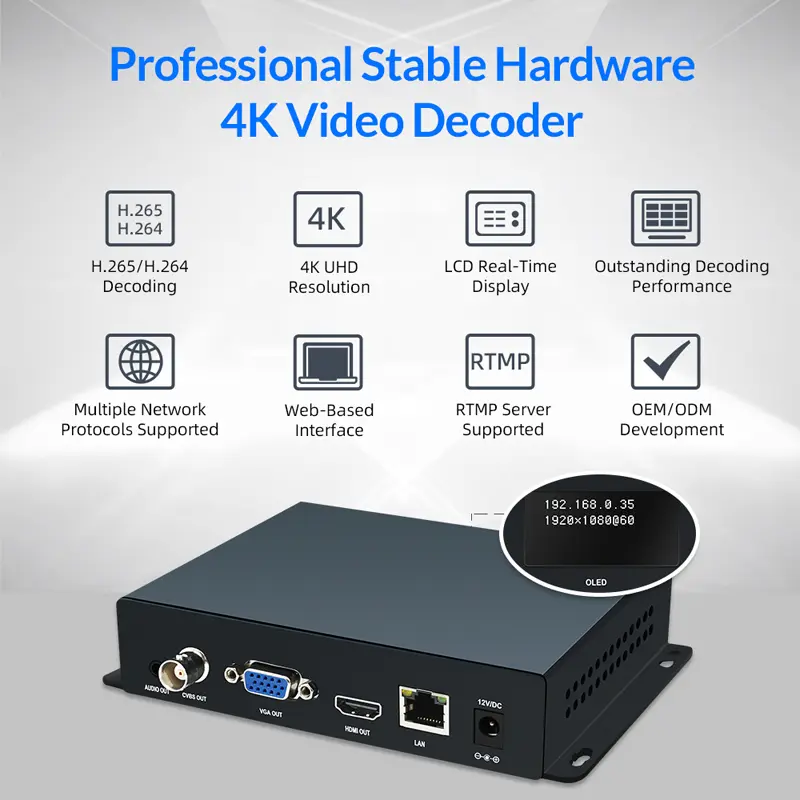

H.265 4K Video Decoder with LCD


DH931 decoder is a professional 4K H.265 (HEVC) hardware decoder that brings multiple video streams to HDMI/CVBS/VGA. Without relying on a computer, IP video decoder decodes any IP streams including HTTP/SRT/RTSP/RTMP/UDP/RTP/UTP, etc, and outputs the video to the display wall in up to 9 grids or free layout, and dynamic switching is supported.

Main features include:

• Support H.265 and H.264 decoding

• Support 1XHDMI,1X VGA,1XCVBS and 1X audio output

• Support embedded RTMP server, maximum support 1Gbps concurrency


• Support 9channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/RTMPS/UDP/RTP

• LCD display device name, IP address, resolution and working status

• Support up to 4K (3840×2160@60hz/30hz) resolution output

• Support to set the cache

• Support 1ch, 4ch, 9ch decoding simultaneously

• Support boot screen customization

• MJPEG/JPEG Baseline decoder

• MPEG1 Audio Layer 2

• 1000M network interface uses full duplex mode

• Support POE power supply(optional)

• Support SDK, secondary development

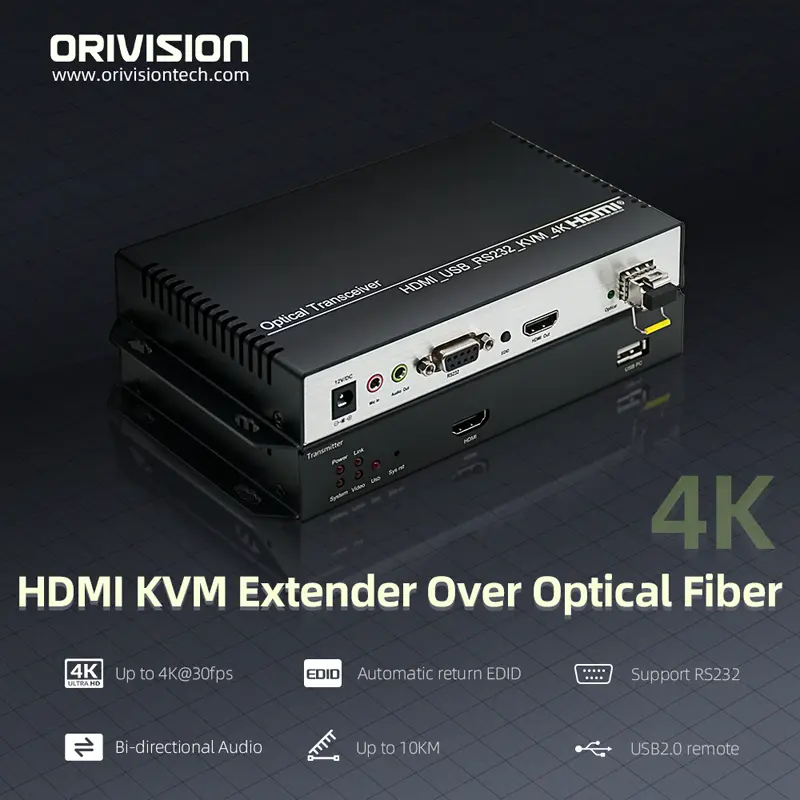

4K@30Hz HDMI KVM Optical Fiber Extender


OKH511 is a fiber-based KVM fiber extender designed to extend uncompressed 4K@30hz Video signals and USB2.0 devices up to 300m(Using Multimode Dual Core SFP) or 10km(Using Single model core SFP) over duplex fiber cables.

The OKH511 features an HDMI input and output, analog audio input and output, USB2.0 devices KVM, RS-232 control port, and a Gigabit Ethernet port. For point-to point transmission.

• Support resolution up to 3840x2160@30fps

• Support two-way audio (Microphone)

• Support EDID, RS232, compatible HDMI1.4,HDCP1.4

• Optical fiber extender automatically adjust video compression rate to ensure smooth video streaming

• High-speed ASIC technology to ensure there is no delay for remote images, keyboards, and mice

• LC Port: Single-mode one-core SFP, standard transmit distance is 10KM (20KM 40KM 60KM 80KM is Optional

• Multimode Dual Core SFP: 300M

• Support point-to-point transmission

• Plug and play without any settings

• Supports USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.

• Built-in ESD protection circuit that can effectively prevent electrostatic damage
