Orivision OKH501 4K@30 HDMI KVM Fiber Extender
Orivision OKH501 4K@30 HDMI KVM Fiber Extender
Orivision OKH501 4K@30 HDMI KVM Fiber Extender
Orivision OKH501 4K@30 HDMI KVM Fiber Extender
kvm extender over fiber okh501 05
kvm extender over fiber okh501 06
Orivision OKH501 4K@30 HDMI KVM Fiber Extender
Orivision OKH501 4K@30 HDMI KVM Fiber Extender

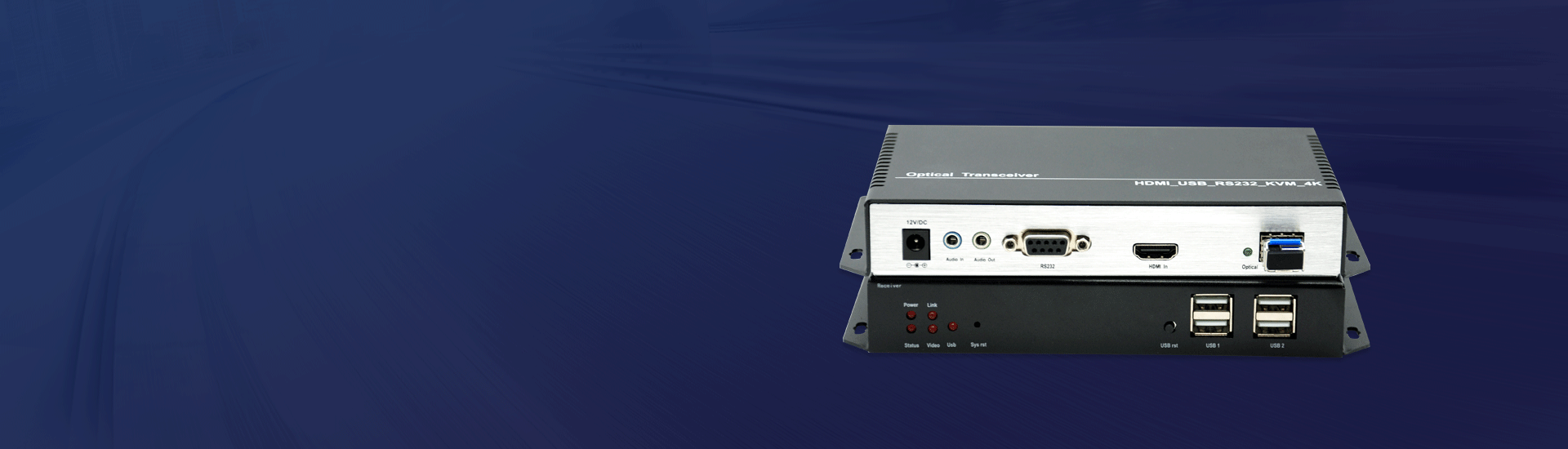

Orivision 4K@30 HDMI KVM Fiber Extender

【UHD 4K Resolution】Support resolution up to 3840x2160@30fps, backwards is compatible

【20KM Extreme Long Transmission】Extend 4K HDMI signal up to 20KM over a single mode fiber  one core cable; or extend 4K HDMI signal up to 300M over a multimode duanl core cable; 40KM-80KM distance can be customised

【All USB2.0 Supported】Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive, printer, etc.

【Bi-direction Audio Transmission】Support bi-direction audio (microphone)  transmission, support EDID, RS232, compatible HDMI1.4, HDCP1.4

【Support Backward RS232】The HDMI Extender support serial RS232 signal, you can control the RS232 serial device from remote side

【Plug and Play】Simple to install, plug and play, no setup or configuration needed

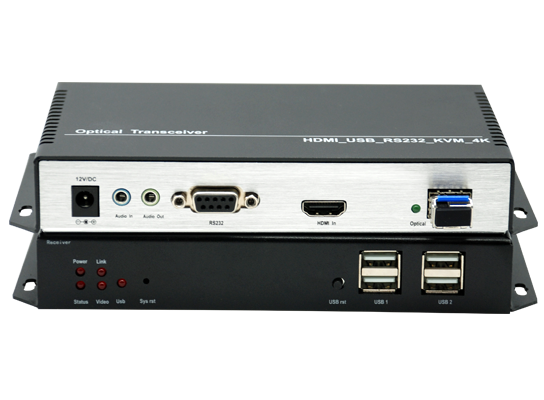

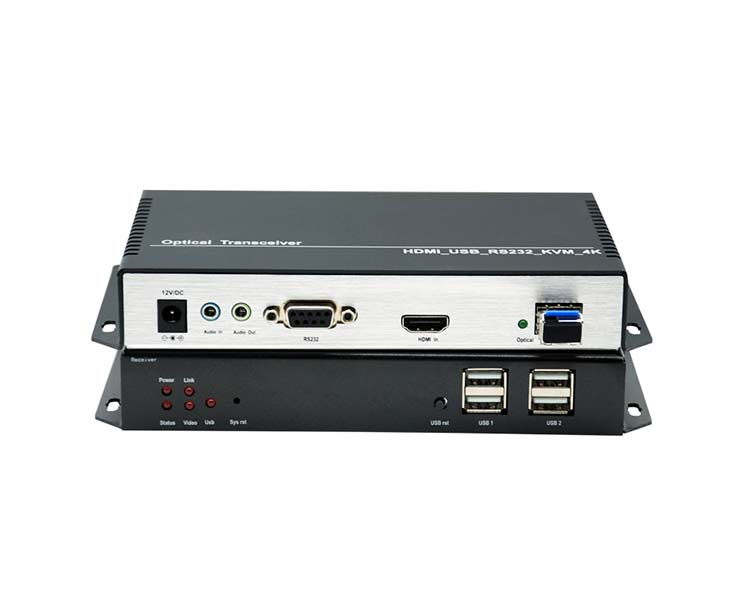

4K@30 HDMI KVM Optical Fiber Extender
4K@30 HDMI KVM Optical Fiber Extender
  • Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

  • Standard distance transmission 20KM, distance can be customized

  • Supports bi-directional audio signal transmission

  • Supports all USB2.0 Signal Transmission

  • Support EDID mode and RS-232 control

  • Plug-and-play operation


4K@30 HDMI KVM Optical Fiber Extender

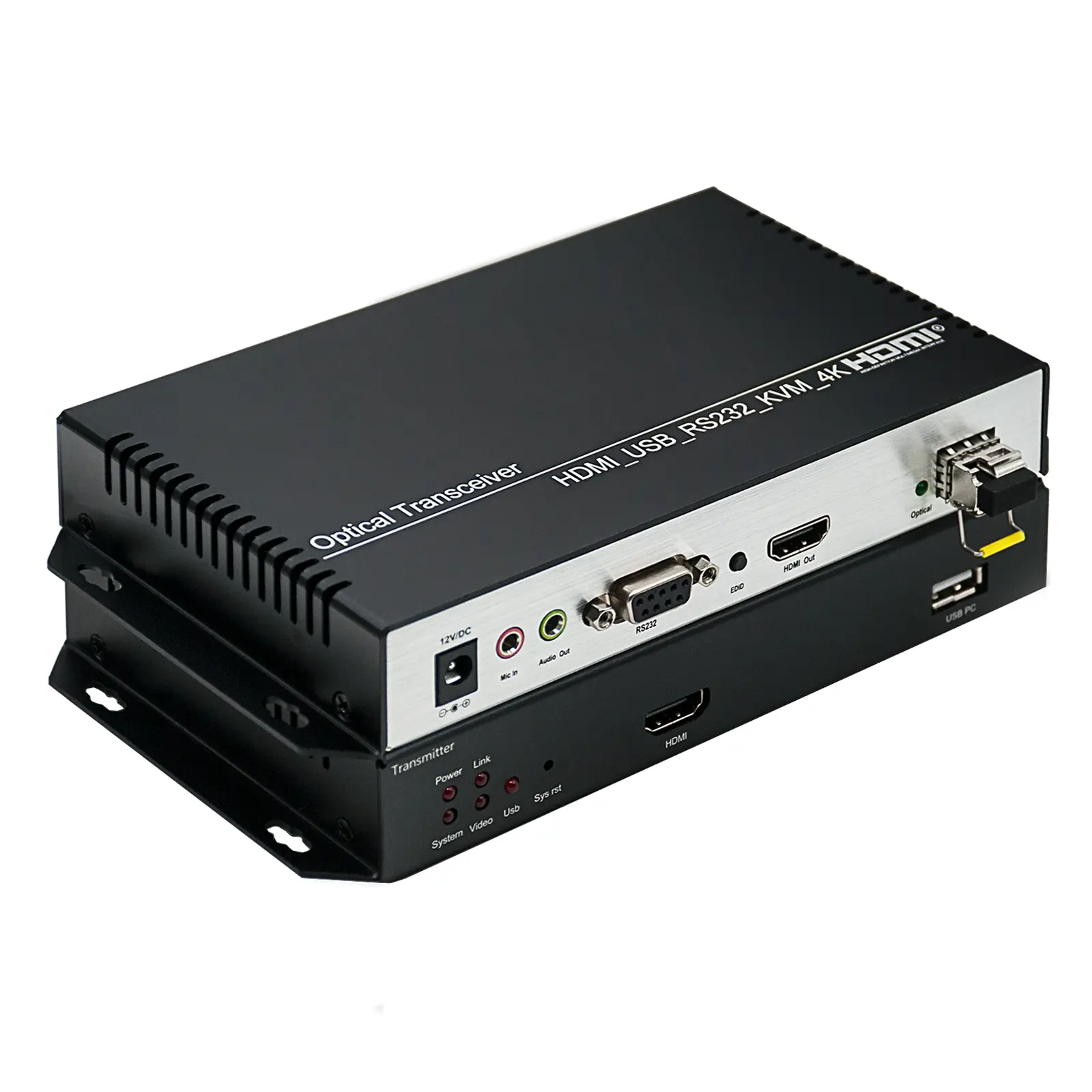

Orivision OKH511 4K@30 HDMI KVM Fiber Extender is a fiber-based extender designed to extend uncompressed 4K@30hz signal up to 300m(UsingMultimode Dual Core SFP) or 20km(Using Single model one core SFP) over duplex fiber cables.

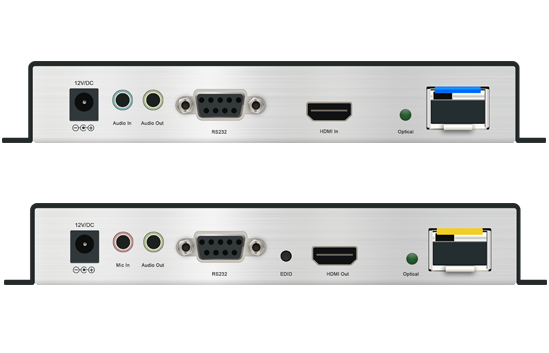

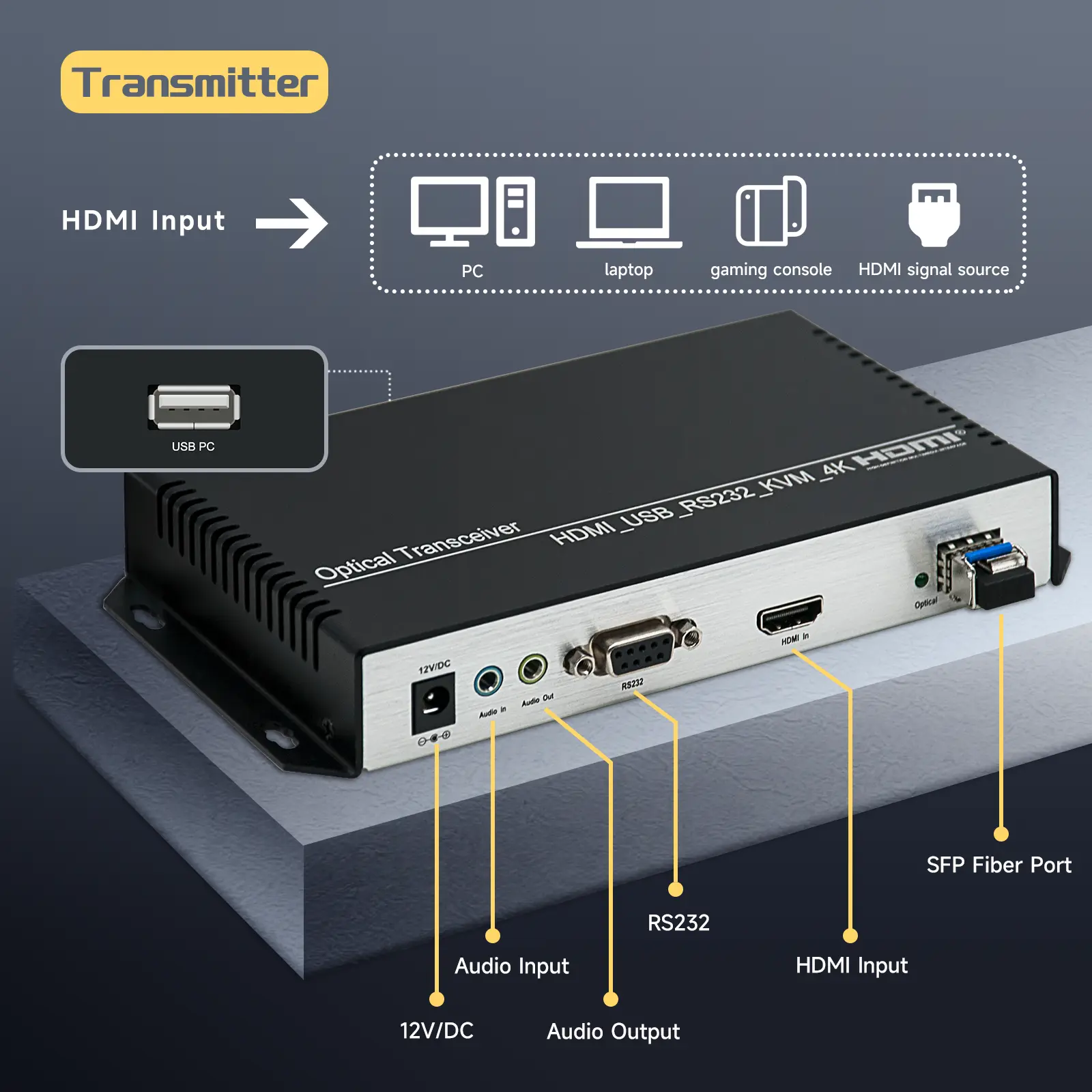

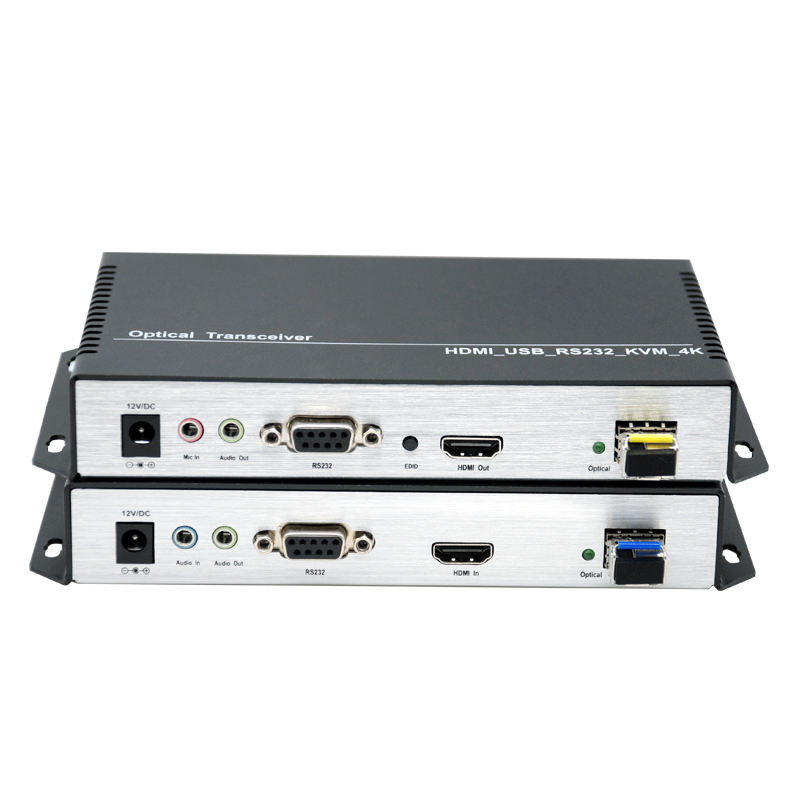

The Orivision OKH511 4K@30 HDMI KVM Fiber Extender features an HDMI input and output, analog audio input and output, USB2.0 devices KVM, RS-232 control port, and a Gigabit Ethernet port. For point to point transmission and point-to-many transmission with gigabit switches.It can receive fiber optic cables by inserting SFP+ modules into its optic port.


4K@30 HDMI KVM Optical Fiber Extender

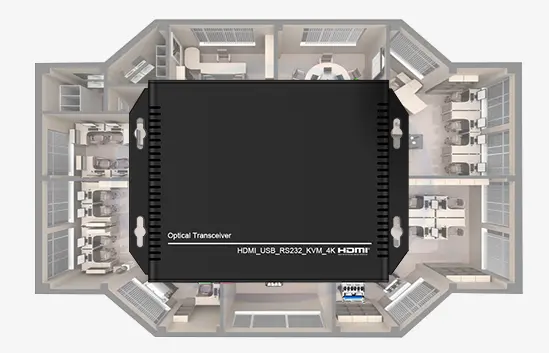

High Availability and Friendly Design

The aluminum shell design of OKH511 protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design
Professional for 4K HDMI HD Video Extender

Orivision OKH511 4K@30 HDMI KVM Fiber Extender Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.


Professional for 4K HDMI HD Video Extender

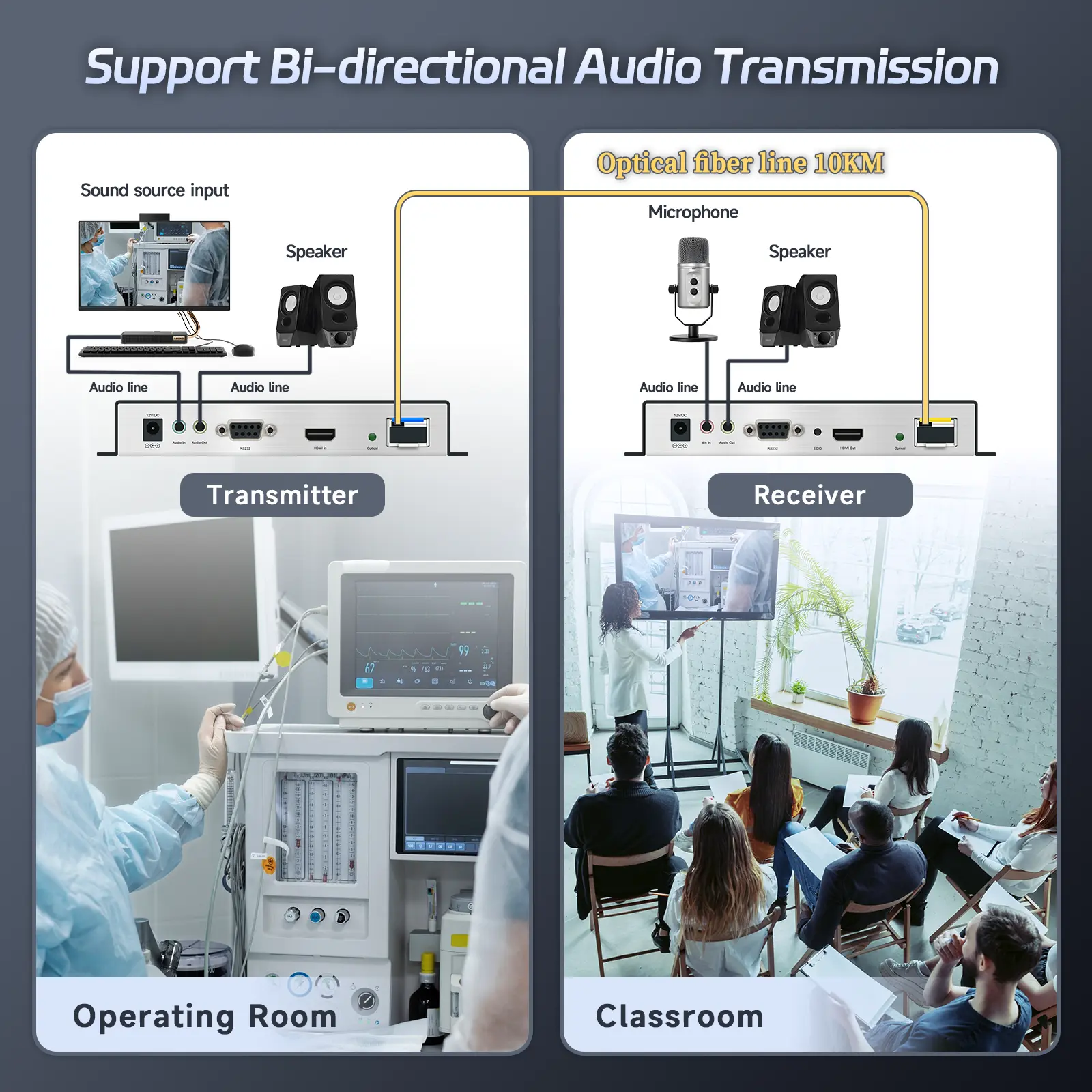

Bi-Directional Audio Signal Transmission

Format: 44.1K,48K,96K,176K,192K

Duplex audio Transmit


Bi-Directional Audio Signal Transmission
EDID Mode and RS-232 Control

Features RS-232 port for connecting peripherals.

EDID Mode and RS-232 Control

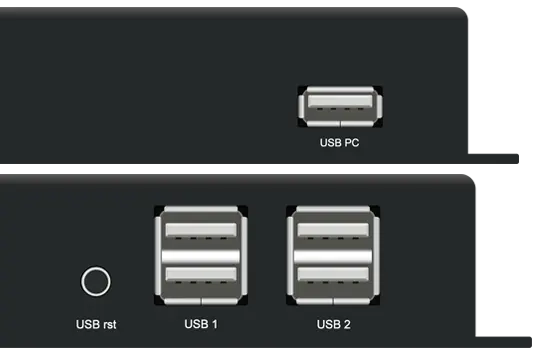

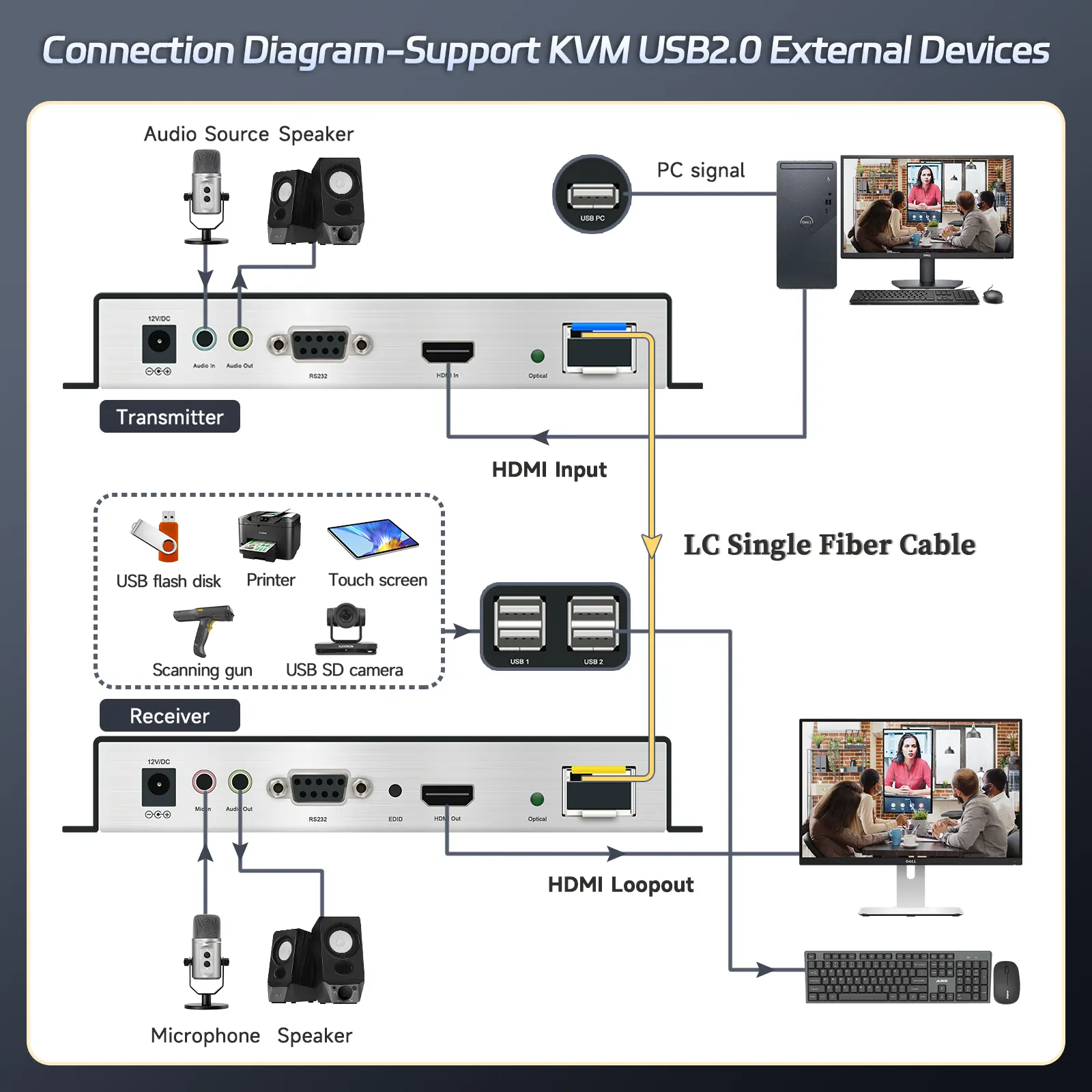

Support Keyboard & Mouse Signal Transmission

Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive.

Support Keyboard & Mouse Signal Transmission

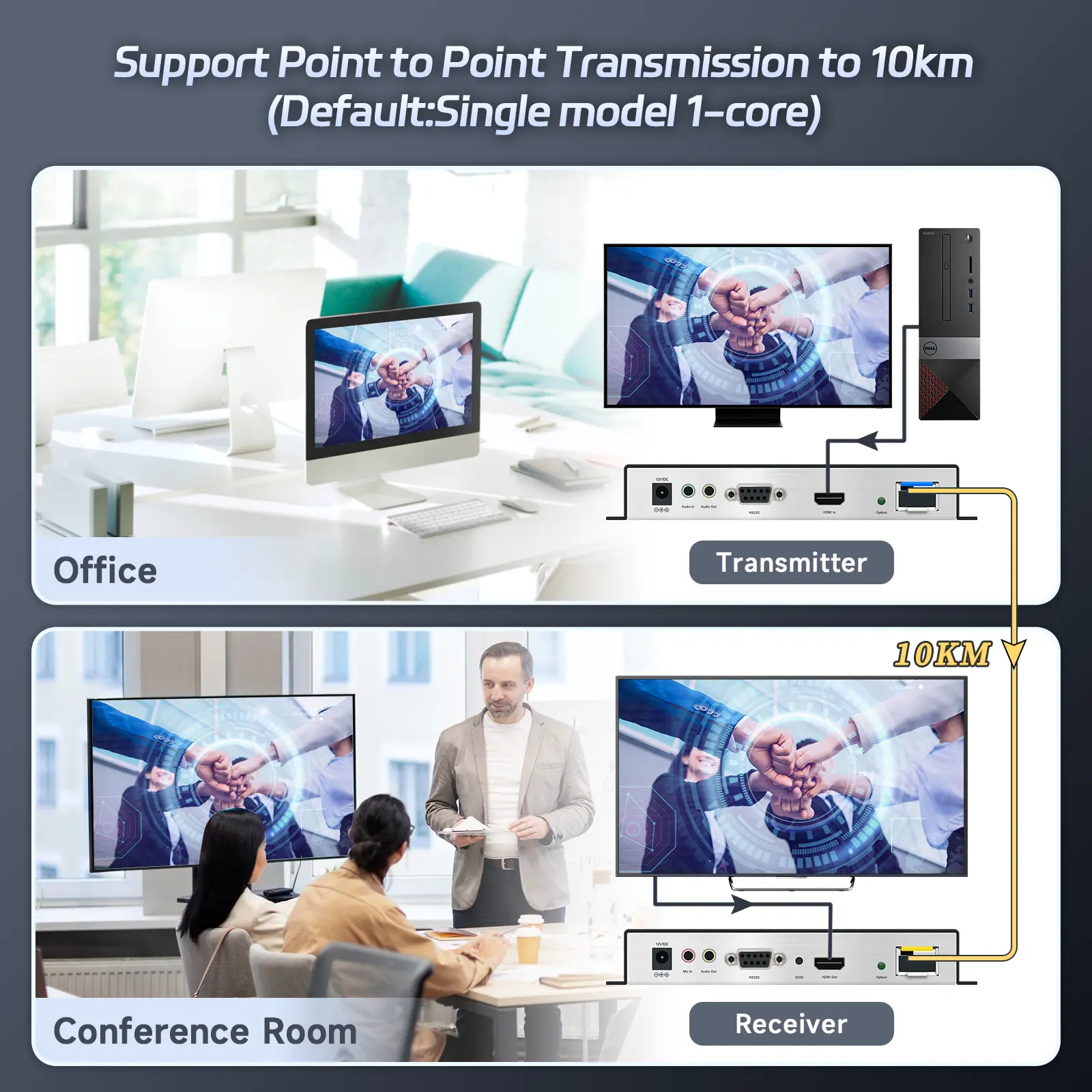

Single-mode and Multi-mode Optional

Default:Single model 1-core (20km)

Multimode Dual-Core Module (300m)

Support 40KM, 60KM, 80KM OEM


Single-mode and Multi-mode Optional
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters of 120m 4K@30 HDMI KVM Fiber Extender

Name4K@30 HDMI KVM Fiber Extender
ModelZY-OKH511

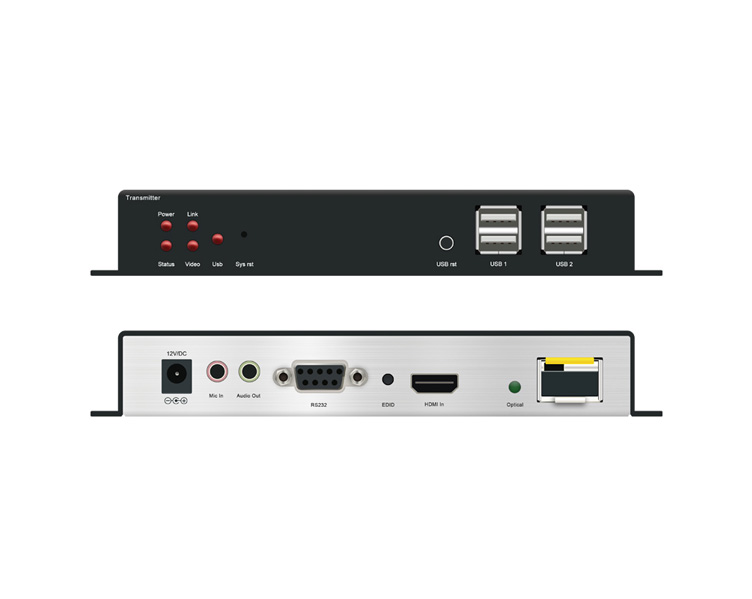

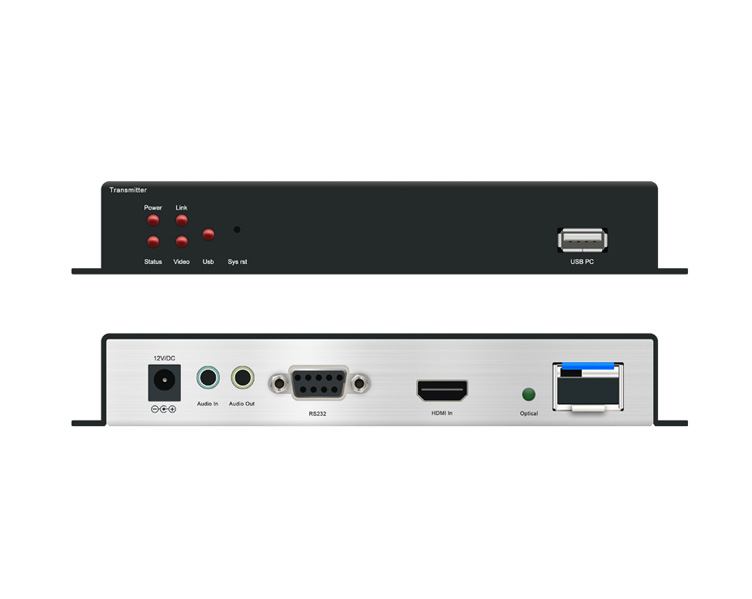

Transmitter InputHDMI 1.4*1  Audio In*1 HDMI Loop-out *1
Transmitter OutputRS232 *1  LC*1 Audio out*1

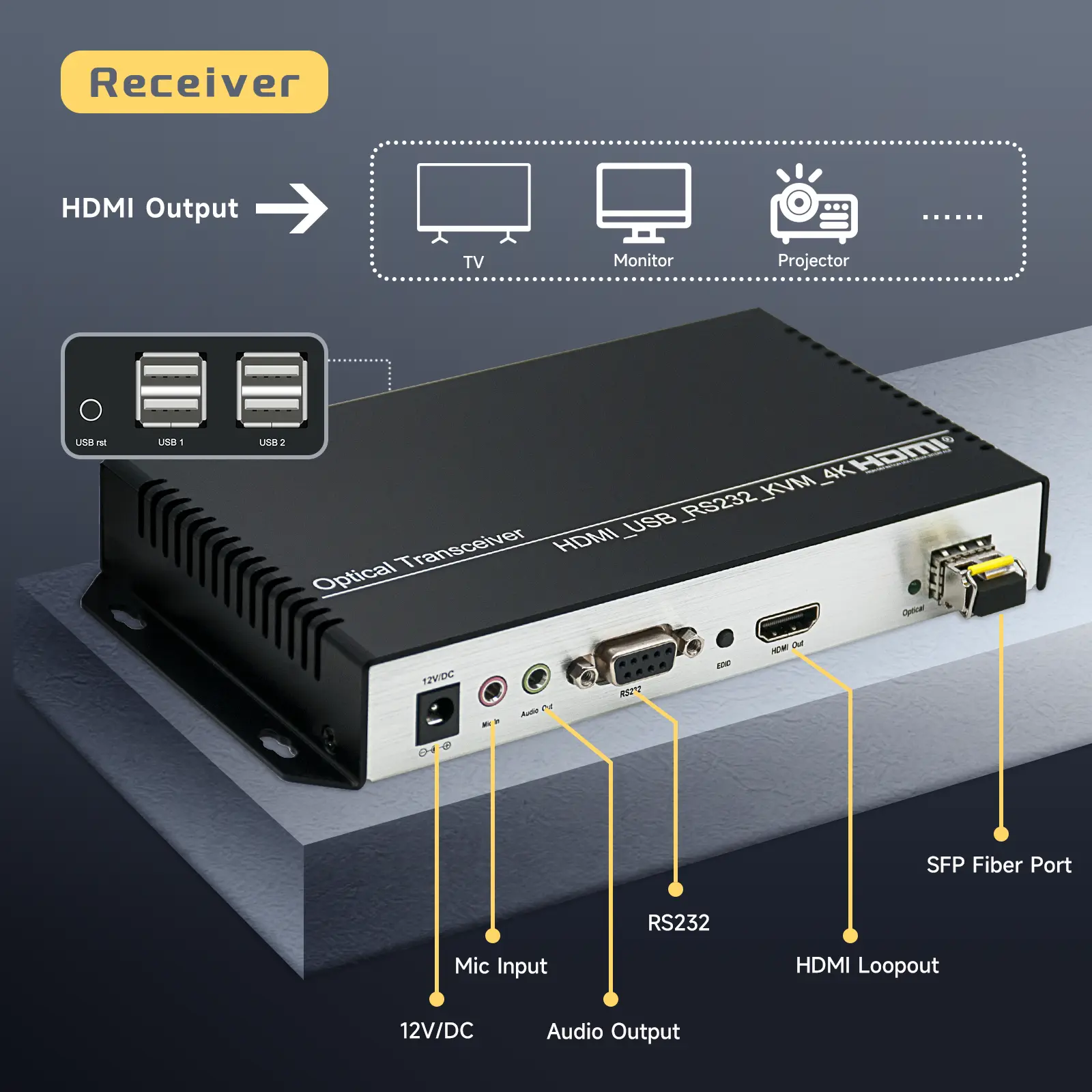

Recevier InputRS232 *1  LC*1 Mic In*1
Recevier OutputHDMI*1 Audio out*1
Resolutuion3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/
1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/
1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/
1280x1024P60/1280x800P60/1024x768P60/800x600P60
Audio

Format:44.1K,48K,96K,176K,192

Duplex audio TransmitK

SFPDefault: Single model 1-core (20km)
Multimode Dual-Core Module (300m)
Support 40KM, 60KM,80KM OEM
RS232bidirectional transmission
Interface:DB9n
Baudrate:11520
Data-Bits:8bit
Support EDID
Support HDCPHDCP1.4
Support KVMAll USB2.0 devices
Temperature‘-5℃ to +60℃
Humidity≤90%
Power Consumption<5W
Power12V/DC 1A;
Size187*105*28mm
WeightTX:0.3KG   RX:0.3KG

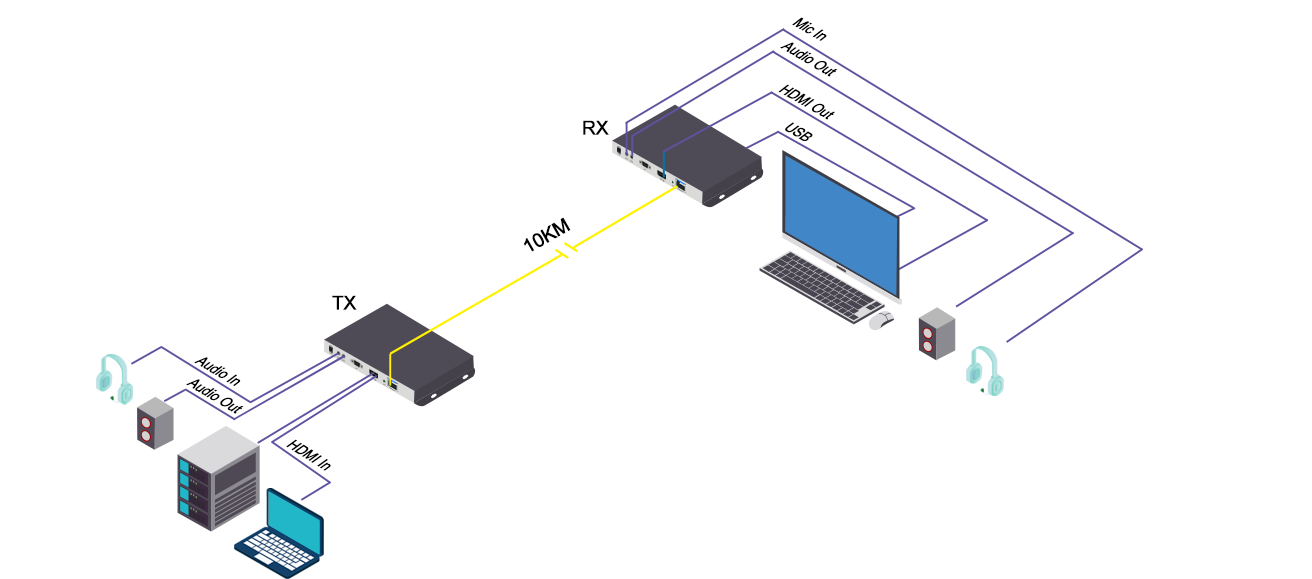

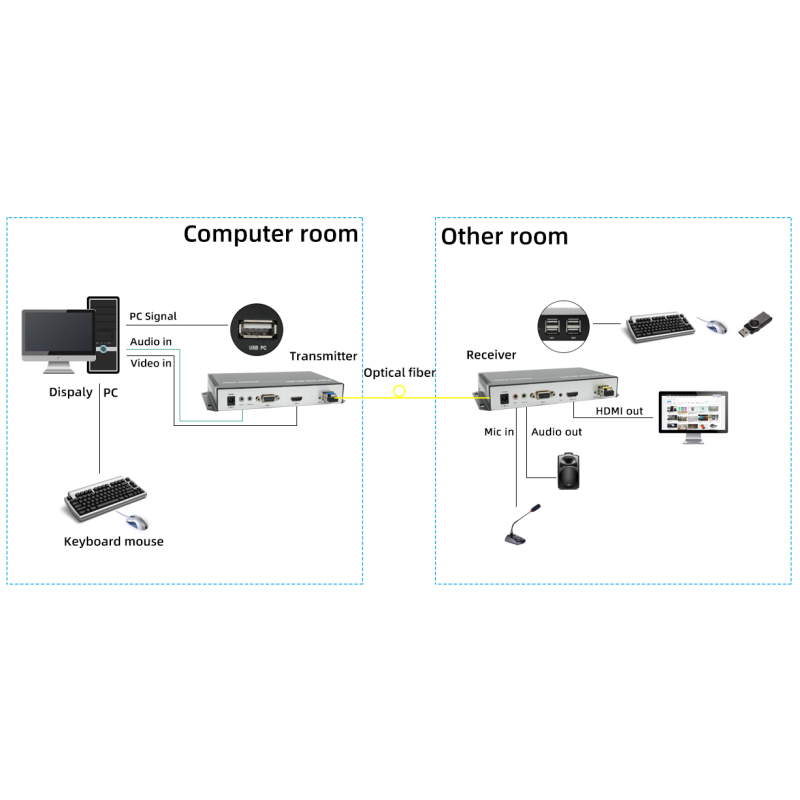

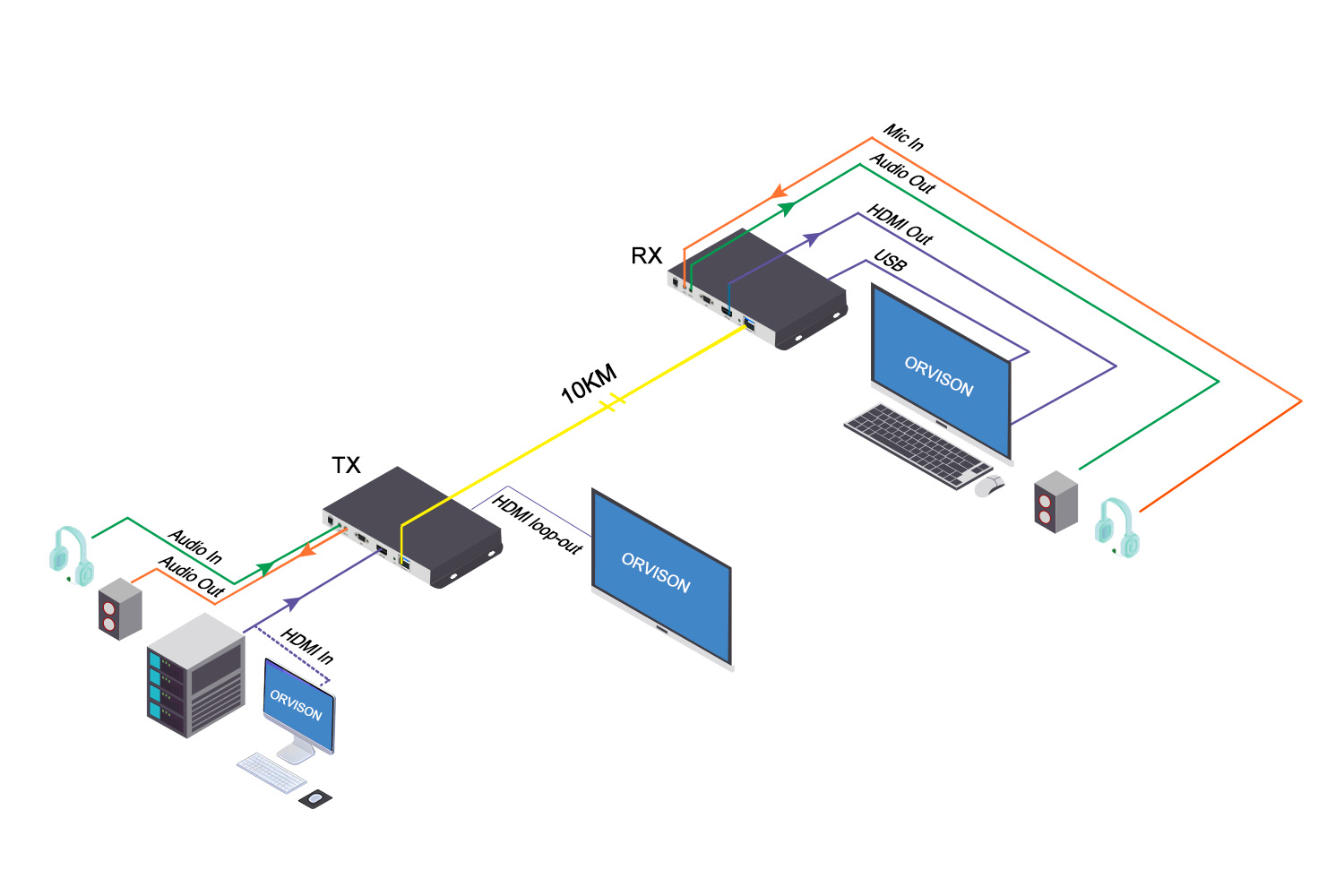

Diagram of 120m 4K@30 HDMI KVM Fiber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.


Still not find the KVM fiber extender you want, click here for more custom selections or email us with detailed requirements.
