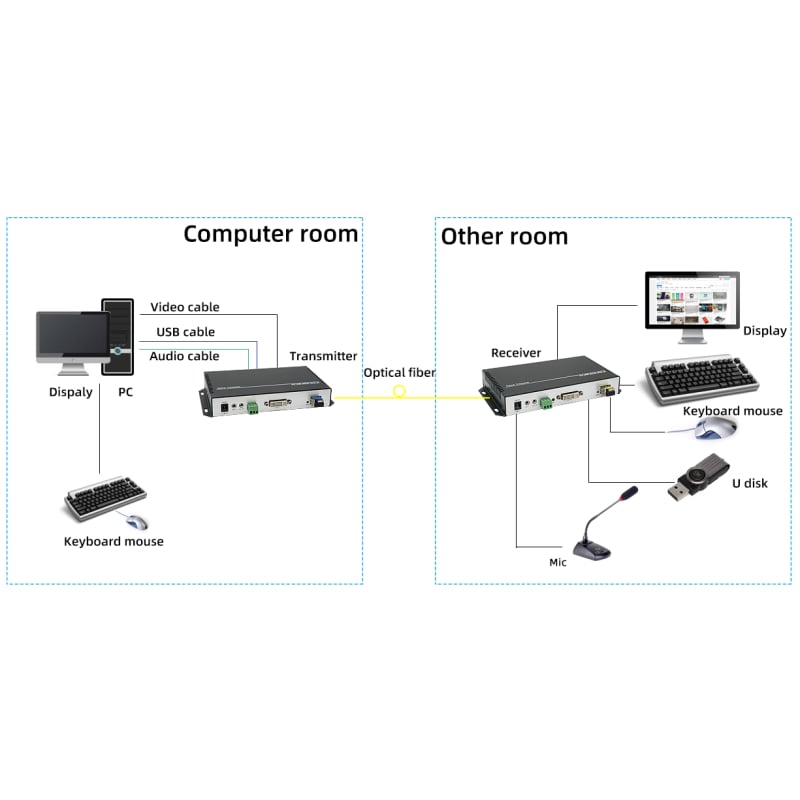

honeyviewconnection diagram

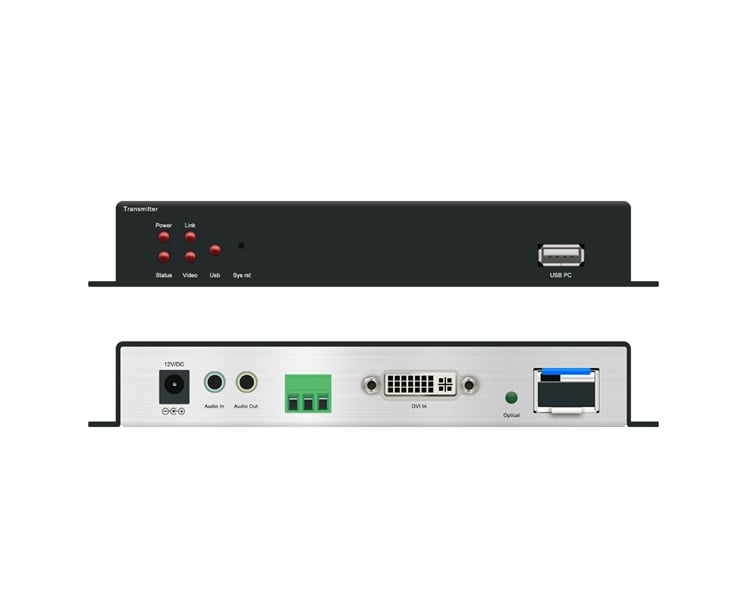

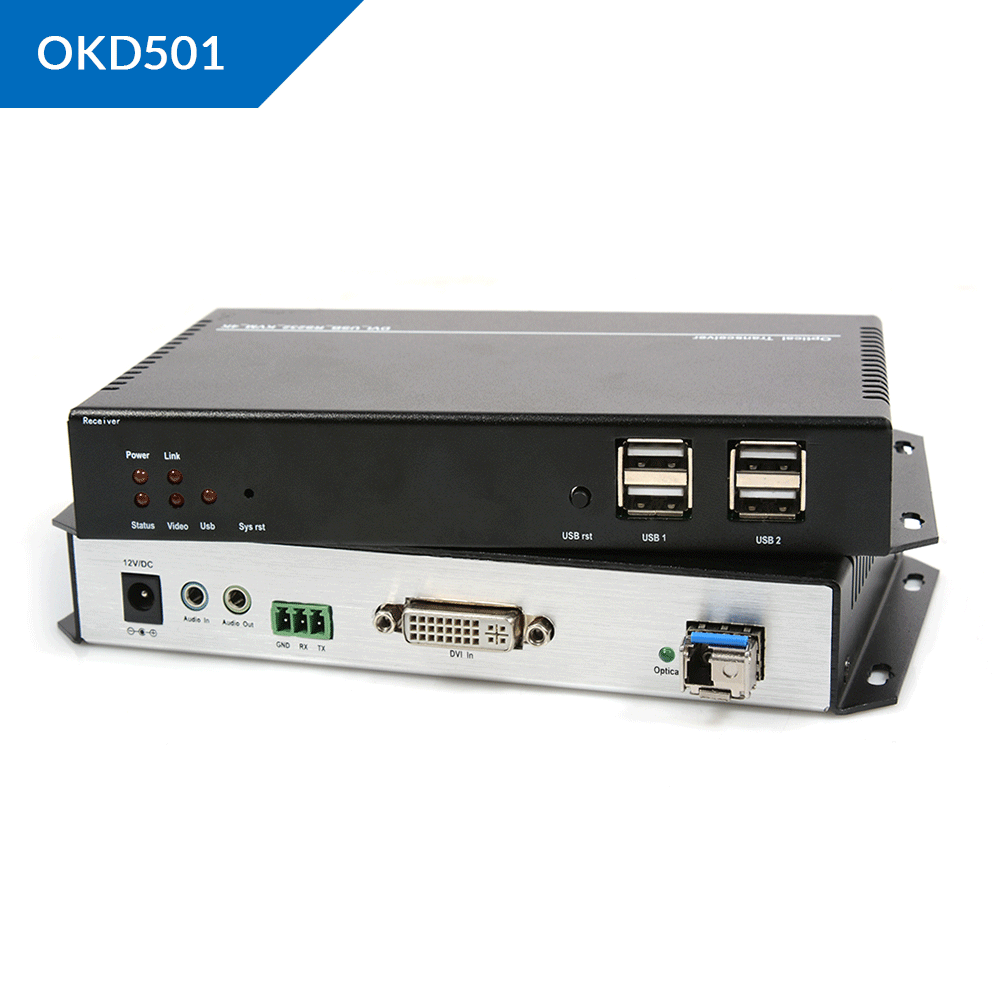

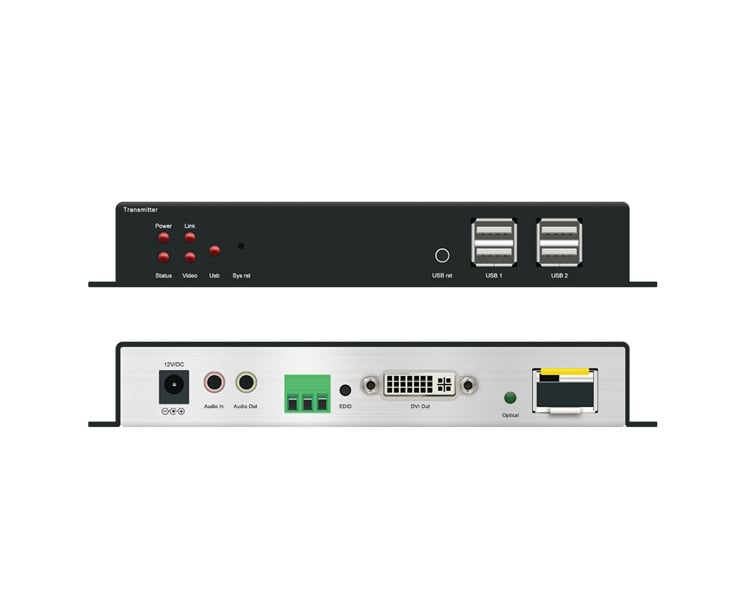

Orivision 4K@30 DVI KVM Optical Fiber Extender

Brand: ORIVISION

Model: ZY-OKD501

Transmitter Input: DVI*1  Audio In*1

Transmitter Output: RS232 *1  LC*1 Audio out*1

Recevier Input: RS232 *1  LC*1 Mic In*1

Recevier Output: DVI*1 Audio out*1

Resolutuion: Max 3840*2160@30Hz

Transmission Distance: Default:Single model 1-core (20km); Multimode Dual-Core Module (300m); Support 40KM, 60KM,80KM OEM

KVM: All USB2.0 devices

Power: 12V/DC 1A

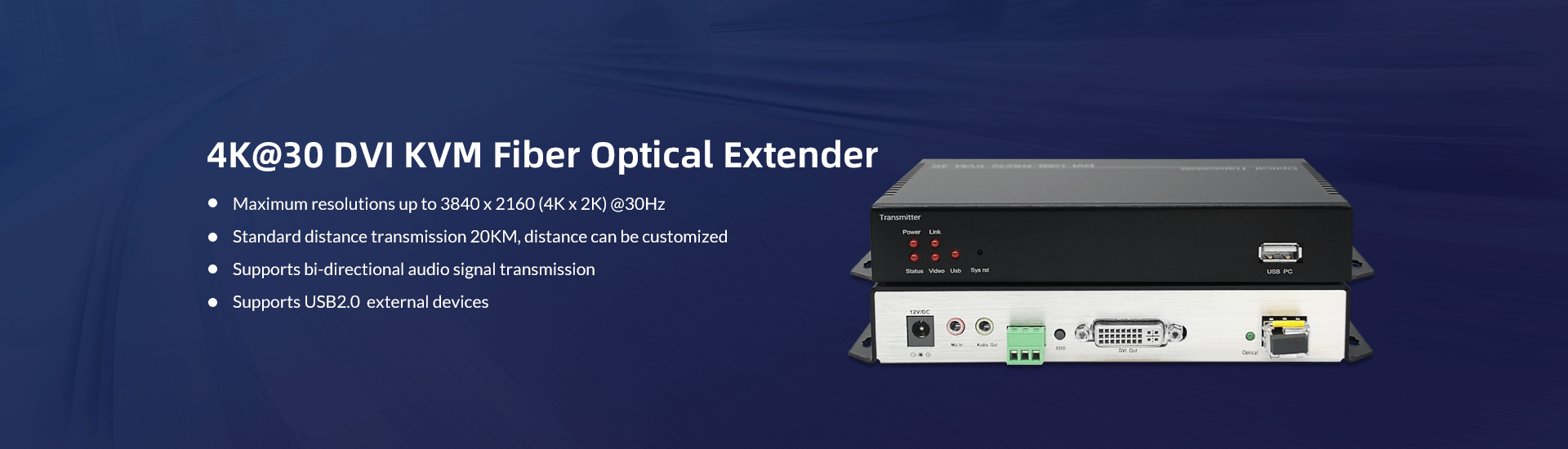

4K@30 DVI KVM Optical Fiber Extender
4K@30 DVI KVM Optical Fiber Extender
  • Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

  • Standard distance transmission 10KM, distance can be customized

  • Supports bi-directional audio signal transmission

  • Supports Keyboard & Mouse Signal Transmission

  • Support EDID mode and RS-232 control

  • Plug-and-play operation

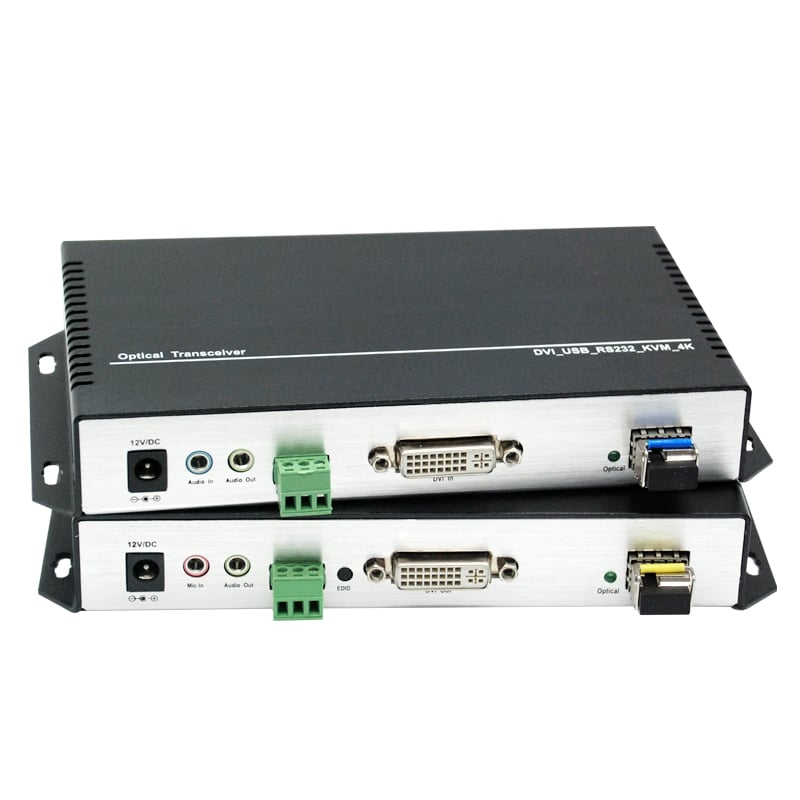

4K@30 DVI KVM USB2.0 Optical Fiber Extender

4K@30Hz DVI KVM Extender is high-performance solution which provides DVI video audio signals and remote KVM (USB keyboard, USB mouse and 4K x 2K UHD DVI monitor) access to computer up to 10KM away via a single-mode LC fiber optic cable. Each KVM extender consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse. The Transmitter and Receiver are plug-and-play, and work without any set-up. Compact enclosures are easy to install and can be hidden away.

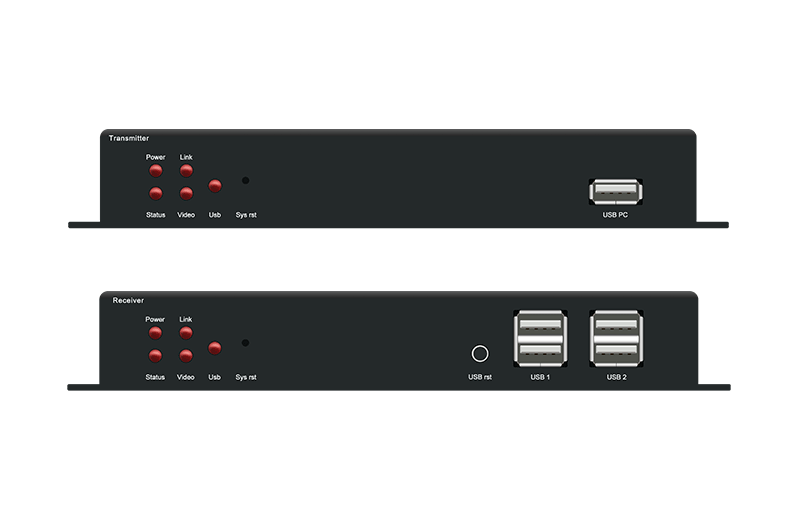

4K@30 DVI KVM USB2.0 Optical Fiber Extender
High Availability and Friendly Design

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.


High Availability and Friendly Design
Professional for 4K HD Video Extender

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.


Professional for 4K HD Video Extender

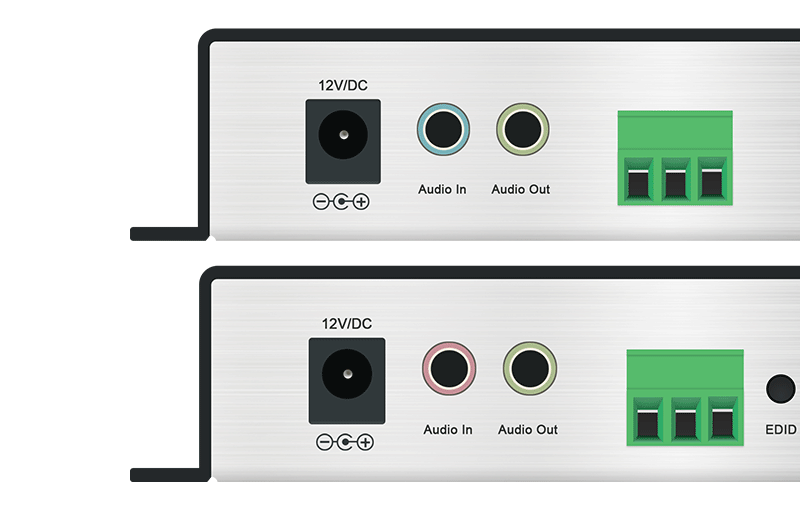

Bi-Directional Audio Signal Transmission

Format: 44.1K,48K,96K,176K,192K

Duplex audio Transmit


Bi-Directional Audio Signal Transmission

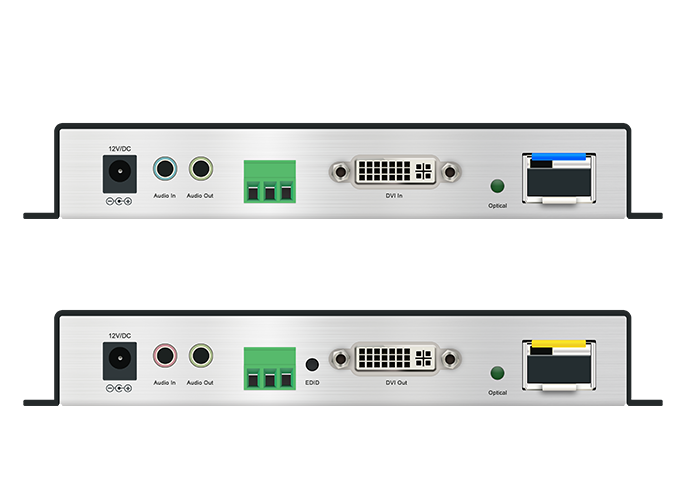

EDID Mode and RS-232 Control

Features RS-232 port for connecting peripherals.

EDID Mode and RS-232 Control
Support Keyboard & Mouse Signal Transmission

Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive.

Support Keyboard & Mouse Signal Transmission
Single-mode and Multi-mode Optional

Default:Single model 1-core (10km)

Multimode Dual-Core Module (300m)

Spport 20KM, 60KM,80KM OEM


Single-mode and Multi-mode Optional
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation.

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters of 4K@30 DVI KVM Optical Fiber Extender

Name4K@30 DVI KVM Optical Extender
ModelZY-OKD501
Transmitter InputDVI*1  Audio In*1
Transmitter OutputRS232 *1  LC*1 Audio out*1
Recevier InputRS232 *1  LC*1 Mic In*1
Recevier OutputDVI*1  Audio In*1
Resolutuion3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/
1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/
1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/
1280x1024P60/1280x800P60/1024x768P60/800x600P60
AudioFormat:44.1K,48K,96K,176K,192K
Duplex audio Transmit
SFPDefault: Single model 1-core (10km)
Multimode Dual-Core Module (300m)
Spport 20KM, 60KM,80KM OEM
RS232bidirectional transmission
Interface:DB9
Baudrate:11520
Data-Bits:8bit
Support EDID
Support HDCPHDCP1.4
Support KVMAll USB2.0 devices
Temperature‘-5℃ to +60℃
Humidity≤90%
Power Consumption<5W
Power12V/DC 1A;
Size187*105*28mm
WeightTX:0.3KG   RX:0.3KG

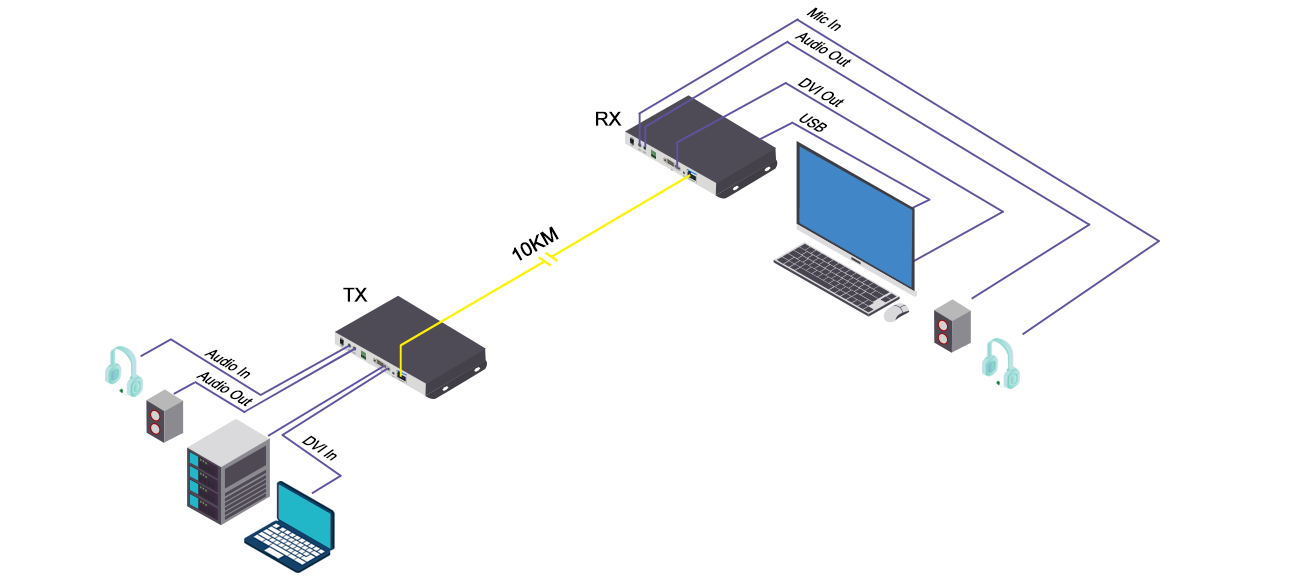

Diagram of 4K@30 DVI KVM Optical Fiber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
