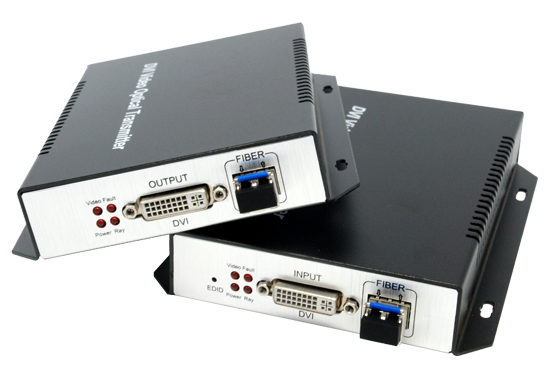

Orivision Uncompressed 4K@30 DVI Optical Fiber Extender

【Uncompressed Transmission】DVI to fiber extender can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission

【UHD 4K Resolution】Support resolution up to 4096x2160@30fps, backwards is compatible

【20KM Extreme Long Transmission】Extend 4K DVI signal up to 20KM over a single mode fiber  one core cable; or extend 4K DVI signal up to 300M over a multimode duanl core cable; 40KM-80KM distance can be customised

【Excellent Quality】Support dynamic EDID, plug and play, no need to learn

【Plug and Play】Simple to install, plug and play, no setup or configuration needed

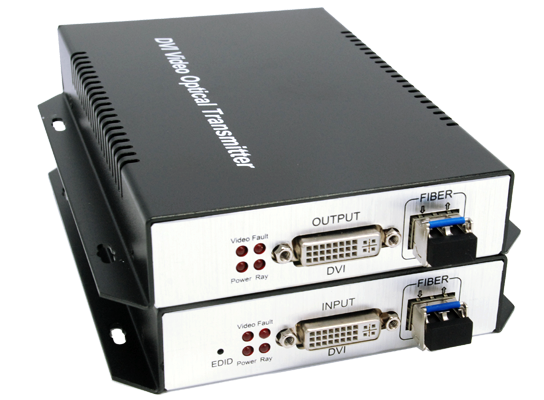

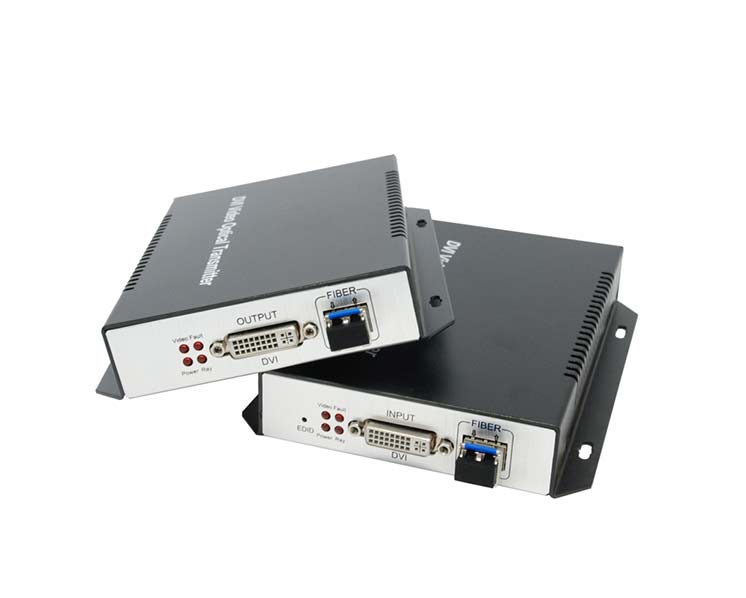

4K@30 DVI Optical Fiber Extender
4K@30 DVI Optical Fiber Extender
  • Uncompressed transmission

  • Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

  • Standard distance transmission 20KM, distance can be customized

  • Support EDID mode HDCP

  • Plug-and-play operation


4K@30 DVI Optical Fiber Extender

4K DVI fiber optical extender provides long distance transmission of DVI, audio signals over a single fiber. Designed specifically for AV systems, the Extender includes many integrator-friendly features such as EDID mode and HDCP. Low energy consumption, long distance, plug and play, compatible, can achieve more accurate display.


Uncompressed HDMI Optical Fiber Extender: HDMI-H-TR

Uncompressed DVI Optical Fiber Extender: DVI-H-TR


4K@30 DVI Optical Fiber Extender

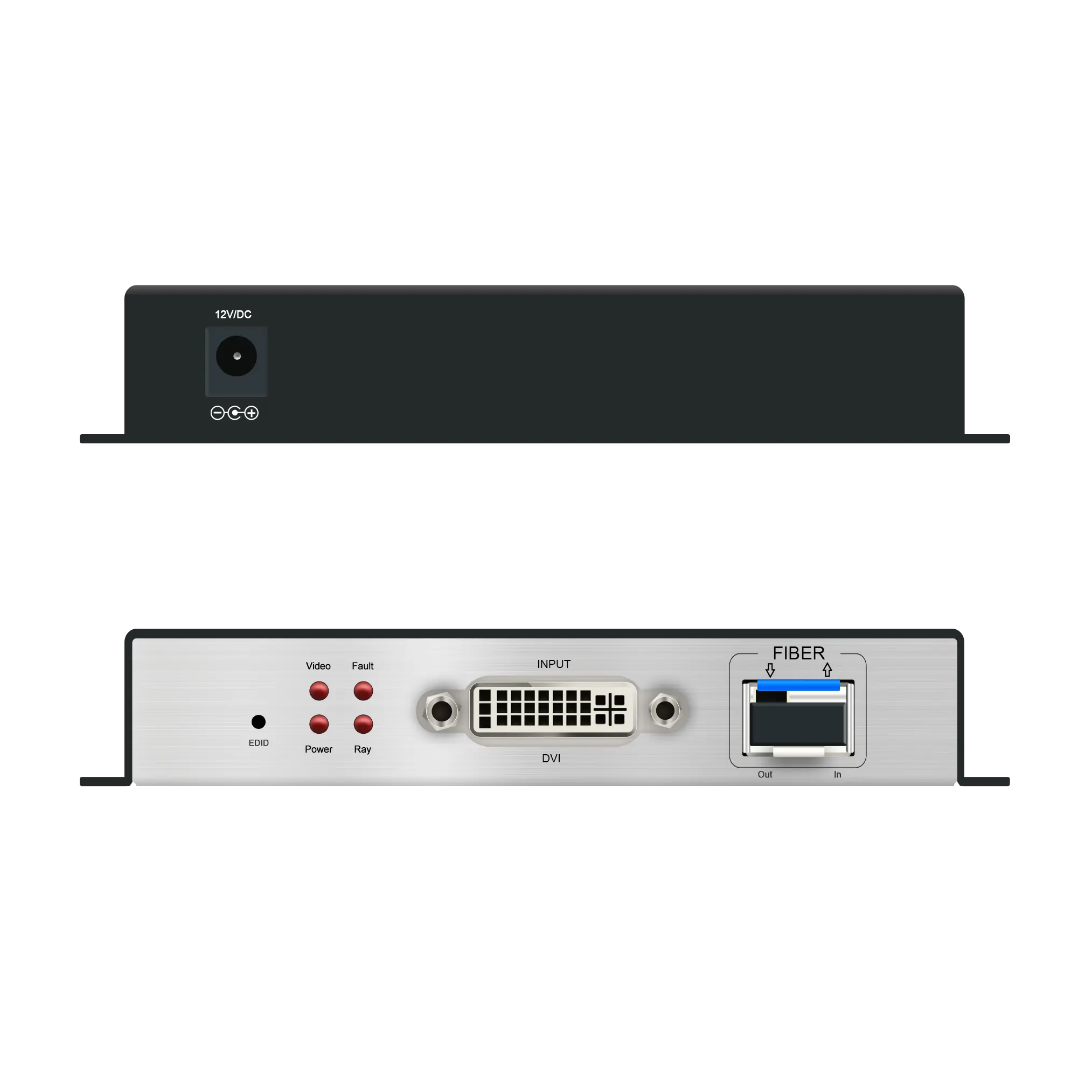

High Availability and Friendly Design

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design

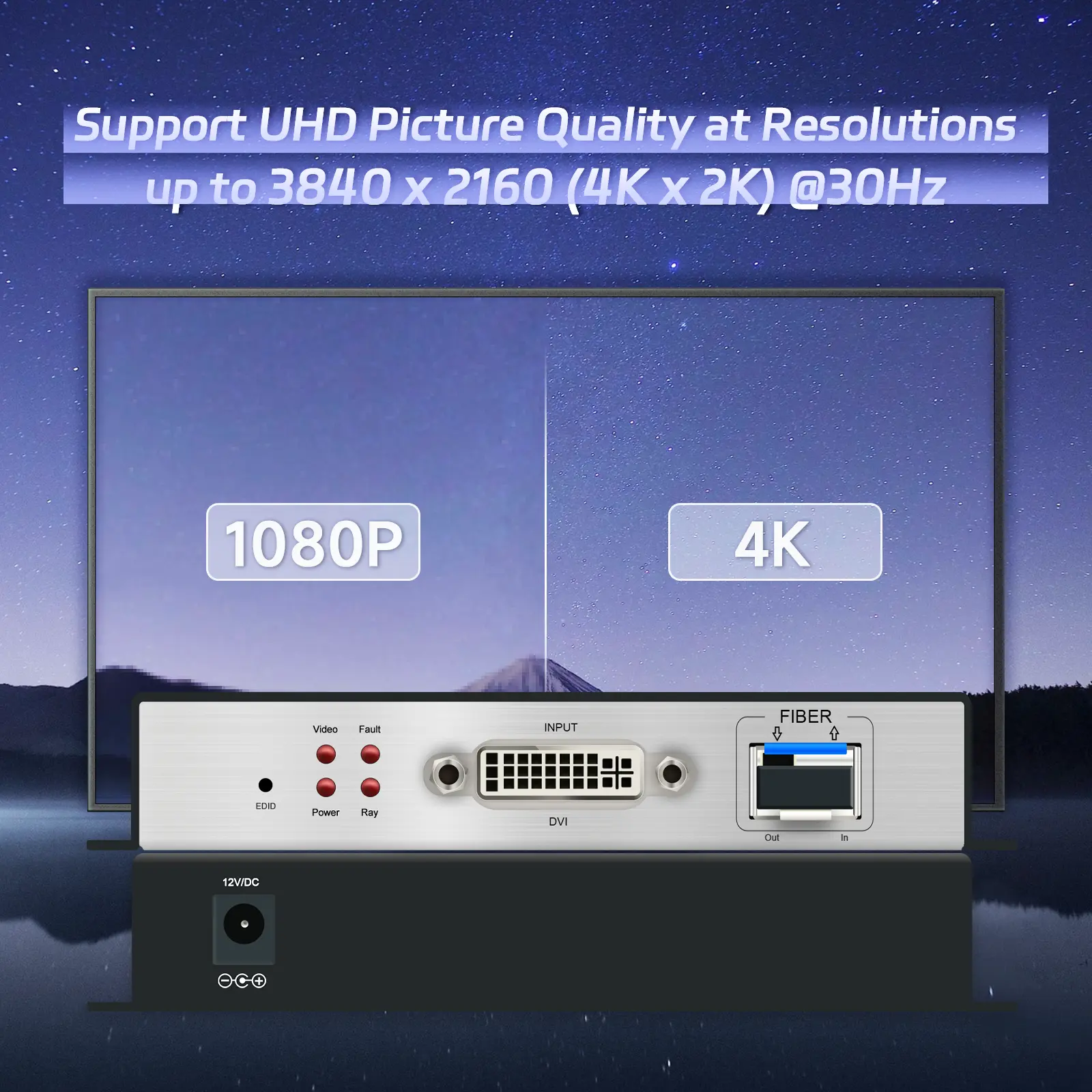

Uncompressed 4K UHD Transmission

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.


Uncompressed 4K UHD Transmission
EDID Mode and RS-232 Control

EDID can identify a variety of display attributes

EDID Mode and RS-232 Control

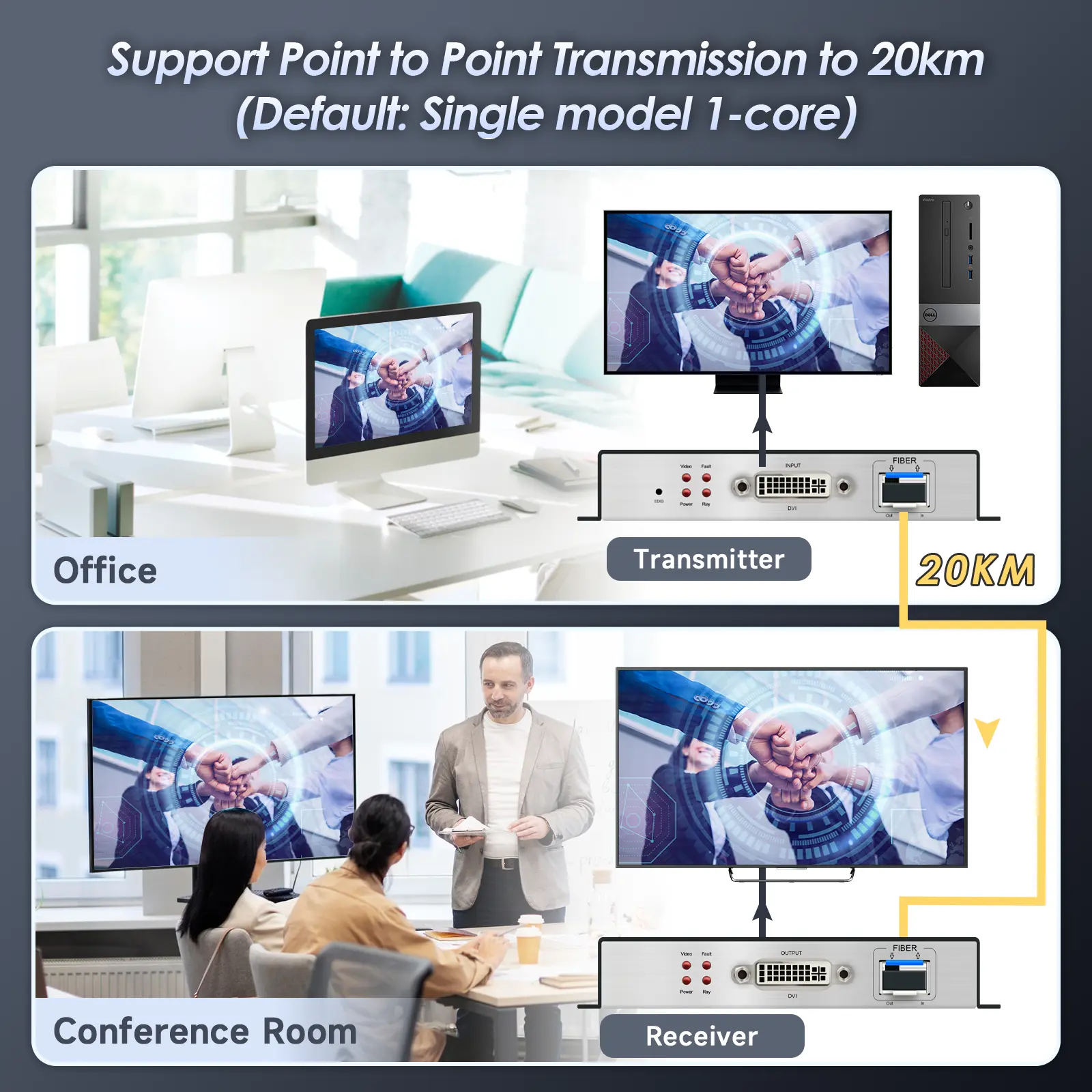

Single-mode and Multi-mode Optional

Default:Single model 1-core (20km)

Multimode Dual-Core Module (300m)

Support 40KM, 60KM,80KM OEM


Single-mode and Multi-mode Optional
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters of Uncompressed 4K@30 DVI Optical Fiber Extender

NameUncompressed 4K@30 DVI Optical Extender
ModelZY-DVI-H-TR
Transmitter InputDVI*1
Transmitter OutputLC*1

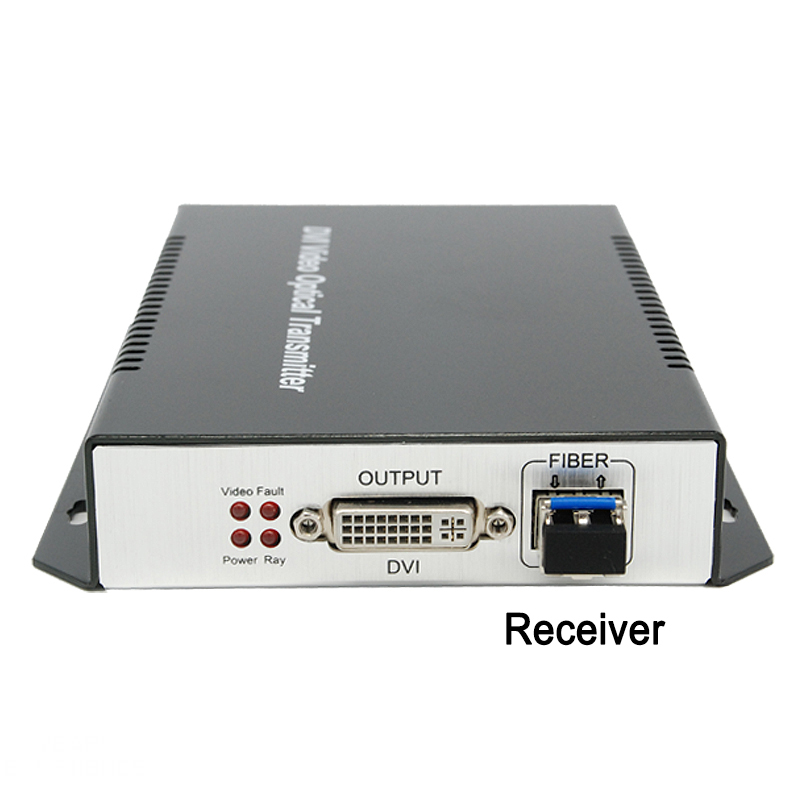

Recevier InputLC*1
Recevier OutputDVI*1
Resolutuion3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/
1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/
1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/
1280x1024P60/1280x800P60/1024x768P60/800x600P60
SFPDefault: Single model 1-core (20km)
Multimode Dual-Core Module (300m)
Support 40KM, 60KM,80KM OEM
RS232bidirectional transmission
Interface: 3-core Phoenix terminal
Baudrate: 11520
Data-Bits:8bit
Support EDID
Support HDCPHDCP1.4
Support KVMx
Temperature-40°C to +70°C
Humidity≤90%
Power Consumption<5W
Power12V/DC 1A
Size168*105*28mm
WeightTX: 0.3KG   RX: 0.3KG

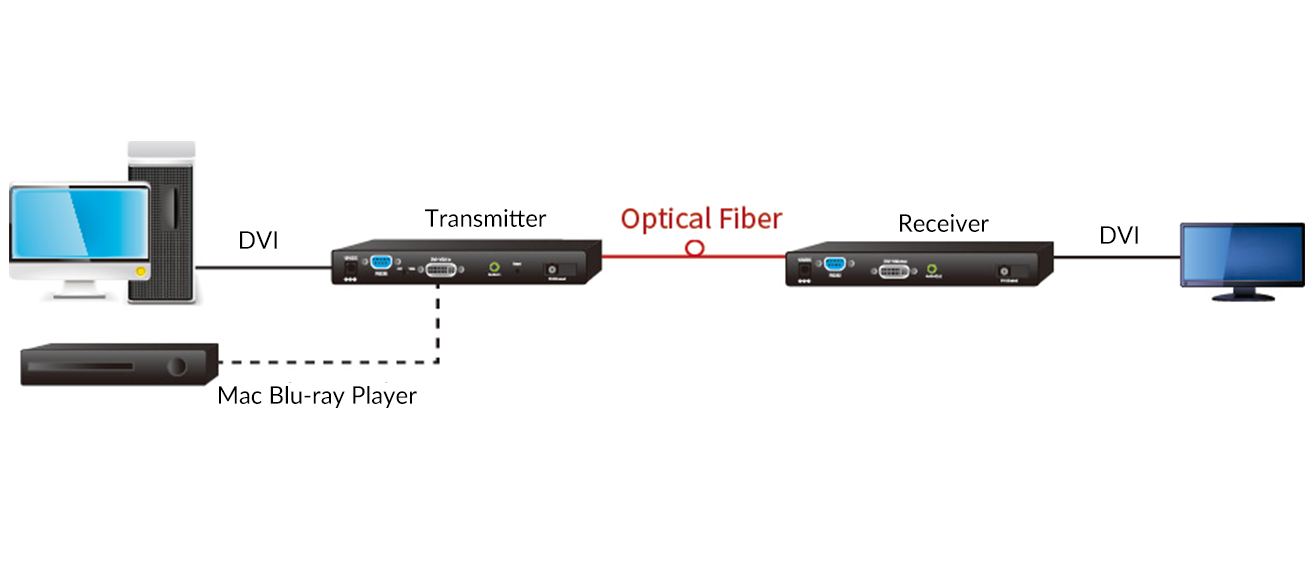

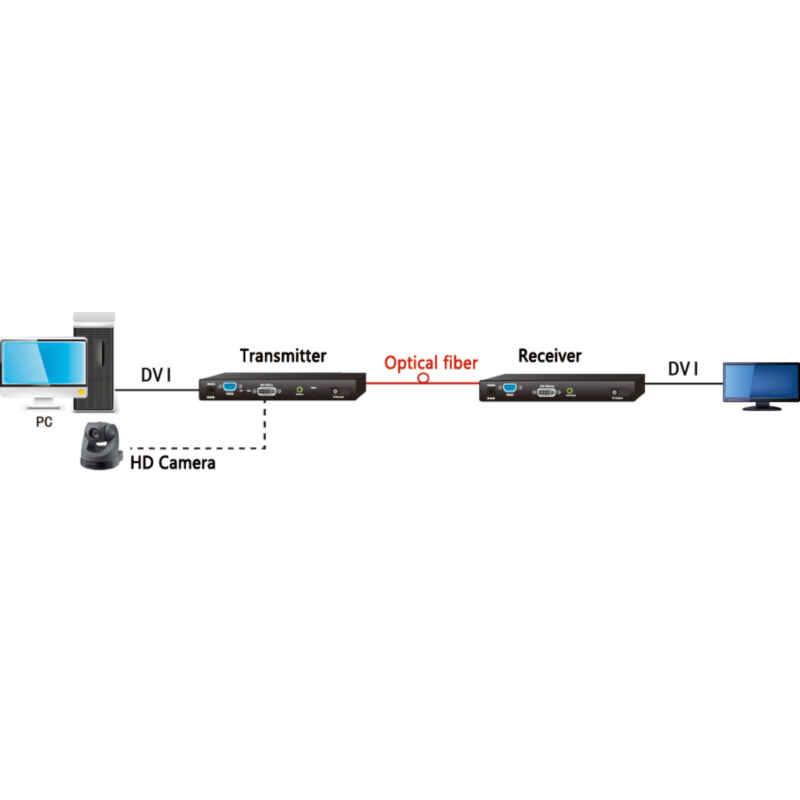

Diagram of Uncompressed 4K@30 DVI Optical Fiber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.


Diagram of Uncompressed 4K@30 DVI Optical Fiber Extender
