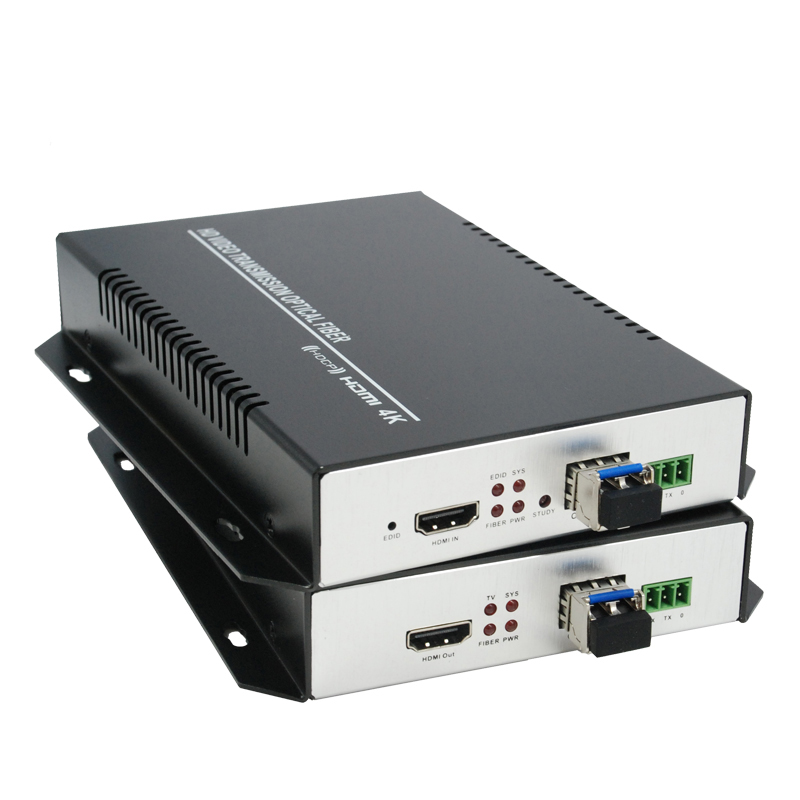

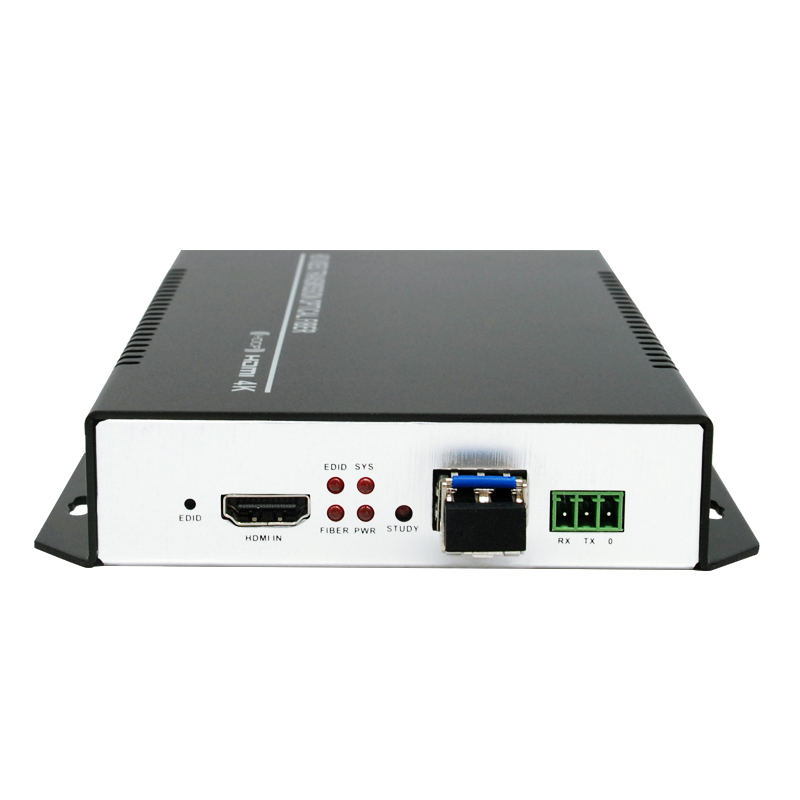

ORIVISION Uncompressed 4K@30 HDMI Optical Fiber Extender

【Uncompressed Transmission】HDMI to fiber extender can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission

【UHD 4K Resolution】Support resolution up to 4096x2160@30fps, backwards is compatible, support 3D

【20KM Extreme Long Transmission】Extend 4K HDMI signal up to 20KM over a single mode fiber  one core cable; or extend 4K HDMI signal up to 300M over a multimode duanl core cable; 40KM-80KM distance can be customised

【Excellent Quality】Support EDID, compatible HDMI1.4, HDCP1.4

【Support Backward RS232】The HDMI Extender support serial RS232 signal, you can control the RS232 serial device from remote side

【Plug and Play】Simple to install, plug and play, no setup or configuration needed


4K@30 HDMI Optical Fiber Extender
4K@30 HDMI Optical Fiber Extender
  • Uncompressed transmission

  • Delivers UHD picture quality at resolutions up to 4096 x 2160 (4K x 2K) @30Hz

  • Standard distance transmission 20KM, distance can be customized

  • Support EDID mode and HDCP

  • Plug-and-play operation


Uncompressed 4K@30 HDMI Optical Fiber Extender

4K HDMI fiber optical extender provides long distance transmission of HDMI, audio signals over a single fiber. Designed specifically for AV systems, the Extender includes many integrator-friendly features such as EDID mode and HDCP. Low energy consumption, long distance, plug and play, compatible, can achieve more accurate display.

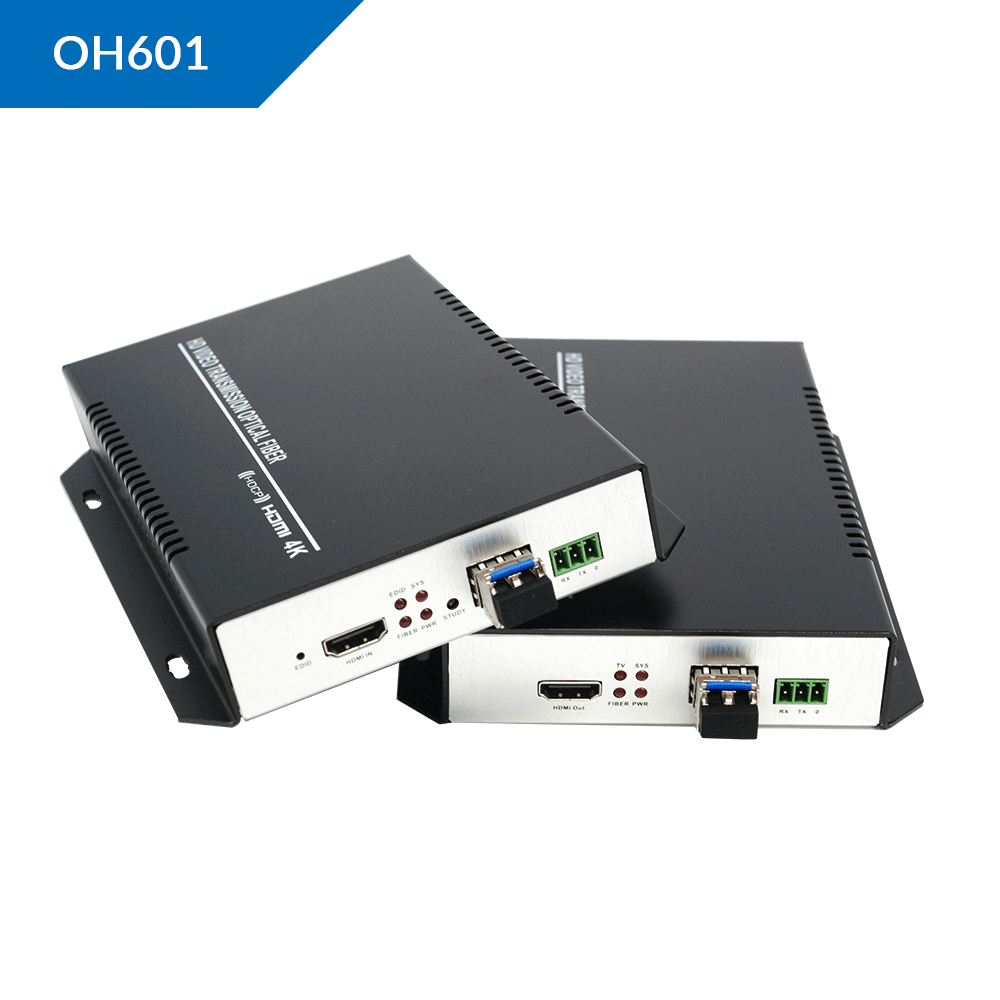

Uncompressed HDMI Optical Fiber Extender: OH601

Uncompressed DVI Optical Fiber Extender: OD601


Uncompressed 4K@30 HDMI Optical Fiber Extender
Uncompressed Transmission

HDMI to fiber converter can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission, data rates up to 10Gbps.

Uncompressed Transmission
High Availability and Friendly Design

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.


High Availability and Friendly Design
Ultra HD 4K Resolution

Delivers UHD picture quality at resolutions up to 4096 x 2160 (4K x 2K) @30Hz, support 3D.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.


Ultra HD 4K Resolution
Compatible with DVI Signal Transmission

Compatible with DVI signals when using an HDMI-to-DVI adapter.

Support HDMI interface hot plug.


Compatible with DVI Signal Transmission

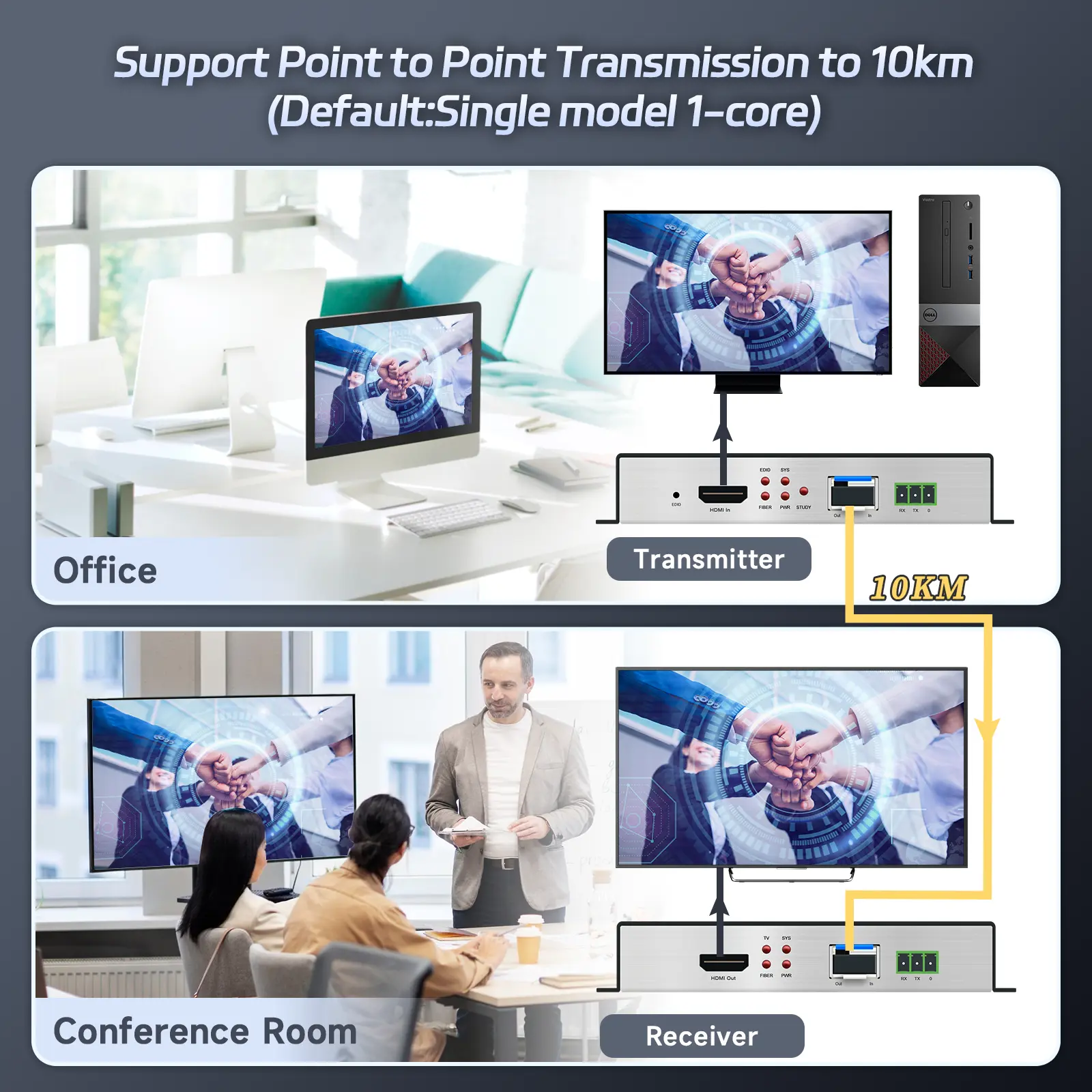

Point to Point Transimission, Up to 20KM

Extend 4K signals up to 20KM over a single mode one core fiber cable,

or extender 4K signals up to 300 meters over a multimode dual core fiber cable.

Transmission 40KM/60KM/80KM can be customised.

Point to Point Transimission, Up to 20KM
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation.

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters of OH601 | Uncompressed 4K@30 HDMI Optical Fiber Extender

NameUncompressed 4K@30 HDMI Optical Extender
ModelZY-OH601
Transmitter InputHDMI 1.4*1
Transmitter OutputLC*1
Recevier InputLC*1
Recevier OutputHDMI 1.4*1
Resolutuion3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/
1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/
1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/
1280x1024P60/1280x800P60/1024x768P60/800x600P60
SFPDefault: Single model 1-core (10km)
Multimode Dual-Core Module (300m)
Spport 20KM, 60KM,80KM OEM
RS232bidirectional transmission
Interface:3-core Phoenix terminal
Baudrate:11520
Data-Bits:8bit
Support EDID
Support HDCPHDCP1.4
Support KVMx
Temperature-40°C to +70°C
Humidity≤90%
Power Consumption<5W
Power12V/DC 1A
Size168*105*28mm
WeightTX:0.3KG   RX:0.3KG

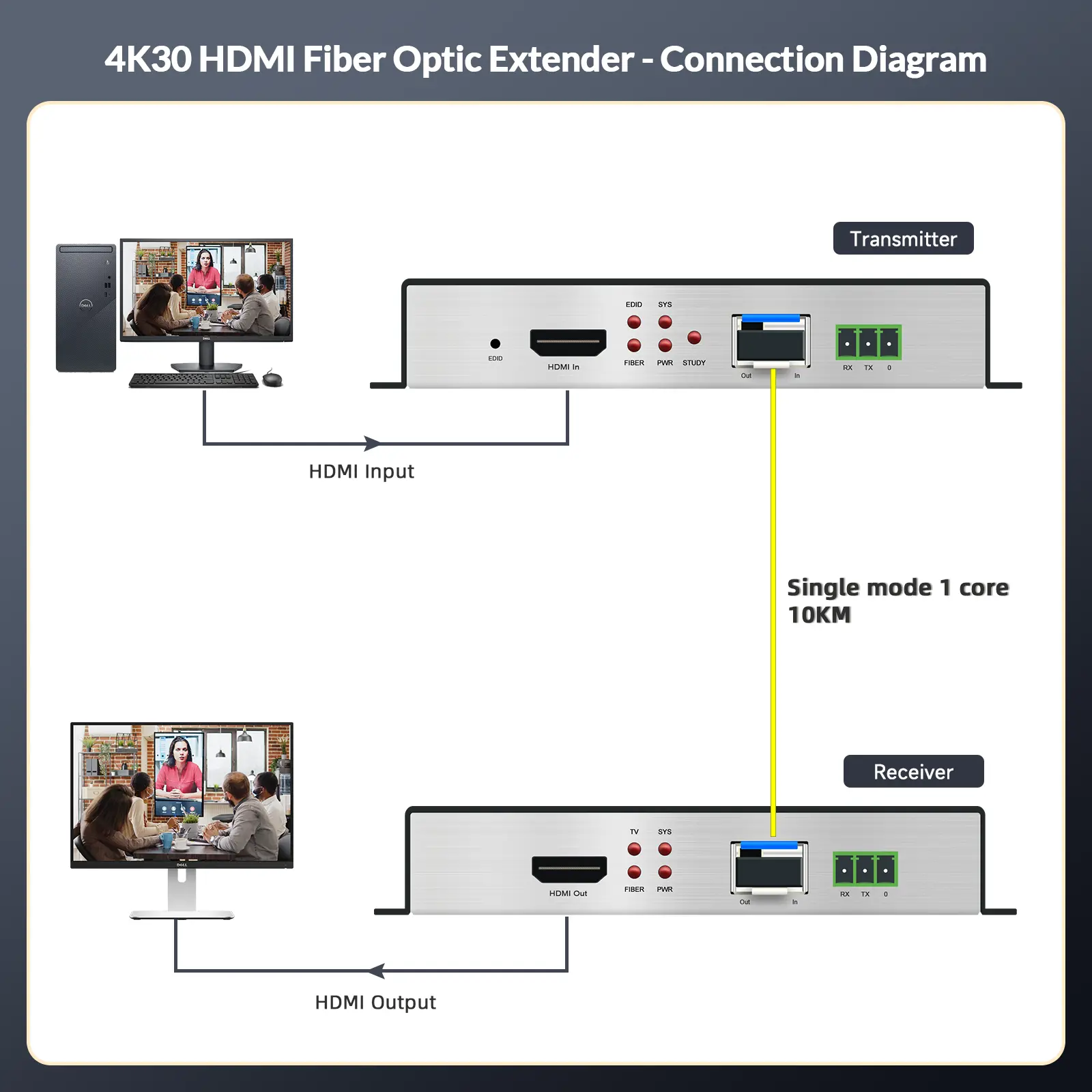

Diagram of OH601 | Uncompressed 4K@30 HDMI Optical Fiber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.

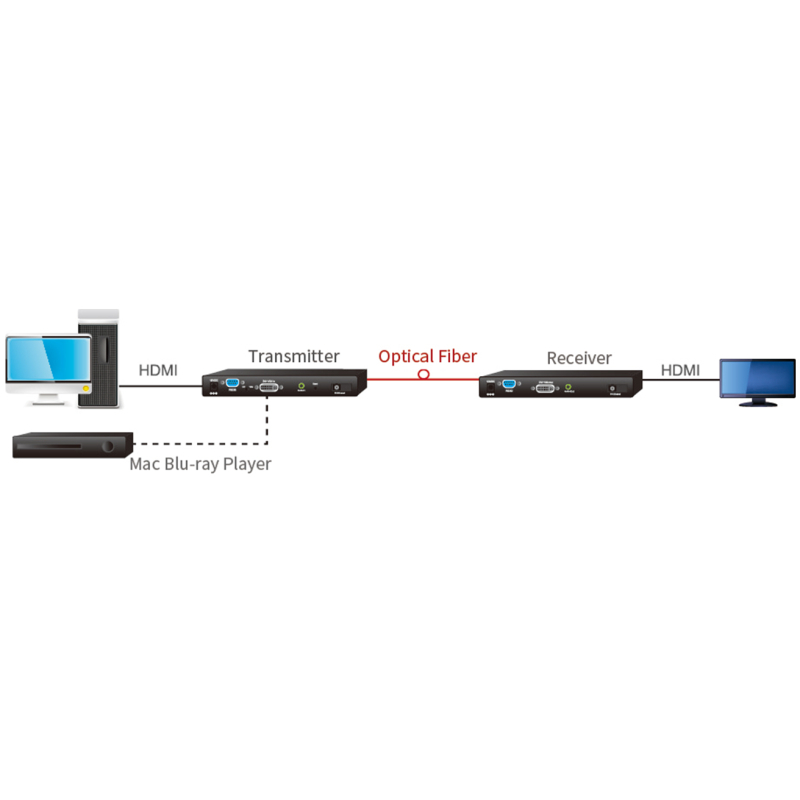

Diagram of HDMI-H-TR | Uncompressed 4K@30 HDMI Optical Fiber Extender
