Brand: ORIVISION
Model: ZY-OKH601
Transmitter Input: HDMI 2.0*1
Transmitter Output: RS232 *1 LC*1
Recevier Input: RS232 *1 LC*1
Recevier Output: HDMI2.0*1
Resolutuion: Max 3840*2160@60Hz(YUV444)

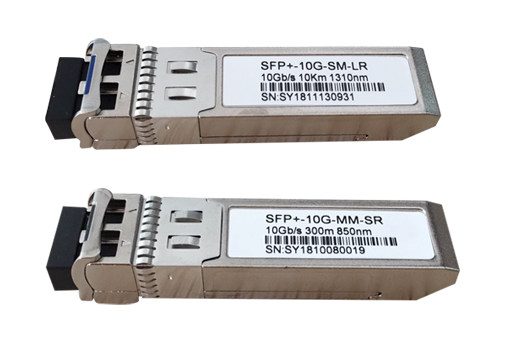

Transmission Distance: Default:Single model 1-core (10km);
Multimode Dual-Core Module (300m);
Spport 20KM, 60KM,80KM OEM
KVM: USB2.0 keyboard and mouse
Power: 12V/DC 1A
Uncompressed Transmission
KVM fiber extender supports resolutions up to 3840x2160@60Hz(YUV4:4:4)

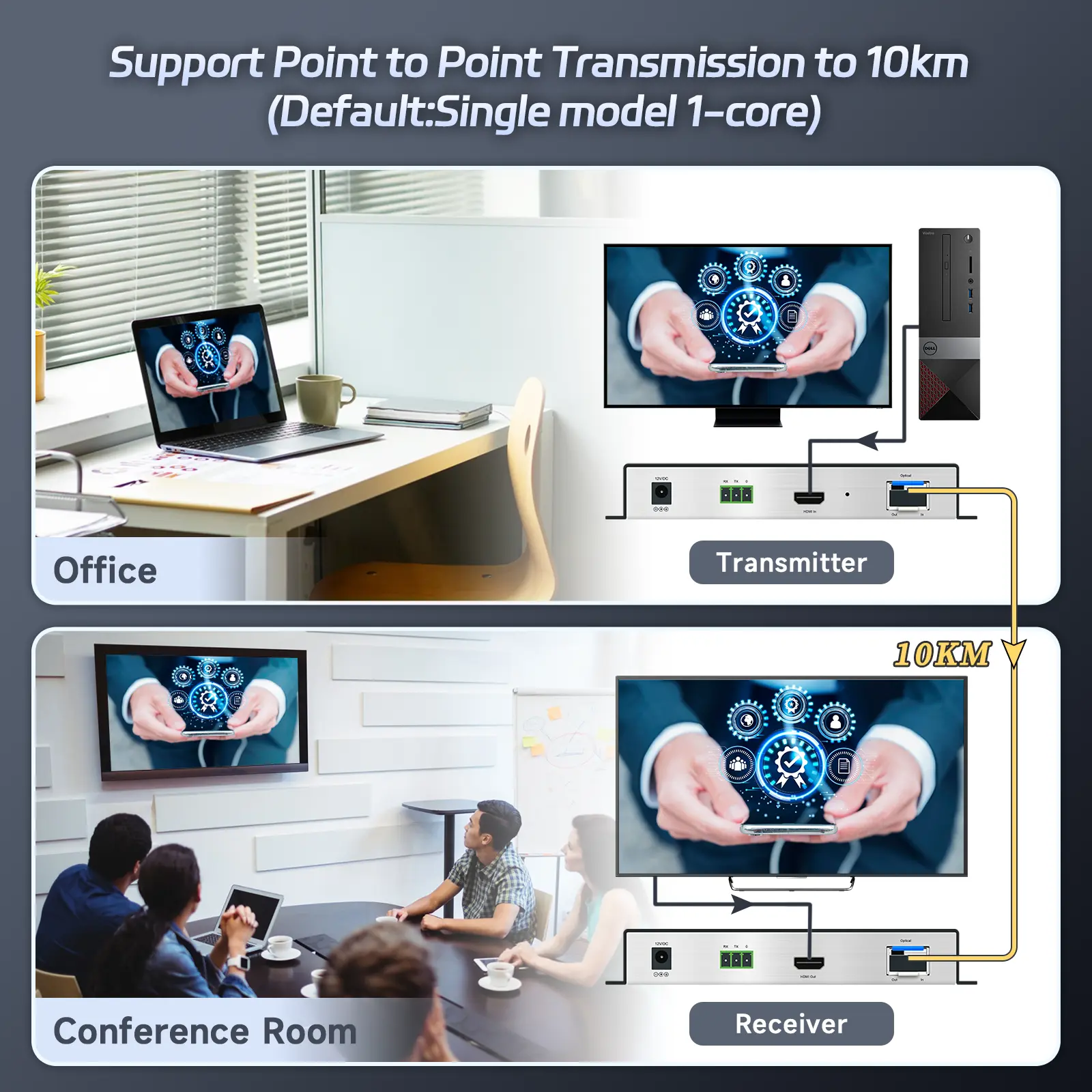

Standard distance transmission 10KM, distance can be customized
Supports HDCP2.2, EDID mode and RS-232 control
Supports Keyboard & Mouse Signal Transmission
Plug-and-play operation

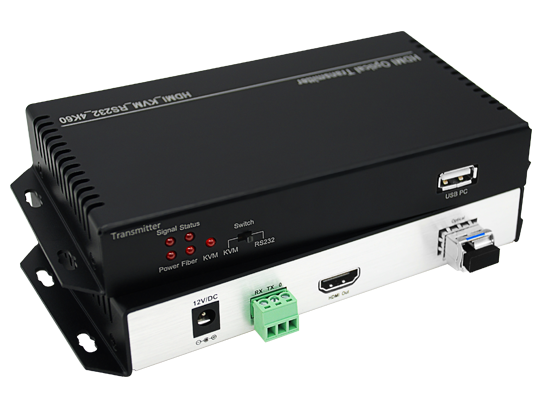

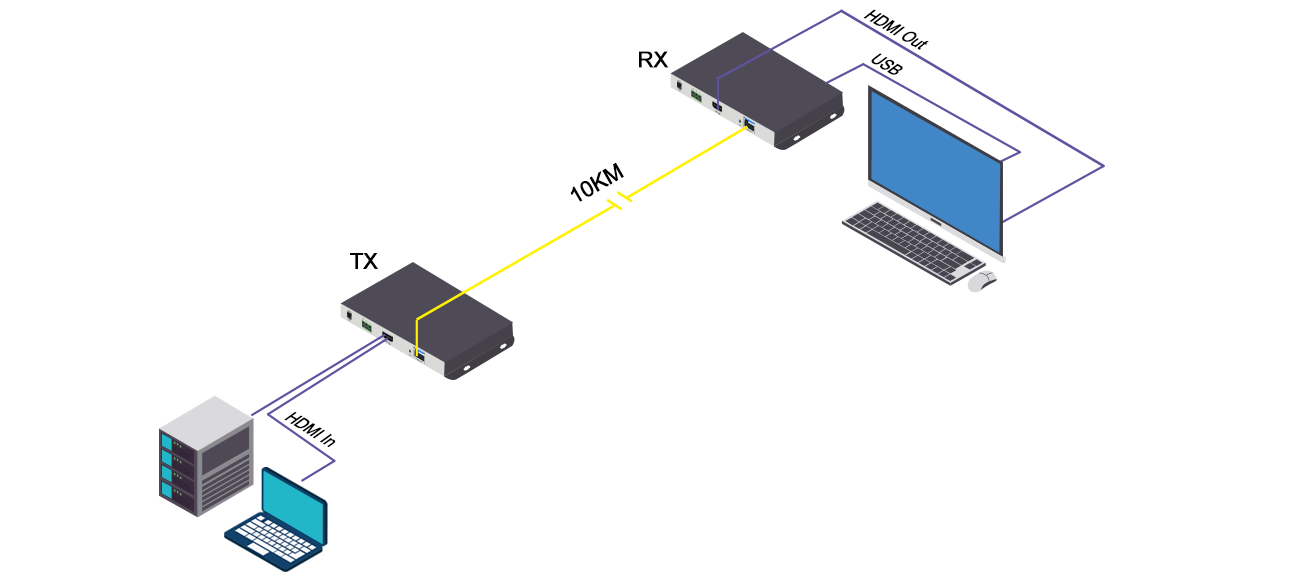

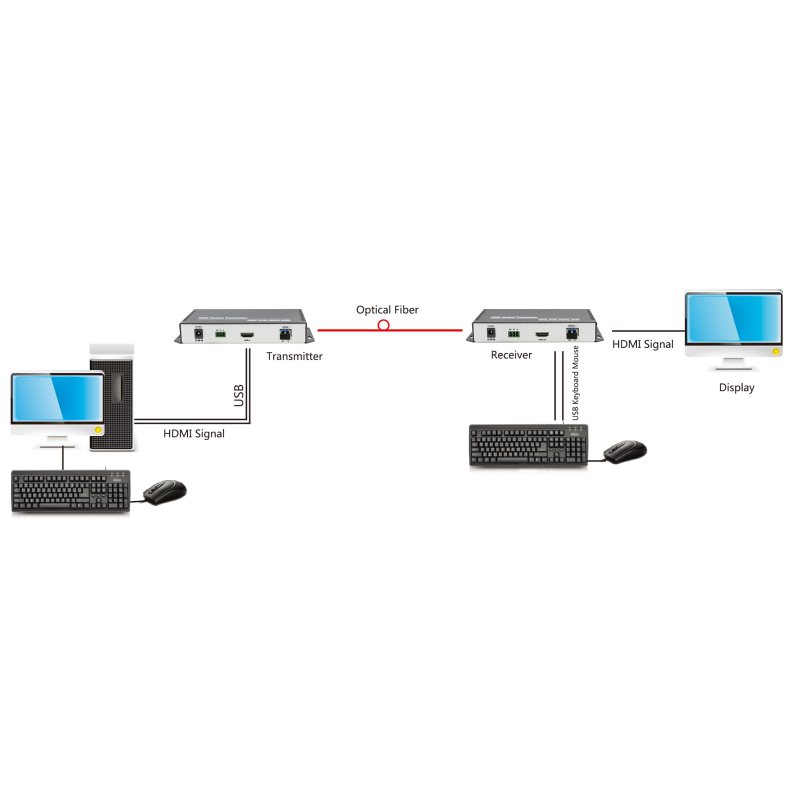

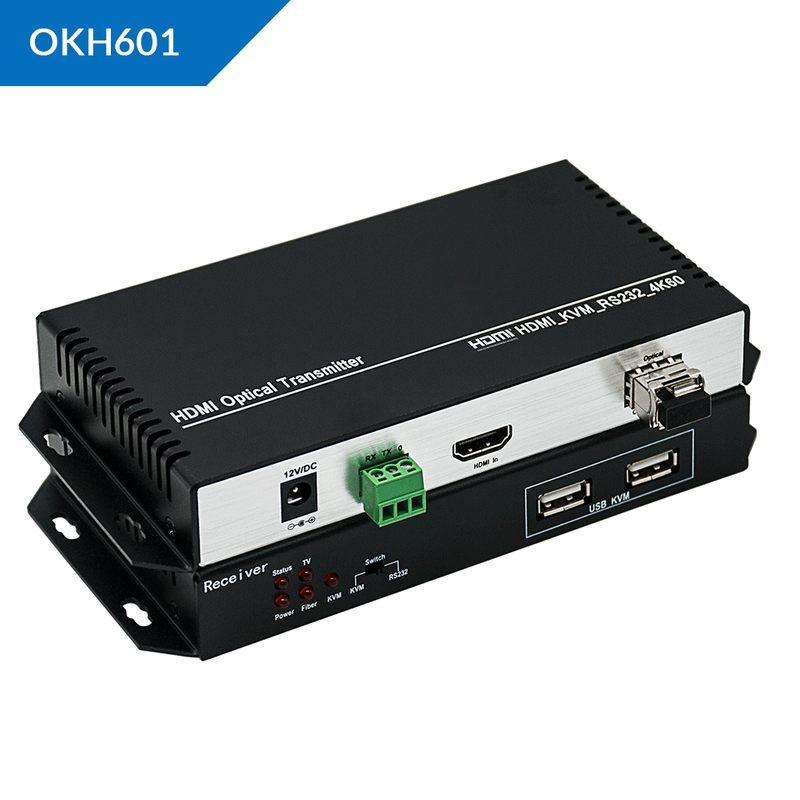

OKH601 is a fiber-based extender designed to extend uncompressed 4K@60hz singal up to 300m(Using Multimode Dual Core SFP) or 10km(Using Single model one core SFP) over duplex fiber cables.

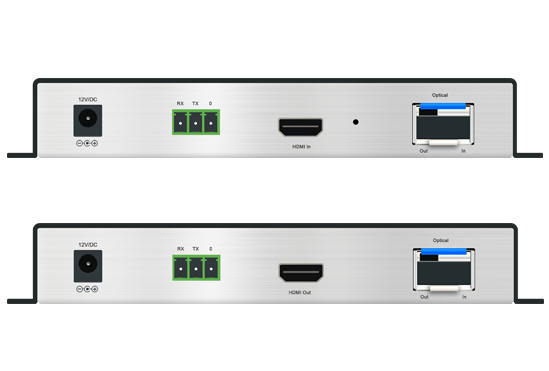

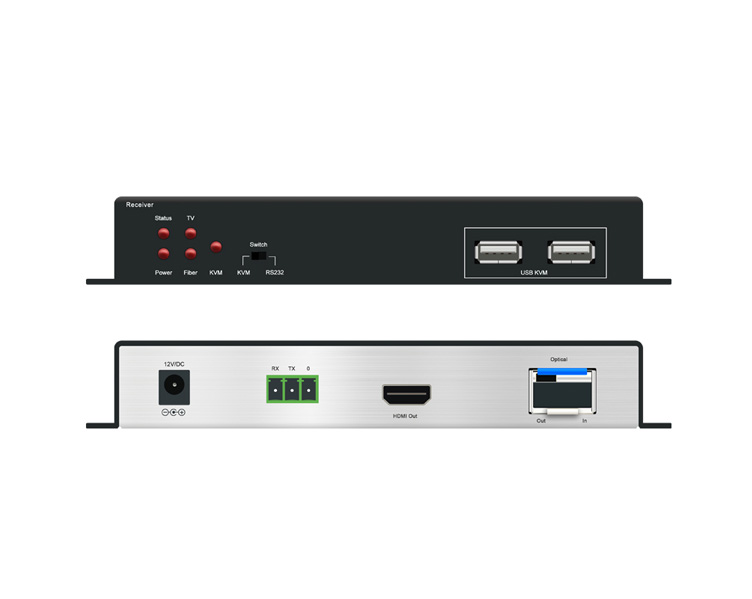

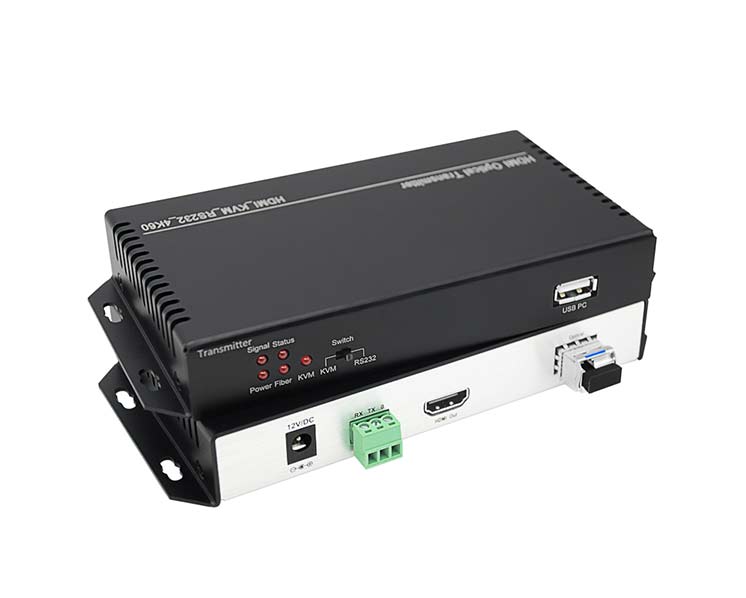

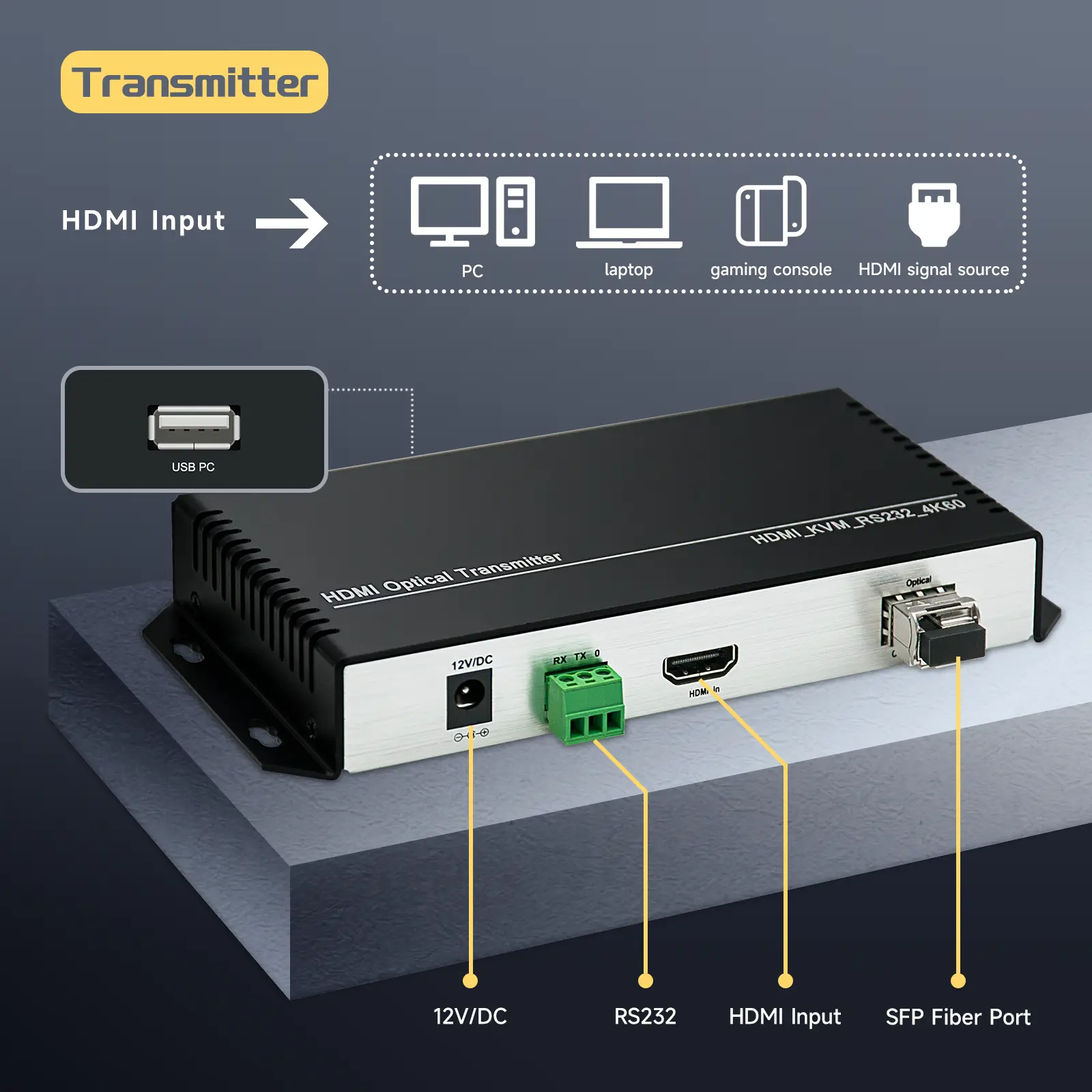

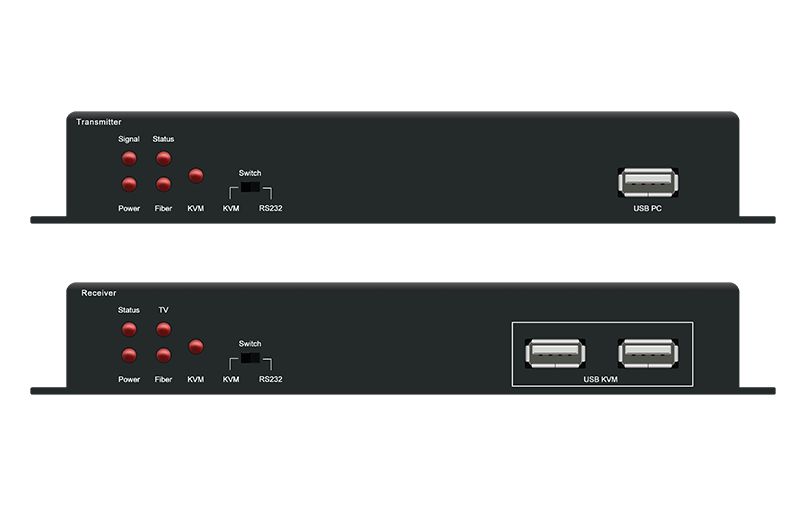

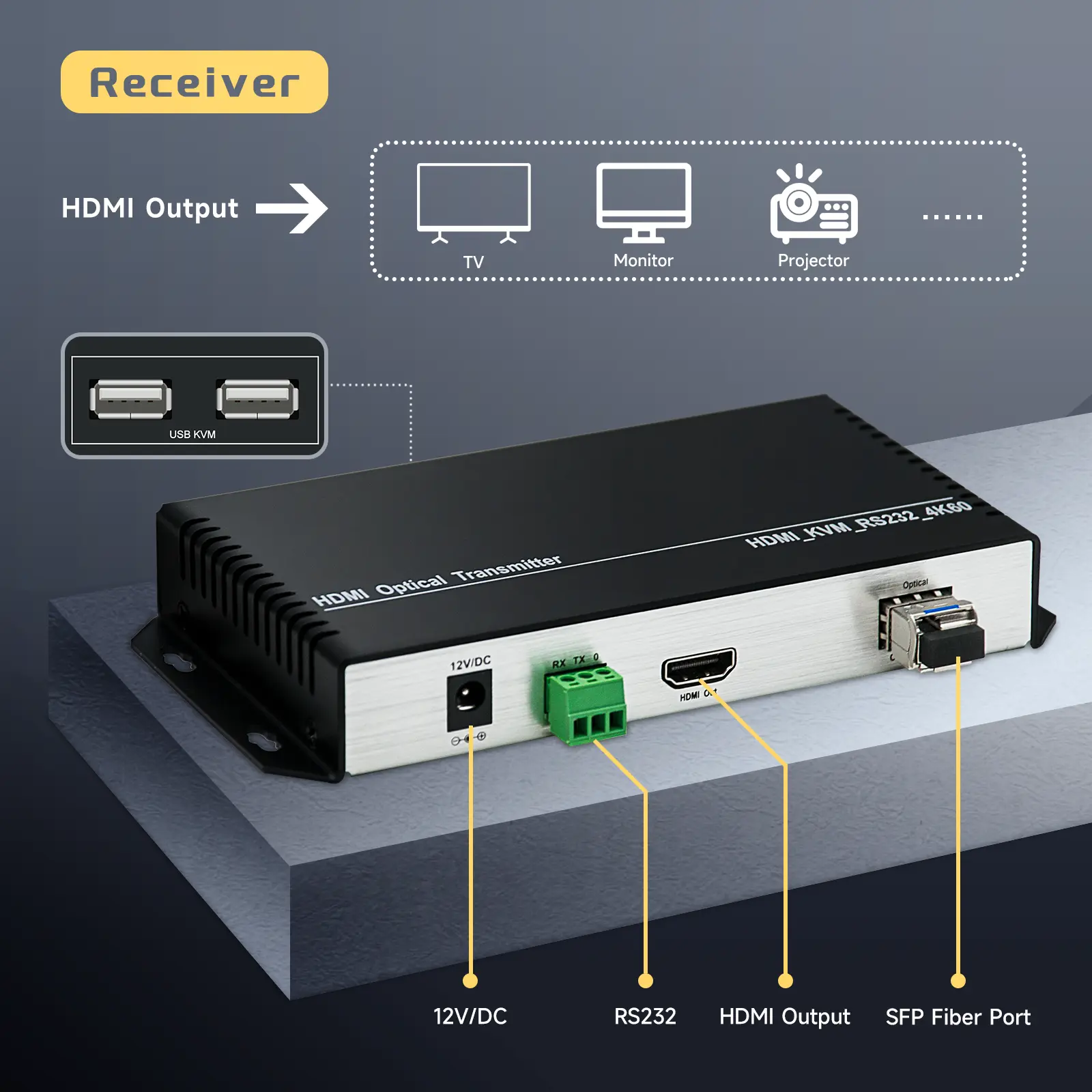

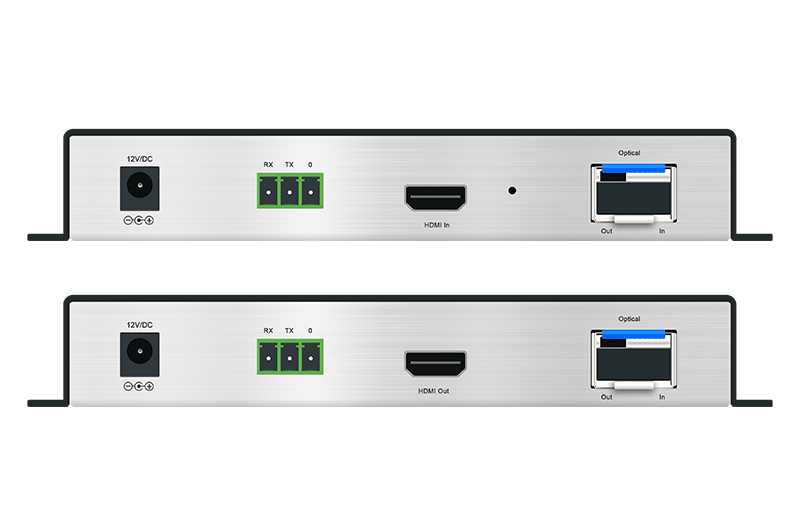

The OKH601 features an HDMI input and output, USB2.0 keyboad and mouse KVM, RS-232 control port, and a Gigabit Ethernet port. For point-to-point extension. It can receive fiber optic cables by inserting SFP+ modules into its optic port.

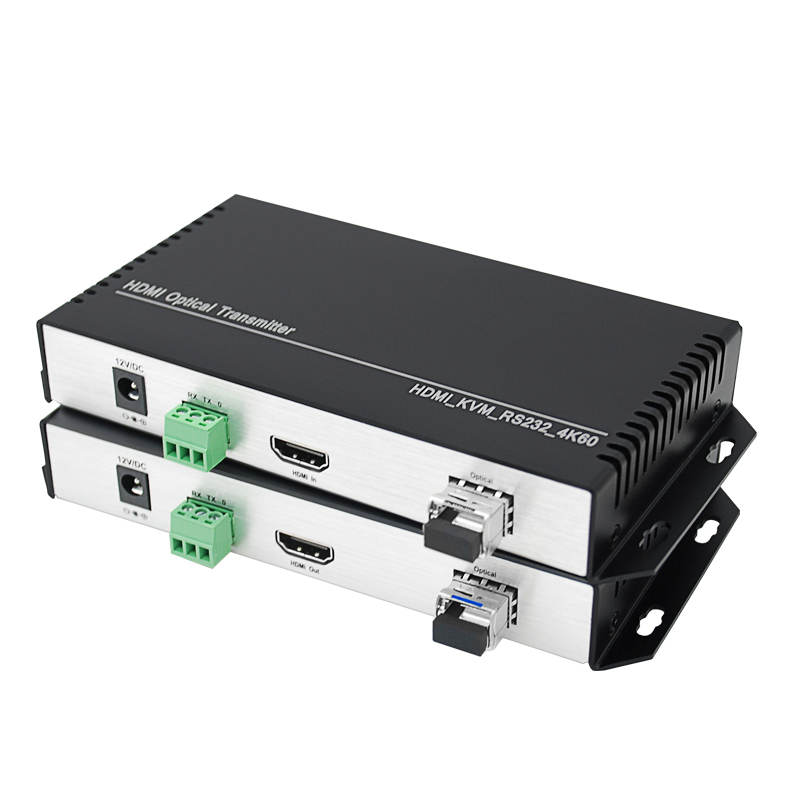

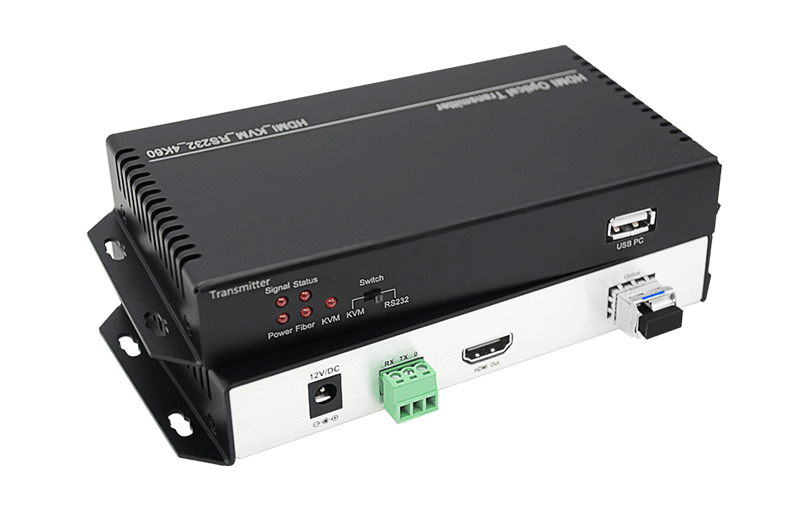

The aluminum shell design of this HDMI KVM optical fiber extender protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Uncompressed Transmission - 10G SFP+, Supports HDMI 2. 0 HDCP 2. 2, UHD 4K/60Hz YUV 4: 4: 4, HDR.
HDR gives you higher contract and vivid colors for a more realistic viewing experience.
Audio format supprt LPCM2/5.1/7.1CH, Dolby Digital, DTS5.1, etc.
RS232 pass through supports serial communication
Automatic EDID return

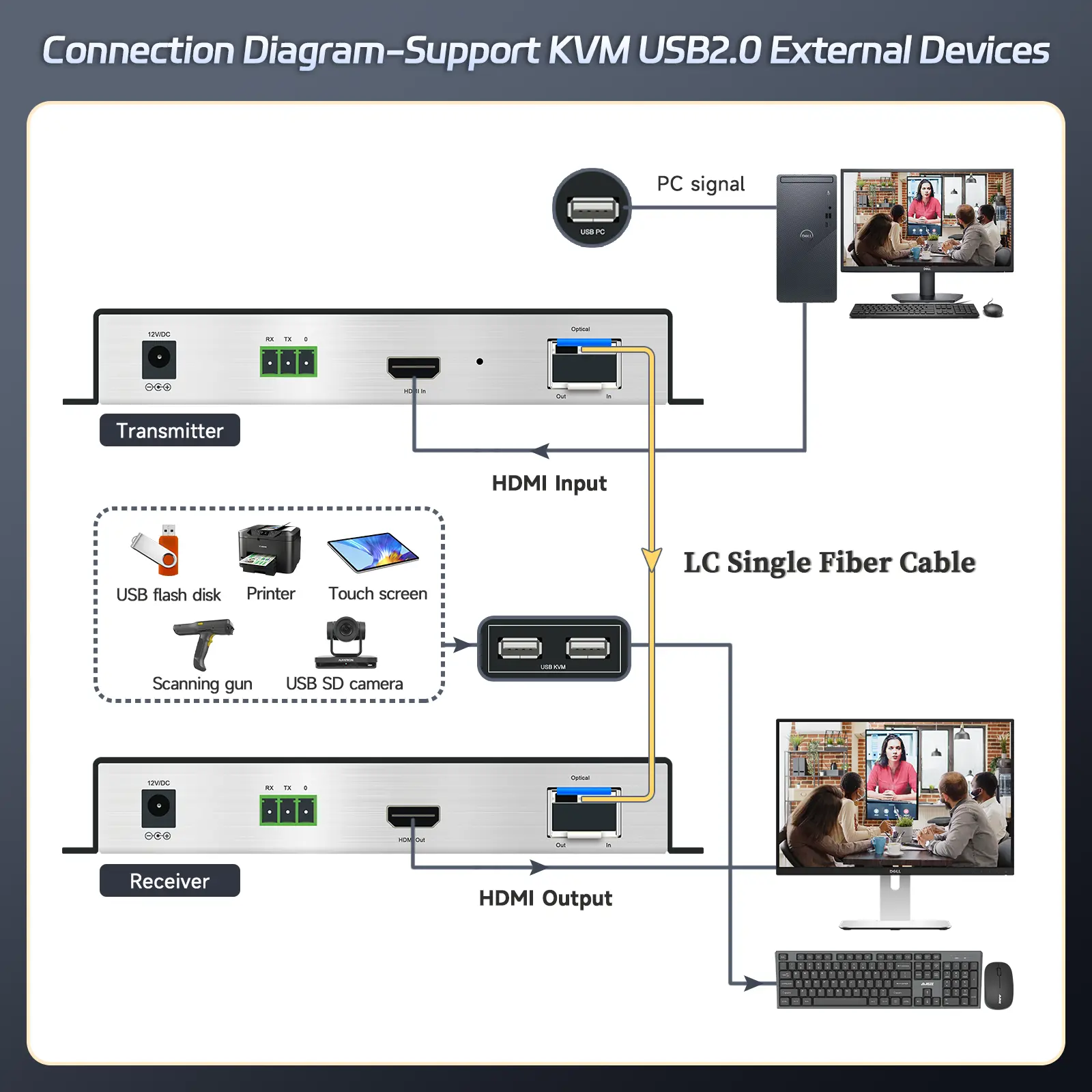

Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive.
Default:Single model 1-core (10km)
Multimode Dual-Core Module (300m)
Spport 20KM, 60KM,80KM OEM
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 4K@60 HDMI KVM Optical Extender |
| Model | ZY-OKH601 |
| Transmitter Input | HDMI 2.0*1 |
| Transmitter Output | RS232 *1 LC*1 |
| Recevier Input | RS232 *1 LC*1 |
| Recevier Output | HDMI 2.0*1 |
| Resolutuion | 3840x2160P60/3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/ 1920x1080P50/1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/ 1680x1050P60/1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/ 1366x768P60/1360x768P60/1280x1024P60/1280x800P60/1024x768P60/800x600P60 |
| Audio | Format:44.1K,48K,96K,176K,192K Duplex audio Transmit |
| SFP | Default: Single model 1-core (10km) Multimode Dual-Core Module (300m) Spport 20KM, 60KM,80KM OEM |
| RS232 | bidirectional transmission Interface:DB9 Baudrate:11520 Data-Bits:8bit |
| Support EDID | √ |
| Support HDCP | HDCP2.2 |
| Support KVM | USB2.0 Keyboard and mouse |
| Temperature | ‘-5℃ to +60℃ |
| Humidity | ≤90% |
| Power Consumption | ＜5W |
| Power | 12V/DC 1A; |
| Size | 187*105*28mm |
| Weight | TX:0.3KG RX:0.3KG |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
