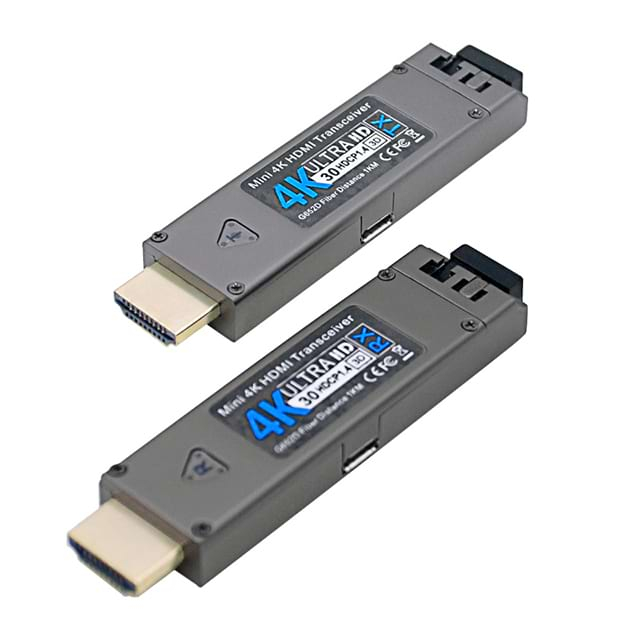

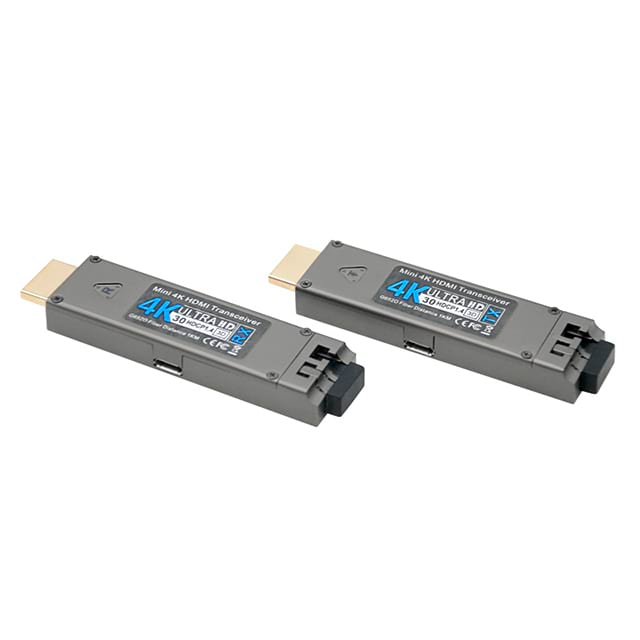

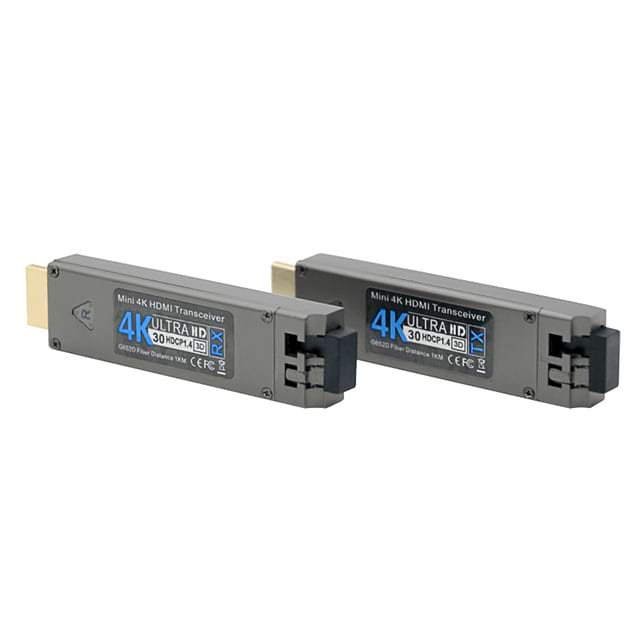

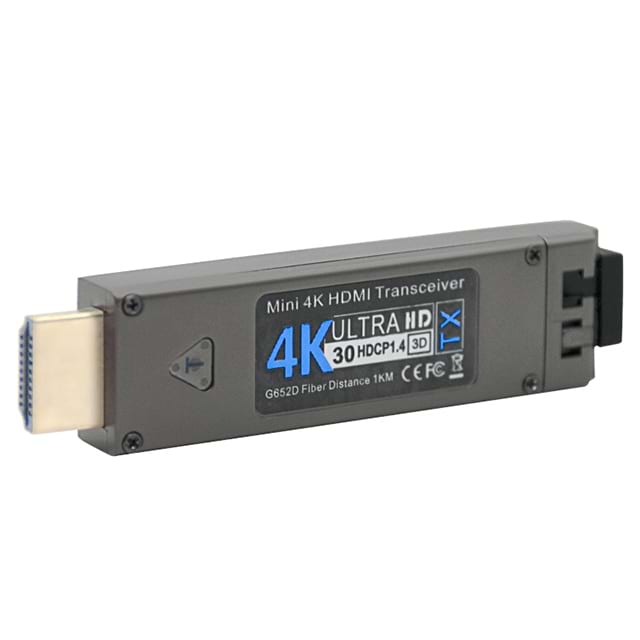

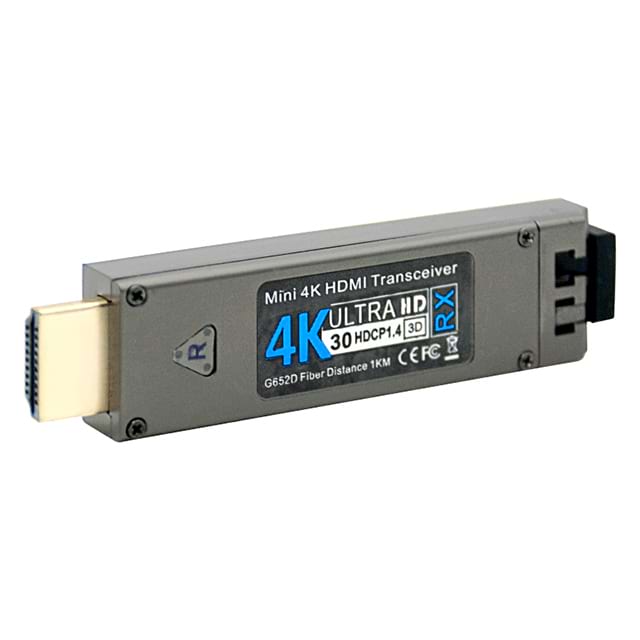

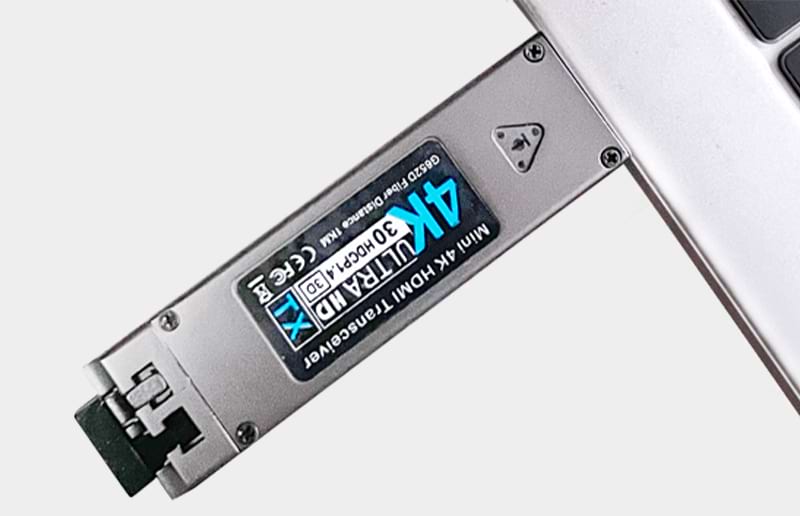

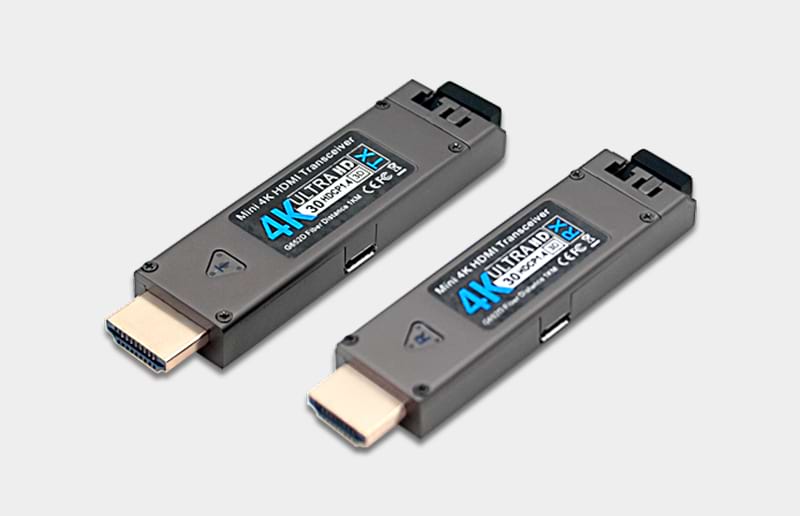

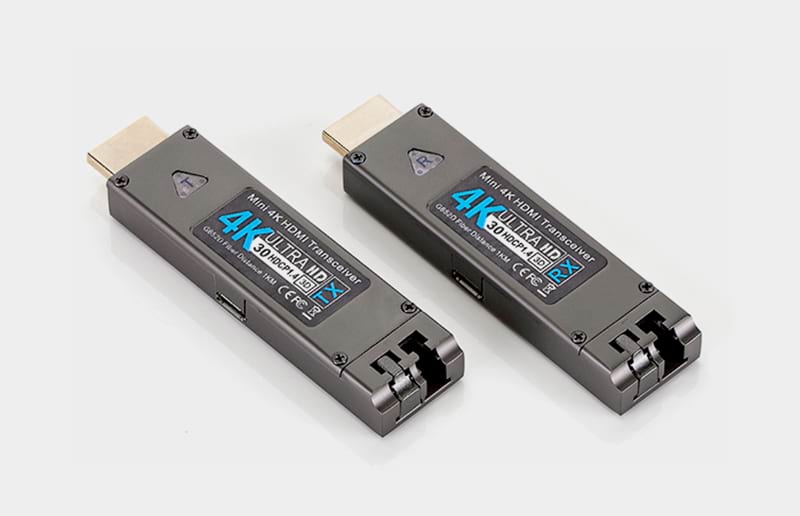

Mini 4K HDMI fiber optic extender transmits 4K30Hz HDMI video signal through one-core/two-core optical fiber to achieve delay-free, compression-free and high-quality signal extension of 1km. It adopts integrated design of video processing and optical conversion, with high integration, small size and stable performance, suitable for different working environments. It complies with international standard HDCP protocol 1.4, automatically identifies EDID, has power-off EDID memory storage function, and is backward compatible with version 1.3/1.2. Powered by micro-USB interface, with high flexibility in use.
High Availability and Friendly Design
The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Professional for 4K Video Extender
Maximum supported resolution 4096*2160*30Hz backward compatible.
Supports Hot-swappable Signals
HDCP1.4 Support, Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0 DDC CEC HPD Signal Support Delay time <2 ms
Integrated USB Connector for Power
Hot-pluggable, EMI/RFI Resistant Miniature form factor for ease of use and installation.
High Adaptability
EDID automatic learning, with power-off memory function.
Single-mode Multi-mode Compatible
Fiber Connector: Duplex LC Receptacle Multi-mode: 1KM; Single-mode: 2KM; can be customized 20KM
Support OEM ODM
OEM: Free print company logo by laser print; MOQ≥1 unit. ODM: Pls send your requirements to us. (info@orivision.cn).
Parameters
Name
4K@30 Mini HDMI Fiber Optic Extender
Model
ZY-OH901
Interface Standard
HDMI1.4, HDCP1.4
Pixel bandwidth
297MHz
Resolutions
4096*2160*30Hz backward compatible
Interface bandwidth
10 Gbps
Optical Fiber
Interface
LC
Types
SFP Single mode
Wavelength
1310nm (dual fiber) 1310-1550nm (single fiber)
Bandwidth
10Gbps
Distance
10KM (default single mode) 40KM 60KM 80KM (Optional)
Attenuation
-3db
Other
Temperature
-20 ~ +75° C
Humidity
0~ 95 % (no condensation)
Power Consumption
1.5W/Unit
Power supply
Micro-USB
Dimensions
79*20*10mm (Length * width * height)
Weight
0.1KG

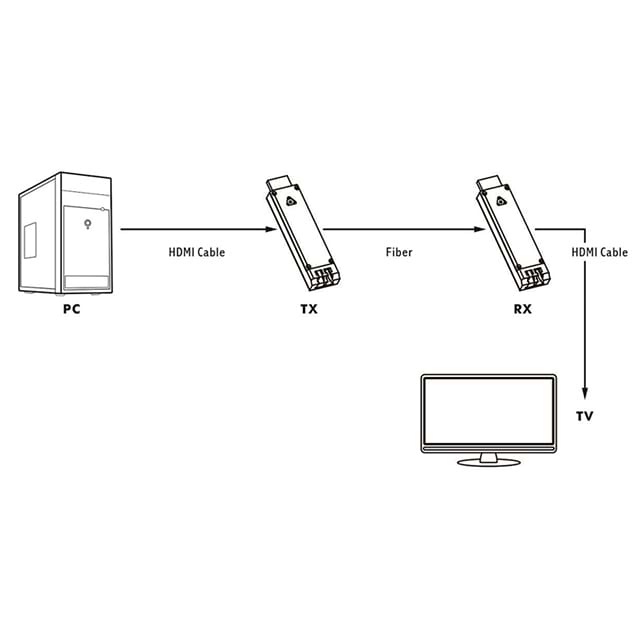

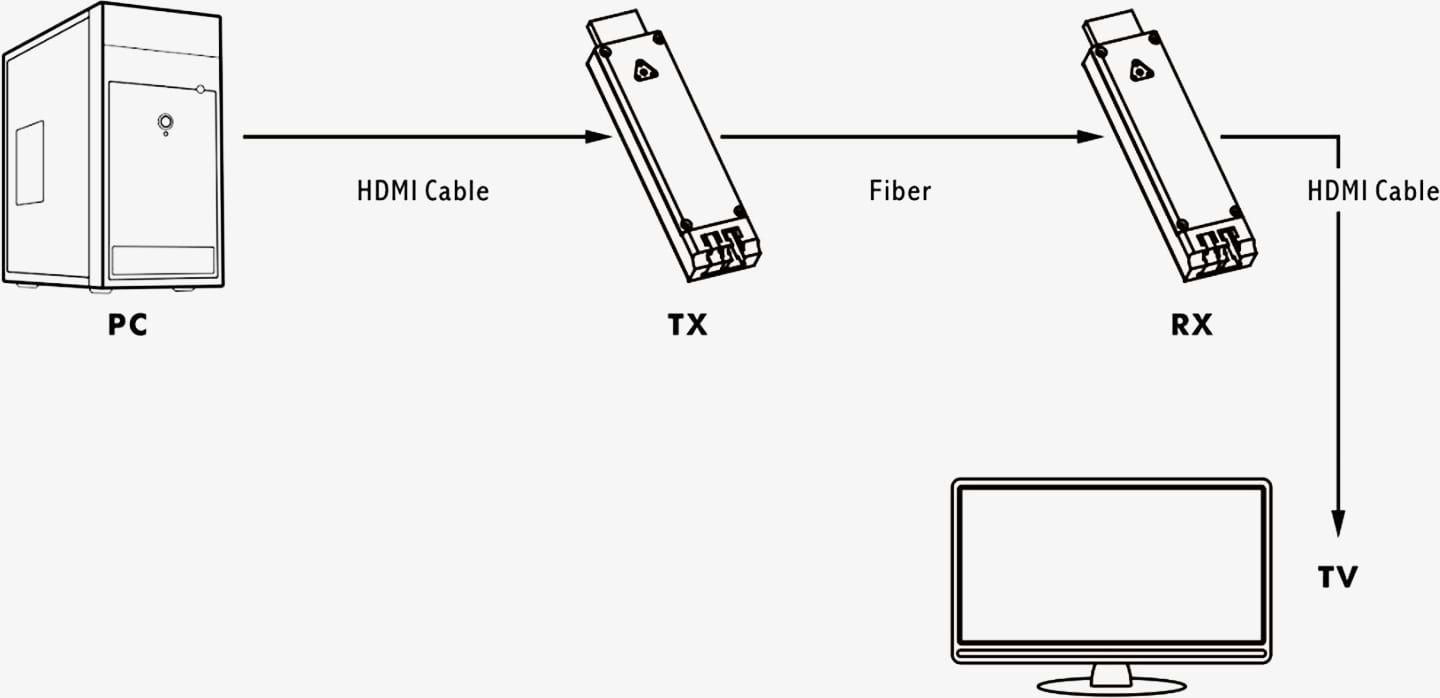

Diagram
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
