【Uncompressed Transmission】All digital, uncompression, zero delay, strong compatibility with no delay and no loss, audio and video synchronous transmission.
【UHD 4K Resolution】Resolution up to 3840x2160@60fps, HDMI 2.0 and HDCP 2.2 Compliant. 【10KM Extreme Long Transmission】Extend 4K HDMI signal up to 10KM over a single mode fiber one core cable; or extend 4K HDMI signal up to 300M over a multimode duanl core cable; 20KM-80KM distance can be customised. 【Excellent Quality】Supports 7.1-channel PCM surround sound and compressed audio, support analog stereo audio signal transmission. 【Support RS232/EDID】Support serial port data transmission, adaptive baud rate. 【Plug and Play】Simple to install, plug and play, no setup or configuration needed.

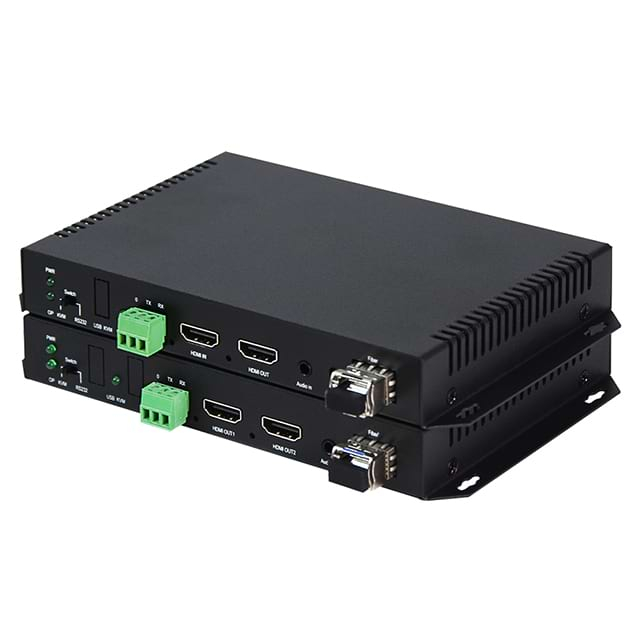

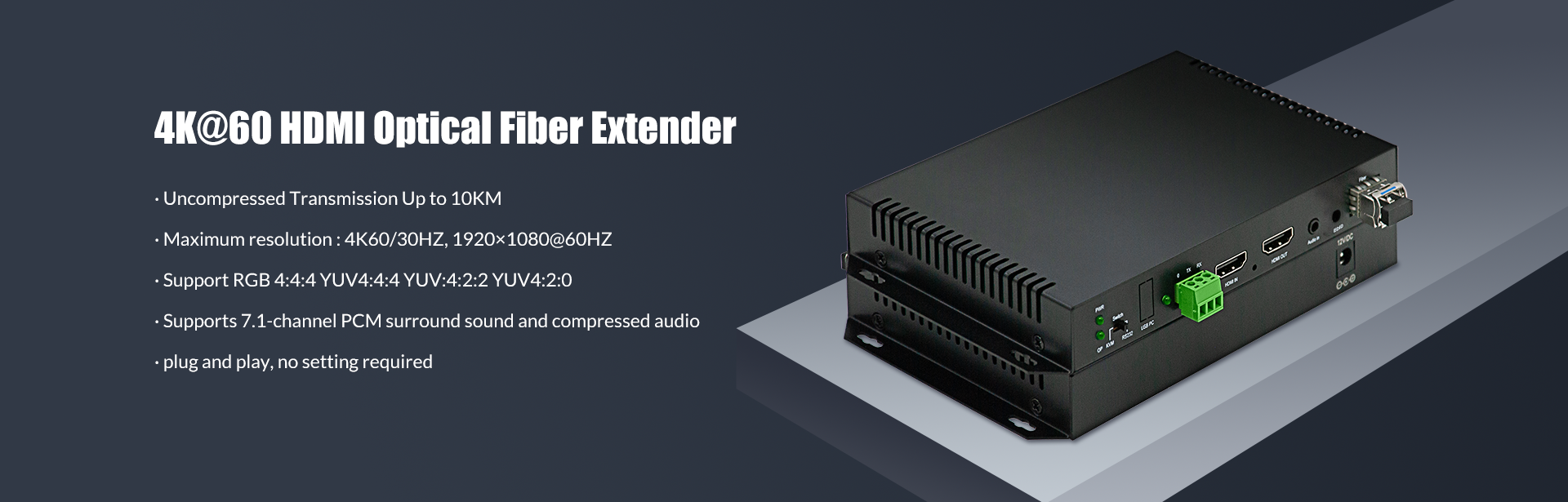

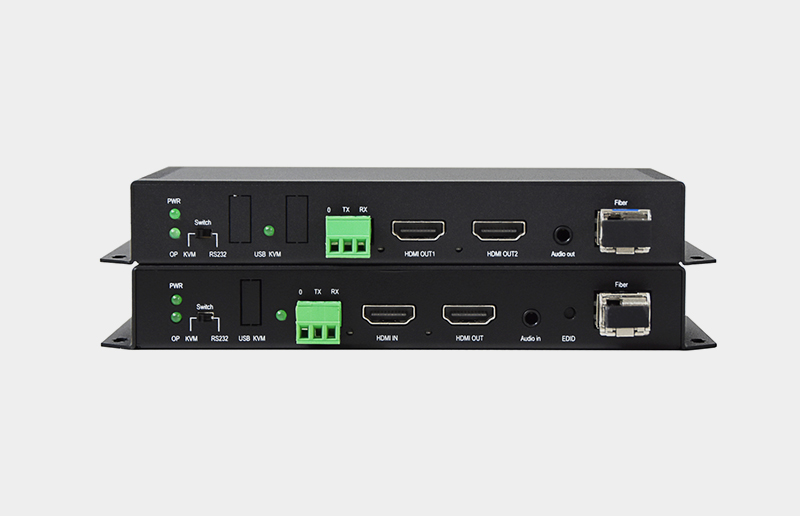

OH1201 is a fiber-based extender designed to extend uncompressed 4K@60hz Video signals up to 300m(Using Multimode Dual Core SFP) or 10km(Using Single model core SFP) over duplex fiber cables. It has excellent image processing and transmission capabilities, making signal transmission smoother and more stable. It is a reliable, high-performance and efficient way to extend HDMI signals. It is widely used in exhibitions, subway, radio and television, video conferencing, medical teaching, educational recording and broadcasting, projection integrat ion and other industries wi th high video requirements.
Support KVM Optional: ZY-OKH1201
Uncompressed Transmission
HDMI to fiber converter can transmit the uncompressed signals up to 10km with no delay and no loss, audio and video synchronous transmission, data rates up to 10Gbps.
Professional for 4K HDMI HD Video Extender
Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @60Hz. Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

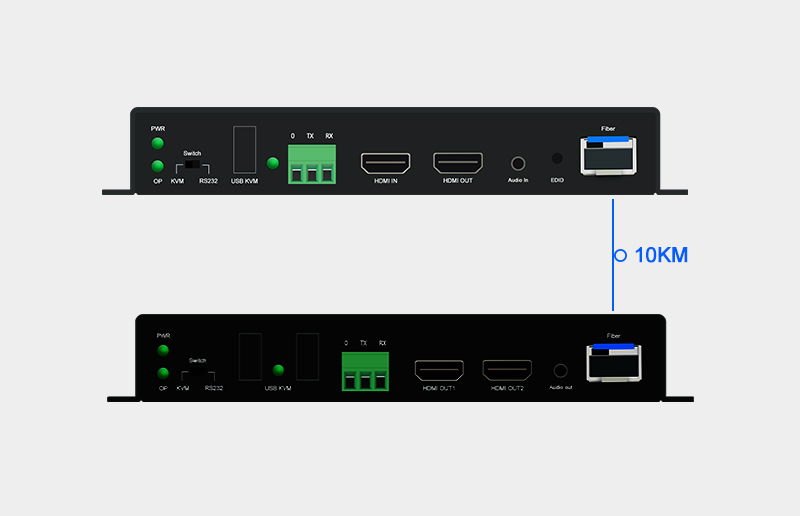

Point to Point Transimission, Up to 10KM

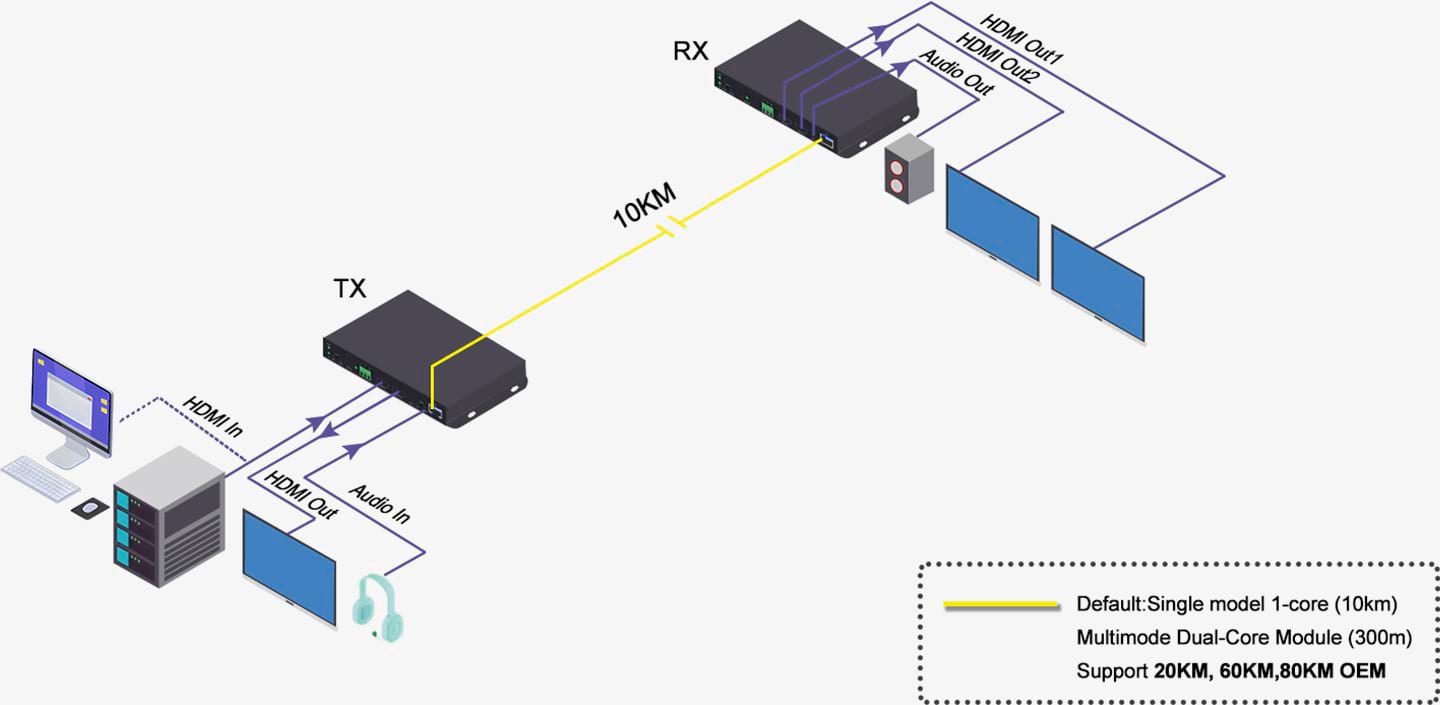

Extend 4K signals up to 10KM over a single mode one core fiber cable, or extender 4K signals up to 300 meters over a multimode dual core fiber cable. Transmission 20KM/40KM/60KM/80KM can be customised.
AUDIO CAPABILITIES

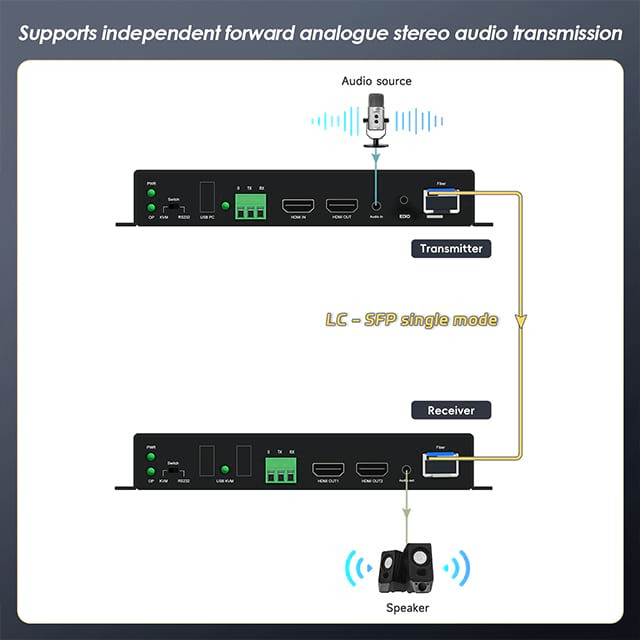

Supports 7.1-channel PCM surround sound and compressed audio, support analog stereo audio signal transmission.
Plug and Play, Hassle-Free Installation
Plug-and-play operation with no software required for easy, immediate installation.
Support OEM ODM
OEM: Free print company logo by laser print; MOQ≥1 unit. ODM: Pls send your requirements to us. (info@orivision.cn).
Parameters
Name
4K@30HZ HDMI Uncompression Fiber Extender
Model
ZY-OH1201
Interface Standard
HDMI-A, HDMI 2.0
Pixel bandwidth
600MHz
Interface bandwidth
10Gbps
Resolutions
3840*2160@60HZ/30Hz, 1920×1080@60HZ, 720p/60Hz, 1080i/60Hz, 1080p/30Hz and so on
HDMI Cable
Less than 5M If a balanced cable is used for a resolution of 1920X1080@60Hz
