● HDMI 2.1 video supports most popular resolutions up to 4K@60Hz (YUV444)
● HDCP 2.2 and HDCP 2.3 compliance ensures UHD video playback
● Allows remote access of an HDMI video source via a fiber cable up to 10KM
● Support bi-direction audio transmission
● Supports USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.
● Built-in ESD protection circuit that can effectively prevent electrostatic damage
● Plug-and-play operation with no software required for easy
Supports resolutions up to 3840x2160@60Hz(YUV4:4:4)
Standard distance transmission 10KM, distance can be customized
Supports HDMI2.1, HDCP2.2/2.3 and RS-232 control

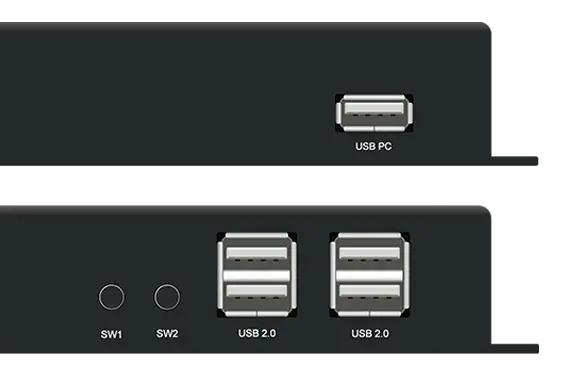

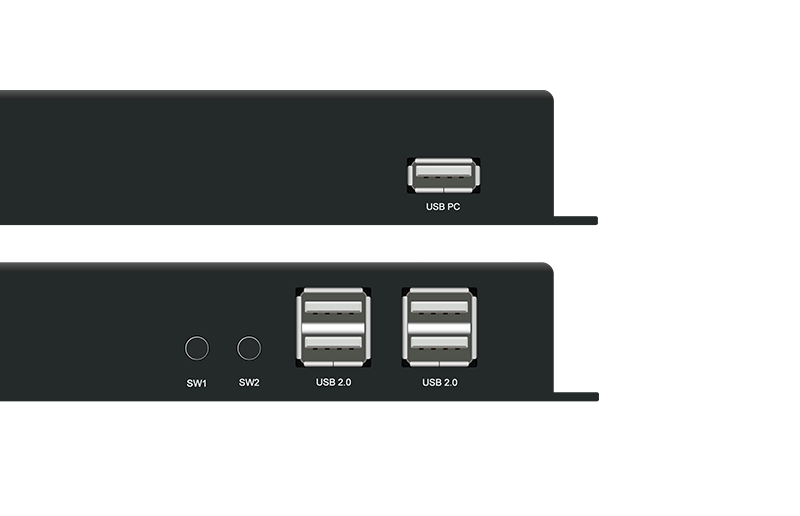

Supports all USB2.0 Signal Transmission
Plug-and-play operation

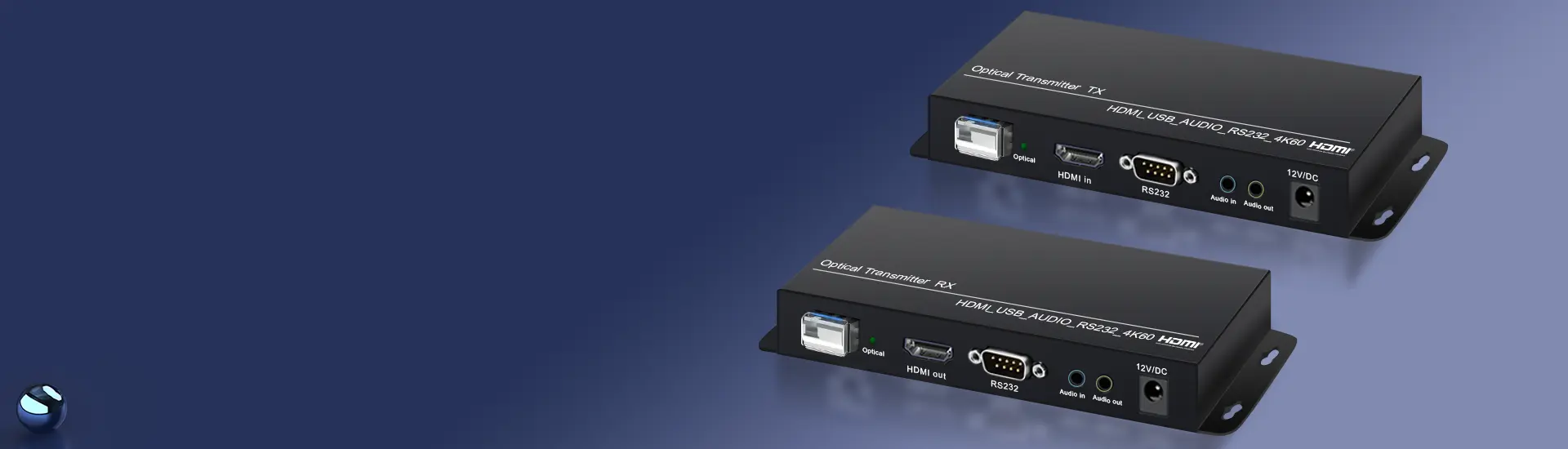

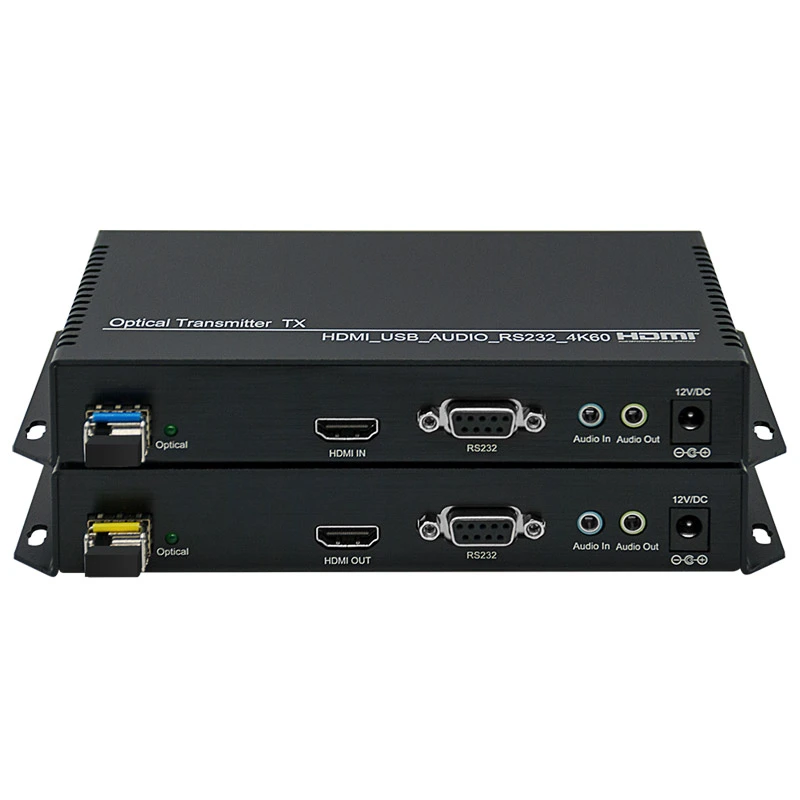

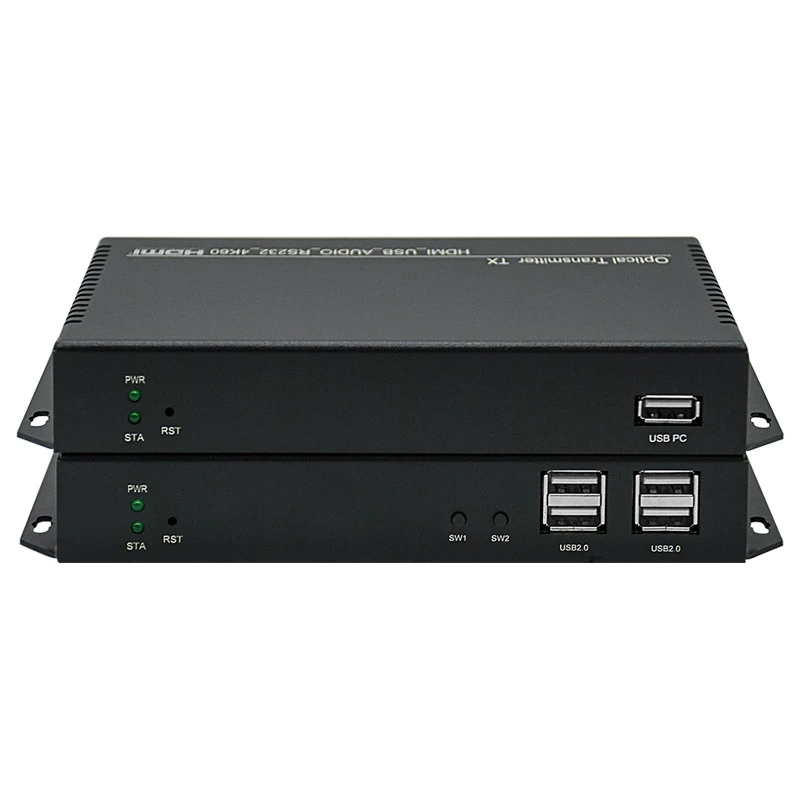

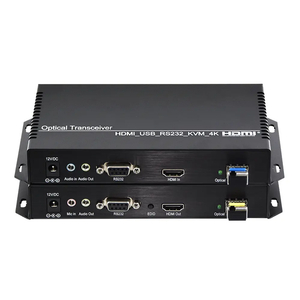

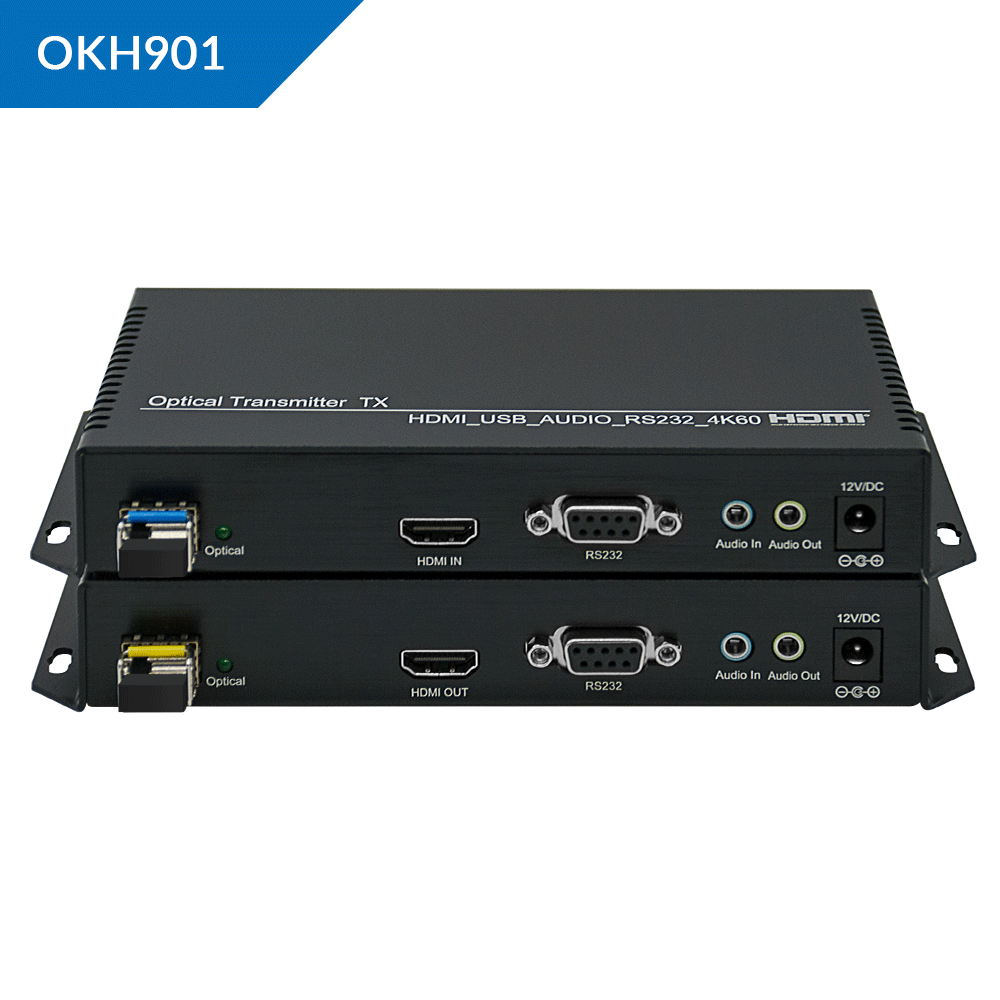

OKH901 is a fiber-based extender designed to extend uncompressed 4K@60hz Video signals and USB2.0 devices up to 300m(Using Multimode Dual Core SFP) or 10km(Using Single model core SFP) over duplex fiber cables.

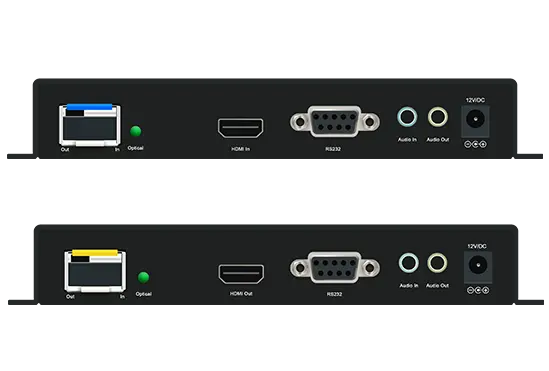

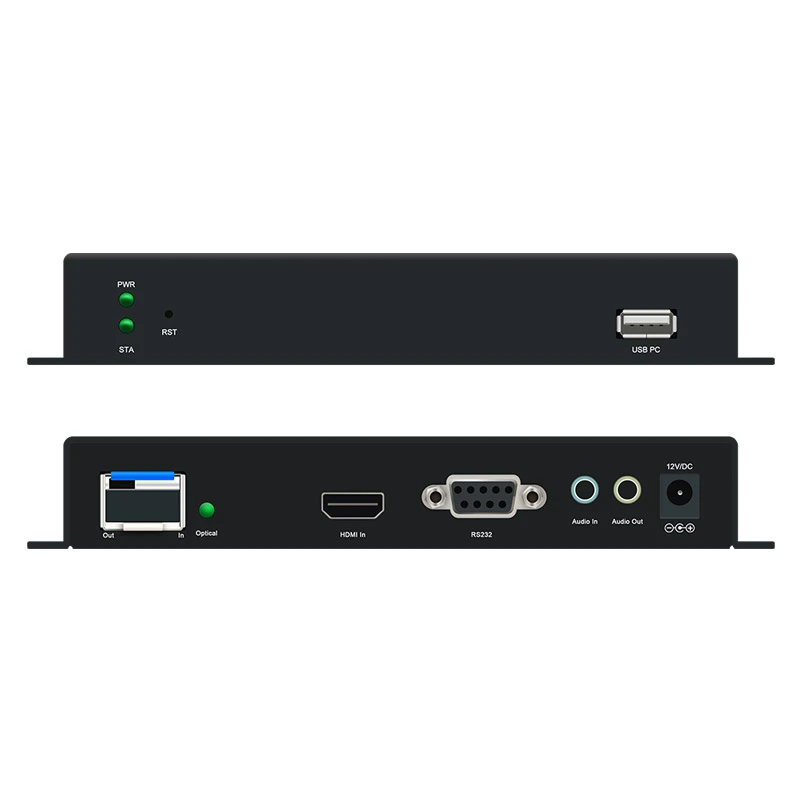

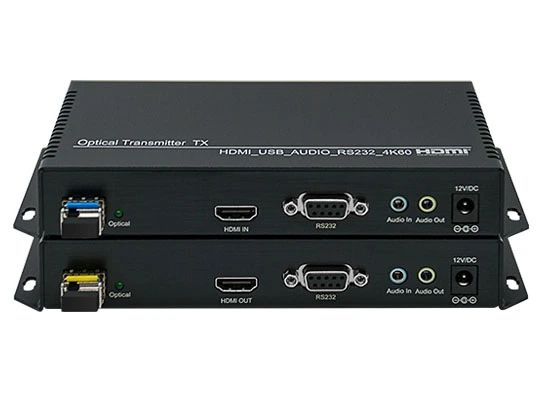

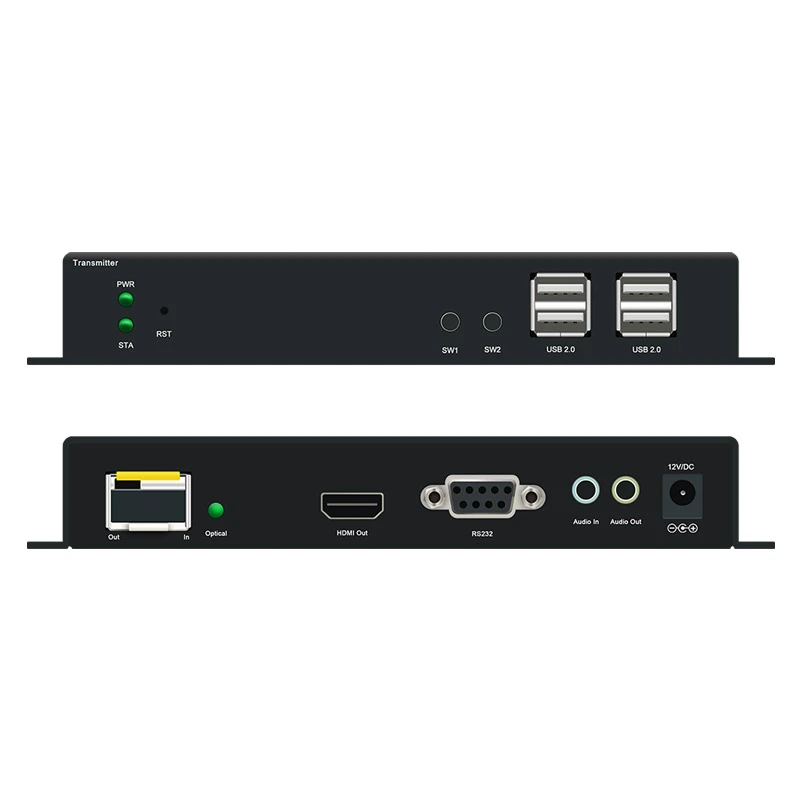

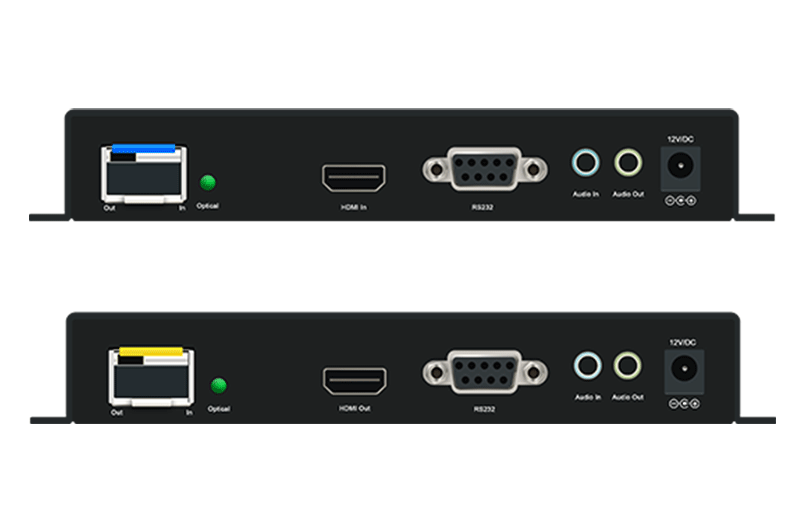

The OKH901 features an HDMI input and output, analog audio input and output, USB2.0 devices KVM, RS-232 control port, and a Gigabit Ethernet port for point to point transmission.
The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

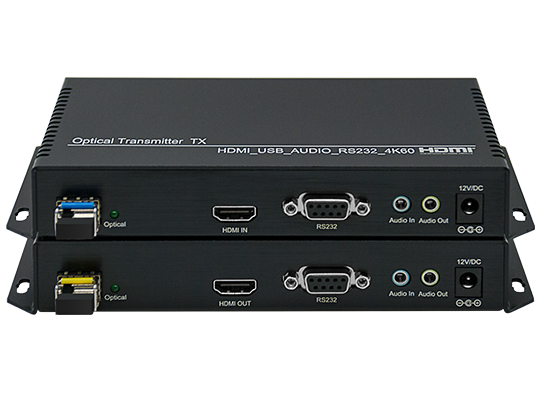

This HDMI kvm optical extender supports resolutions up to 4K 60Hz (3840 x 2160), providing four times the picture quality of high-definition (1080p). The UHD HDMI Extender supports HDMI 2.1 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture quality and breathtaking color reproduction.

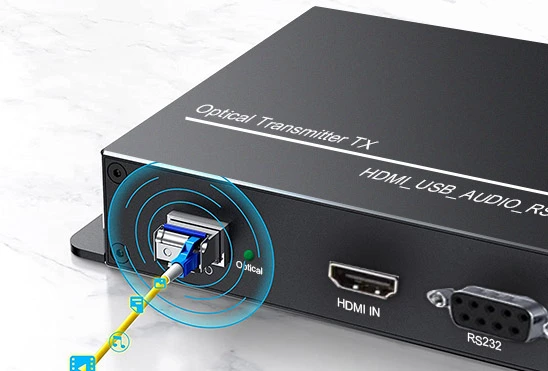

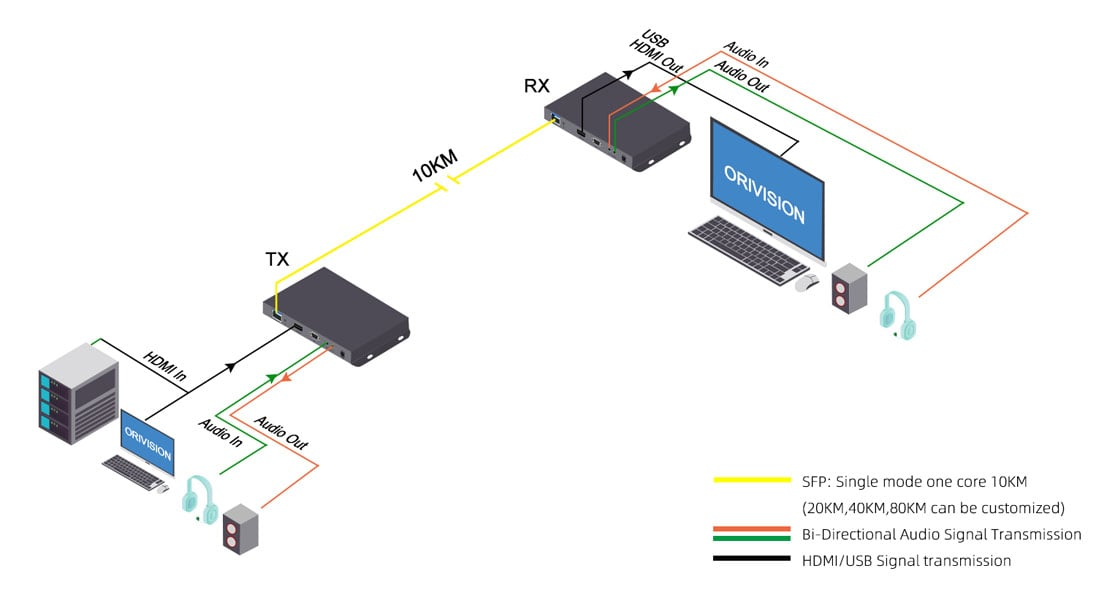

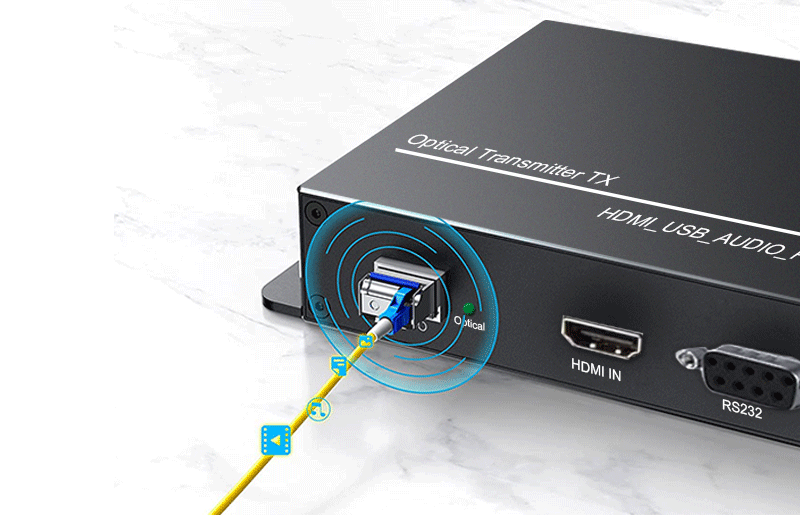

The Long Range HDMI KVM Extender allows you to extend an HDMI signal up to 10KM over single-mode fiber and 300M over multimode fiber. Not only is this an incredibly long range solution that can extend an HDMI signal across or between buildings, but because fiber optics transmit data using light rather than copper, it will not cause or be affected by electromagnetic Interference (EMI).

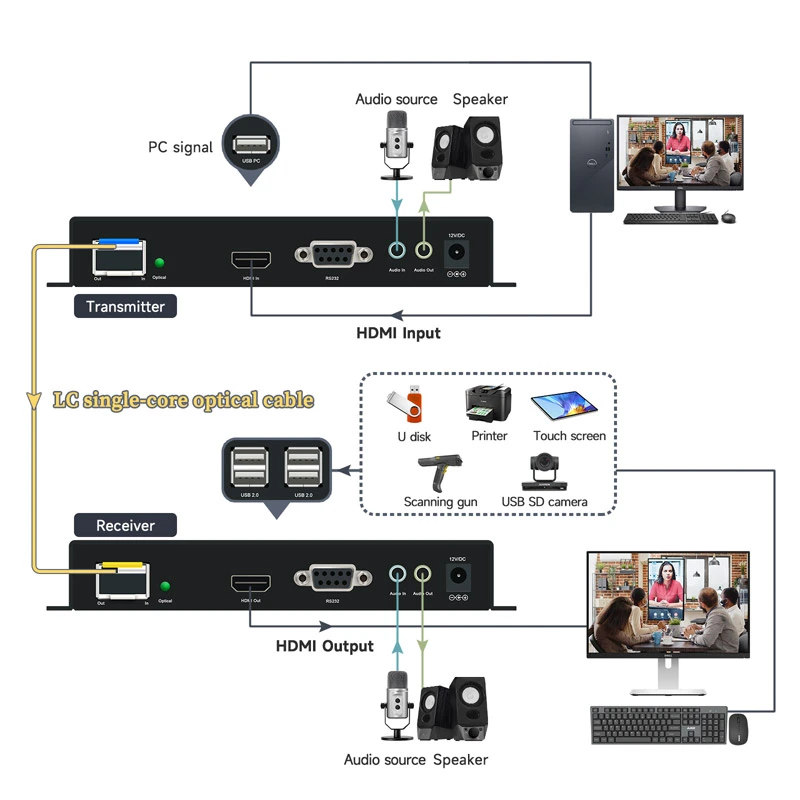

The transmitter supports audio embedding from and external audio source, while the receiver can extract audio from the HDMI signal for use with an external amplifier or powered speakers.
The receiver supports audio embedding from and external audio source, while the transmitter can extract audio from the HDMI signal for use with an external amplifier or powered speakers.
HDMI version: HDMI2.1 compatible; LC connection; HDCP 2.2 and HDCP 1.4 Compliance Ensures Uninterrupted HD and UHD Video Playback; Support bi-directional RS232 transport.
Supports USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.

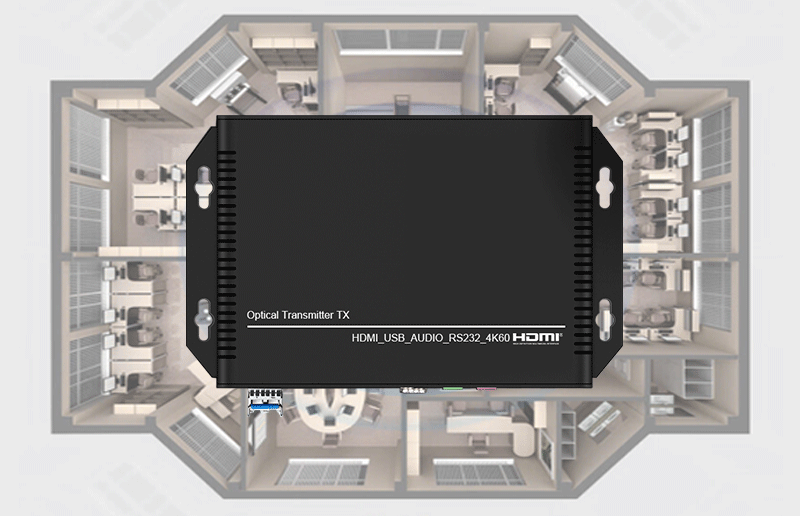

Point to Point connection between transmitter and receiver; No IP configuration/drivers/network equipment required;
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 4K@60 HDMI KVM Fiber Optical Extender | |
| Model | ZY-OKH901 | |
| Video | Interface Standard: HDMI2.1, HDCP2.2/2.3 HDMI Pixel bandwidth: 225MHz HDMI Interface Bandwidth: 10.2Gbps Resolutions: 3840x2160@60Hz and backward compatible Interface: HDMI-A HDMI Interface Resistance: 100Ω Recommended length of HDMI cable: Less than 5 metres at 3840 x 2160 @ 60Hz | |
| RS232 | Interface: DB9 Transmission: Bi-direction Baud rate: 9600bps Data bit: 8digits | |
| Audio | Interface: 3.5mm aduio input format: 44.1K,48K,96K,176K,192K | |
| USB | Interface: Type A USB interface Type: USB2.0 | |
| Optical Fiber | Interface: LC Types: SFP Single mode Distance: 10KM (default), 20KM 40KM 60KM 80KM (Optional) | |
| Other | Temperature:‘-5~60℃ Humidity: <90 % Power Consumption: 2W/Unit Power supply: DC 12V1A Dimensions: 187*105*28mm (Length * width * height) Weight: 0.3KG | |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
