Brand: ORIVISION
Model: ZY-DH941
Input Interface: LAN Port*2, Audio*1
Output Interface: HDMI*1, VGA*1, Audio*1
Video Decoding: H.265/H.264
Protocol: HTTP, HTTPS, RTSP, SRT, UDP/RTP, RTMP protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Dual Ethernet Interfaces, IP to IP stream forward
4K H.264/ H.265 ip decoding
Multi protocols: SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.
Embedded RTMP server, support for maximum 1Gbps concurrency
Supports up to 9 protocols to forwarding
Support local preview output, up to 9-way 720p
OEM/ODM audio video decoder

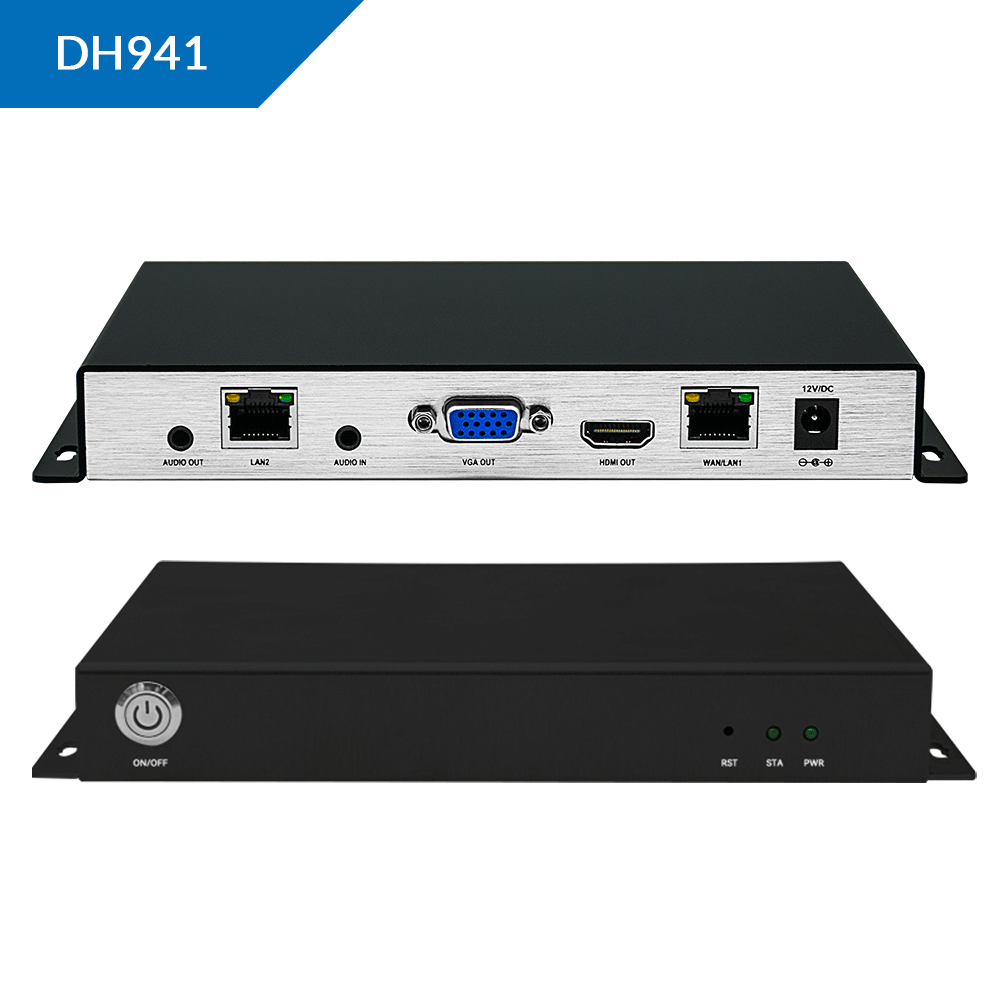

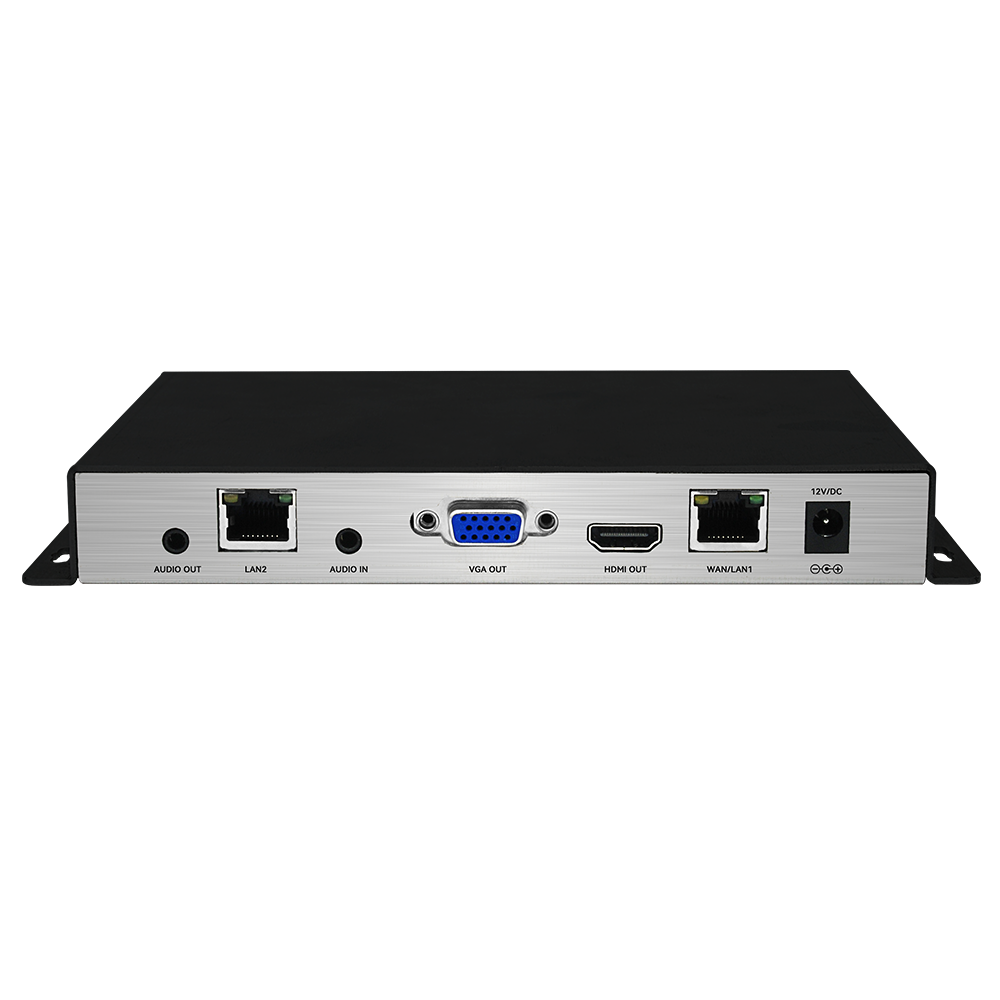

DH941 is a dual Ethernet IP to IP video decoder and media gateway. As a video media gateway, it has two network ports and it receives IP streaming from video encoders, IP cameras, and other devices through network port 1, then forwards them to network 2.
It supports up to 9 channels of protocols: RTSP/HTTP/UDP/HTTPS/SRT/RTMP to RTMP/RTMPS/UDP/RTP. Realize multicast forwarding in different network segments, and transfer from LAN to WLAN.
It also is a video decoder that supports decoding up to 4KP30 H.264/H.265 IP streams and decodes the streams to output HDMI/VGA. It supports decoding up to 9 channels of videos simultaneously. Note: 9 channels with 720P60, 4 channels with 1080P60, or 1 channel of 4KP30.
DH941 is compatible with HTTP, HTTPS, SRT, RTMP, RTSP, UDP/RTP, etc. Support 9 protocols to forwarding RTSP/HTTP/UDP/HTTPS/SRT/RTMP to RTMP/RTMPS/UDP/RTP.
It supports up to 250 concurrent access for streams distribution/live streaming;
(Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors).
With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient with video decoder.
Supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output VGA and 4k HDMI.
Hardware decoder supports decoding up to 9 channels of videos simultaneous.
*Note: 9 channels with 720p, or 4 channels of 1080P, or 1 channels of 4K (HDMI interface).
Support AAC/G711 audio format; Audio can be coded separately
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Support LAN, WAN
Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your live video streaming hardware requirements to us. (info@orivision.cn)
| Name | H.265/&H.264 Dual Ethernet IP to IP Video Media Gateway |
| Model | ZY-DH941 |
| Input Interface | LAN Port*1, Audio*1 |
| Output Interface | HDMI*1, VGA*1, Audio*1 |
| Video Decoding | H.265/H.264 |
| Max Input Resolution | 4K@30HZ |
| Simultaneous Streams (HDMI&VGA ouput) | Support to decode 1 channel 4K@30hz streaming Support to decode 4 channel(2*2) 1080P60hz streaming Support to decode 9 channel(3*3 )720P streaming |
| Protocol Support | HTTP, HTTPS,RTSP, RTMP, SRT, UDP/RTP,SRT… |
| Output Resolution | 3840*2160@30hz, 1080P60,50,30,25; 1080I60, 1080I30; 720P60,50;576P50,480P60, 1280*1024P60,1280*800P60,1027*768P60,800*600P60 Please contact us for other resolutions. |
| Audio Format | AAC MP3 |
| Audio Stereo | Adjustable sound volume |
| Management | Web Opreation, remote upgrade |
| Upgrade | Software upgrading through the internet |
| Language | English/Chinese |
| Power | 12V/DC 1A |
| POE | Optional |
| Size | 6.4*4.4*1.3in(163*111*32mm) |
| Net Weight | 0.35kg |

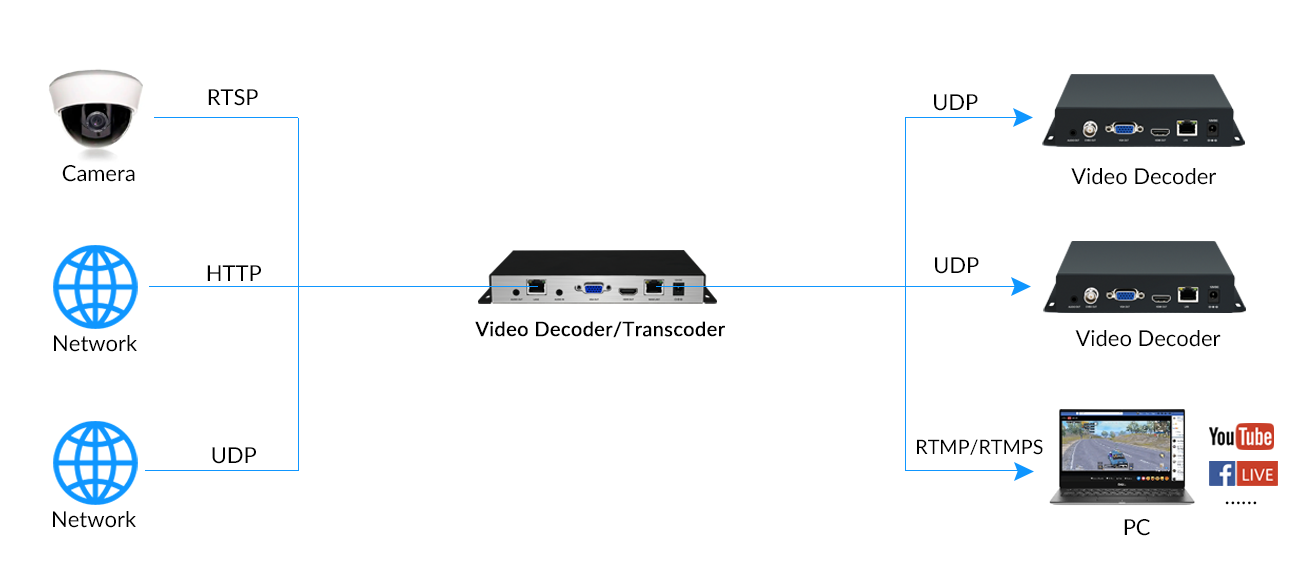

1. Video Decoder Diagram
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
2. IP to IP Stream Forward Diagram
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
3. Slow Live Streaming(Intranet to Extranet) Application
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4. Cross-sectional Multimedia Information Distribution Application
A: The default login IP address is 192.168.0.35.
A: The default login account and password are both admin
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
