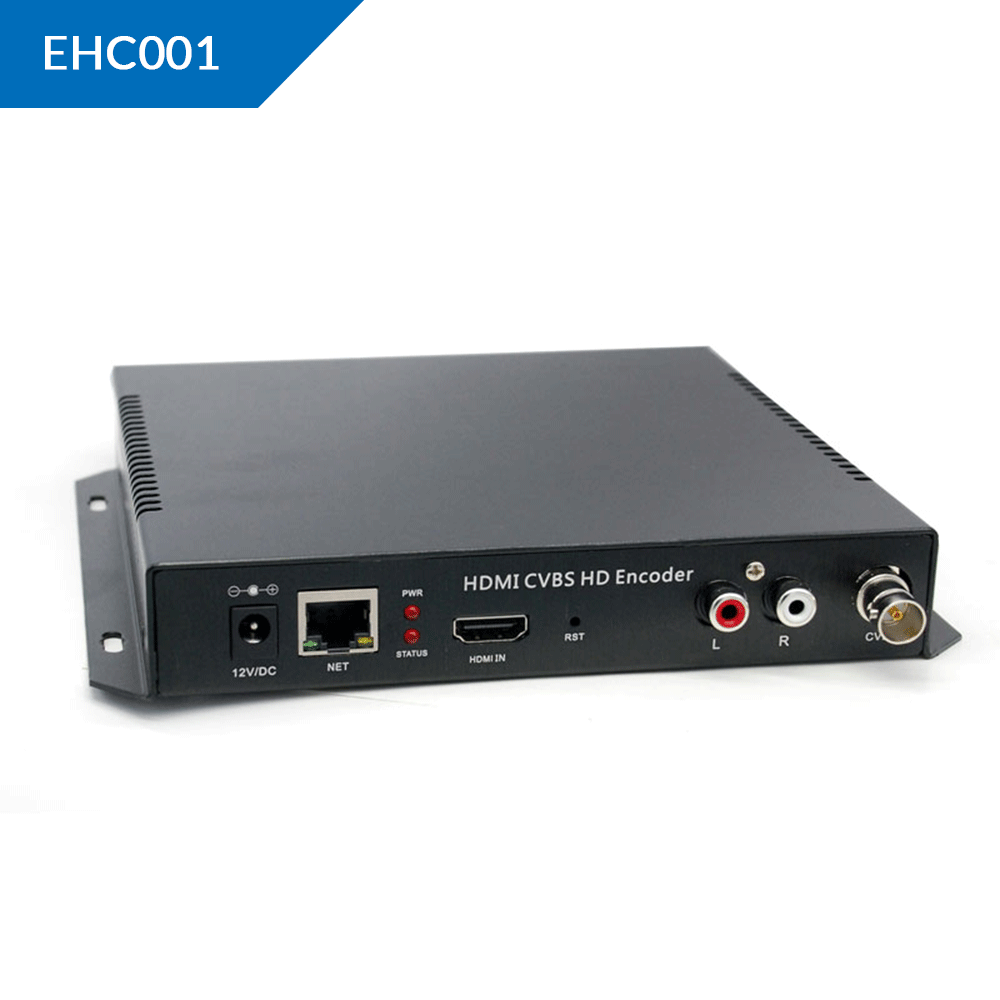

ORIVISION H.264 1080P@60 HDMI/CVBS Video Encoder

Brand: ORIVISION

Model: ZY-EHC001

Input Interface: HDMI*1, CVBS(BNC)*1, analog audio*1

Output Interface: LAN Port*1

Video Encoding: H.264

Protocol: HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) /FLV/HL/Multicast(UDP/RTP)/Onvif

Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )

Warranty: 1 Year

Certificate: CE & FCC & Rohs

H.264 HDMI/CVBS Video Encoder For  IPTV, Live Stream, Broadcast
H.264 HDMI/CVBS Video Encoder For IPTV, Live Stream, Broadcast
  • CVBS+HDMI dual interface

  • Multi protocols: HTTP, UTP, RTSP, RTMP, RTMPS, RTP, GB28181, ONVIF

  • 1080P@60hz and so on

  • Analog audio input

  • OEM/ODM


Stable Video Encoder for Live Streaming

ORIVISION's multi-interface video encoder have dual input interfaces, which encodes HDMI or CVBS video source into IP streams for video transmission over the Internet WAN or LAN through a wired network. It supports H.264 high-performance encoding. Also, it supports the most protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) / Onvif, etc.


Stable Video Encoder for Live Streaming
Higher Compatibility

CVBS+HDMI dual interface design, compatible with various CVBS video sources or HDMI video sources.


Higher Compatibility
Multiple Network Protocols

Supports full range of protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS)/FLS/Multicast(UDP/RTP)/Onvif, that means live stream with RTMP/RTMPS.


Multiple Network Protocols
Good Compatibility

Support Onvif Protocol, and NVR recording, such as Hikvision NVR…

Good Compatibility
Resolution Setting

Maximum input resolution: 1080P@60hz

Maximum output resolution: 1080P@60hz

Resolution can be set separately


Resolution Setting
Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

Web Control
Obtain IP automatically

Support DHCP and obtain IP automatically

Obtain IP automatically
Audio Synchronization Encoding

Support AAC/G711 audio format; Support Digital /Analog audio loop out.

Audio Synchronization Encoding
LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights.

LOGO/ Image/ Text Overlay
Local and Remote Transmission

Support LAN, WAN

Local and Remote Transmission
Multiple Signal Input Formats

Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM/ODM

Parameters of H.264 1080P@60 HDMI/CVBS Video Encoder


H.264 1080P@60 HDMI/CVBS Video Encoder
ModelZY-EHC001
Input InterfaceHDMI*1, CVBS(BNC)*1, analog audio*1
Output InterfaceLAN Port*1
Video EncodingH.264
Max Input Resolution1080P@60HZ
HDCP
DHCP
Audio Input TerminalHDMI-IN/Analog audio-in
Audio EncodingAAC/MP3/LCAAC/EAAC/EAACPLUS/G711
Video Bit RateCVR/VBR: 16kbps~12Mbps
Audio Bit Rate48kbps~256kbps
Simultaneous StreamsMax. 2CH Streams at the same time
Protocol SupportHTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) /FLV/HL/Multicast(UDP/RTP)/Onvif
OSD SettingTxt/Picture
Output InterfaceRJ45*1; Ethernet(10base-t/100base-tx)
Output Resolution1920*1080,1680*1200,1600*900,1440*1050,1440*900,1360*768,1280*1024,1280*720,1280*800,1280*768,
1024*768,1024*576,960*540,850*480,800*700,800*600,720*576,720*540,720*480,704*576
640*480,640*360,480*270,Auto
Live Streaming PlatformYouTube, Facebook, Wowoza…
ManagementWeb Opreation, remote upgrade
LanguageEnglish/Chinese
Power12V/DC 1A
POE×
SizeW:184mm*D:168mm*H:30mm
Net Weight0.4kg


Diagram of H.264 1080P@60 HDMI/CVBS Video Encoder

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.


Diagram of H.264 1080P@60 HDMI/CVBS Video Encoder

FAQ about H.264 1080P@60 HDMI/CVBS Video Encoder

What is the default login IP of the encoder?

A: The default login IP address is 192.168.0.31


What is the login account and password of the encoder?

A: The default login account and password are both admin

After entering the account password, the page cannot be displayed or the display is incomplete

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX


How to reset the encoder if you forgot the login IP or login account password

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully


The device cannot be turned on when connected to the power supply and the power light does not turn on

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.


How to get the newest firmware and update it?

A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
