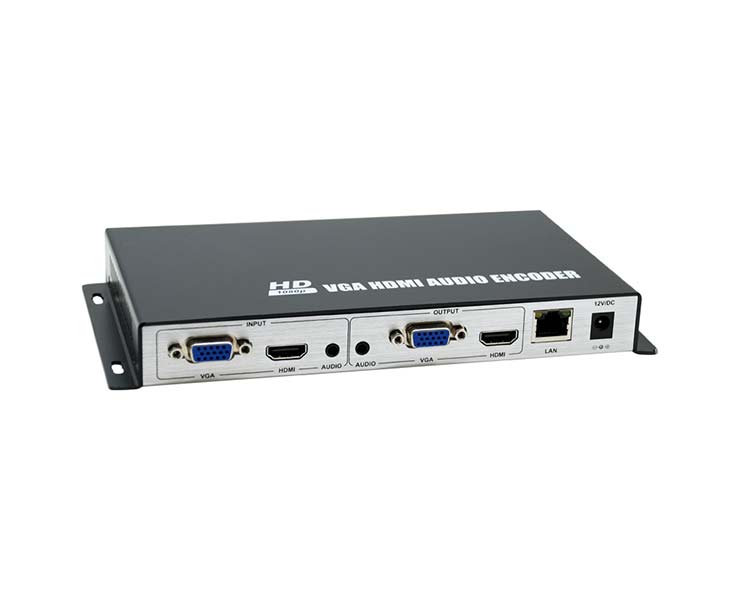

24 channel encoder

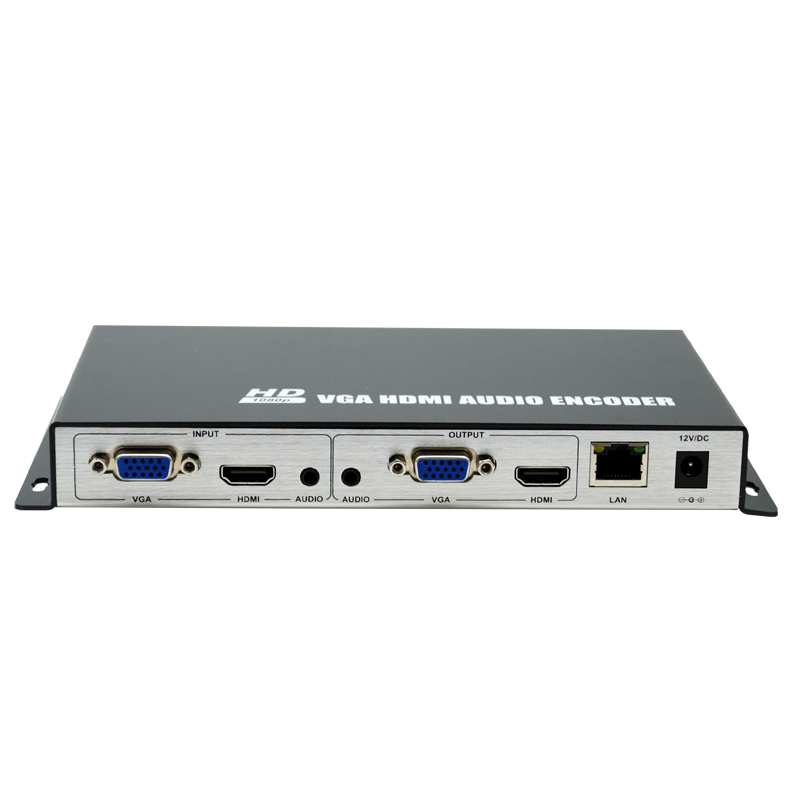

hdmi vga video encoder 2

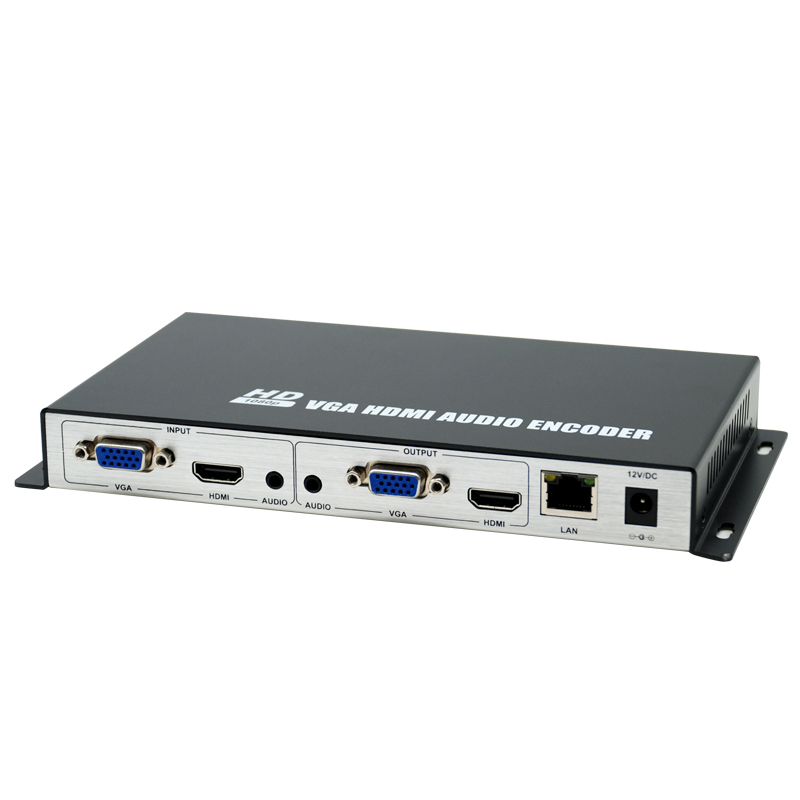

hdmi vga video encoder 3

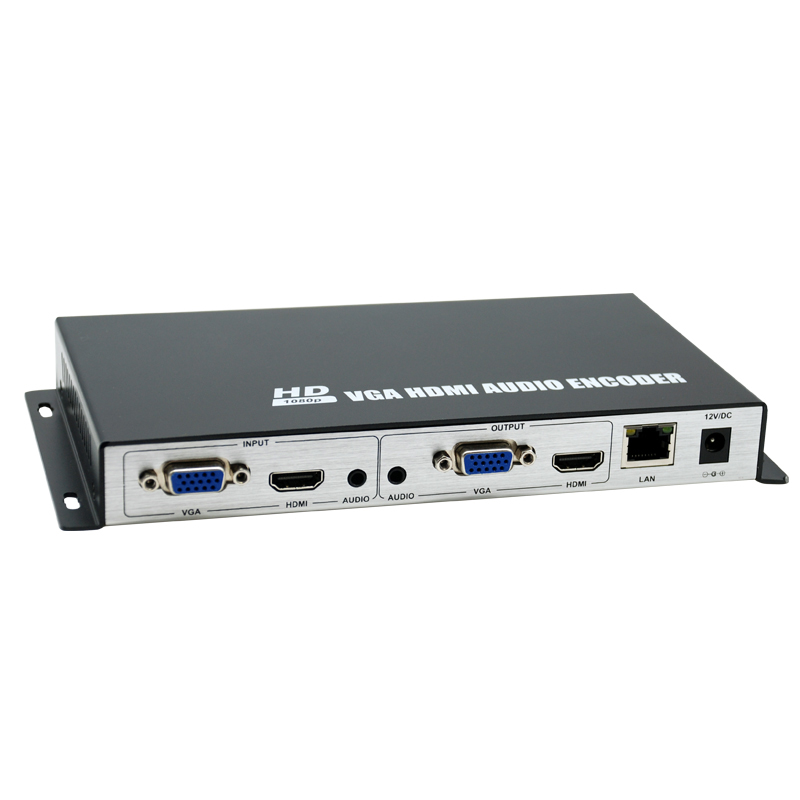

hdmi vga video encoder 1

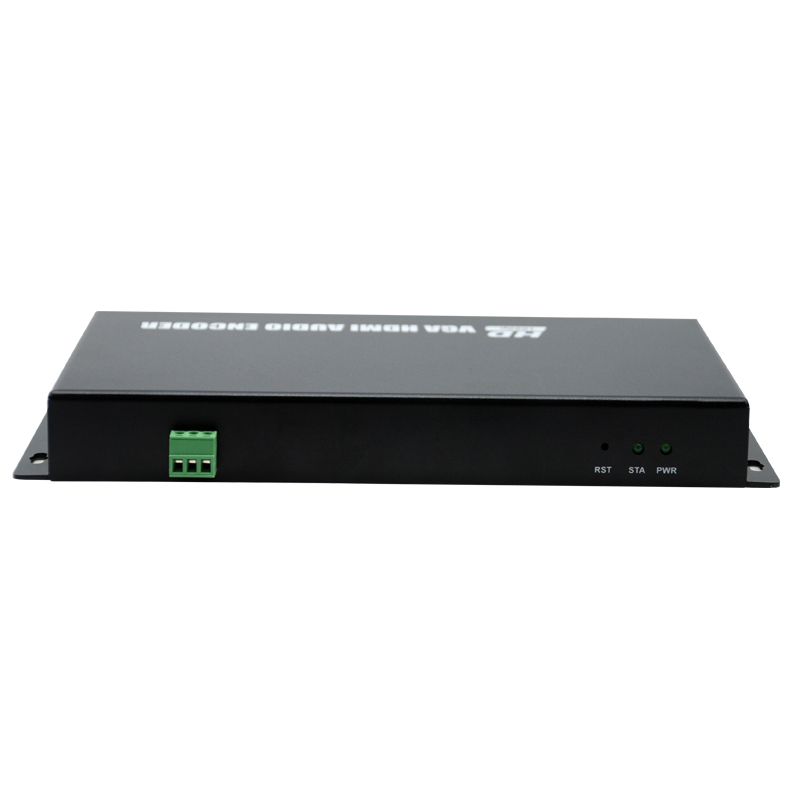

hdmi vga video encoder 4

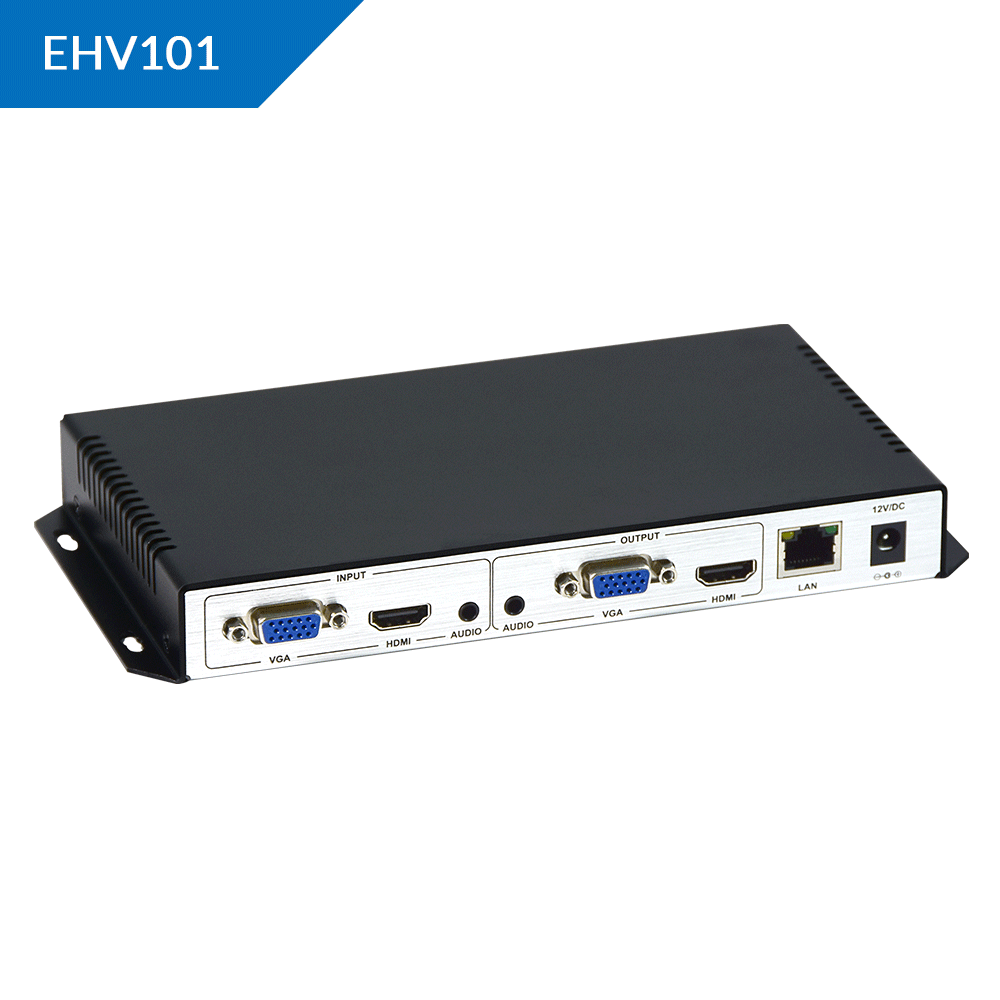

ORIVISION H.265 1080P@60 HDMI/VGA Video Encoder With Loop Out


Model: ZY-EHV101

Input Interface: HDMI*1, VGA*1, audio*1

Output Interface: LAN Port*1, HDMI*1, VGA*1, audio*1

Video Encoding: H.264/H.265

Protocol: HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif

Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )

Warranty: 1 Year

Certificate: CE & FCC & Rohs

H.265 HDMI+VGA Video Encoder For IPTV, Live Stream, Broadcast
H.265 HDMI+VGA Video Encoder For IPTV, Live Stream, Broadcast
  • HDMI/VGA Adaptive Selection

  • Multi protocols: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF

  • 1080P@60hz and so on

  • RS-232 Ready for PTZ control


Stable Video Encoder for Live Streaming

ORIVISION's multi-interface video encoder have dual input interfaces, which encodes HDMI or VGA video source into IP streams for video transmission over the Internet WAN or LAN through a wired network. It supports H.265/H.264 high-performance encoding. Also, it supports the most protocols including HTTP (TS/FLV)/RTMP/RTMPS/RTSP(ES/TS)/ FLS/Multicast(UDP/RTP)/SRT/Onvif, etc.

Stable Video Encoder for Live Streaming
Higher Compatibility

HDMI/VGA adaptive selection

Input: HDMI or VGA

Output: HDMI or VGA loop-out

Higher Compatibility

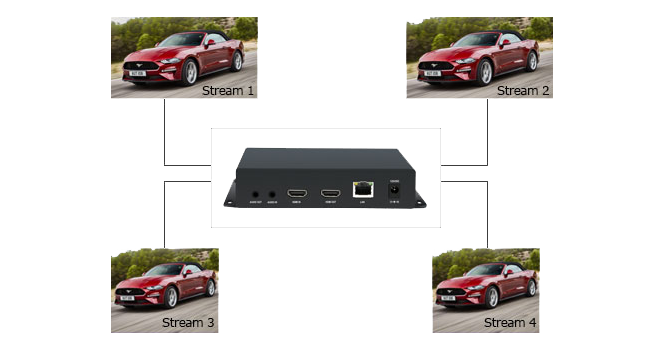

4 channel streams output at the same time

Maximum Output Resolution:

Stream 1 & Stream 2: up to 1080P@60hz

Stream 3 & Stream 4: up to 576P@60hz

4 channel streams output at the same time
Multiple Network Protocols

Supports full range of protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif, that means live stream with RTMP/RTMPS.

Multiple Network Protocols
Good Compatibility

Support Onvif Protocol, and NVR recording, such as Hikvision NVR…

Good Compatibility
Resolution Setting

Maximum input resolution: 1080P@60hz,

Maximum output resolution: 1080P@60hz

Resolution can be set separately

Resolution Setting
Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

Web Control
Obtain IP automatically

Support DHCP and obtain IP automatically

Obtain IP automatically
Audio Synchronization Encoding

Support AAC/G711 audio format; Support Digital /Analog audio loop out. Audio can be coded separately

Audio Synchronization Encoding
LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights.

LOGO/ Image/ Text Overlay
Local and Remote Transmission

Hardware video encoder converts HDMI/VGA base-band video to H.265/H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.

Local and Remote Transmission
Multiple Signal Input Formats

Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (

Support OEM/ODM

Parameters of H.265 1080P@60 HDMI/CVBS Video Encoder With Loop Out

NameH.265 1080P@60 HDMI/VGA Video Encoder With Loop Out
Input InterfaceHDMI*1, VGA*1, audio*1
Output InterfaceLAN Port*1, HDMI*1, VGA*1, audio*1
Video EncodingH.265/H.264
Max Input Resolution1080P@60HZ
Audio Input TerminalHDMI-IN/Analog audio-in
Video Bit RateCVR/VBR: 16kbps~12Mbps
Audio Bit Rate48kbps~256kbps
Simultaneous StreamsMax. 2CH Streams at the same time
Protocol SupportHTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif
OSD SettingTxt/Picture
Output InterfaceRJ45*1; Ethernet(10base-t/100base-tx)
Output Resolution1920*1080,1280*720,1280*800,1280*768,1024*768,1024*576,
Live Streaming PlatformYouTube, Facebook, Wowoza…
ManagementWeb Opreation, remote upgrade
Power12V/DC 1A
Net Weight0.35kg

Diagram of H.265 1080P@60 HDMI/CVBS Video Encoder With Loop Out

Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.

Diagram of H.265 1080P@60 HDMI/CVBS Video Encoder With Loop Out

FAQ about H.265 1080P@60 HDMI/CVBS Video Encoder With Loop Out

What is the default login IP of the encoder?

A: The default login IP address is

What is the login account and password of the encoder?

A: The default login account and password are both admin

After entering the account password, the page cannot be displayed or the display is incomplete

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX

How to reset the encoder if you forgot the login IP or login account password?

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully

The device cannot be turned on when connected to the power supply and the power light does not turn on

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us ( for repair or replacement.

How to get the newest firmware and update it?

A: Pls contact for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
