【Up to 20KM Extension】 This HDMI Extender over fiber sends HD 1080p HDMI signal to remote transmission through a single mode 1 core fiber optic cable with FC connector
【Full HD Resolution】Supports resolutions up to 1920*1080@60Hz, provide you a smooth, stable and high quality video experience
【Excellent Quality】Compliant with HDMI 1.4b, support RS232 command control
【Audio Switch】Equipped with an audio switching button, switching between digital and analog audio
【Plug and Play】Simple to install, plug and play, no setup or configuration needed
High resolution up to 1080P@60hz
Support audio switching
Standard transmission 20KM over single mode 1 core cable, 40-80KM Optional
No software required, plug and play

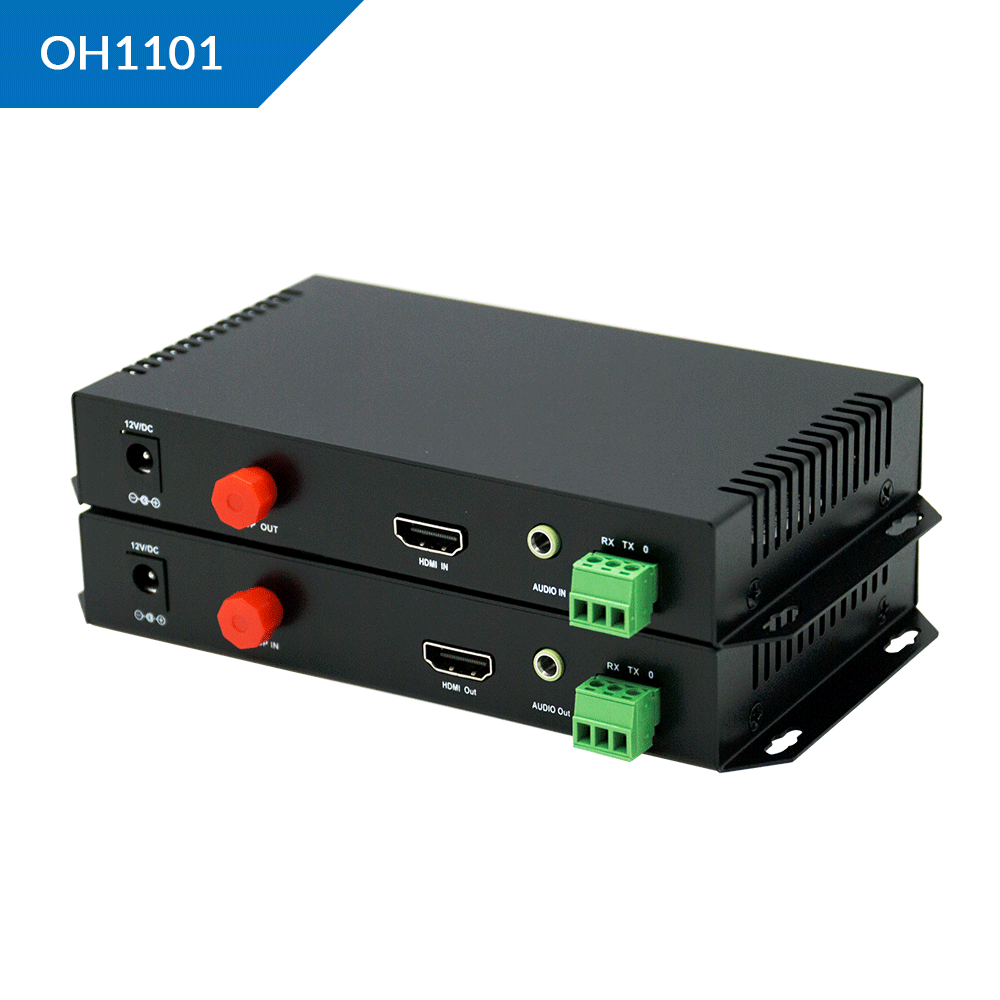

OH1101 is a fiber-based extender designed to extend uncompressed HD Video signals up to 300m(Using Multimode Dual Core SFP) or 20km(Using Single model core SFP) over duplex fiber cables.
It has excellent image processing and transmission capabilities, making signal transmission smoother and more stable. It is a reliable, high-performance and efficient way to extend HDMI signals.
It is widely used in exhibitions, subway, radio and television, video conferencing, medical teaching, educational recording and broadcasting, projection integrat ion and other industries wi th high video requirements.
Supports the max resolution of 1920*1080@60hz,clear and stable, providing you with an ultra-high-definition video vision, compatible with HDMI 1.3
Extend HD signals up to 20KM over a single mode one core fiber cable, or extender HD signals up to 300 meters over a multimode dual core fiber cable. Transmission 40KM/80KM can be customised.
Bi-directional data transmission, compatible with EIA/TIA RS232 standard.
Interface: DB9, Baud rate: 2400-115200BPS.
Equipped with an audio switching button, switching between digital and analog audio
| Name | 1080P@60 HDMI Optical Fiber Extender |
| Model | ZY-OH1101 |
| Interface Standard | HDMI 1.3b；HDCP 1.2 |
| Resolutions | Max 1920X1080@60HZ |
| Connector | HDMI-A |
| Interface | 3.5mm aduio |
| Signal type | Digital Audio/Analog Audio |
| Signal direction | Forward transmission |
| RS232 | |
| Interface | DB9 |
| Baud rate | 115200 |
| Data bit | 8digits |
| Cable | |
| Interface | FC |
| Wavelength | Single mode: 1310nm, multimode: 850m |
| Distance | 20KM(default single mode) 40KM 80KM (Optional) 300m (multimode) |
| Other | |
| Temperature | -20 ~ +60℃ |
| Humidity | <90 % |
| Power Consumption | 5W/Unit |
| Power supply | DC 12V1A |
| Dimensions(L*W*H) | 16.2cm×8.9cm×2.5cm |
| Weight | 0.3KG/unit |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
