Brand: ORIVISION
Model: ZY-OH901
Transmitter Input: HDMI*1
Transmitter Output: LC*1
Receiver Input: LC*1
Receiver Output: HDMI*1
Resolution: 4096*2160*30Hz backward compatible
Transmission Distance: Multi-mode-1KM; Single-mode: 2KM; can be customized 20KM
4096*2160@30HZ backward compatible
Support standard HDCP 1 . 4 / EDID
Single multimode compatible, standard 1KM, can be customized up to 20KM
Delay time < 2 ms

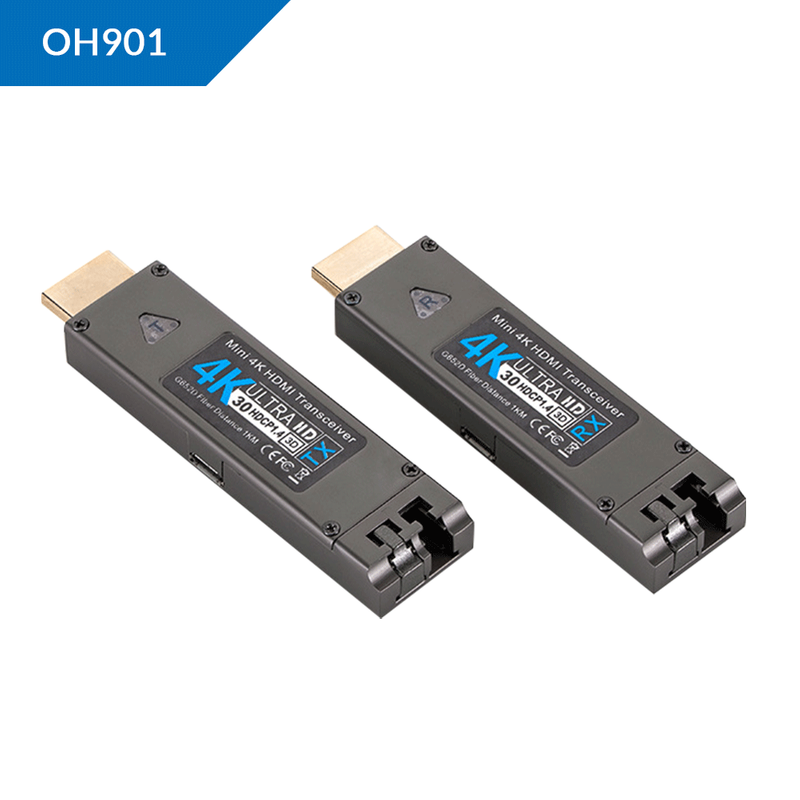

Mini 4K HDMI fiber optic extender transmits 4K30Hz HDMI video signal through one-core/two-core optical fiber to achieve delay-free, compression-free and high-quality signal extension of 1km. It adopts integrated design of video processing and optical conversion, with high integration, small size and stable performance, suitable for different working environments.
It complies with international standard HDCP protocol 1.4, automatically identifies EDID, has power-off EDID memory storage function, and is backward compatible with version 1.3/1.2. Powered by micro-USB interface, with high flexibility in use.
OH901: Mini 4K DVI Fiber Optic Extender
The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Maximum supported resolution 4096*2160@30Hz backward compatible
HDCP1.4 Support, Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0
DDC CEC HPD Signal Support
Delay time <2 ms
Hot-pluggable, EMI/RFI Resistant
Miniature form factor for ease of use and installation
EDID automatic learning, with power-off memory function
Fiber Connector: Duplex LC Receptacle
Multi-mode: 1KM; Single-mode: 2KM; can be customized 20KM
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 4K@30 Mini HDMI Fiber optic Extender |
| Model | ZY-OH901 |
| Transmitter Input | HDMI 1.4*1 |
| Transmitter Output | LC*1 |
| Recevier Input | LC*1 |
| Recevier Output | HDMI 1.4*1 |
| Resolutuion | 4096*2160*30Hz backward compatible |
| Transmission Distance | LC Multi-mode-1KM; Single-mode: 2KM; can be customized 20KM |
| Video Bandwidth | 10GHz Gbps |
| Support EDID | √ |
| Support HDCP | HDCP1.4 |
| Support KVM | x |
| Operating Temperature | ‘-20°C ~75°C |
| Power Supply Method | 5V/+-5% |
| Size | 79.2*20*10.3mm |
| Power Physical Interface | Micro-USB |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
