Brand: ORIVISION
Model: ZY-OD901
Transmitter Input: DVI*1
Transmitter Output: LC*1
Recevier Input: LC*1
Recevier Output: DVI*1
Resolutuion: 1920 * 1200 * 60Hz backward compatible
Transmission Distance: Multi-mode-1KM; Single-mode: 2KM; can be customized 20KM
Maximum support resolution 1920*1200@60HZ backward compatible
Support standard HDCP 1.4/EDID
Multi-mode transmission distance 1KM , single-mode transmission distance 2KMcan be customized 20KM transmission distance
Delay time < 2

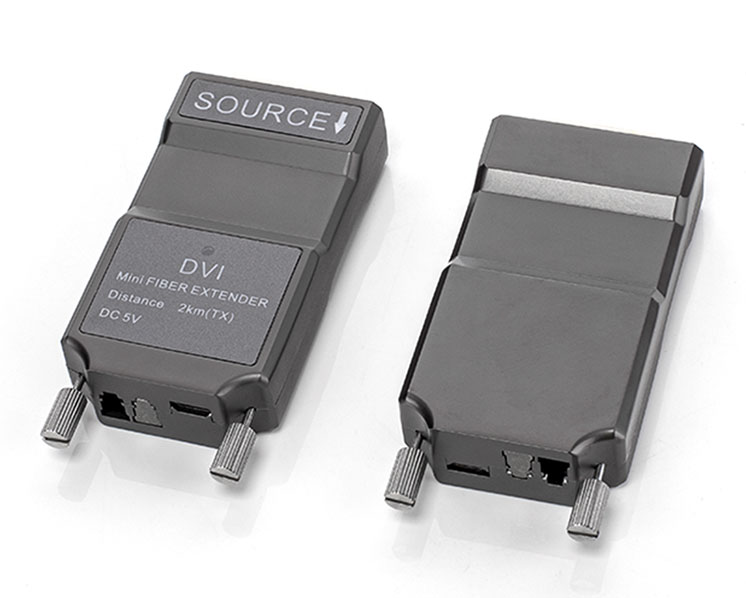

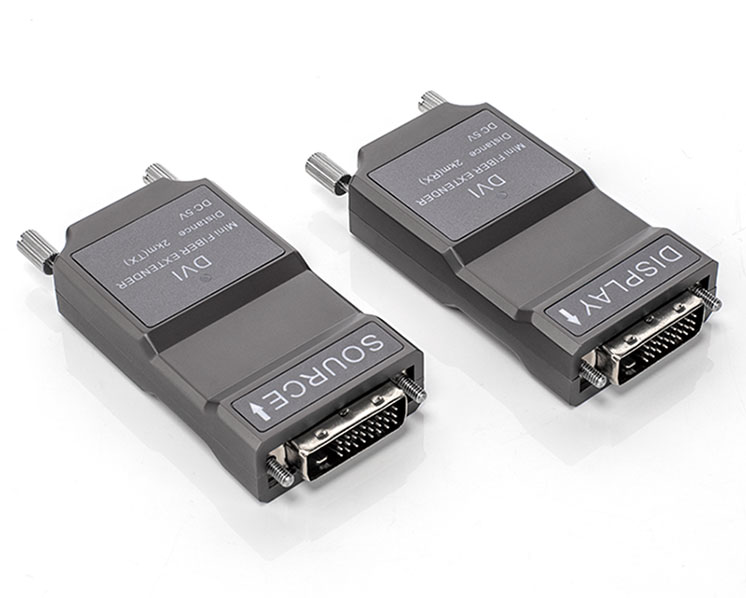

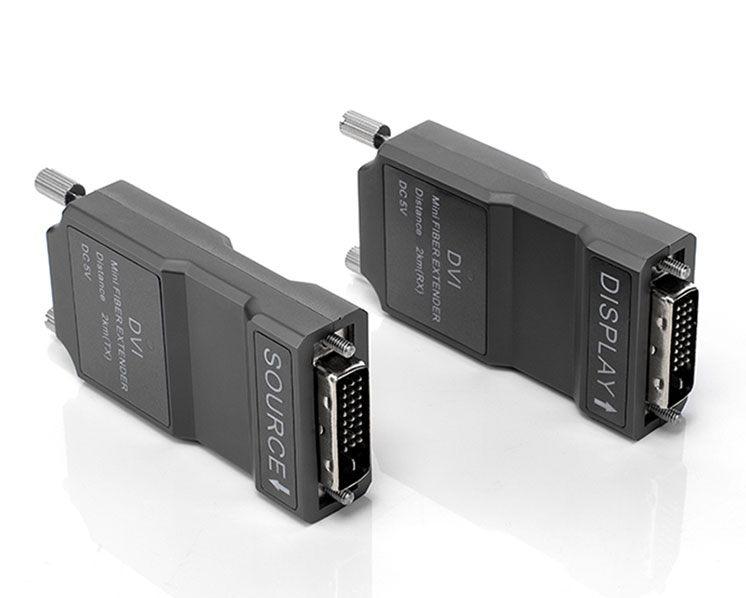

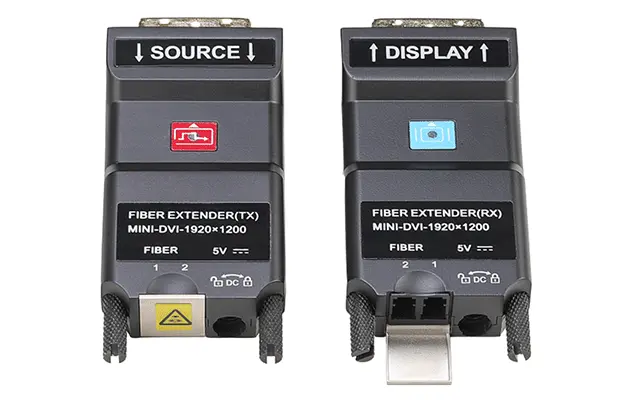

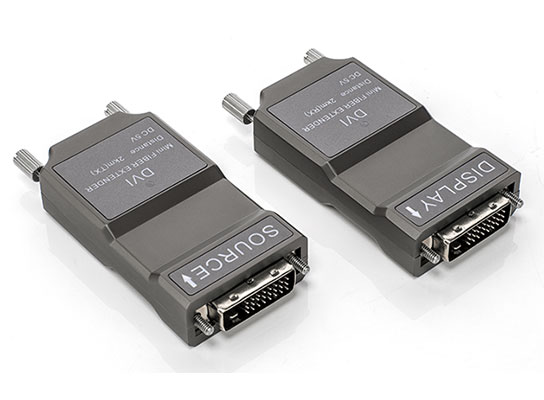

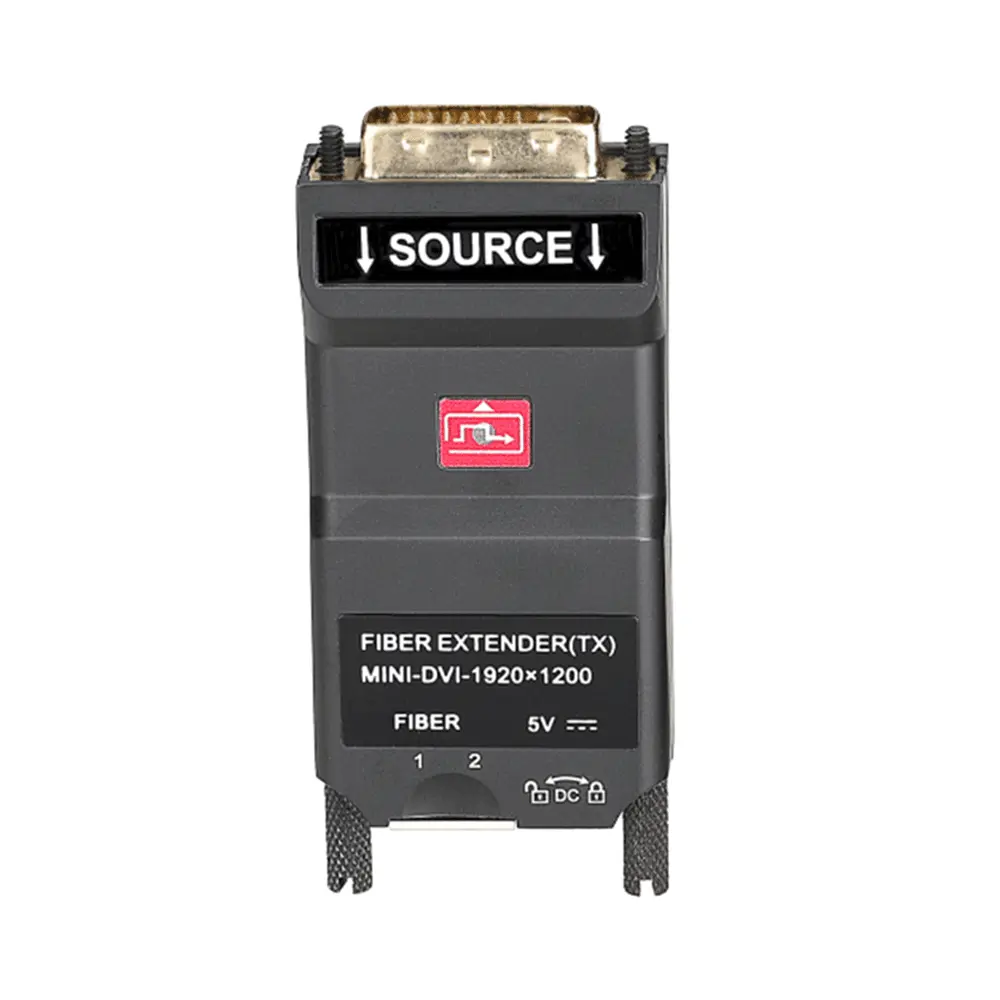

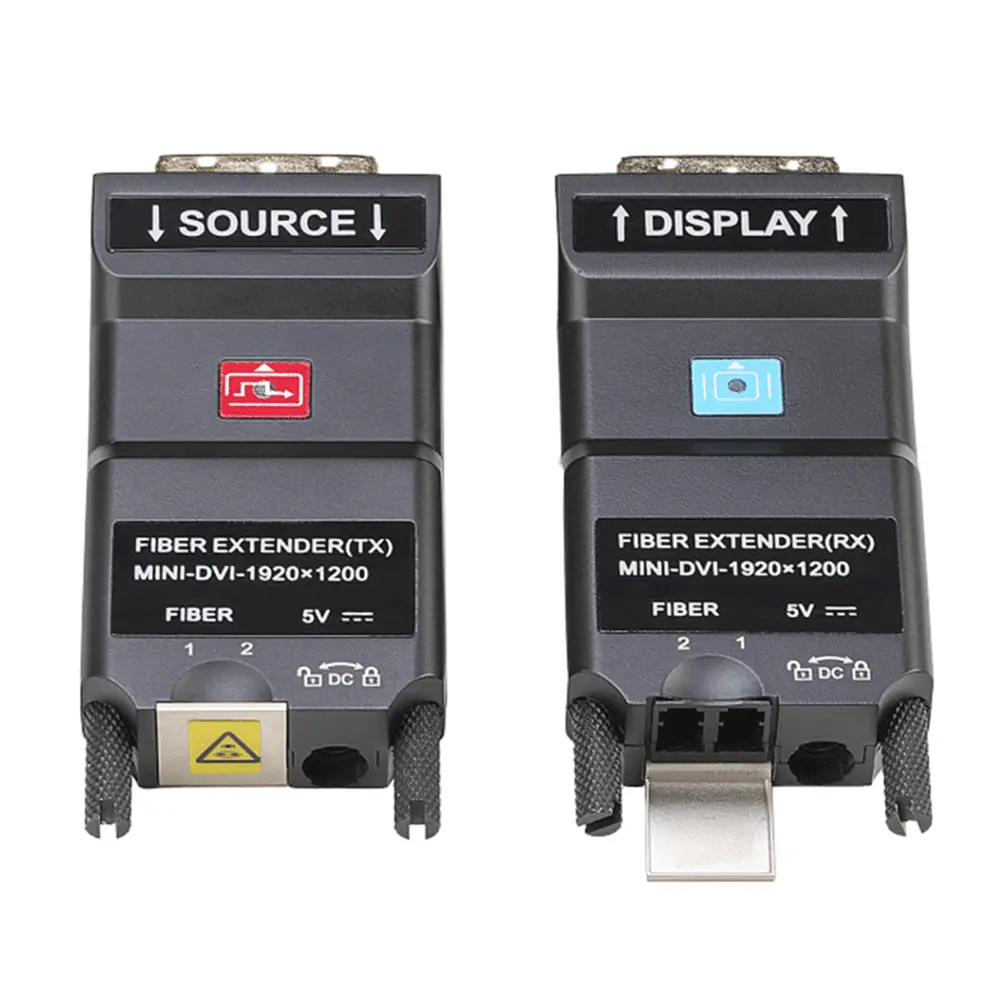

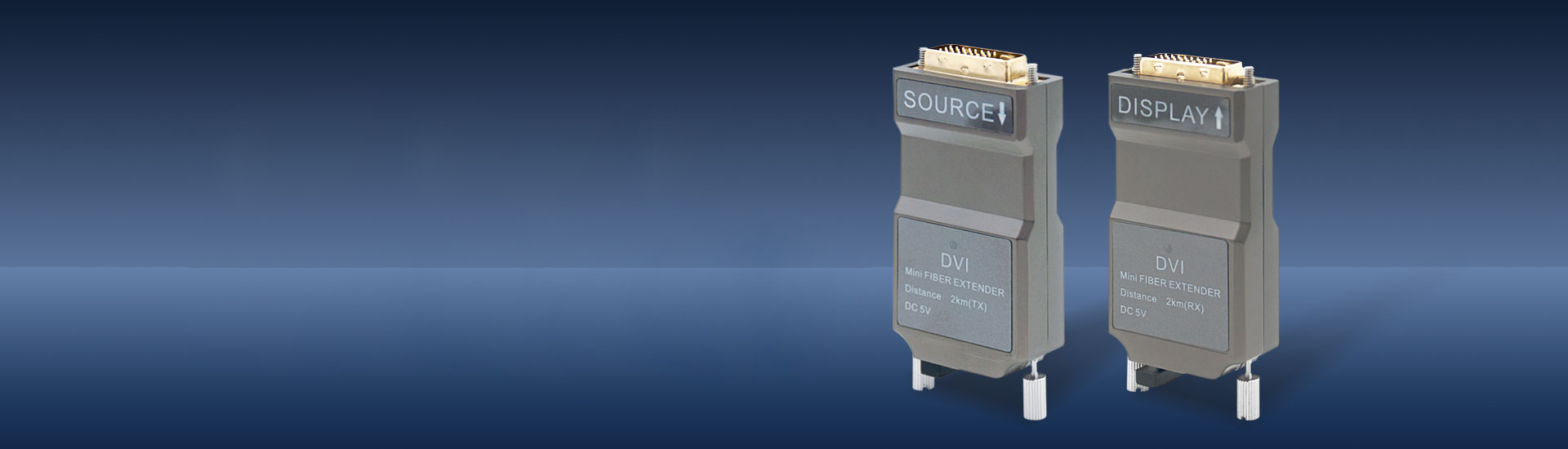

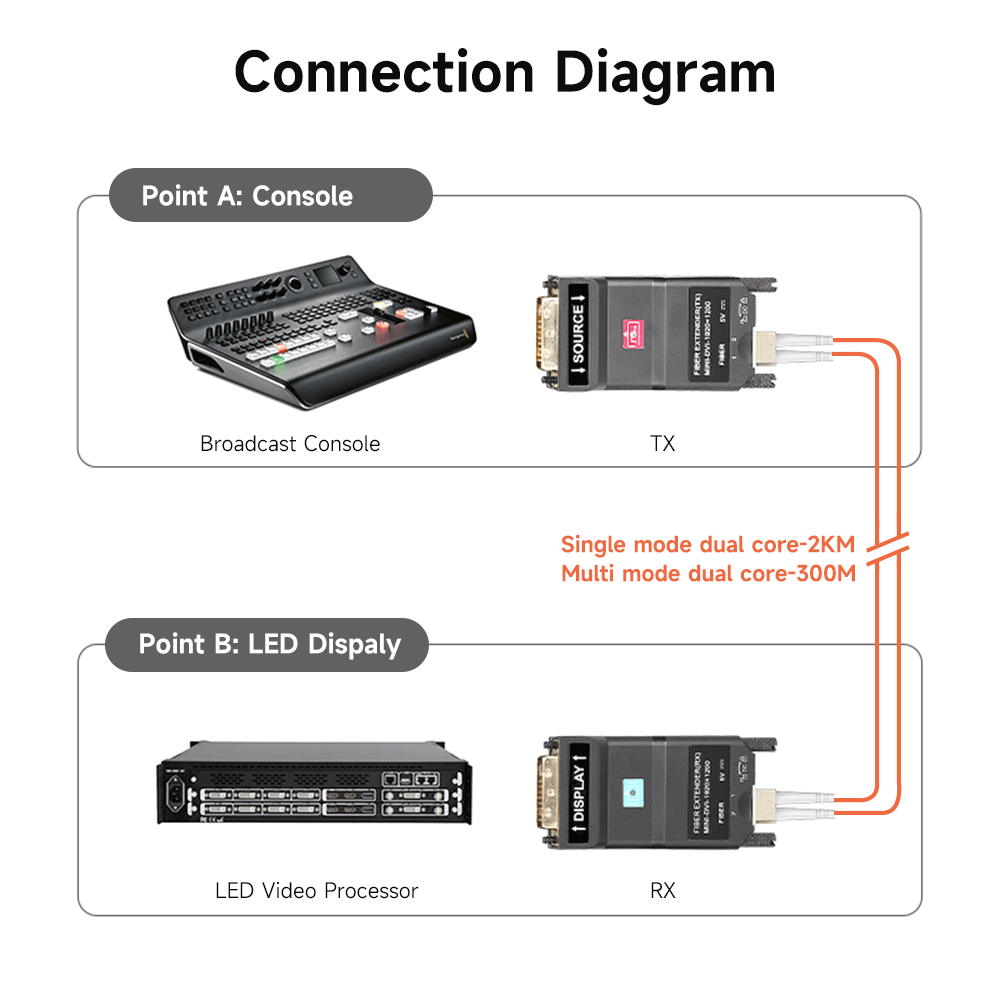

DVI mini fiber optic extender uses multimode or single-mode fiber to solve electromagnetic interference. With high performance and stable video signal quality to achieve long-distance transmission, the resolution can reach 1920*1200@60Hz.
OH901: Mini 4K DVI Fiber Optic Extender

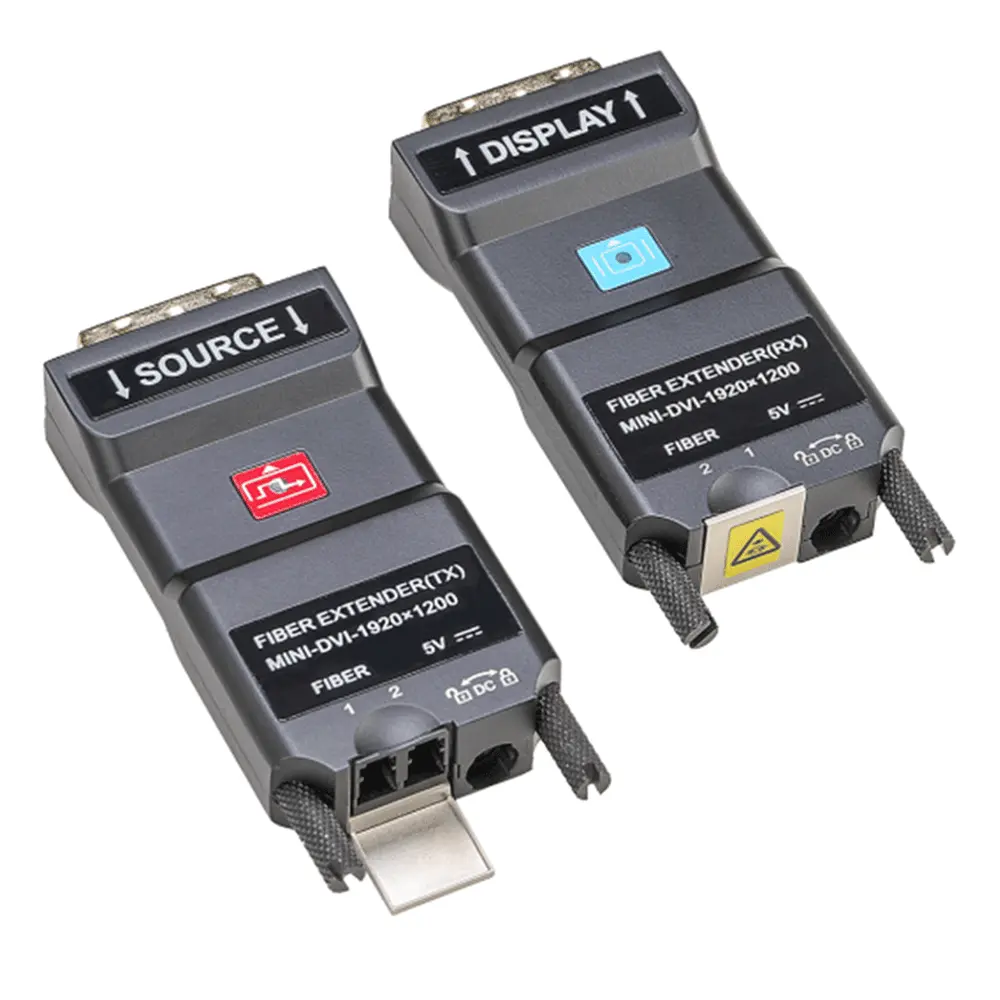

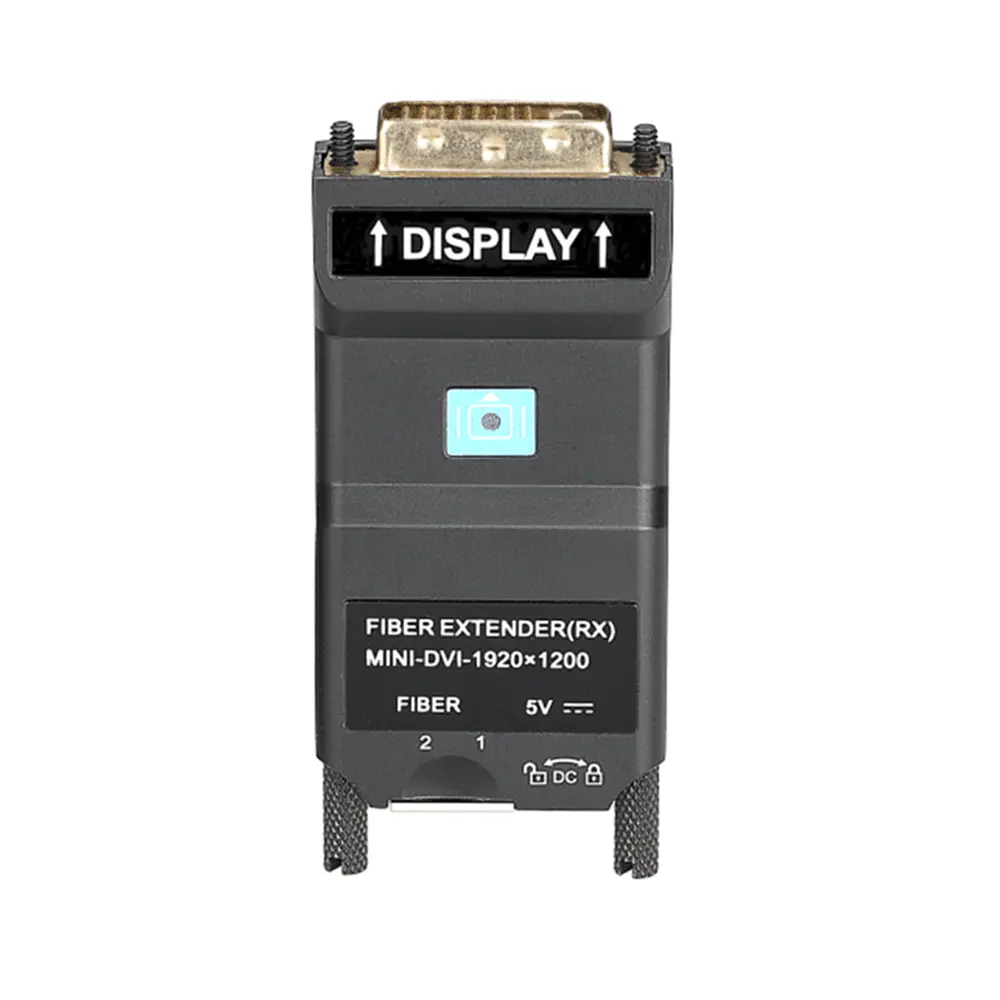

OD901: Mini HD DVI Fiber Optic Extender

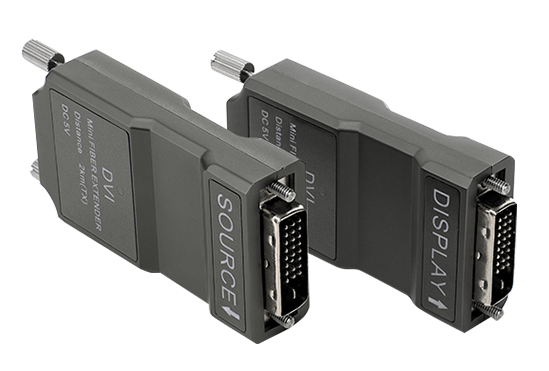

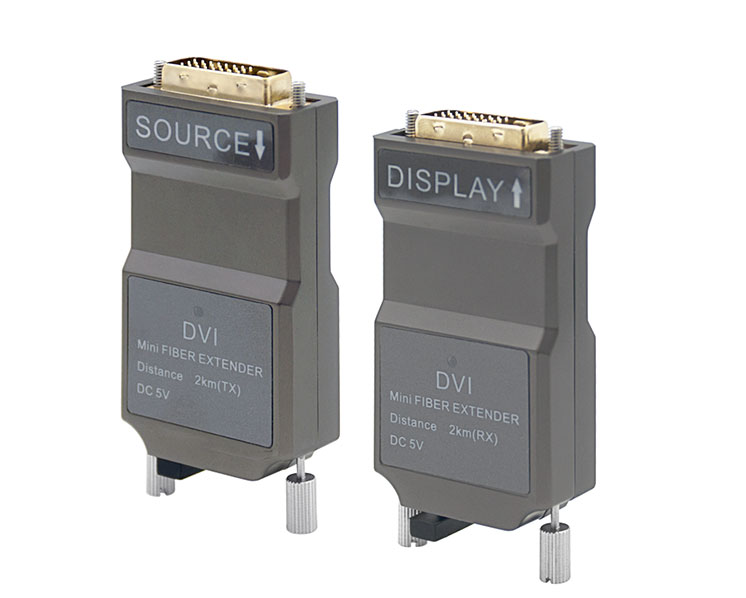

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Maximum support resolution 1920*1200@60Hz backward compatible
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
HDCP1.4 Support, Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0
DDC CEC HPD Signal Support
Delay time <2 ms
EDID automatic learning, with power-off memory function

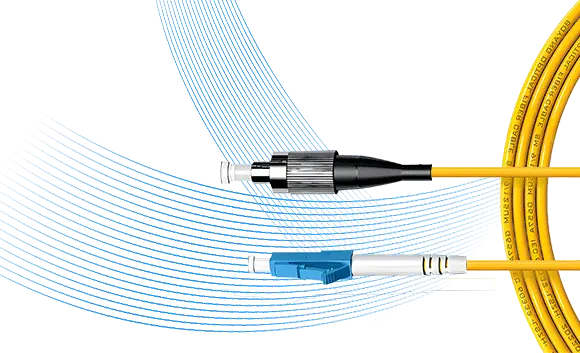

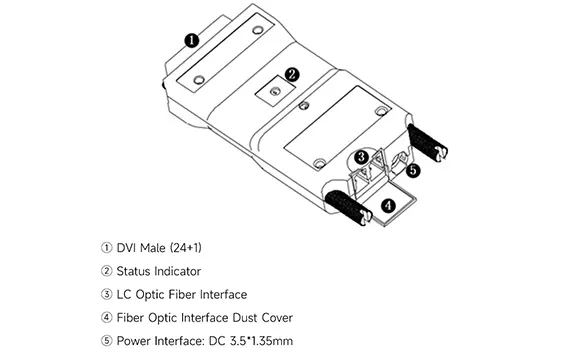

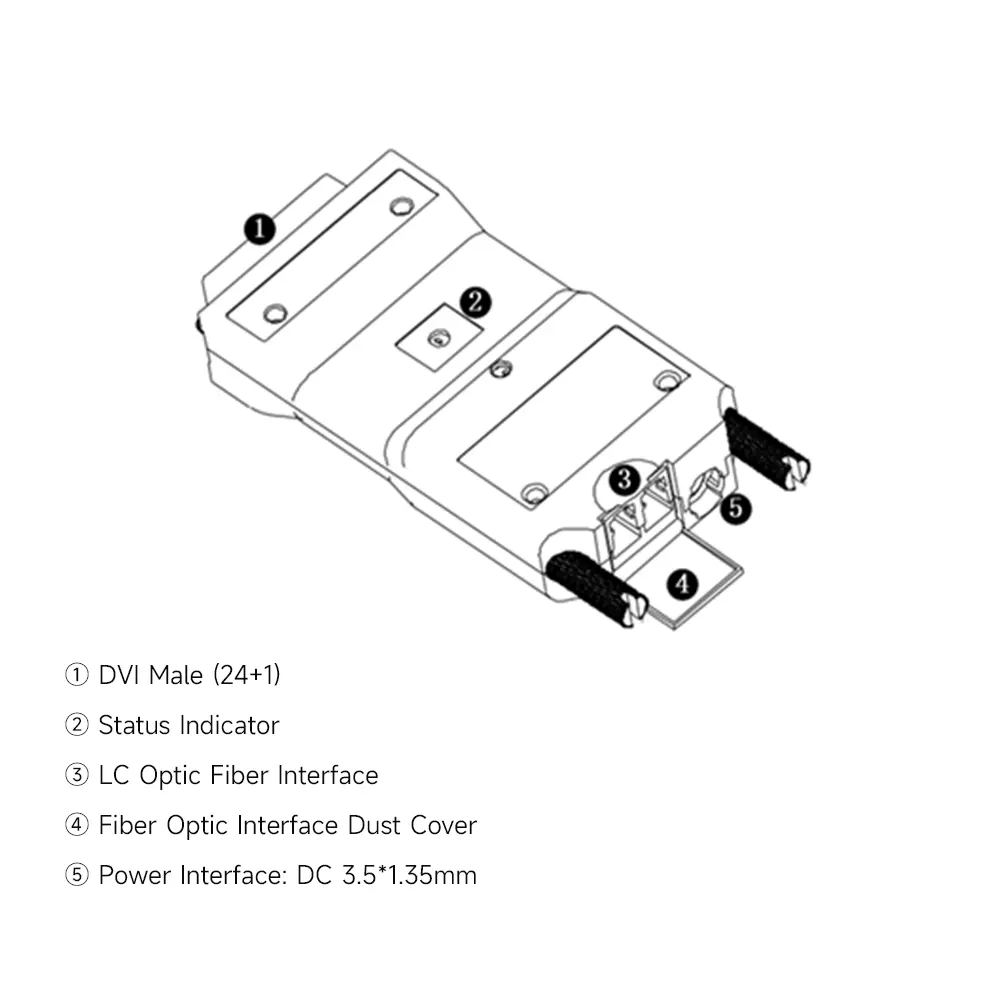

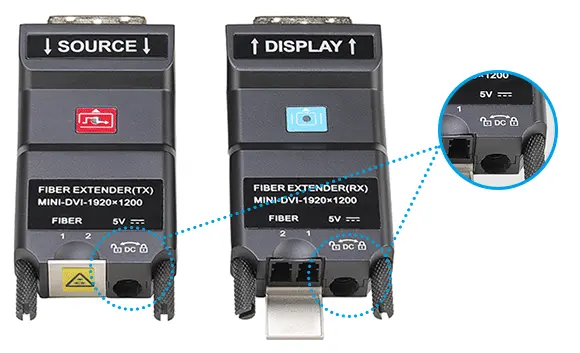

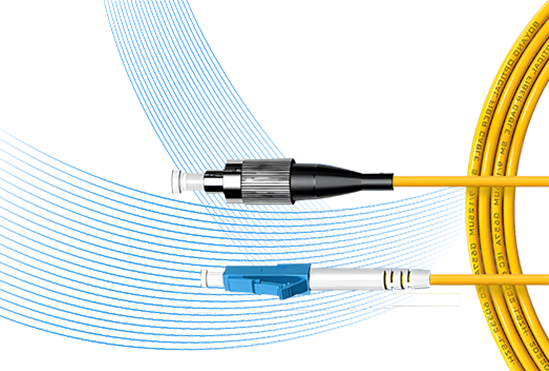

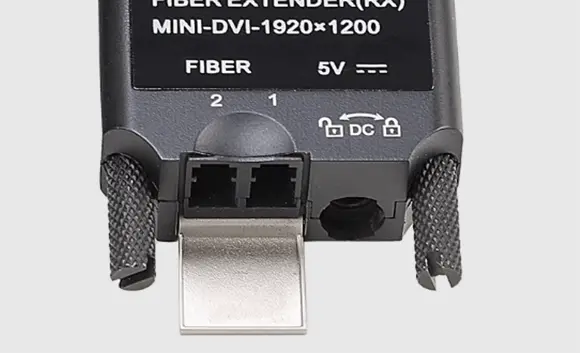

Fiber Connector: Duplex LC Receptacle

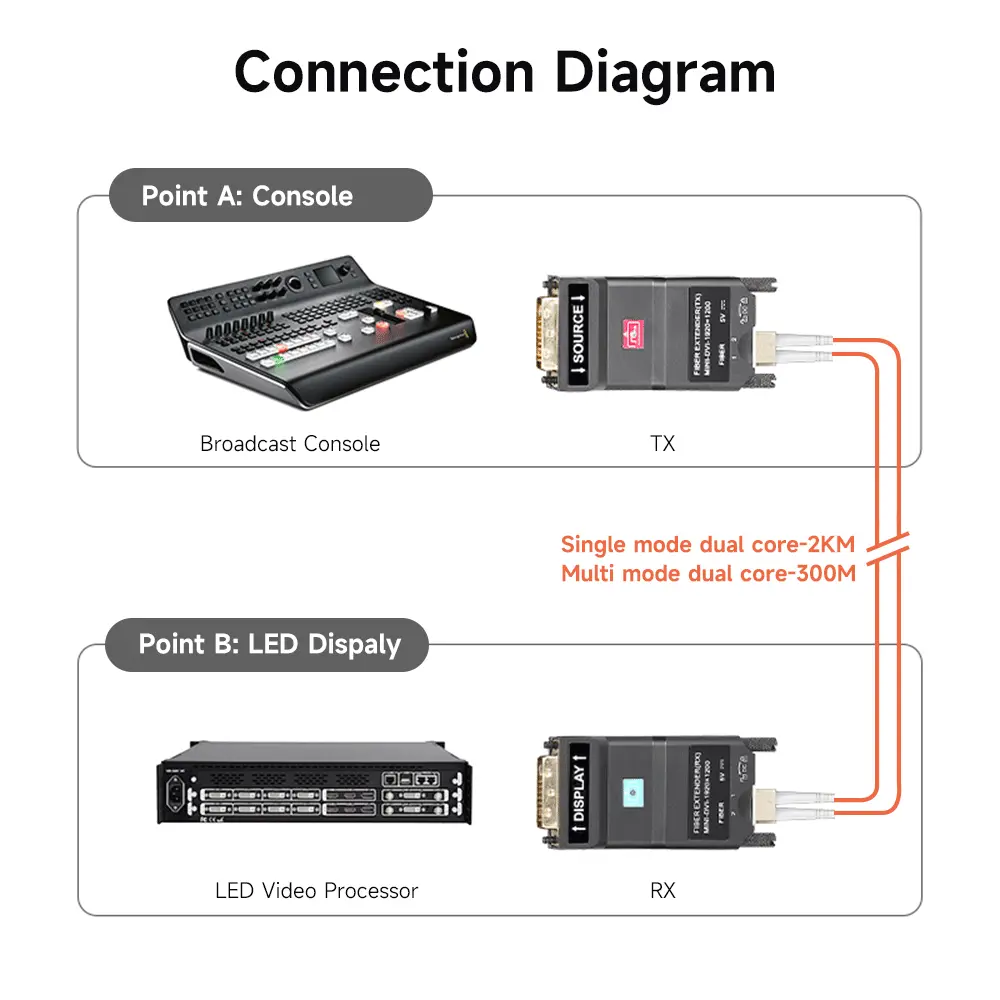

Multi-mode: 1KM; Single-mode: 2KM; can be customized 20KM
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | Uncompressed Mini DVI Optical Transmitter |
| Model | ZY-OD901 |
| Transmitter Input | DVI 1.0 IN*1 |
| Transmitter Output | LC*1 |
| Recevier Input | LC*1 |
| Recevier Output | DVI 1.0 IN*1 |
| Resolutuion | 1920*1200*60Hz backward compatible |
| SFP | LC Multi-mode-1KM; Single-mode: 2KM; can be customized 20KM |
| Video Bandwidth | 10GHz Gbps |
| Support EDID | √ |
| Support HDCP | HDCP1.4 |
| Temperature | ‘-20℃ to +75℃ |
| Humidity | ≤90% |
| Power Consumption | ＜1.5W |
| Power | 5V/+-5% |
| Size | 92*41*17mm |
| Weight | TX:0.15KG RX:0.15KG |

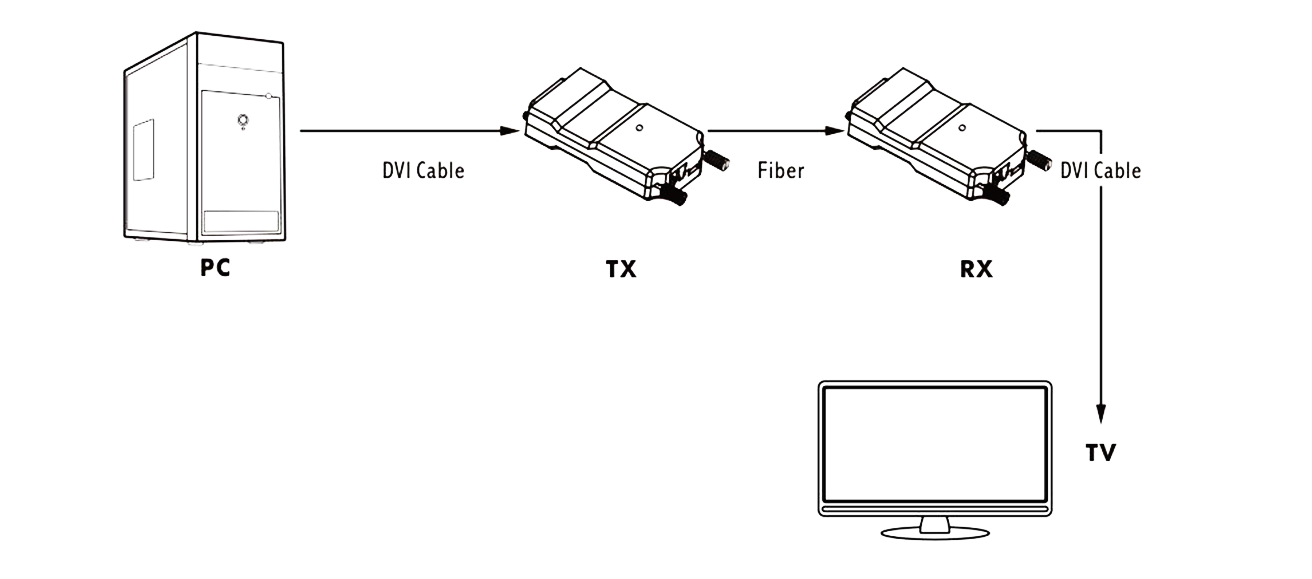

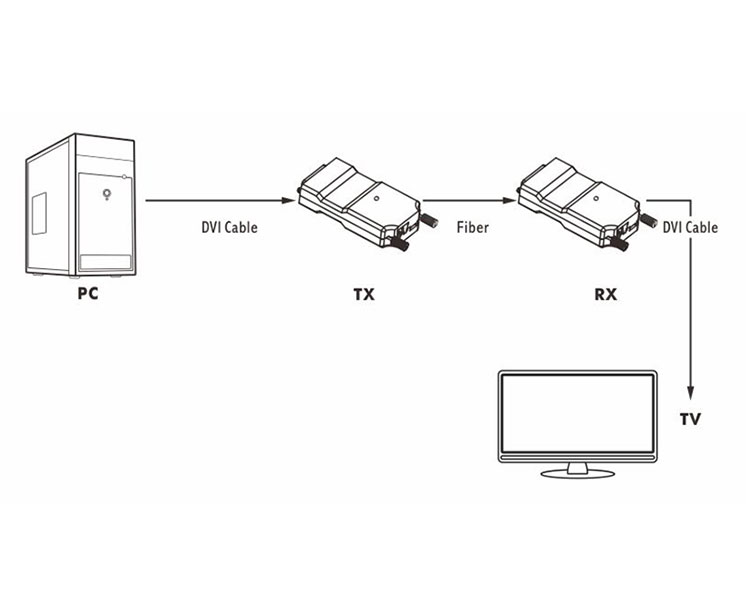

It is ideal for a wide range of applications requiring long-distance transmission of high-resolution content with the highest quality.
