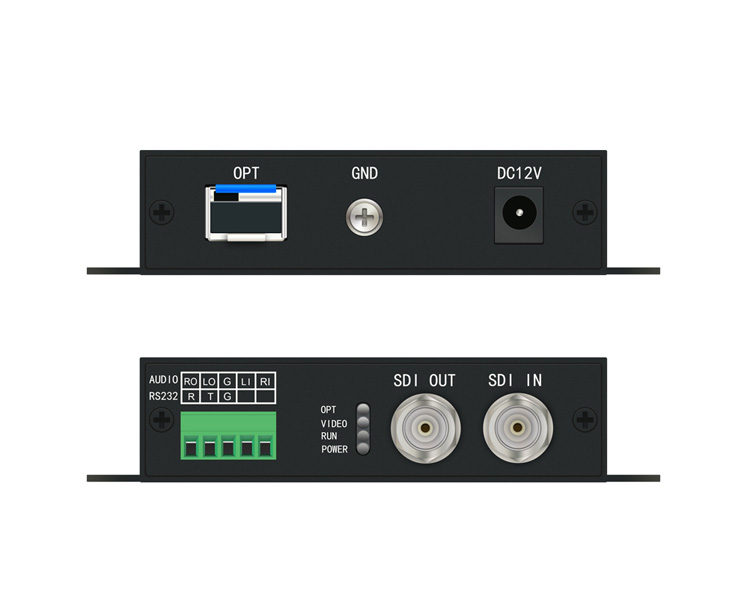

sdi to fiber converter

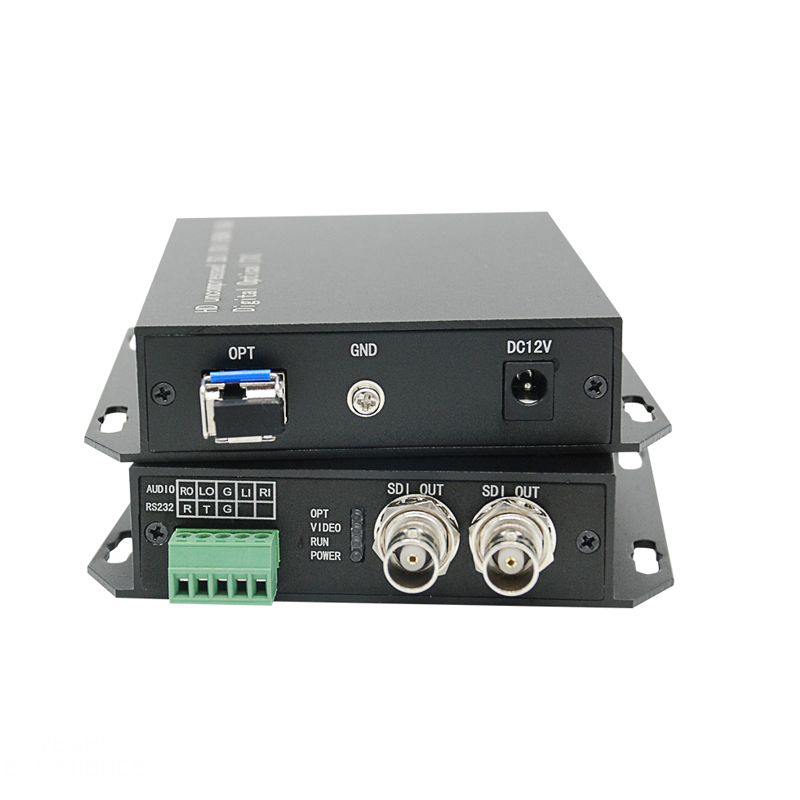

sdi extender 02

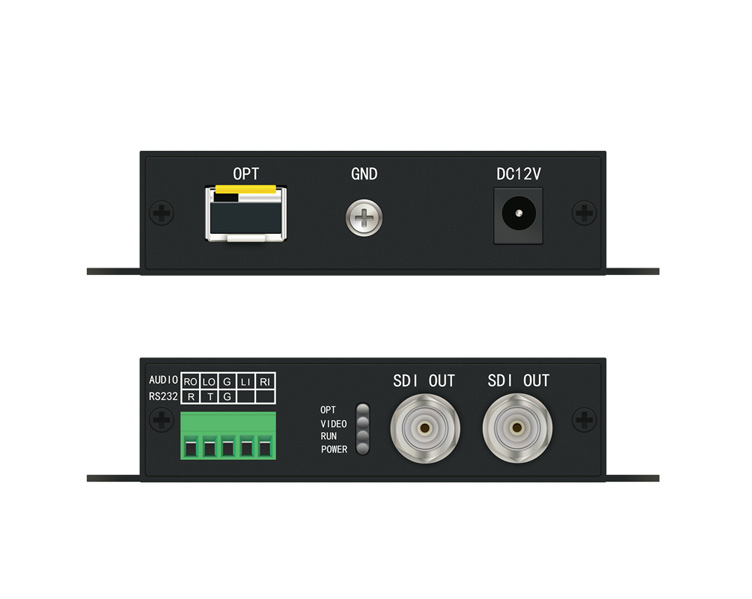

fiber to sdi converter

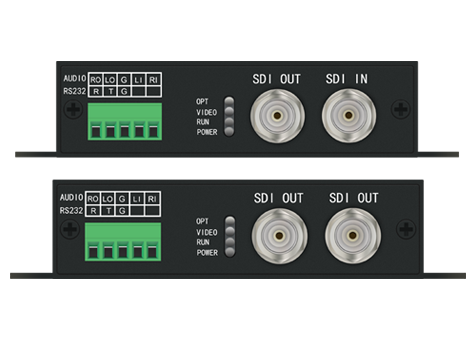

sdi to fiber converter

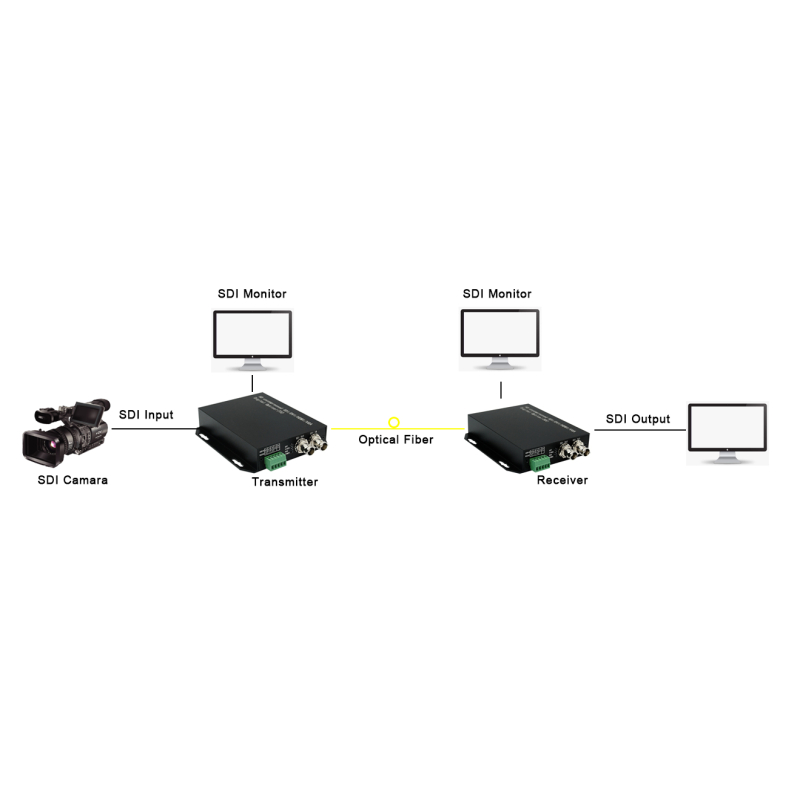

honeyviewconnection diagram

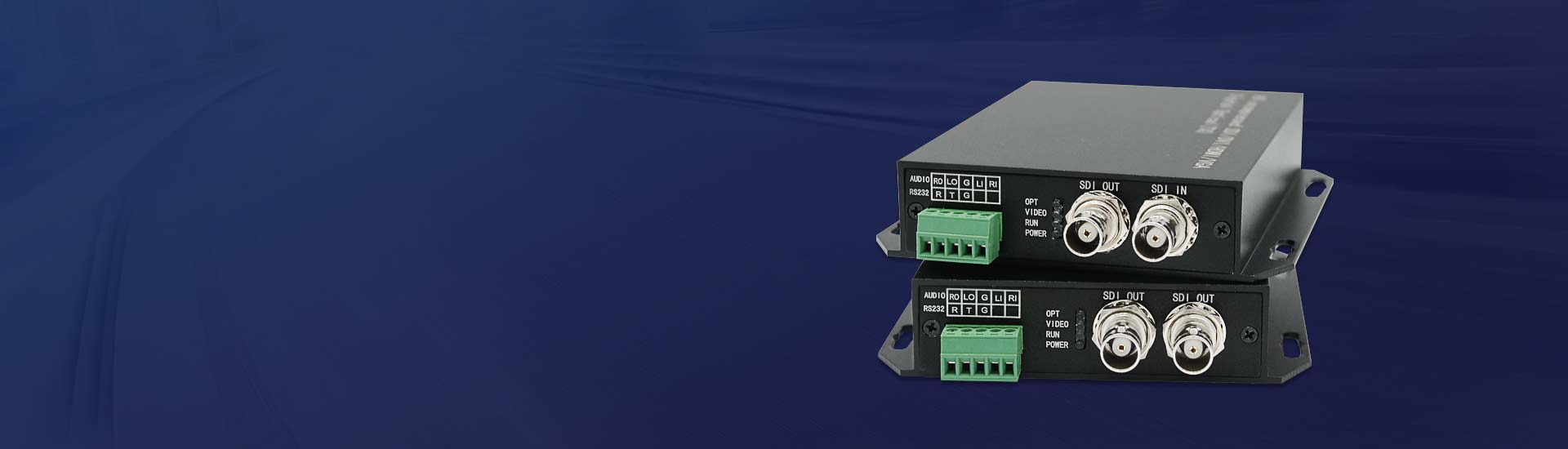

Orivision Uncompressed 1920x1080@60 SDI Optical Fiber Extender


Model: ZY-OS401

Transmitter Input: SD/HD/3G-SDI *1

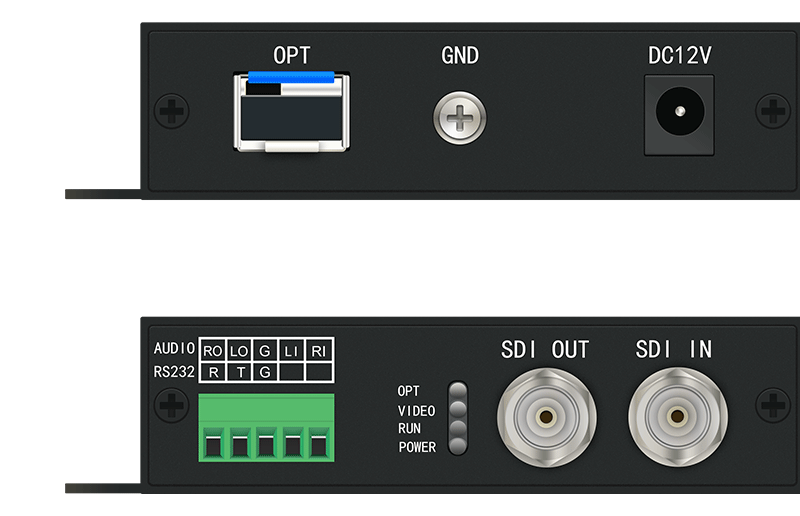

Transmitter Output: SD/HD/3G-SDI Loop-out *1 , LC *1, RS232/485

Recevier Input: LC*1,RS232/485

Recevier Output: SD/HD/3G-SDI *2

Resolutuion: Max 1920*1080@60Hz

Transmission Distance: Default:Single model 1-core (10km); Multimode Dual-Core Module (300m); Spport 20KM, 60KM,80KM OEM

Power: 12V/DC 1A

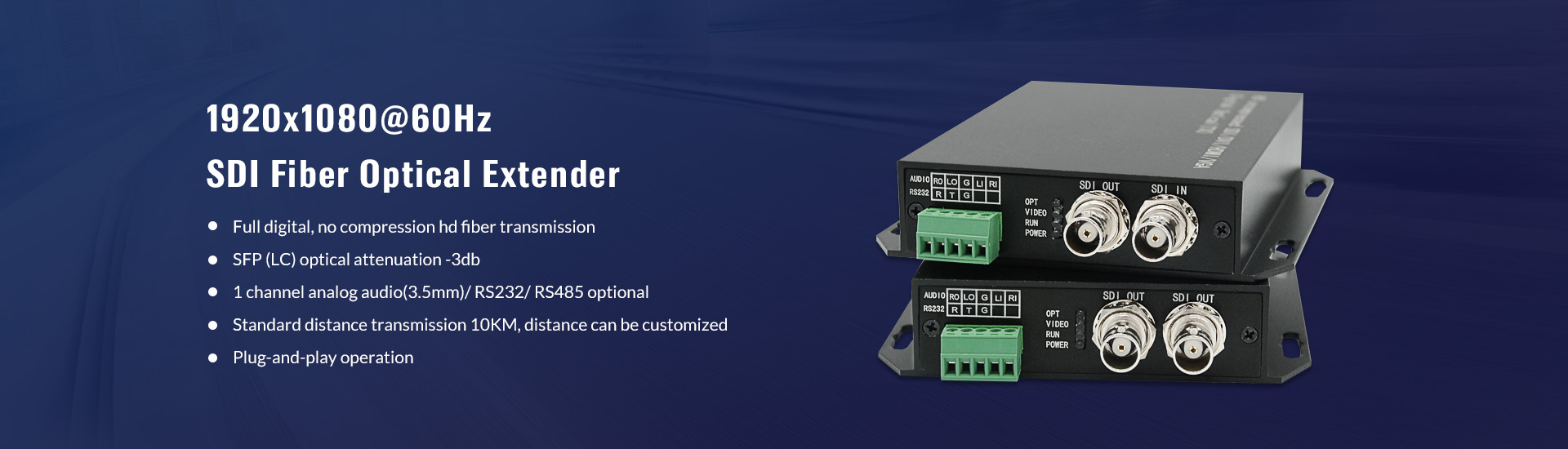

1920*1080@60Hz SDI Optical Fiber Extender
1920*1080@60Hz SDI Optical Fiber Extender
  • Full digital, no compression hd fiber transmission

  • SFP (LC) optical attenuation -3db

  • 1 channel analog audio(3.5mm)/ RS232/ RS485 optional

  • Standard distance transmission 10KM, distance can be customized

  • Built-in ESD protection

  • Plug-and-play operation

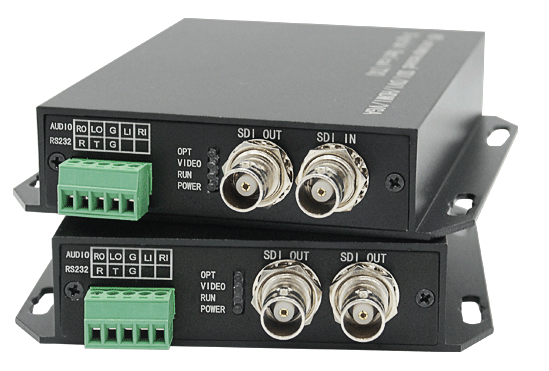

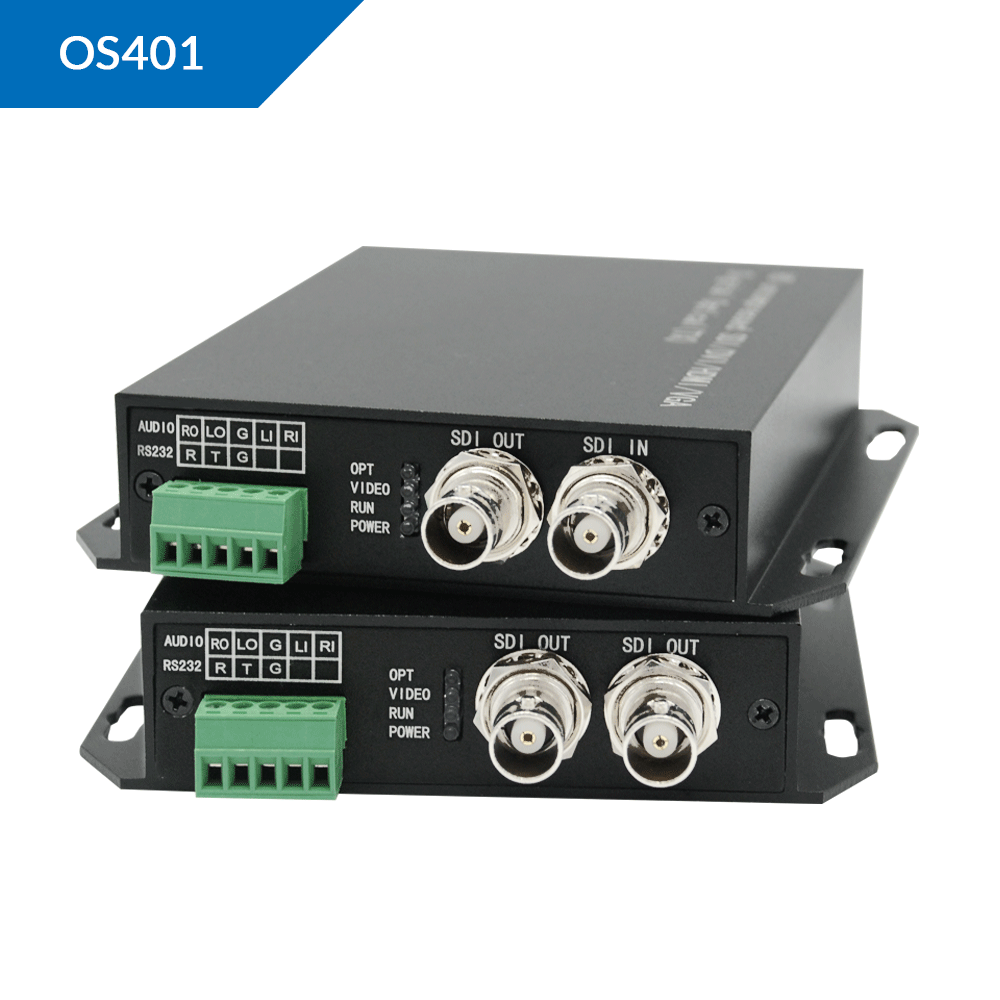

SDI Optical Fiber Extender

This is a mini type SDI Optical Fiber Transmitter and Receiver Set. HD SDI video signal can be transmitted through one single fiber with non-distortion, high-quality, long-distance transmission. This series of video to fiber converter is with stable performance, clear picture quality,and high stability for LED status indication on the body of device. The working status of devices can be visually observed.

At the same time, the switch value, voltage, working status and other reverse useful signal information can be controlled by data RS485. This makes our devices more flexible when different customers' requests come.

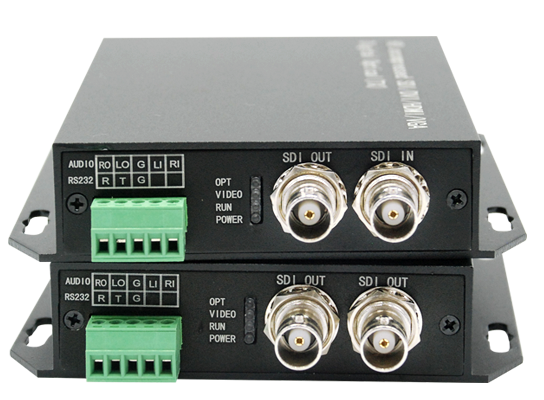

SDI Optical Fiber Extender
High Availability and Friendly Design

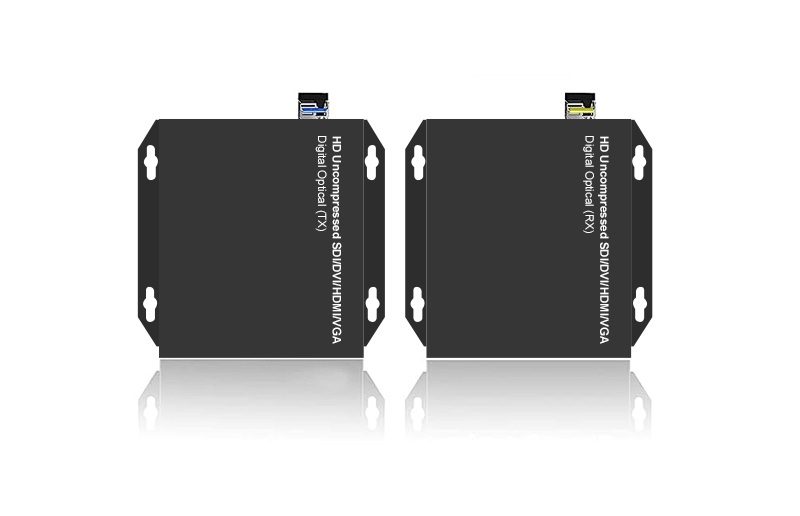

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design
Professional for HD Video Extender

Delivers HD picture quality at resolutions up to 1920*1080@60Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

Professional for HD Video Extender
Uncompression transmission

Full digital, uncompression hd fiber transmission, SFP (LC) optical attenuation -3db

Uncompression transmission

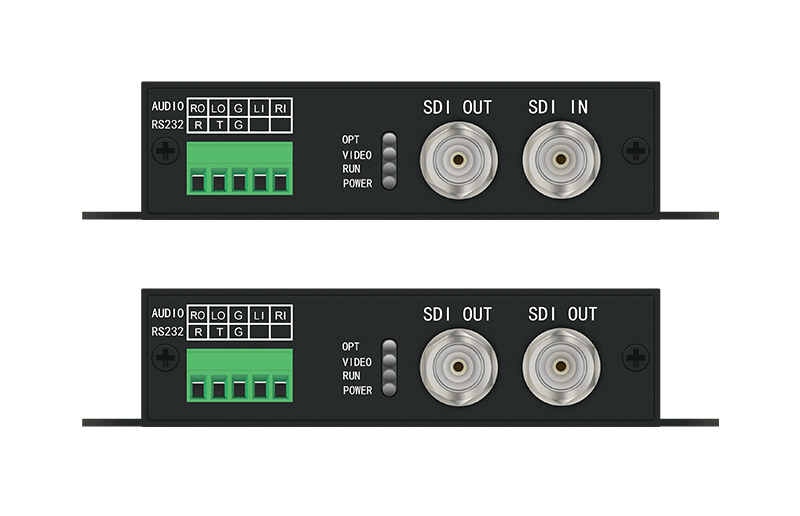

RS232/RS485/Audio optional

1 chnnel analog audio(3.5mm)/RS232/RS485 optional, default RS232

RS232/RS485/Audio optional

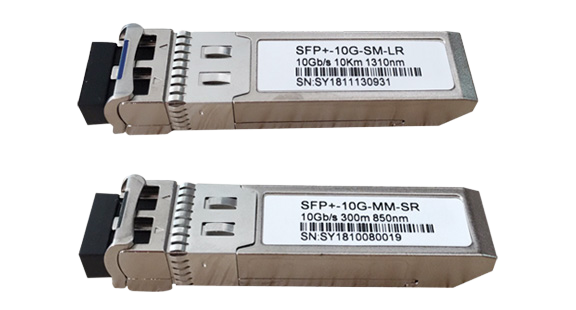

Single-mode and Multi-mode Optional

Default:Single model 1-core (10km)

Multimode Dual-Core Module (300m)

Spport 20KM, 60KM,80KM OEM

Single-mode and Multi-mode Optional
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (

Support OEM ODM

Parameters of Uncompressed 1920x1080@60 SDI Optical Fiber Extender

NameSDI Optical Extender
Transmitter InputSD/HD/3G-SDI *1
Transmitter OutputSD/HD/3G-SDI Loop-out *1 , LC *1, RS232/485
Recevier InputLC*1,RS232/485
Recevier OutputSD/HD/3G-SDI*2
ResolutuionSD-SDI:576I /480I
HD-SDI:720P50 / 720P60/1080P24/ 1080P25
1080P30/1080I50/ 1080I60
3G-SDI:1080P50  1080P60
SFPDefault:Single model 1-core (10km)
Multimode Dual-Core Module (300m)
Spport 20KM, 60KM,80KM OEM
RS232bidirectional transmission
Support EDIDx
Support KVMx
Temperature‘-20℃ to +75℃
Power Consumption<4W
Power12V/DC 1A
WeightTX:0.13KG   RX:0.13KG

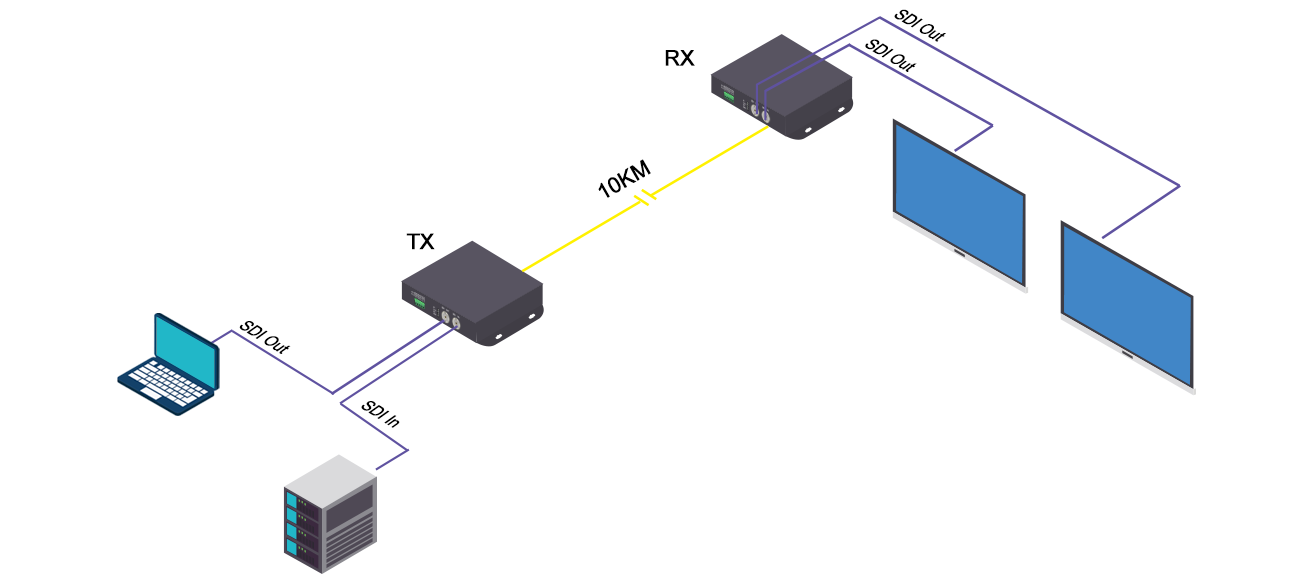

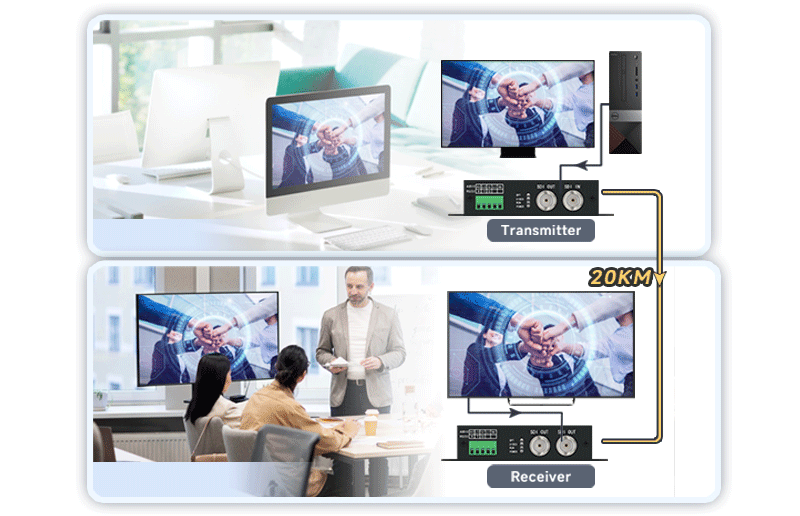

Diagram of Uncompressed 1920x1080@60 SDI Optical Fiber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.

Sdi Fiber Extender
