hdmi video encoder streaming

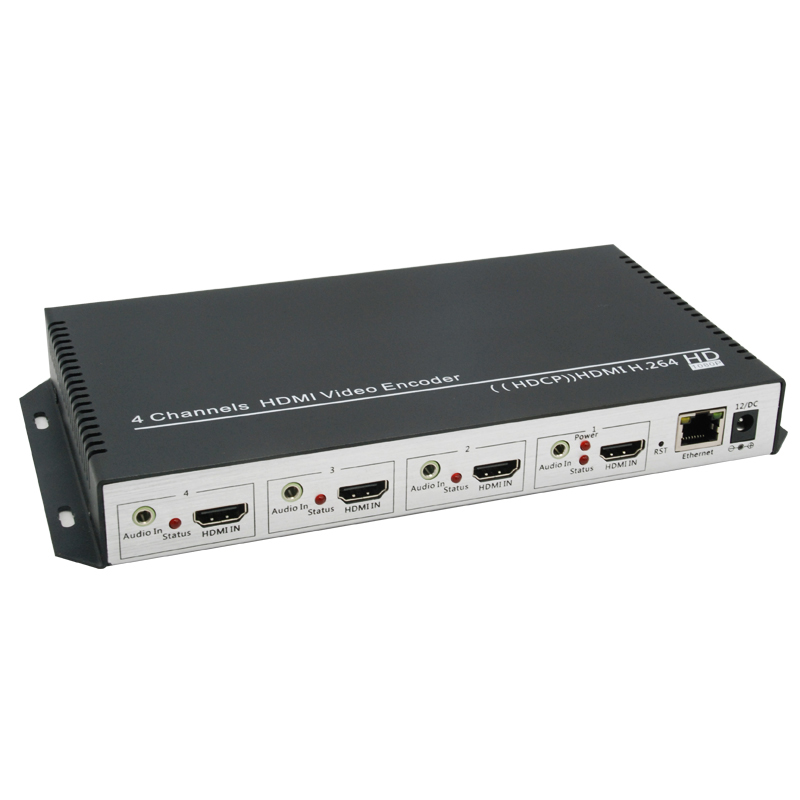

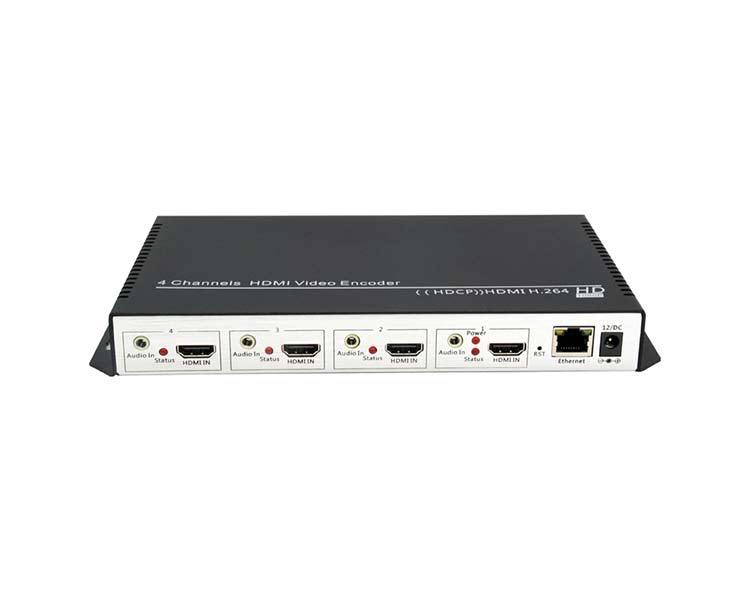

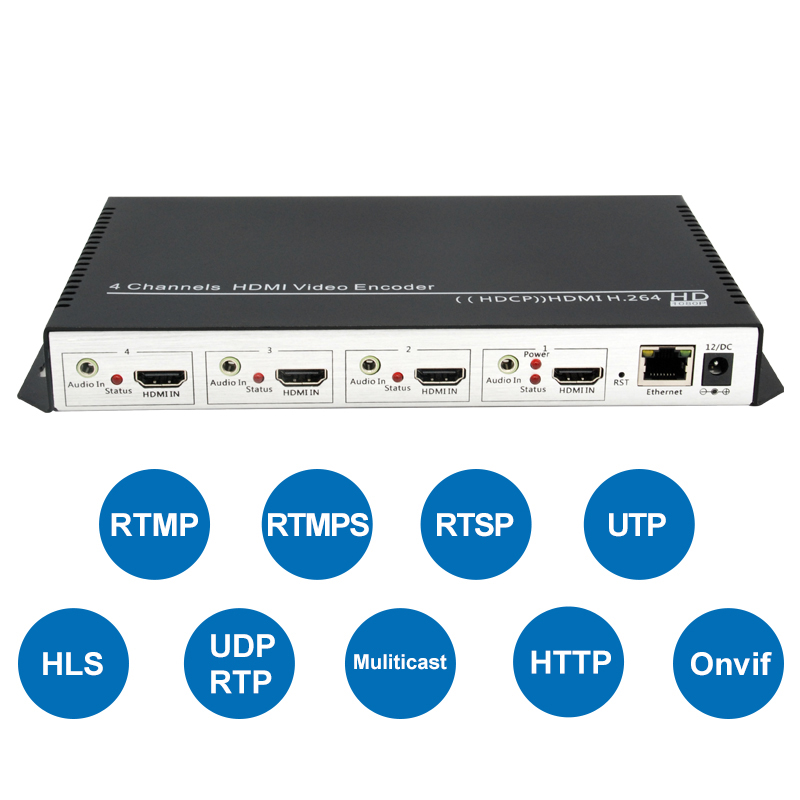

Orivision 4K@30 H.264 4 Channels HDMI Encoder


Model: ZY-EH404

Input Interface: HDMI*4, Audio*4

Output Interface: RJ45*1

Video Encoding: H.264

Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF protocol

Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )

Warranty: 1 Year

Certificate: CE & FCC & Rohs

4 Channel HDMI Encoder For IPTV, Live Stream, Broadcast
4 Channel HDMI Encoder For IPTV, Live Stream, Broadcast
  • Standard H.264 coding algorithm

  • Multi protocols:  HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF

  • Up to 4 channels 4K@30Hz input/output

  • Low Latency, High-Quality Streaming

  • OEM/ODM Orivision EH404 4k live streaming encoder

4K@30Hz H.264 4 Channel HDMI Encoder

Orivision EH404 4k live streaming encoder is an UHD 4K video encoder which is designed to meet the needs of all 4K video transmission applications. The input/output resolutions is up to 4K@30 for 4 channels. It supports H.264 high-performance encoding. Also, it supports the most protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif, etc.

4K@30Hz H.264 4 Channel HDMI Encoder
Support 4 channels HDMI&Audio Input

Orivision EH404 4k live streaming encoder support 4 channels HDMI Input and audio input, meeting the higher needs of our customers.

Support 4 channels HDMI&Audio Input
Up to 16 Streams Output at The Same Time

Each channel support 4 streams (http, rtsp, udp, hls) outputs, Orivision EH404 4k live streaming encoder support up to 16 channels streams output at the same time.

Up to 16 Streams Output at The Same Time

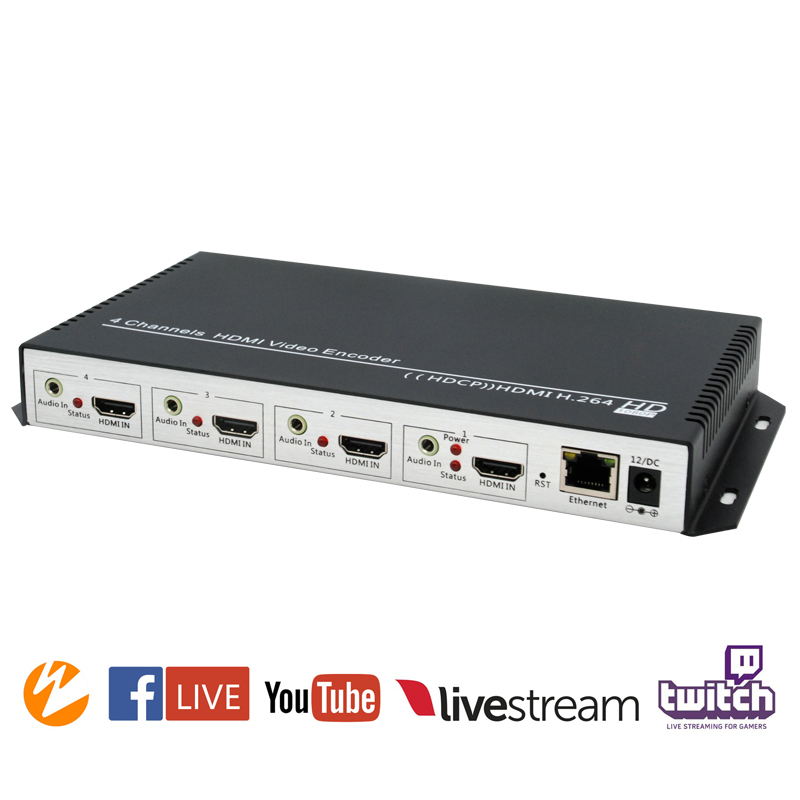

Multiple Network Protocols

Orivision 4 Channel HDMI encoder supports full range of protocols including RTSP/RTMP/RTMPS/SRT/HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.

Multiple Network Protocols

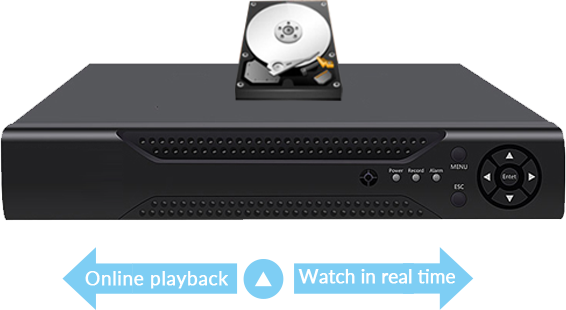

Good Compatibility

Support Onvif Protocol, and NVR recording, such as Hikvision NVR…

Good Compatibility

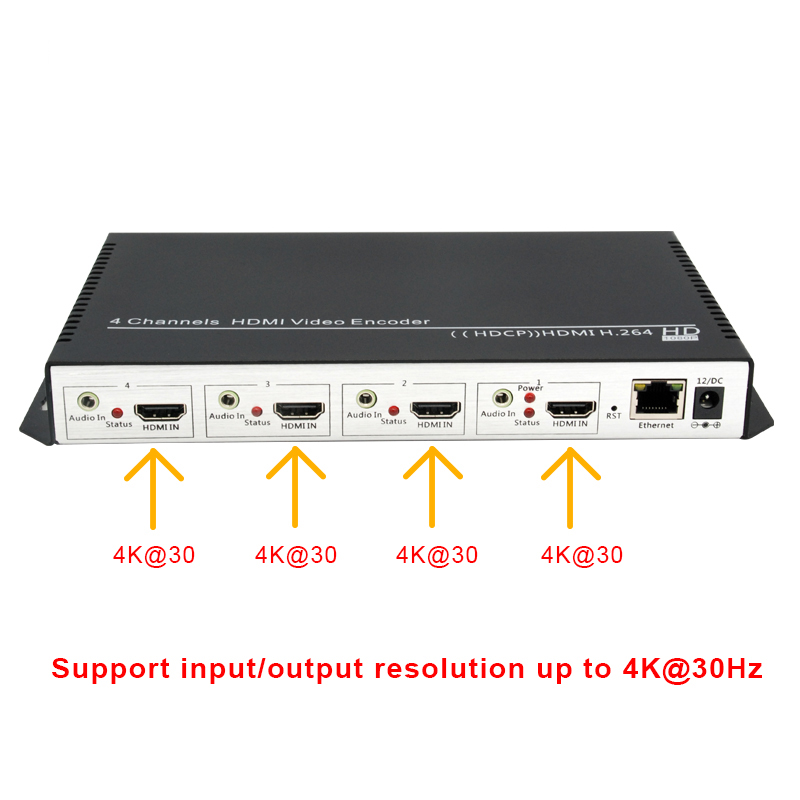

Resolution Setting

Maximum input resolution: 4K@30hz,

Maximum output resolution: 4K@30hz

Resolution can be set separately

Resolution Setting
Web Control

Orivision EH404 4k live streaming encoder support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

Web Control

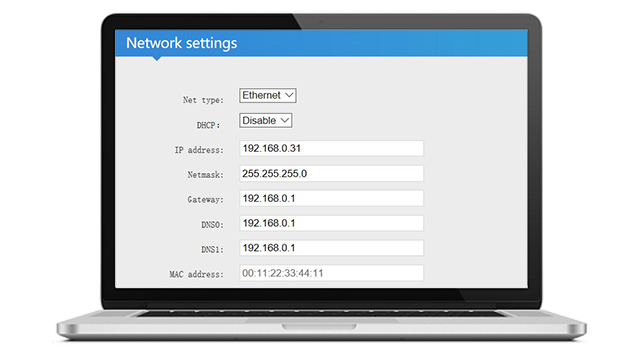

Obtain IP Automatically

Support DHCP and obtain IP automatically

Obtain IP Automatically
Audio Synchronization Encoding

Orivision 4 channel HDMI encoder support AAC/G711 audio format, support embedded and 3.5mm anolog audio.

Audio Synchronization Encoding
LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights.

LOGO/ Image/ Text Overlay

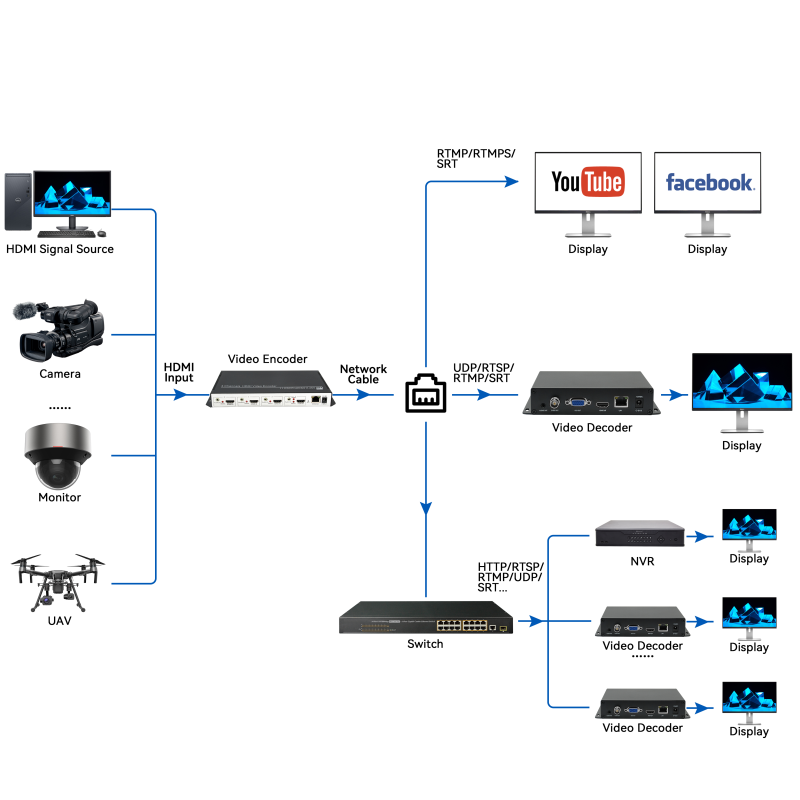

Local and Remote Transmission

Orivision EH404 4k live streaming encoder converts HDMI base-band video to H.265/H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.

Local and Remote Transmission
Multiple Signal Input Formats

Rich interface options,compatible with various video sources.

Multiple Signal Input Formats
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (

Support OEM/ODM

Parameters of H.264 4 Channels 4K@30 H.264 HDMI Video Encoder

NameH.264 4 Channels 4K@30 H.264 HDMI Video Encoder
Input InterfaceHDMI*4; Audio In*4
Output InterfaceLAN Port*1
Video EncodingH.264
Max Input Resolution3840*2160@30hz*4
Audio Input TerminalHDMI-IN/Stereo Line-in
Video Bit RateCVR/VBR: 16kbps~12Mbps
Audio Bit Rate48kbps~256kbps
Simultaneous StreamsMax. 2CH Streams at the same time per channel
Protocol SupportHTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif
OSD SettingTxt/Picture
Output InterfaceRJ45*1; Ethernet(10base-t/100base-tx)
Output Resolution3840*2160,2560*1600,2560*1440,2048*1536,2048*1080,1680*1200,1600*900,1440*1050,1440*900,
Live Streaming PlatformYouTube, Facebook, Wowoza…
ManagementWeb Opreation, remote upgrade
Power12V/DC 1A
Net Weight0.4kg

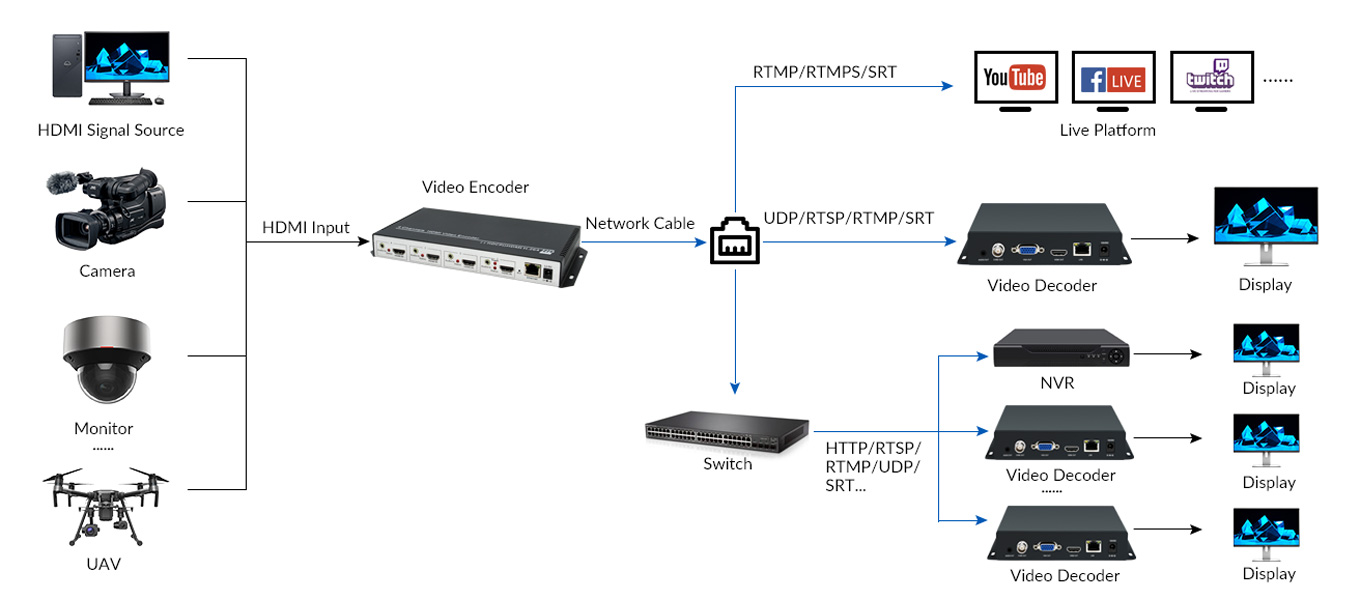

Diagram of H.264 4 Channels 4K@30 H.264 HDMI Video Encoder

Apply Orivision EH404 4k live streaming encoder to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.

Hdmi Rtmp Encoder

FAQ about H.264 4 Channels 4K@30 H.264 HDMI Video Encoder

What is the default login IP of the encoder?

A: The default login IP address is

What is the login account and password of the encoder?

A: The default login account and password are both admin

After entering the account password, the page cannot be displayed or the display is incomplete

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again.  Or check if the network segment of the local link is 192.168.0.XX

How to reset the encoder if you forgot the login IP or login account password

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully

The device cannot be turned on when connected to the power supply and the power light does not turn on

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us ( for repair or replacement.

How to get the newest firmware and update it?

A: Pls contact for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.

After get the newest firmware, pls follow the steps as below:

Step 1: Download the .rar file, do not unzip the file

Step 2: Log in to your Encoder or decoder web user interface and click the System button.

Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)

Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
