How to Set SRT Protocol

SRT Protocol configuration

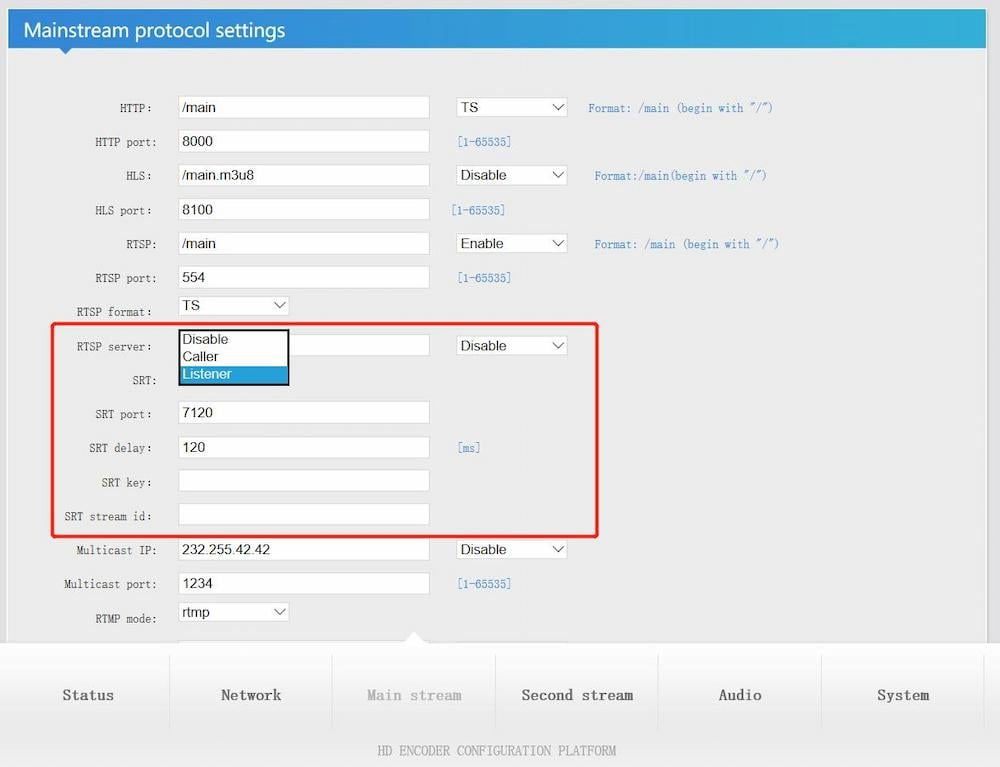

Two modes are available: Caller/Listener.

Select "Listenser"

1. SRT Port: default. customers can modify it, but suggest to set it more than 1024.

2. SRT delay: default.

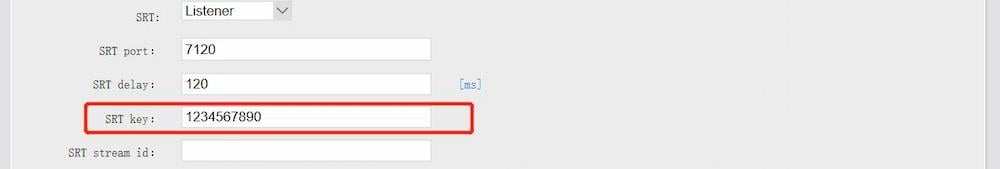

3. SRT Key: set a password of at least 10 digits.

4. Press the "set up" butter and reboot the encoder after any change the parameter.


How to Set SRT Protocol

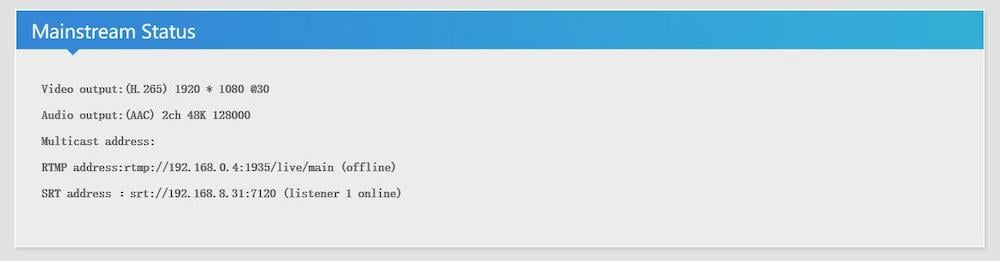

After reboot the encoder, there is a set of SRT stream address in the status page (As shown below).


How to Set SRT Protocol


SRT address format: srt://ip:port

E.g: srt://192.168.8.31:7120

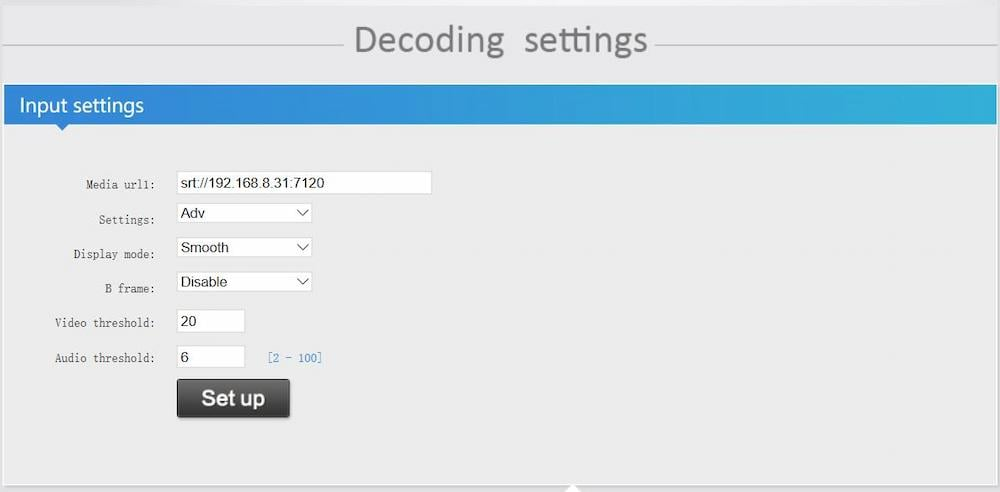

You can copy the address and play it with VLC to make sure it's working. Then Paste the address into the video decoder (As shown below).


How to Set SRT Protocol


If you want to set the password for the SRT stream address, you can set it by yourself.

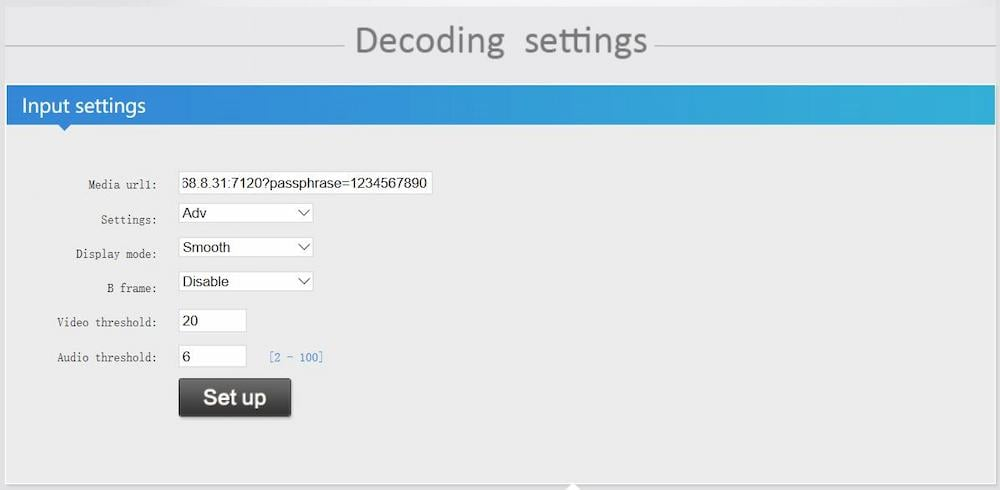

Then the SRT address format: srt://ip:port?passphrase=passwords

E.g: srt://192.168.8.31:7120?passphrase=1234567890


How to Set SRT Protocol


How to Set SRT Protocol

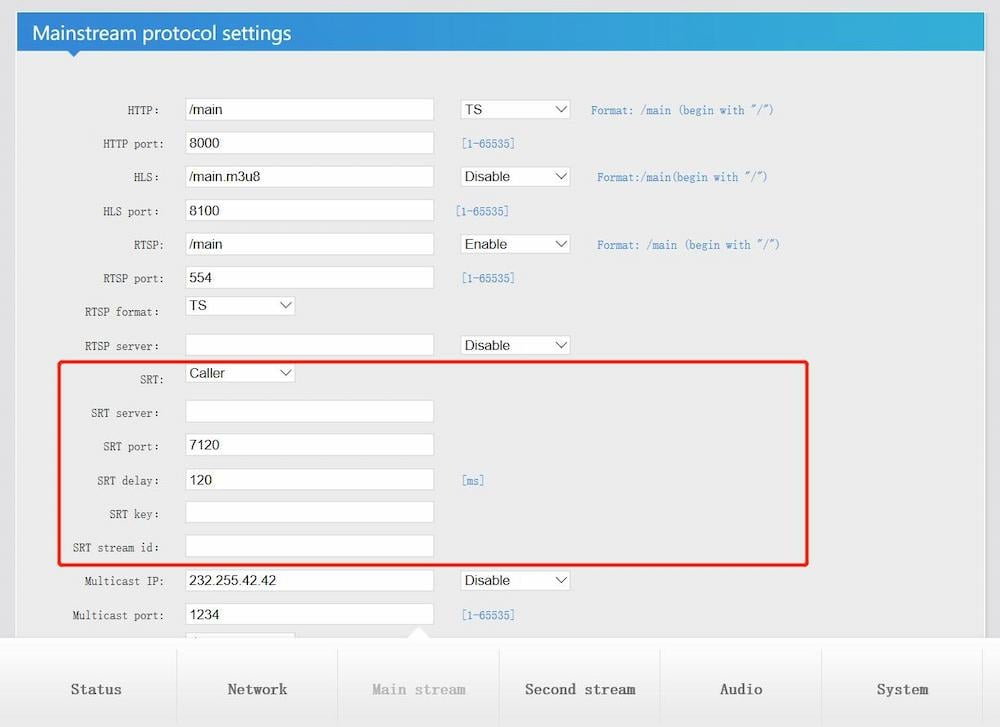

Select "Caller"

1. SRT Server: Input the IP address of Video Decoder.

2. SRT Port: default, customers can modify it, but suggest to set it more than 1024.

3. SRT Delay: default.

4. SRT Key: set a password of at least 10 digits.

5. Press the "set up" butter and reboot the encoder after any change the parameter.


How to Set SRT Protocol

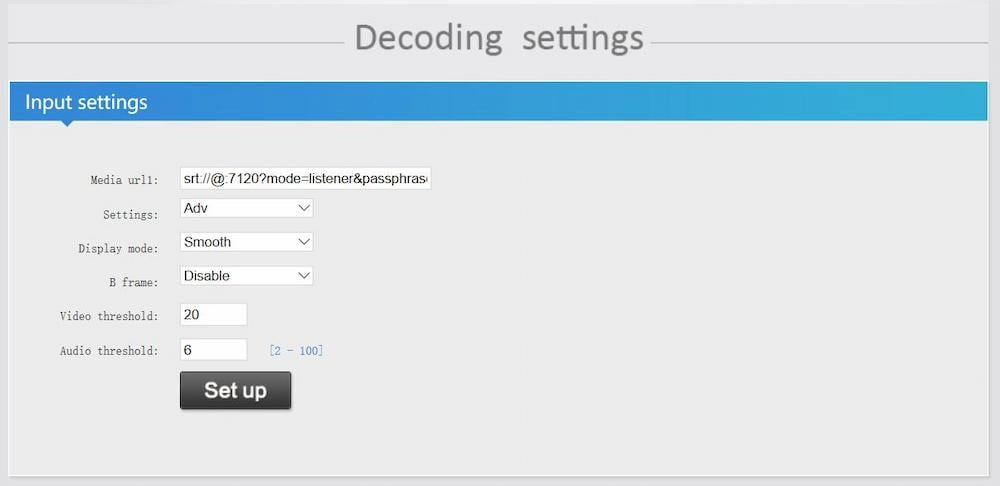

When you set the password, SRT address format:

Srt://@port?mode=listenser&passphrase=passwords

E.g srt://@:7120?mode=listener&passphrase=1234567890


How to Set SRT Protocol

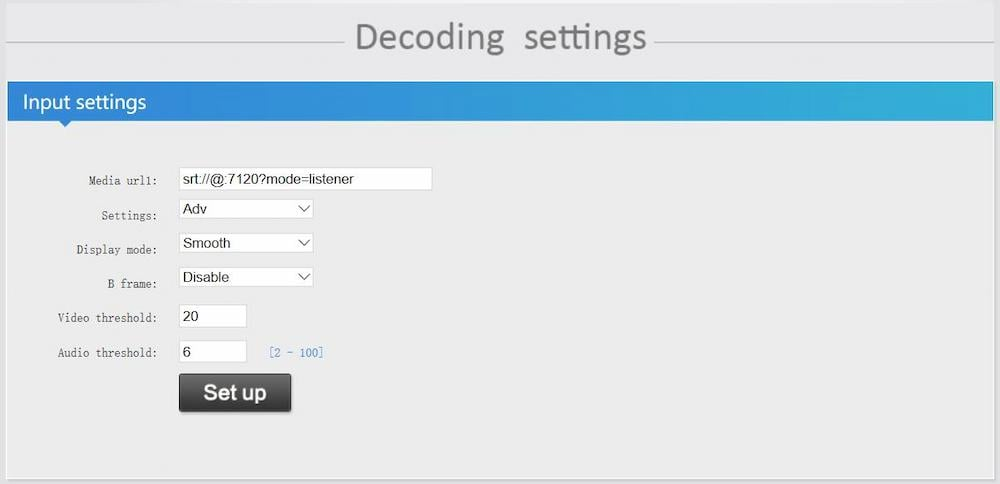

When you don't set the password, SRT address format: Srt://@:port?mode=listener

E.g srt://@:7120?mode=listener


How to Set SRT Protocol


Description of decoder stream address:


1. SRT Video Encoder choose "listener" mode, the SRT address format in Video Decoder:

srt://ip:port

srt://ip:port?passphrase=passwords


2. Video Encoder choose "caller" mode, the SRT address format in Video Decoder:

Srt://@:port?mode=listener

Srt://@port?mode=listenser&passphrase=passwords
